WD45 Dual tire narrow front axle questions
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Offfishn View Drop Down
Orange Level
Orange Level


Joined: 07 Feb 2015
Location: Michigan
Points: 213 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Offfishn Quote  Post ReplyReply Direct Link To This Post Topic: WD45 Dual tire narrow front axle questions
    Posted: 05 Jun 2016 at 7:50pm
WD45 Dual tire narrow front axle questions
.

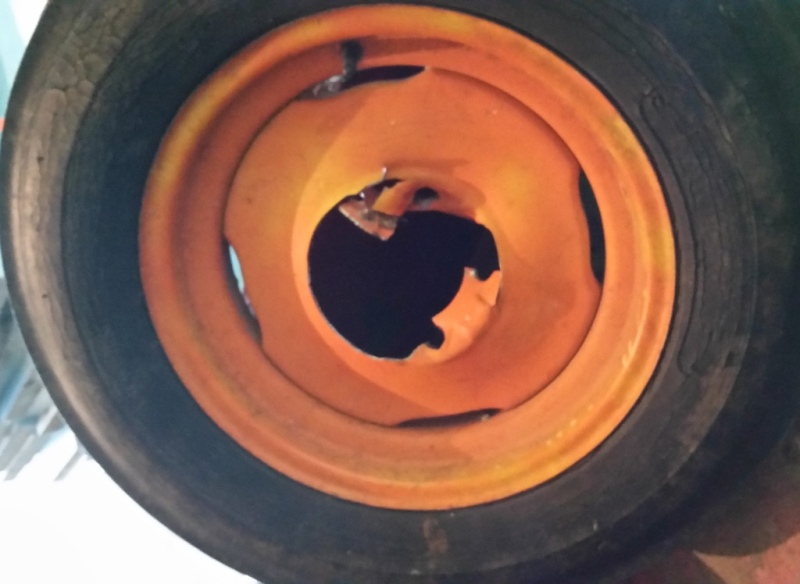

The left wheel broke off around the center lug area (WD45 Axle pic_2a).


.
.

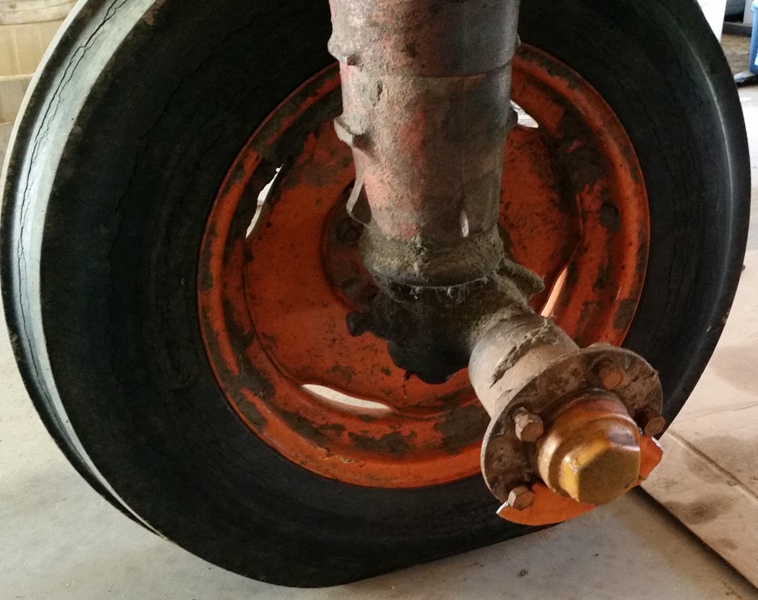

The center of the rims lug area was still secured by one lug (WD45 Axle pic_1a), which I removed to fully remove the rim from the hub.

None of the 5 lugs were loose, the center rim steel fatigued.



.
.

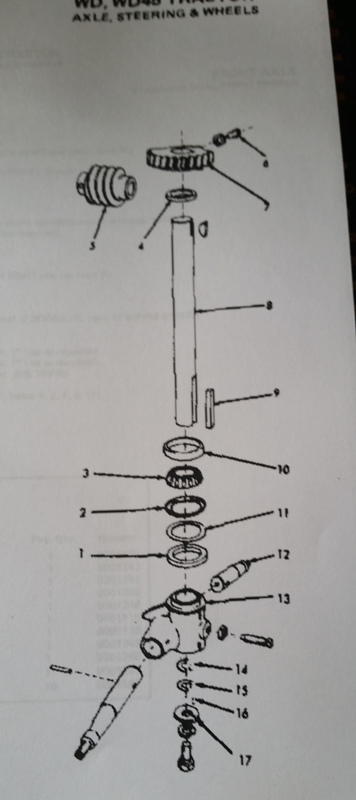

So I loosed the lower hex head screw (1-1/8" socket) on the #13 assembly and lowered the assembly off the #8 vertical shaft and removed the #9 key stock also.
I scrapped the crud off the support housing that contains the vertical shaft #8.
The broken pieces of the seal fell out along with the metal washer.
The #3 bearing is still on the #8 shaft.
I have about .100" left to right play on the #8 shaft and about that much when pushing the shaft up also.
.
Question #1
Whats the best way to get that bearing out?

Question #2

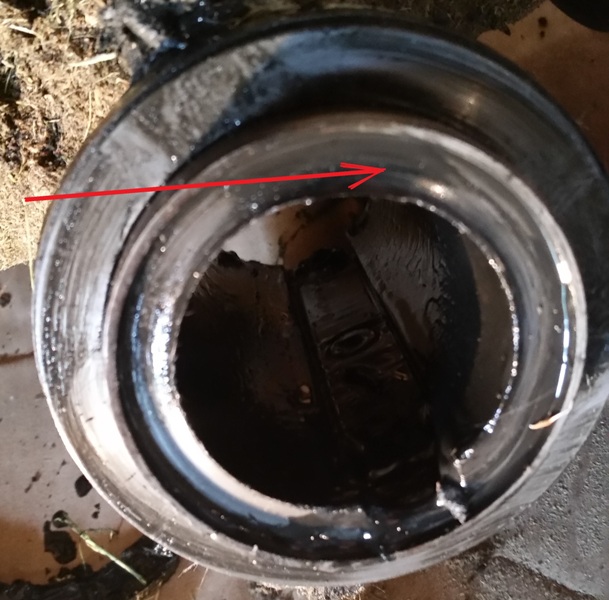

Does the mating surface of the #13 housing (WD45 Axle pic_3a, see RED arrow) look ok to reuse?




Question #3
Where can I get new bearings and seals for the #8 vertical shaft and the hubs?

Thanks...ed


Edited by Offfishn - 05 Jun 2016 at 8:02pm
54' WD45#160414 w/AC loader, 60" mower, sickle & 72" back blade.
In Michigan, out annoying the neighbors in something that has a motor in it!
Back to Top
Sponsored Links


Back to Top
Ted J View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18943 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted J Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2016 at 10:19am
Ed, I notice at the bottom of the page there is a grease gun and a grease gun filler.  I wonder if these things are still available?  Or if someone has one?  I don't think I've ever seen a grease gun filler.......and I can't find any of the parts numbers in the AGCO parts Books.....
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 3042 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2016 at 12:39pm
At the factory where I work I think they refill the grease guns. Have something like a small 20gal steel barrel they pump the grease out of and into the gun.
Back to Top
Stan IL&TN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Elvis Land
Points: 6730 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan IL&TN Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2016 at 1:04pm
My shaft was wore down where he bearing preload was set too loose. I was able to get a machine shop to weld up the shaft and turn it down and thought I would go ahead and replace the bearing. At the time AGCO said the bearing was no longer available and the one bearing place I went to was unable to match it with anything. If that is still what you find out today be careful with trying to remove the old bearing as to not booger it up if a replacement is not available. Also remember the amount of slop in the pedestal may be due to not having the correct number of bearing preload shims in place. Let us know what you find.
1957 WD45 dad's first AC

1968 one-seventy

1956 F40 Ferguson
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8484 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2016 at 8:37pm
Not sure where the slop is in your system ? I had a custom larger key made to fit the worn key slot. Also, I got new bearings from KAMAN Bearing company.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
HD6GTOM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Nov 2009
Location: MADISON CO IA
Points: 6627 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6GTOM Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2016 at 9:24pm
I was able to pick up part of the bearings from Allen at R&R equiptent in Indianola Iowa but he has since closed up. I got a couple from O'Reillys but it took a month to get them.
Back to Top
Offfishn View Drop Down
Orange Level
Orange Level


Joined: 07 Feb 2015
Location: Michigan
Points: 213 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Offfishn Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jun 2016 at 6:50am
Hey Chris and Tom,

Do you have part numbers for those bearings?
Mine is still in the pedestal, I don't want to damage it by taking it out if no replacement is available.
Back to Top
KenBWisc View Drop Down
Orange Level
Orange Level


Joined: 15 Sep 2009
Location: Fall Creek, WI
Points: 1184 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KenBWisc Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jun 2016 at 8:35am
A local bearing distributor can get them for you.
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
Back to Top
Offfishn View Drop Down
Orange Level
Orange Level


Joined: 07 Feb 2015
Location: Michigan
Points: 213 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Offfishn Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jun 2016 at 9:25am
I need a PN# the bearing is still on the pedestal housing.
Back to Top
Offfishn View Drop Down
Orange Level
Orange Level


Joined: 07 Feb 2015
Location: Michigan
Points: 213 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Offfishn Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jun 2016 at 8:21pm
Hey All,
The AC WD45 manual says to use SAE140 in the steering worm gear.
Whats the general consensus here regarding the lube to use?

I'm still looking for bearing numbers for the dual narrow also.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jun 2016 at 8:29pm
Use grease. Pack the bearing and put a grease zerk in and pump it up. Corn head grease might be a little thinner if you are worried about regular grease being too thick, but you will never wear it out and the gear lube won't leak out on your front wheels either Big smile
 If you measure the shaft size and the bore for the outer race, and the stack height, you should be able to get a new bearing that will fit from any bearing supplier. Most won't give a hoot what the part number is or what the  Allis part number was.
 I think if you add a 70 in front of the given numbers you will find the part number in the AGCO parts page online, but it might not be available from AGCO.


Edited by CTuckerNWIL - 27 Jun 2016 at 8:33pm
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8484 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jun 2016 at 9:20pm
Lets see i will dig into the vast warehouse of pictures.

Guess I don't have a picture or part number for the bearing and seals in the pedestal?

I think these are for the wheel to axle bearings and seals






This may not help much? I took mine out and measured the OD. and I.D then called around to bearing mfg for prices and availability.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jun 2016 at 10:50pm
Originally posted by Sugarmaker Sugarmaker wrote:


This may not help much? I took mine out and measured the OD. and I.D then called around to bearing mfg for prices and availability.
Regards,
 Chris

With part numbers and companies changing over the years, that's the only way to do it, as far as I'm concerned
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
The Hooker View Drop Down
Bronze Level
Bronze Level


Joined: 31 Mar 2016
Location: ORE-e-GUN
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote The Hooker Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2016 at 9:01am
The riveted wheels were lighter material (17#) than the welded wheels (21#). Suggesting to me that there were some reliability issues with the riveted wheels.

Edited by The Hooker - 28 Jun 2016 at 3:02pm
Back to Top
HD6GTOM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Nov 2009
Location: MADISON CO IA
Points: 6627 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6GTOM Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2016 at 10:10am
i will look around tonight when I get home, I might still have the old bearings I took off. I know they were not available from any other bearing distributators around here. Memory is not good
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2016 at 10:17am
The originals may have been a radial thrust bearing ?? but a regular timken bearing will work fine.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Offfishn View Drop Down
Orange Level
Orange Level


Joined: 07 Feb 2015
Location: Michigan
Points: 213 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Offfishn Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jul 2016 at 9:19pm
OK
I cleaned out the old grease and put new stuff back in.
I'll do a couple trips around the pasture with the mower and see how it turns.

Thanks to all!


Edited by Offfishn - 05 Jul 2016 at 9:20pm
Back to Top
The Hooker View Drop Down
Bronze Level
Bronze Level


Joined: 31 Mar 2016
Location: ORE-e-GUN
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote The Hooker Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jul 2016 at 11:09pm
Be sure to inspect the other wheel for cracks as well.
