Wd picker project

 Post Reply Post Reply Page  12>
Author
Message
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Topic: Wd picker project
    Posted: 14 Sep 2021 at 10:54am
Hey a’ll,

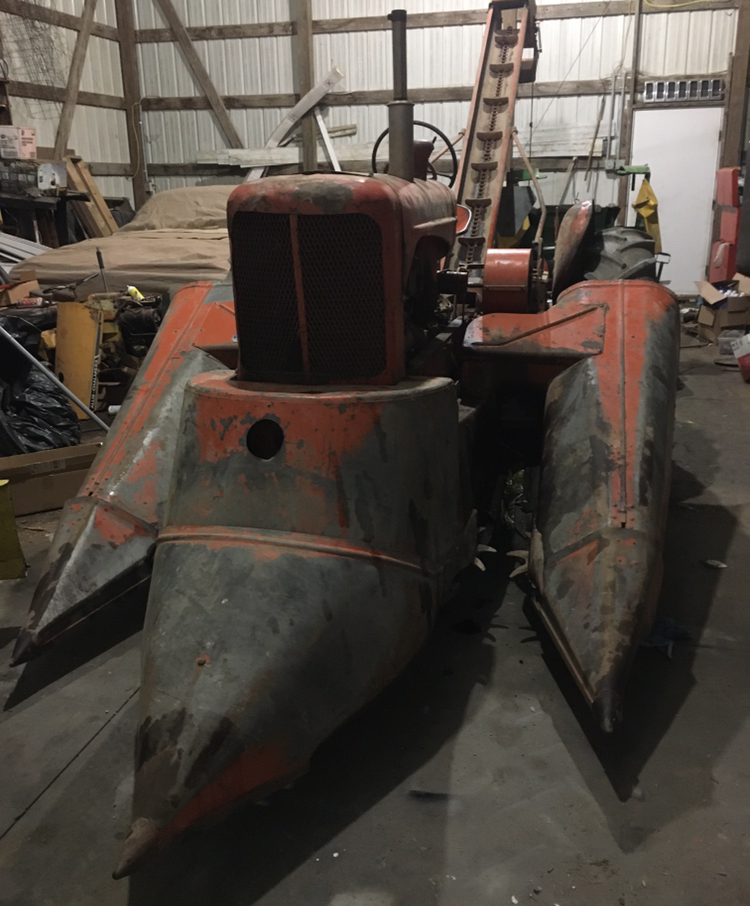

Well I started another project: a WD with a 33 picker.
It has real good spark but won’t fire even with starting fluid so I’m completely lost of what to do.
Back to Top
Sponsored Links


Back to Top
JC(WI) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 30849
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Sep 2021 at 11:10am
Is it timed right?
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
Joe(OH) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Montezuma, Ohio
Points: 931
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Sep 2021 at 11:46am
Put some oil in the cylinders.
Life is simpler when you plow around the stump.
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Sep 2021 at 1:27pm
JC, it ran when it was parked.

Joe, I put some PB-Blaster in the plug holes.
I put new old stock points on and cleaned and set them at .020”. Not sure if that right?
Back to Top
farmboy520 View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 22 Jun 2016
Location: Beason, IL
Points: 481
Post Options Post Options   Thanks (0) Thanks(0)   Quote farmboy520 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Sep 2021 at 2:20pm
Made sure there isn't a mouse nest in the intake?
On the farm: Agco Allis 9695, 7060, 7010, R62, Farmall H, and Farmall F20 (Great Grandpa's)
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Sep 2021 at 2:43pm
That’s very possible, the air cleaner wasn’t and isn’t on it....
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Sep 2021 at 10:10am
I found the problems, I was one spark plug wire off and the carb is gummed up so I put a old Zenith carb that I took off my 49 Wd( I put a marvel schebler the 49 Wd) and it ran like a good Allis should!!
Back to Top
JimIA View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Castalia Iowa
Points: 1938
Post Options Post Options   Thanks (0) Thanks(0)   Quote JimIA Quote  Post ReplyReply Direct Link To This Post Posted: 19 Sep 2021 at 10:24pm
Did you install new spark plugs?  Seen that before with old plugs, spark very well when not in the cylinder but wouldnt work when in the cylinder.
An open eye is much more observant than an open mouth
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Sep 2021 at 10:48pm
I switch them with a set I had sitting around for quite a while, I pretty sure they are new but they’re Champions so I will put Autolights in it after a while.
And like I said it runs like a good Allis should.
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 20 Sep 2021 at 9:27pm
I ordered a set of 13.6-28 tubes and took a rim in to my local welding shop to fix around the valve stem ( it had rust holes).
The tractor is still 6v so thinking of the pluses and minuses of putting it to 12v.
Napa can get the 6v battery for $101.99 bucks!!
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2021 at 10:19am

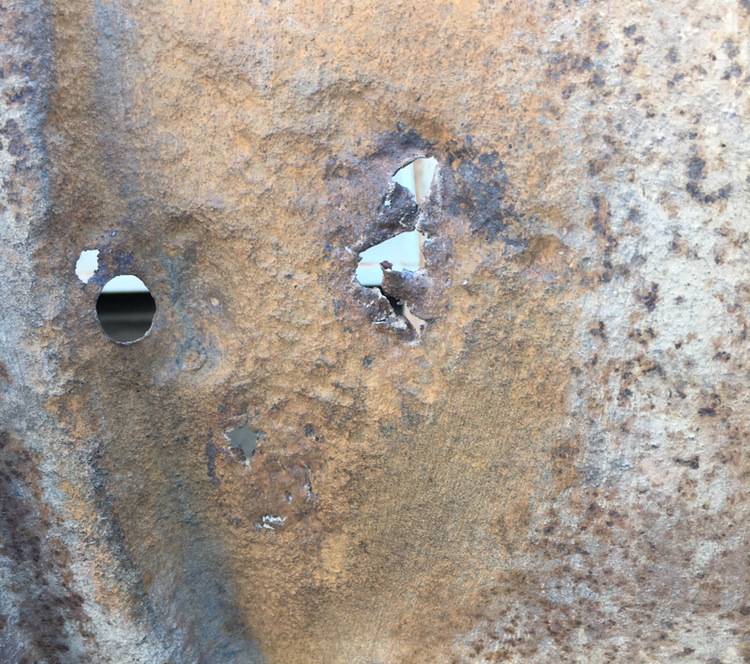

Well I got the rim back and painted both and got the one on, now it’s just trying to get the other side off and put the tire on. Both back tires had fluid in them...
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2021 at 11:26pm
I found out to day that the water pump leaks but it’s not lose, it just drips a lot.

I started the picker and everything was working and decently quiet, the blower fans aren’t hooked up yet so not sure how they hook up if anyone has any ideas or pictures? I think I got a hunch that the 6 holes on the back part of the frame rails have something to do with it?
Back to Top
dr p View Drop Down
Silver Level
Silver Level


Joined: 24 Feb 2019
Location: new york
Points: 368
Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2021 at 5:57am
Grab a manual off Ebay. Helped me find the 12 million grease fittings on the picker
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 2509
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2021 at 4:25pm
I was going to switch my WD to 12v until I changed out the battery cables to 1/0 wielding cables. What a huge difference!!! It spins the motor like a 12v. Left mine stock 6v. That was 3 years ago, still strong spinning it over. I prefer to leave it stock as it came from AC.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2021 at 10:04pm
Originally posted by AC720Man AC720Man wrote:

I was going to switch my WD to 12v until I changed out the battery cables to 1/0 wielding cables. What a huge difference!!! It spins the motor like a 12v. Left mine stock 6v. That was 3 years ago, still strong spinning it over. I prefer to leave it stock as it came from AC.

How long have you had the 6v battery? I’ve heard that those battery don’t last long?
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 2509
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2021 at 6:00pm
3 years
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 2509
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2021 at 6:01pm
I put a 6v battery tender on it in the winter
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 7783
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2021 at 10:53pm
55,
Nice picker project! Have fun with the old girl. Items you found sound about right. I like them switched to 12 volt. But thats just me they will run and start very well on 6 Volt too.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump.
Back to Top
Don(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Sep 2009
Location: Michigan
Points: 3783
Post Options Post Options   Thanks (0) Thanks(0)   Quote Don(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Sep 2021 at 3:50pm
What a beauty and best of luck!

I can't remember how the blowers bolt on, but I leave the belt off mine inless it's picking. If you do a corn picker search on here and find some posts with my name, i probably have a picture of it for ya
Galatians 5:22-24

"I got a pig at home in a pen and corn to feed him on, All I need is a pretty little girl to feed him when I'm gone!"
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 29 Sep 2021 at 10:51pm
Well today I brought it home to try it out on some popcorn we planted as soon as it dries up a bit( it was a five mile trip and I drove it).
Back to Top
tadams(OH) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 17 Sep 2009
Location: Jeromesville, O
Points: 6836
Post Options Post Options   Thanks (0) Thanks(0)   Quote tadams(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Sep 2021 at 1:23pm
Looks good, do you have the side covers for the engine, I wouldn't pick any corn without them
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 2045
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 30 Sep 2021 at 2:02pm
Nice!
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 30 Sep 2021 at 2:54pm
Originally posted by tadams(OH) tadams(OH) wrote:

Looks good, do you have the side covers for the engine, I wouldn't pick any corn without them

Yes I do, I have them off to work on the tractor. Also have the front screen that covers the radiator shell.
I will get a picture of it with everything on.
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 2509
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 30 Sep 2021 at 3:21pm
I would guess once a picker got added to a WD it rarely come off due to the complexity of mounting it? Would be neat to watch it pick corn. Has to be a very noisy and dirty job running one.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 30 Sep 2021 at 8:27pm
The noise part I got a cured, I have head phones!!
Today I changed the engine oil and the air cleaner oil, found out it had a mouse nest in it... and no it didn’t make it in to the carb, I caught it before it did.
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2021 at 11:24am

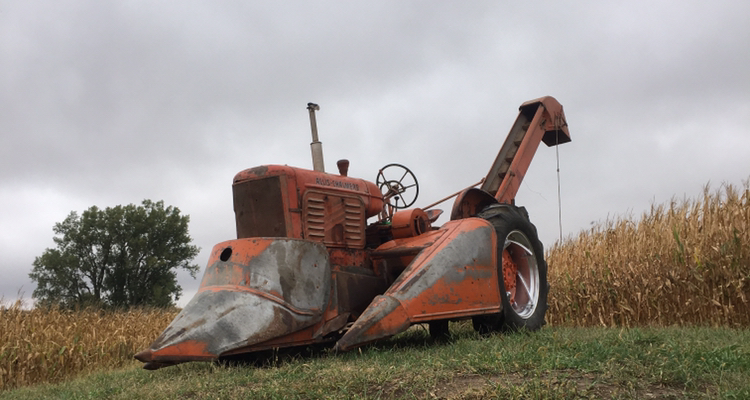

Here’s a picture of it with the shields.
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 881
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2021 at 1:05pm
that's a great picture
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 936
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2021 at 1:53pm
I agree nice picture. Gavin what are you using for a wagon.
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 1449
Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2021 at 3:19pm
Yay, great picture
Back to Top
55allis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 30 Jun 2020
Location: Southwest IA
Points: 213
Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2021 at 6:46pm
I got a wagon I think might work.
