WD Patrs
 Post Reply Post Reply Page  12>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Topic: WD Patrs
    Posted: 24 Nov 2018 at 3:31pm

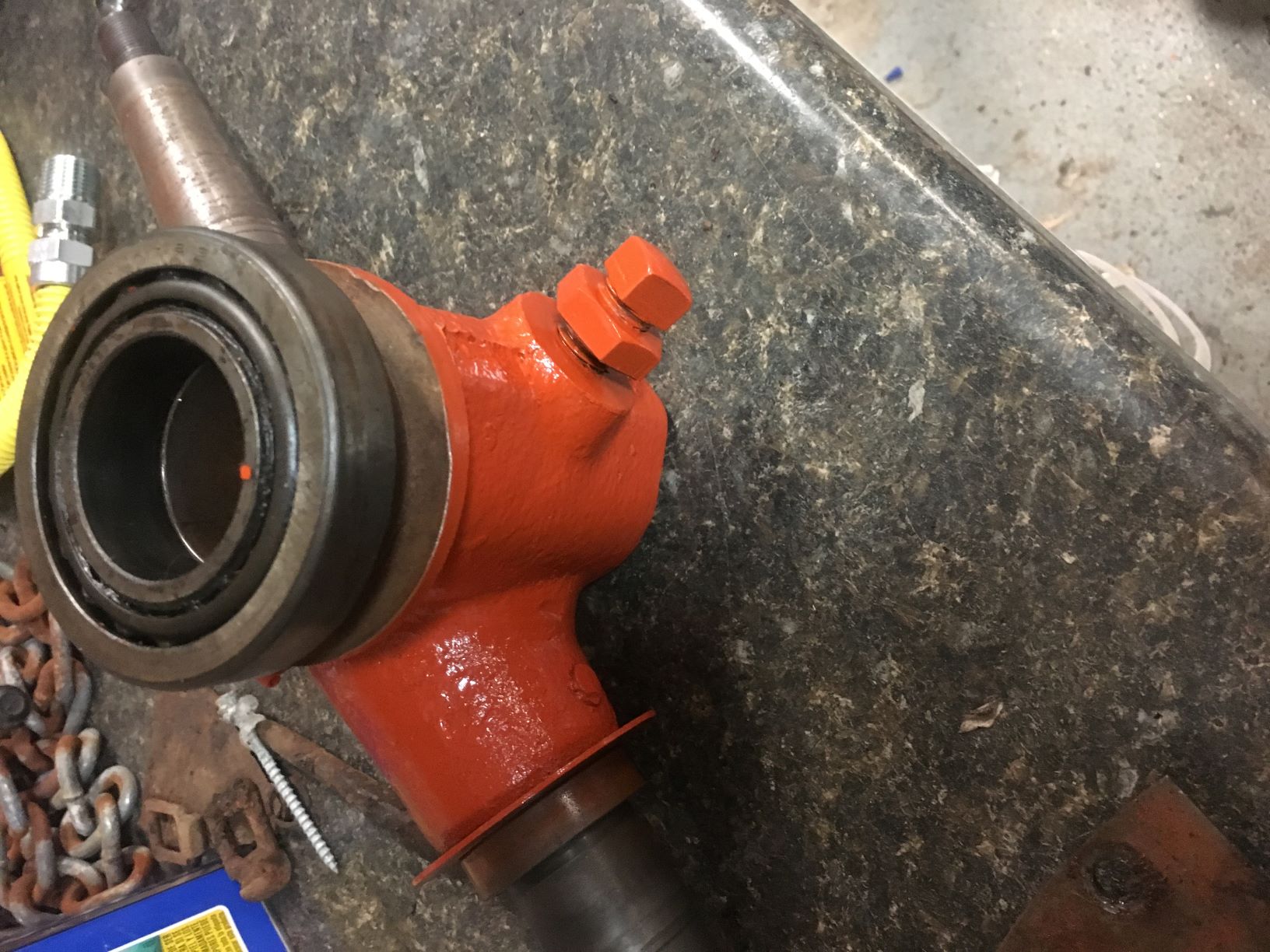

Looking for some help with parts I am having trouble locating.  I need a gasket between trans and hand clutch housing and the vertical steering shaft bearing/race for a tricycle front. I have Hyatt bearing numbers but didn't have any luck that route.

Thanks.
Back to Top
Sponsored Links


Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 4046 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2018 at 7:50pm
Agco dealer should have them. I've gotten that gasket from my local dealer a couple of times. The bearing and race I've not bought but would think they would have too.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2018 at 8:54pm
I tried an Agco here in Illinois and never got a call back. Do you have a Phone #? i dont mind ordering out of state.

Thanks
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 4046 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 7:23am
Central Iowa Farm Store, Marshalltown Ia. 641-753-3996. Talk to Reed or Matt in parts. These guys both have WDs and know what you are talking about.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 9:46am
Coultrain63,
Nice to see someone with fresh PO#1 on tractor parts! Welcome to the forum.
I have the vertical shaft bearing part numbers somewhere in my WD45 thread. These are not the original barrel type. But I think they should work OK. I bought them from KAMAN.
Sounds like you have a local source mentioned above. We need some pictures of the rest of your project.

Your paint looks awesome! Love final paint!
By the way are you replacing the bearings and races on each side of the worm gear?

Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 10:17am
I think theses may be the bearings I used. Not sure I have so many pictures of bearings? Top seal doesnt look right? Looks too small?



Another supplier would be Sandy Lake if you run out of leads.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 10:34am
Originally posted by Sugarmaker Sugarmaker wrote:

Coultrain63,
Nice to see someone with fresh PO#1 on tractor parts! Welcome to the forum.
I have the vertical shaft bearing part numbers somewhere in my WD45 thread. These are not the original barrel type. But I think they should work OK. I bought them from KAMAN.
Sounds like you have a local source mentioned above. We need some pictures of the rest of your project.

Your paint looks awesome! Love final paint!
By the way are you replacing the bearings and races on each side of the worm gear?

Regards,
 Chris

I will put up some more pics. I guess I can only do one at a time?
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 10:37am
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 10:45am

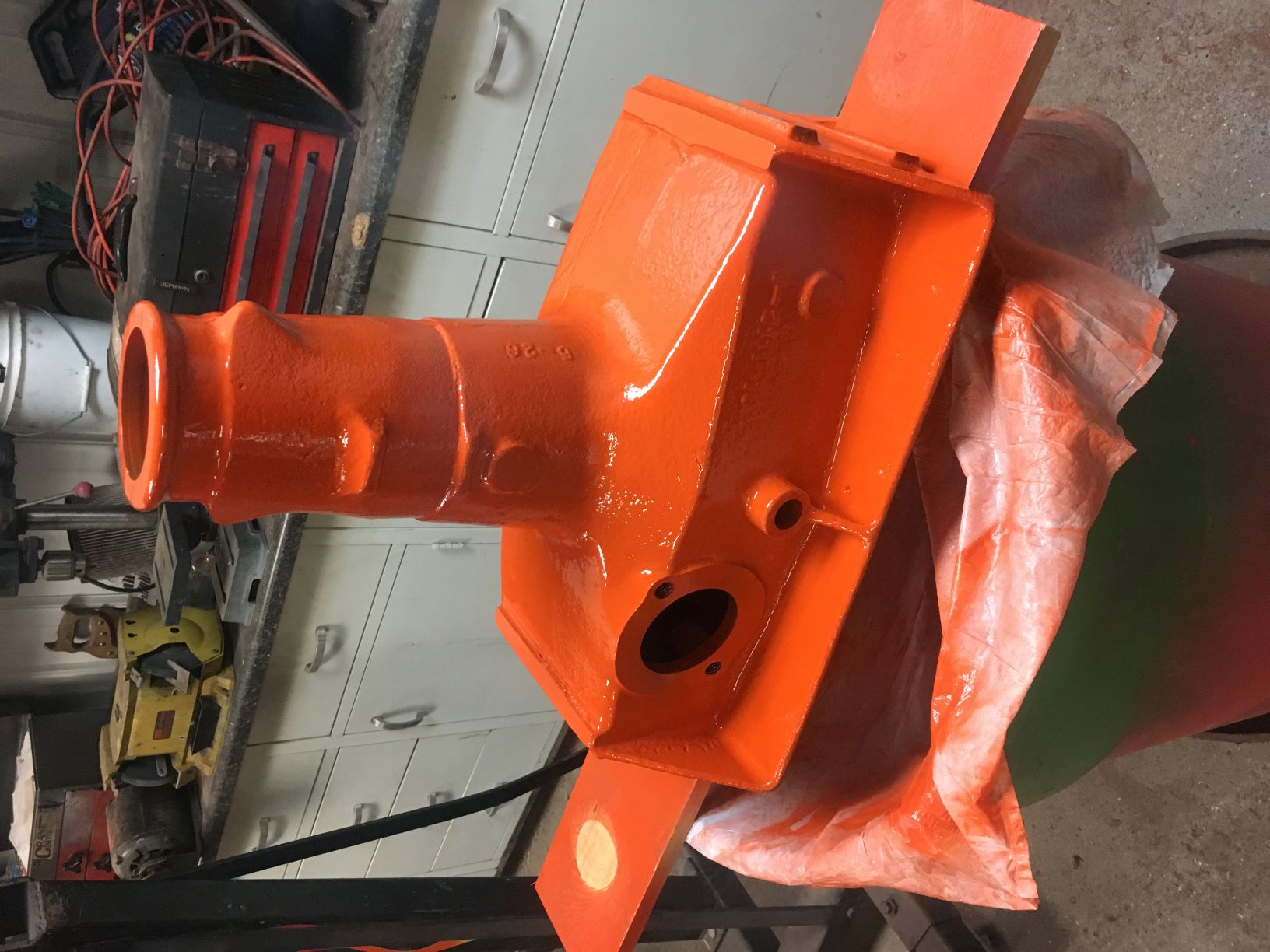

Here is the gasket I need. Sorry about the rotation-haven't figured that out yet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 10:56am

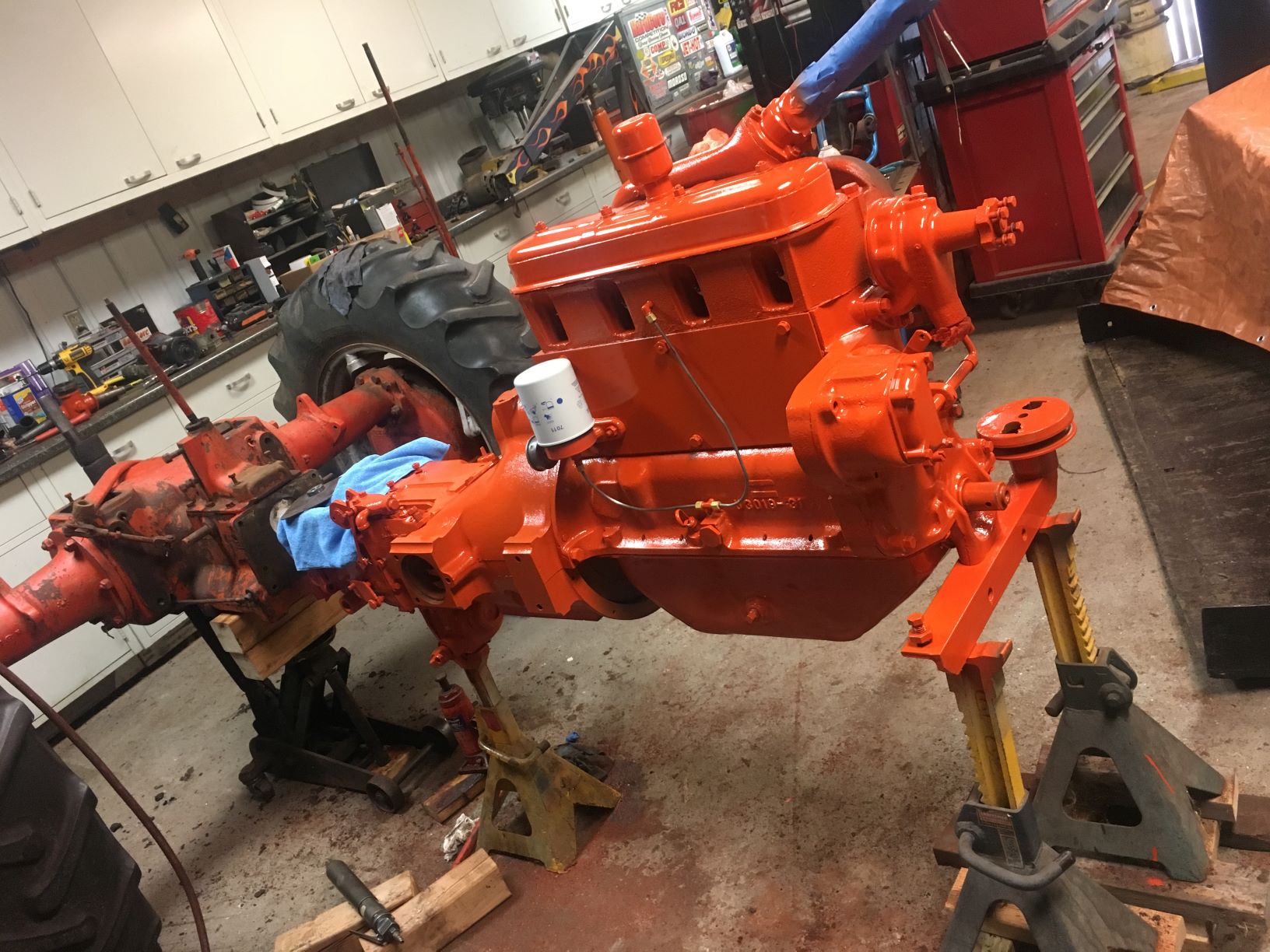

Current status
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 11:32am
Great shop and the WD is coming right along! Thanks for posting these. You should be able to post more than one one picture at a time too, so not sure why you cant?
Sandy Lake and or other AC parts folks on here should be able to provide that gasket. BTW I am going to need one sometime soon also. I am going to try to get mine split in the next few weeks.
What are you using for primer and paint? It looks good!
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 2:13pm
Originally posted by Sugarmaker Sugarmaker wrote:

Great shop and the WD is coming right along! Thanks for posting these. You should be able to post more than one one picture at a time too, so not sure why you cant?
Sandy Lake and or other AC parts folks on here should be able to provide that gasket. BTW I am going to need one sometime soon also. I am going to try to get mine split in the next few weeks.
What are you using for primer and paint? It looks good!
Regards,
 Chris

Using AG SPECIALTIES paints.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 2:17pm
Originally posted by Sugarmaker Sugarmaker wrote:

Coultrain63,
Nice to see someone with fresh PO#1 on tractor parts! Welcome to the forum.
I have the vertical shaft bearing part numbers somewhere in my WD45 thread. These are not the original barrel type. But I think they should work OK. I bought them from KAMAN.
Sounds like you have a local source mentioned above. We need some pictures of the rest of your project.

Your paint looks awesome! Love final paint!
By the way are you replacing the bearings and races on each side of the worm gear?

Regards,
 Chris

Worm gear bearings are OK.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 2:21pm
Thanks for the tips guys, I will make some calls tomorrow.
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9262 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 3:42pm
that gasket doesn't look that complex.  get a sheet of gasket material and ballpeen out your own gasket.
D14, D17, 5020, 612H, CASE 446
Back to Top
garden_guy View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2013
Location: Illinois
Points: 1150 		Post Options Post Options   Thanks (0) Thanks(0)   Quote garden_guy Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 5:16pm
Best I can find on DJs tractor parts is a hand clutch shaft seal, but don't see a gasket.

Don't forget there's two cork gaskets that go in the spindle as well I think. I saw sugarmaker repair his the other day and was looking at buying some for my own tractor.

Also that WD looks pretty fantastic; great job so far!
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 5:33pm
I thought about making a gasket but if the thickness isn't right i'm afraid the lash on the bearings wont be right.

Not sure what you mean by corks on the spindle.

Thanks
Back to Top
garden_guy View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2013
Location: Illinois
Points: 1150 		Post Options Post Options   Thanks (0) Thanks(0)   Quote garden_guy Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 6:44pm
These are the two cork gaskets related to the pedestal from what I can tell:

Maybe these are part of the steering assembly and not the pedestal itself though... I haven't torn into mind yet as I am trying to figure out what parts I need. Here's sugarmaker's relevant post from his "WD45 next? YES!" thread.

Originally posted by Sugarmaker Sugarmaker wrote:

Ok It was a slow day.
Heres a shot of the old WD that I put in storage, guess I needed a picture of a complete tractor!:):

Worked on the WD45 front pedestal assembly:
Installed the front expansion plug. SM says apply some sealer, I used gray silicone.
It doesnt say that you need to put it in with the concave side towards the front and then gently flatten it out  from the back to seal against the sides:


Next was the new bearing race in the bearing cage:

Then the race in the front of the perdestal:

Then the new cork seals and retainer:


Dont forget the spacer that goes between the worm and the back bearing.

Bearing installed on the front of the worm. Grease to be applied.

Now to install the spacer and back bearing, on the steering shaft, and begin assembly. Also a shim/s in there too! (page 57 in your manual)
Feels good to be assembling finally!
Regards,
 Chris
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 7:27pm
Folks,
Make sure were are talking about the same parts. I am sure not a expert here.
On the large vertical spindle in a narrow front there are two seals. I used lip seals for these.
 The two small 7/8 I.D. cork seals in my pictures are the ones at the back of the pedestal on the horizontal shaft turning the worm gear.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Nov 2018 at 7:54pm
Originally posted by Sugarmaker Sugarmaker wrote:

Folks,
Make sure were are talking about the same parts. I am sure not a expert here.
On the large vertical spindle in a narrow front there are two seals. I used lip seals for these.
 The two small 7/8 I.D. cork seals in my pictures are the ones at the back of the pedestal on the horizontal shaft turning the worm gear.
Regards,
 Chris

Yes thanks just to clarify I am talking about bearings for the lower vertical shaft. and a gasket where its split at the trans.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2019 at 5:44pm

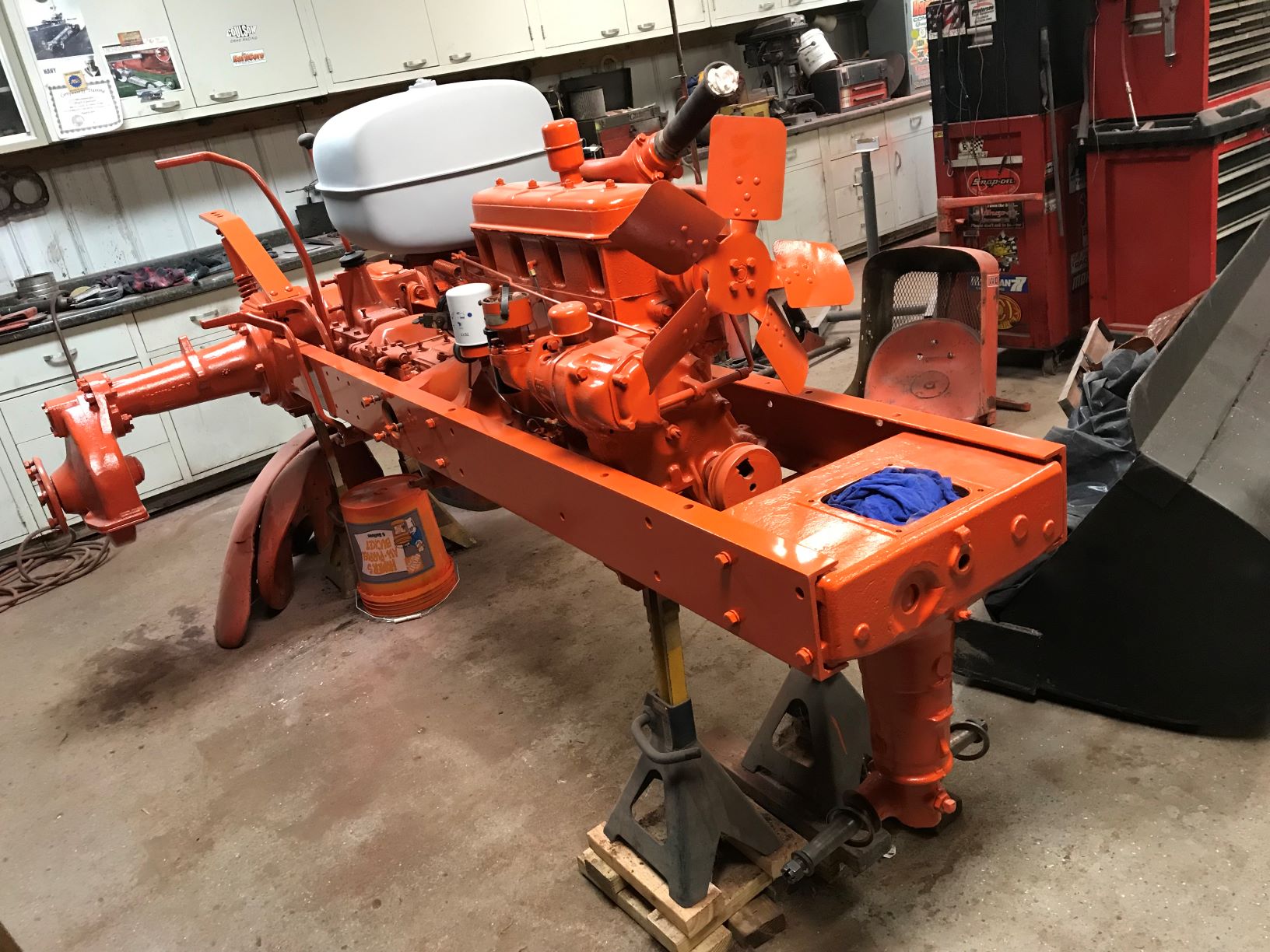

Here is an update fro you guys! working on the sheet metal now.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 2019 at 5:56pm
Anyone know where I can find a few of these?
Back to Top
albrown915 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 27 Oct 2017
Location: Indiana
Points: 65 		Post Options Post Options   Thanks (0) Thanks(0)   Quote albrown915 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 2019 at 7:07pm
Fastenal
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8573 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 2019 at 8:54pm
...or get a chunk of angle iron from the welding shop and cut some out.
Back to Top
JoeM(GA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4804 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JoeM(GA) Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 2019 at 10:03pm
mcmaster carr has them

use "leveling washers for I-beams" in the search
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 3033 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jan 2019 at 6:30am
Looks like it will be really nice when done.
What the funny looking thing of front of the crank pulley?
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jan 2019 at 10:44am
Coultrain,
Looks great! More pictures! Please.
I was wondering the same thing on that pulley? Haven't seen that version? What does the shaft look like?
Just noticed the different fan too.
Also what did you find for vertical spindle bearing?
Wish mine was that far along! its a lot of moves to get them old WD's to look that good!
Regards,
Chris


Edited by Sugarmaker - 18 Jan 2019 at 10:45am
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2019 at 12:49pm
Originally posted by Sugarmaker Sugarmaker wrote:

Coultrain,
Looks great! More pictures! Please.
I was wondering the same thing on that pulley? Haven't seen that version? What does the shaft look like?
Just noticed the different fan too.
Also what did you find for vertical spindle bearing?
Wish mine was that far along! its a lot of moves to get them old WD's to look that good!
Regards,
Chris

The pulley was repaired at some point. looks like it may have been being used for something-not sure what. I got the spindle bearings from the central Iowa farm store. Great guys there.  Ill try and post more pics later.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2019 at 12:57pm
Coultrain,
 Did you replace the 3 seals in the torque tube? I plan to put in new ones at some point.
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Coultrain63 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Nov 2018
Location: Illinois
Points: 29 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coultrain63 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2019 at 5:49pm
Originally posted by Sugarmaker Sugarmaker wrote:

Coultrain,
 Did you replace the 3 seals in the torque tube? I plan to put in new ones at some point.
Regards,
 Chris
I did not tear it down that far.
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.109 seconds.


Help Support the
Unofficial Allis Forum
