Traction booster Drawbars

 Post Reply Post Reply
Author
Message
Doyle B(NY) View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 May 2011
Location: New York
Points: 150
Post Options Post Options   Thanks (0) Thanks(0)   Quote Doyle B(NY) Quote  Post ReplyReply Direct Link To This Post Topic: Traction booster Drawbars
    Posted: 15 Aug 2011 at 7:05pm
I have aquired a traction booster drawbar and was just wondering  how many are out there and how exactly they work. Thanks
Back to Top
Sponsored Links


Back to Top
Ryan Renko View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edwardsville, I
Points: 2329
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ryan Renko Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 7:48pm
Thats a great question!! I wonder how many are out there also. Ryan
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21485
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 7:56pm
Which style??? snap coupler or 3pt hitch?? both are designed to lift/lighten the front wheels of the tractor and put weight on the rear wheels by using the disc or field cultivator weight thru the drawbar and lift arms. We had a D17 with dual rear wheels and with a 13 ft disc could actually pick the front wheels off the ground if you raised the arms clear up on a series 4.
Back to Top
Doyle B(NY) View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 May 2011
Location: New York
Points: 150
Post Options Post Options   Thanks (0) Thanks(0)   Quote Doyle B(NY) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 7:58pm
this is a 3 pt drawbar
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529
Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 8:59pm
I have two  with one being NOS and was never used. I used the traction booster drawbar on my JD 4250 2wd to pull a 7 yard pull scraper (earth mover). It made the difference between being able to pull the scraper or not. I don't know why more wern't sold. I guess diesel fuel was too cheap back then.
Nothing is impossible if it is properly financed
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529
Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 9:41pm
To use it, hook it to the three point arms on the tractor and the front clevis to the tractor drawbar. Be sure to take the front pin out of the drawbar so it can float back on forth. All the draft will be on the three point arms and the drawbar's only function is to keep the front down. The implement hooks to the front of the traction booster drawbar on the top side with the big plate under the tounge. When the draft comes on, the arms want to lift but the tractor drawbar keeps the front down so the rear wants to tip up and puts pressure against the underside of the implement and thus transfers weight to the rear tractor wheels.
Nothing is impossible if it is properly financed
Back to Top
Zyta View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: Ontario
Points: 238
Post Options Post Options   Thanks (0) Thanks(0)   Quote Zyta Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 9:45pm
Calvin, I missed the sale the other day. Is it true the CA and all the attachment sold for only $1600?
Back to Top
TobeMo View Drop Down
Bronze Level
Bronze Level


Joined: 11 Sep 2009
Points: 42
Post Options Post Options   Thanks (0) Thanks(0)   Quote TobeMo Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2011 at 10:14pm
I have one three point. Tobe
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29792
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 16 Aug 2011 at 12:18am

One of my brothers has two 3-point models. One is a new old stock but is missing the front pin and bracket. I have a Snap Coupler one that is cream colored and Dad has an orange Snap Coupler one. I think my brother also has an orange Snap Coupler one.

-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
kffischer View Drop Down
Silver Level
Silver Level


Joined: 26 Feb 2011
Location: mn
Points: 121
Post Options Post Options   Thanks (0) Thanks(0)   Quote kffischer Quote  Post ReplyReply Direct Link To This Post Posted: 16 Aug 2011 at 10:35pm

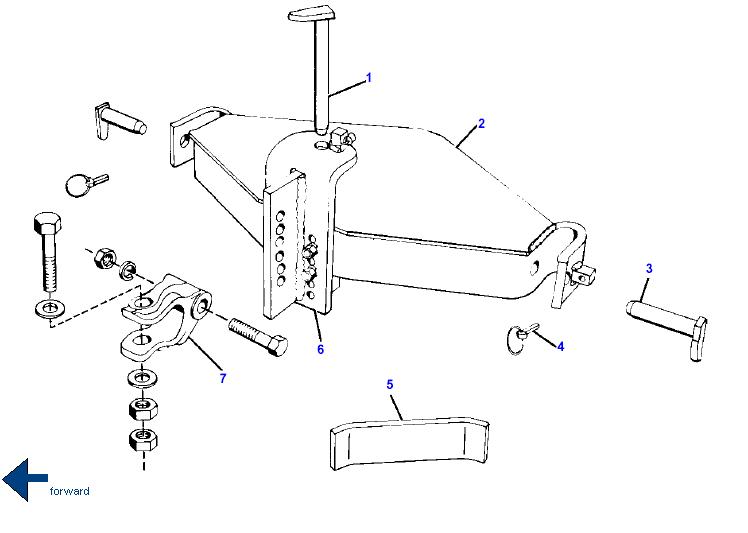

this is what one looks like in the parts book online: uploads/4507/traction_booster_drawbar.JPG

I asked about 3 point traction boosting drawbars on the YT site and a majority explained to me about draft control and Mr. Ferguson...LOL  The few that did comprehend called the devices widow makers--either turning too tight in the field and having a disk harrow climb over you or losing control in transport when the arms try to raise. IH's design definitely would be a widow maker, as it is not anchored to prevent full vertical travel.
ACs seems more stable, but I suppose anything could happen.  Have you heard of or witnessed the AC traction booster drawbars causing loss of control in transport?


karl f


see the patent for AC's design http://www.freepatentsonline.com/3420313.pdf


Edited by kffischer - 16 Aug 2011 at 10:50pm
Back to Top
WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 20 Sep 2009
Location: STAYNER,ONTARIO
Points: 954
Post Options Post Options   Thanks (0) Thanks(0)   Quote WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Aug 2011 at 9:16pm

We had the s/c drawbar back in 1968. Used the transfer system to pull a 12 ft MF disc with a series I gas D17. Never saw a 3 pt transfer hitch in operation.

Fred Dunlop, G,B,CA, WC,WF, 3 WD45`s,gas, diesel and LP,U,D10 series III, D12,D14,D15 SERIES II,D17 Series IV in Gas and Diesel ,D19 GAS and D21,170 185,210 ,220 an I-600 8070 fwd, 716H and 1920H
Back to Top
