 Topic: Found a snap coupler 160 mower
Posted: 10 Jan 2024 at 10:24am |
Hi Guys I was lucky and brought home an Allis Chalmers snap couple 160 rotary mower. I've seen some pull types but not to many snap couplers. It seems to be in pretty solid shape and not rusted out. Blades are good but need sharpened.
Previous owner took off the front skids but they came with it. It has a homemade tailwheel on it, but it should work ok. The slip clutch has been welded together so that will need some attention.
Edited by Allis dave - 10 Jan 2024 at 12:43pm
|
 |
|
Sponsored Links
|
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2063
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jan 2024 at 12:11pm |
|
Sure don't see very many of those. I bid on a 3 point version 10 yesrs ago at an auction but the deck was rusted right out and I wasn't paying near what it went for ($450 i think was the sale price)
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54380
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jan 2024 at 4:39pm |
|
Early Danuser made unit, nice find!
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
jvin248
Silver Level
Joined: 17 Jan 2022
Location: Detroit
Points: 476
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jan 2024 at 4:48pm |
That lookes like a rare find indeed.
I have a drawbar pull type mower with the two side wheels. Works well on the WD for chopping corn rubble after ear picking.
Had to use it a bit on the shaggy lawn after the zero turn decided it would only drive in circles... Another repair to do.
Was the wheel put on your mower find to run with a bad hydraulic lift? Or just ensure consistent height cutting?
.
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2229
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jan 2024 at 7:41pm |
|
That will be fun to attach to the tractor.
And yes
Rare find !!!!!
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2024 at 5:41am |
|
So did these snap coupler mowers not have any tailwheel from the factory? This tailwheel was in it when I got the mower. This is the only one I"ve ever seen that wasn't pull type
Looking at the way the hitch is solid you might not need one.
Edited by Allis dave - 11 Jan 2024 at 5:43am
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2024 at 9:06am |

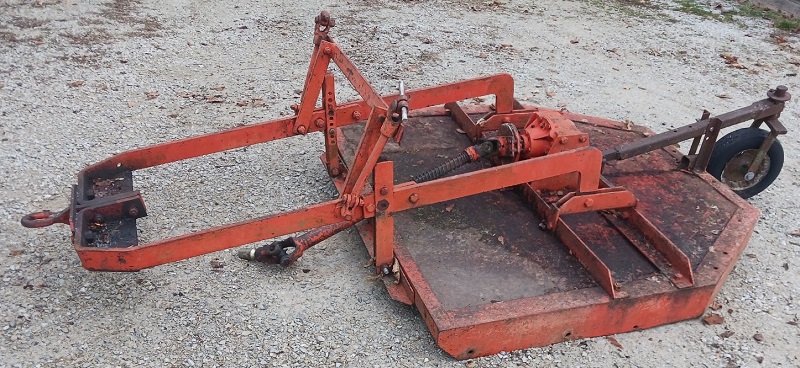

Mine has a factory tail wheel. Below is a picture of mine with the tail wheel. The manual shows them both with and without a tail wheel. Mine has a sheer bolt rather than a slip clutch, but the manual shows the slip clutch as an option. Wish mine was six foot rather than five (don't know if they made them six foot) and that it had a slip clutch. It is not difficult to mount.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2024 at 10:41am |
Thanks for the pictures Dave. That's a nice mower with a facotry tailwheel! Your's is the first one I've seen other than the one I just bought. I have a snap coupler Wood's mower too, but I never got it running. Sounds like maybe mine came wihtout a wheel and someone wanted on. seems like it would be nicer wiht a tailwheel. 3-point mowers tend to just dig in if they ride on the ground.
I looked and there are several options to buy new aftermarket slip clutches for under $100.
It will probably go on my D17 becsaue I'm nervous to hit somehting and tear the PTO gears out of my WD45. I wish it was a 6' also to at least cover the tracks
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2024 at 11:57am |
|
Yeah, I've looked into some aftermarket slip clutches, but they didn't appear that they would work. Be neat to find a factory one! Being just five foot, it doesn't cover the tracks on my '45, so I generally use my six foot pull type, with the mower wheels set in the back of the mower.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 1104
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jan 2024 at 11:21pm |
|
I got my 160 as a pull type but made it into a snap coupler.
I would like to make a rear dolly wheel sometime to make it better.
Dave, what size of tail wheel is that?
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2024 at 8:15am |
|
Well, I found some notes from when I was looking for a new tire for it. Notes say 4 x 16 semi-pneumatic tire. Like a planter packing wheel tire.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 4120
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2024 at 9:28am |
|
One of those would look great behind the D-15! Wouldn't think they would be hard to hook up at all, probably do it all from the seat but the pto shaft. Had a Woods Dixie cutter that was snap-coupler, 5'. Sold it after getting the 7' Mohawk. Sometimes wish I had kept it. Did a great job and I had fixed everything that needed attention. Only dislike was that it would come unlatched sometimes in rough terrain.
|
|
1963D17
Bronze Level
Joined: 05 Jun 2021
Location: Alvord, Iowa
Points: 90
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jan 2024 at 8:25am |
|
I have one just like it as well. It's actually supposed to be an overrunning clutch, not a slip clutch. Mine also was welded up. With a transmission driven pto it is necessary because of the blades momentum. I bought one of those overrunning pto adapters that goes on the tractors pto shaft.
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2024 at 2:15pm |
|
Started working on this and found the gearbox is full of grease. Output shaft may have a little play but need to investgate further. Are seals and bearings still available?
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2024 at 3:13pm |
|
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2024 at 4:17pm |
|
Thank You!!! That's very helpful. Now I can call and see what's available before I tear it apart. I"m guessing the bearings and seals are just a standard size that could be matched up.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8738
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2024 at 5:35pm |
Kenny not 70 on all those numbers. Just 7 to the seven digit numbers. You want to end up with eight digits for agco numbering. Which parts are you looking for. I’ll check our stuff
Edited by Mikez - 01 Apr 2024 at 5:36pm
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5905
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2024 at 6:04pm |
|
I have one of those very tongues on my fence line.
G
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 7:28am |
Hi Mike, I'd be interestd in the whole slip clutch assembly if you have one. As far as the gear box, I havne't torn it apart yet
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 4120
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 10:20am |
|
I'd like to have one of these mowers with the S/C hitch preferably.
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 11:51am |
|
I'd take a slip clutch assembly too, if you have additional ones Mike. Thanks, Dave
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8738
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 2:19pm |
|
Do you have part numbers
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 5:15pm |
 IBWD MIke wrote:
I'd like to have one of these mowers with the S/C hitch preferably.
|
Mike, call me when you can, I've one that I might sell.
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 5:27pm |

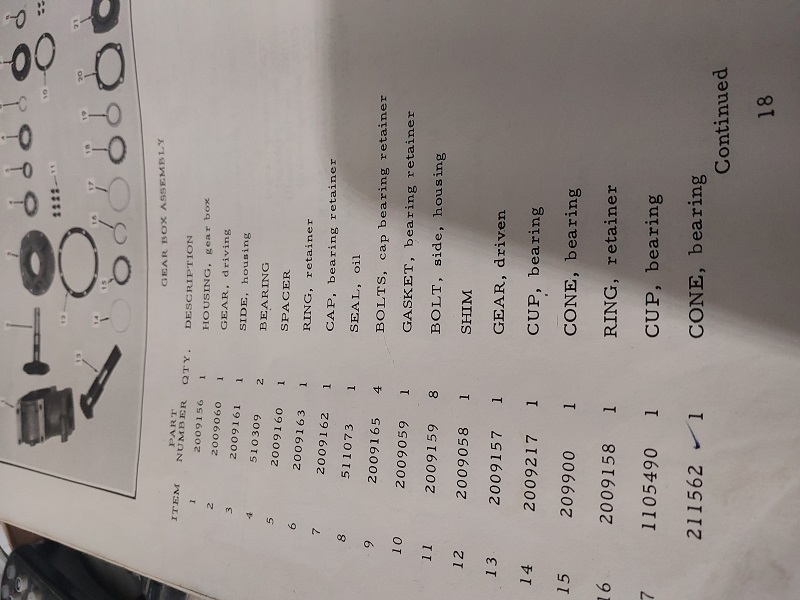

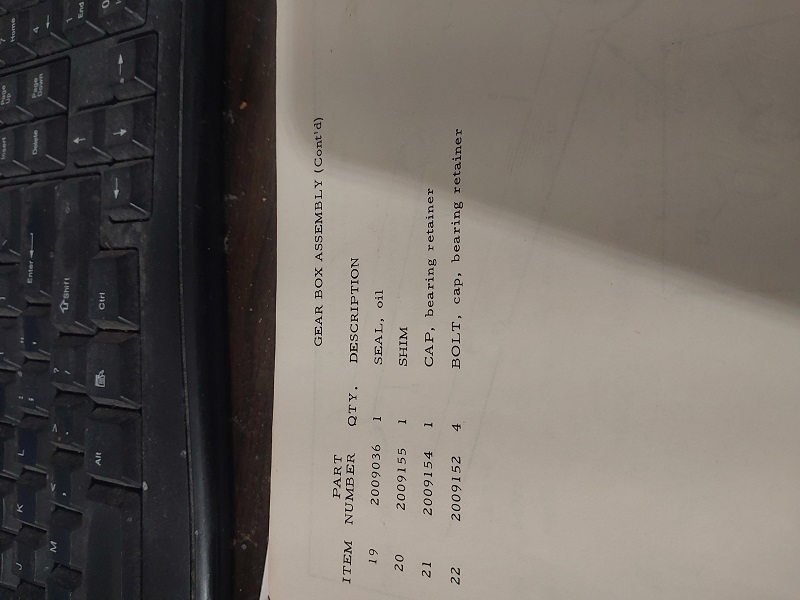

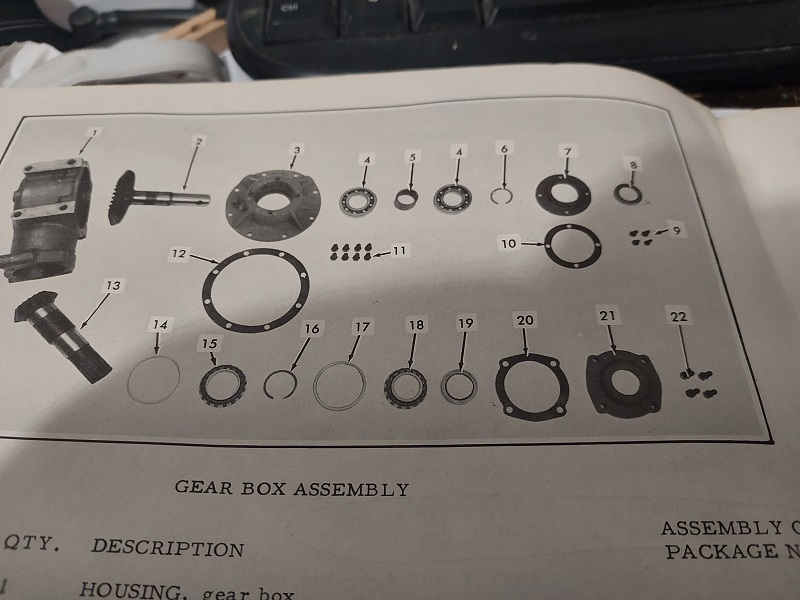

This all I can find in the book I've.
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 1104
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 6:47pm |
I’ve been living with a shear bolt and it will only shear when I have it on my 45 with a D262D mowing trees  I rebuilt mine years ago ( its on this forum somewhere) with Timken bearings and 85-140 gear oil. I’ll look and see if I can find the thread…
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2024 at 7:42pm |
|
Well, my owner's manual does not show a part number for the slip clutch. It simply says the mower can be purchased with a slip clutch as a factory installation and has a picture.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8738
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Apr 2024 at 3:23pm |
|
Dave show me what you have. I’ll see what I can find. The picture that Kenny put up looks like Dave’s first picture
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Apr 2024 at 3:58pm |

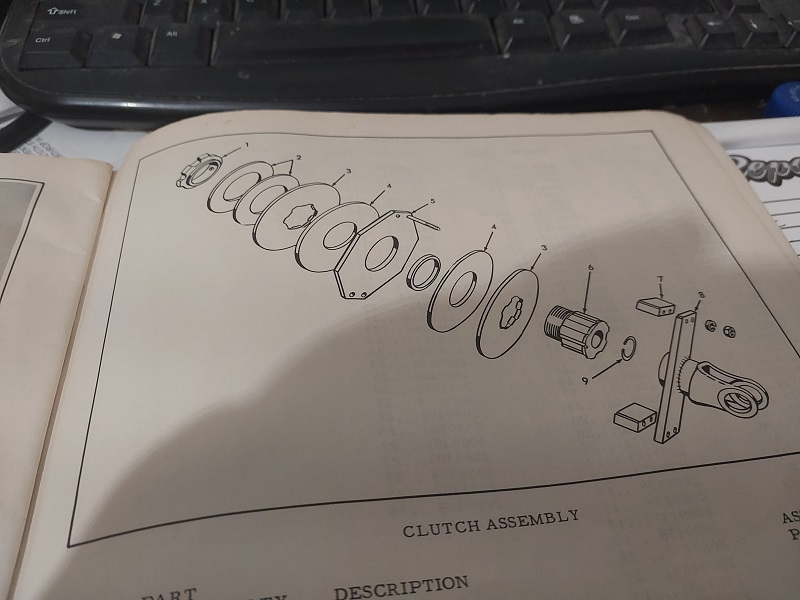

Here is a picture of the slip clutch from the manual.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2157
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Apr 2024 at 3:59pm |
|
Oh, I see there is a number at the top of the page I didn't see before; 532768.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8738
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Apr 2024 at 10:31pm |
|
The only parts we have left is #4 and #8 in Kenny picture
|
|
