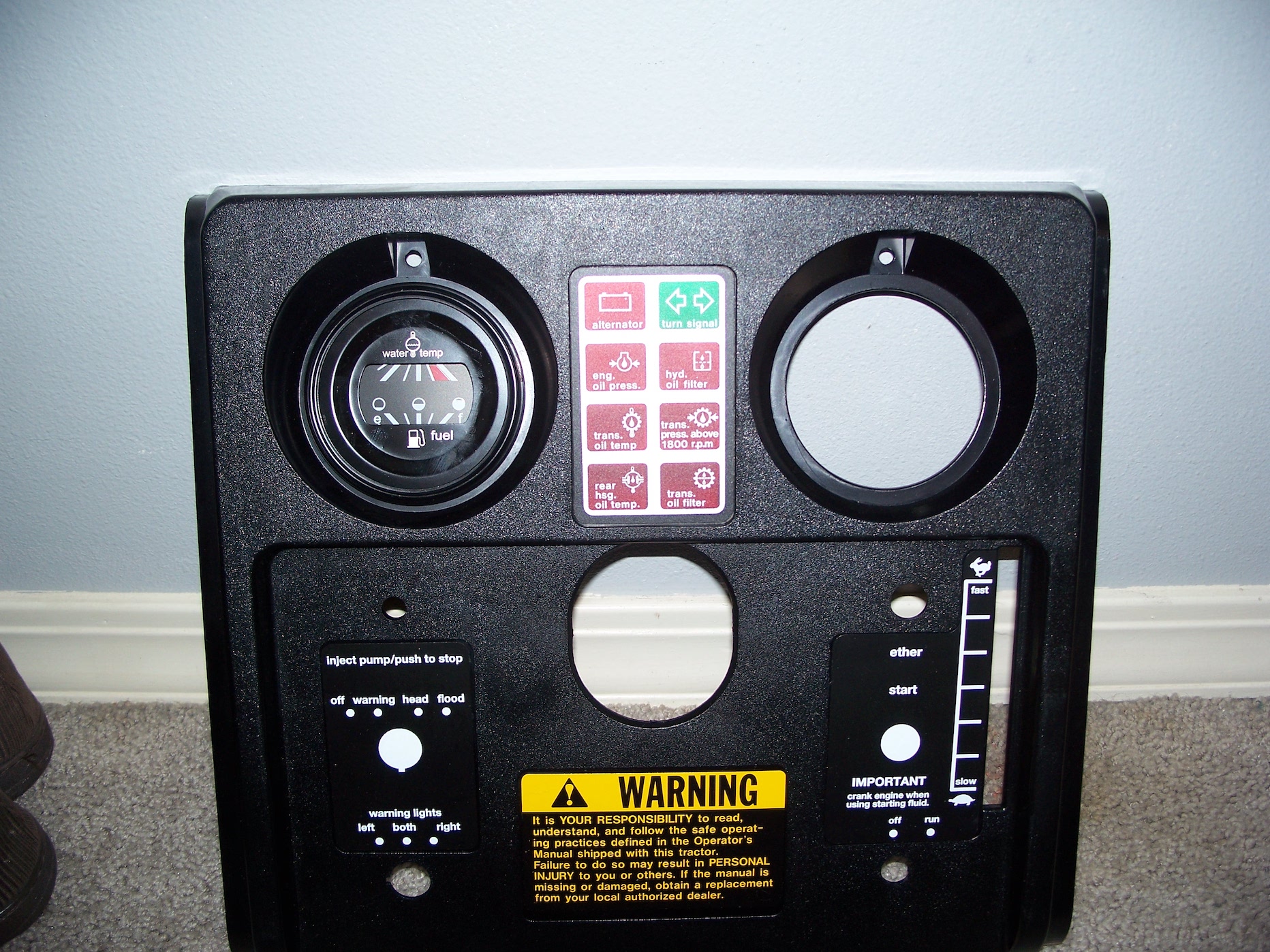

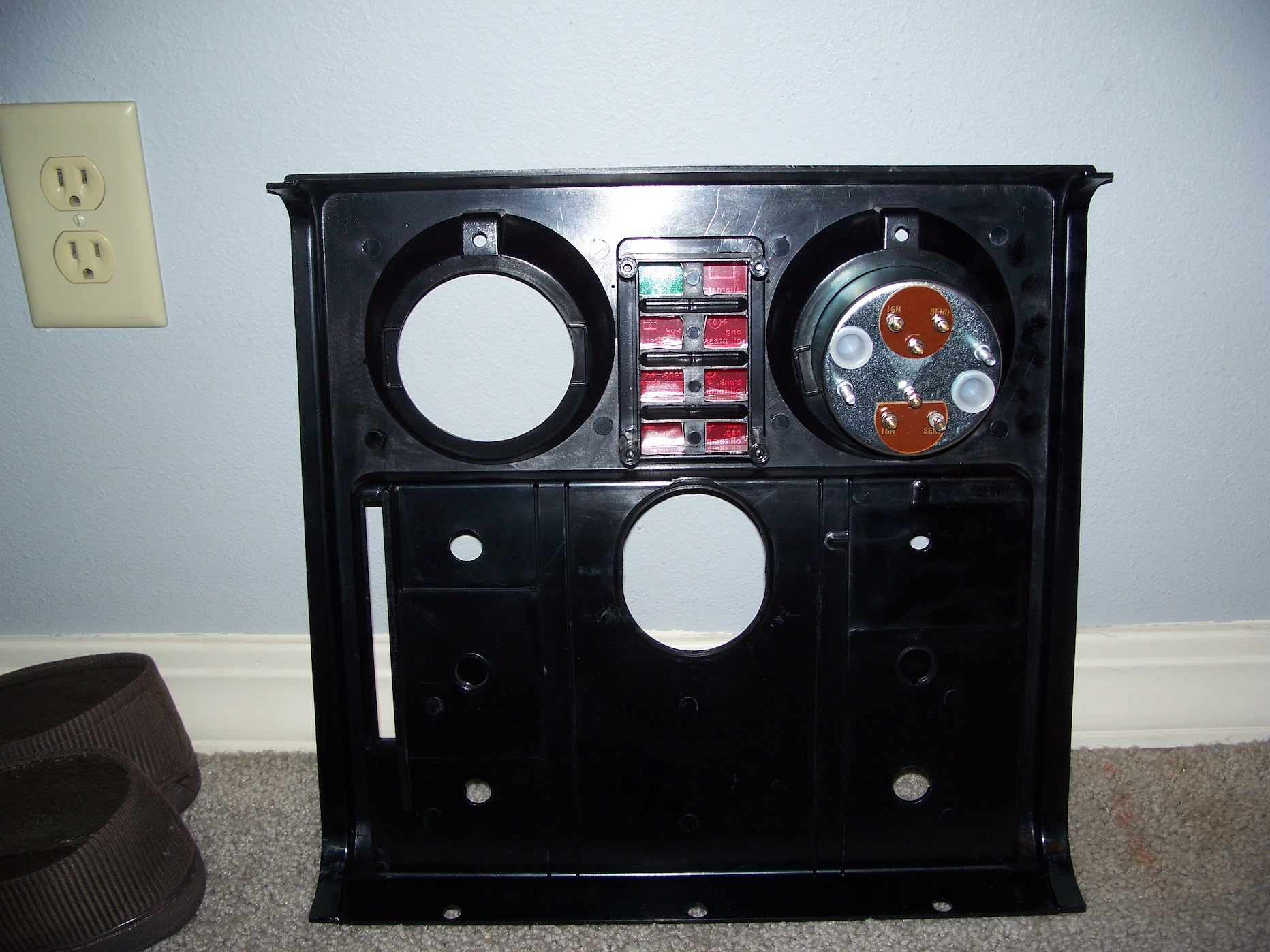

This is what it looks like in a new dash panel(going in the 7580 someday).  It does come with the hold down on the back, just took it off for picture.

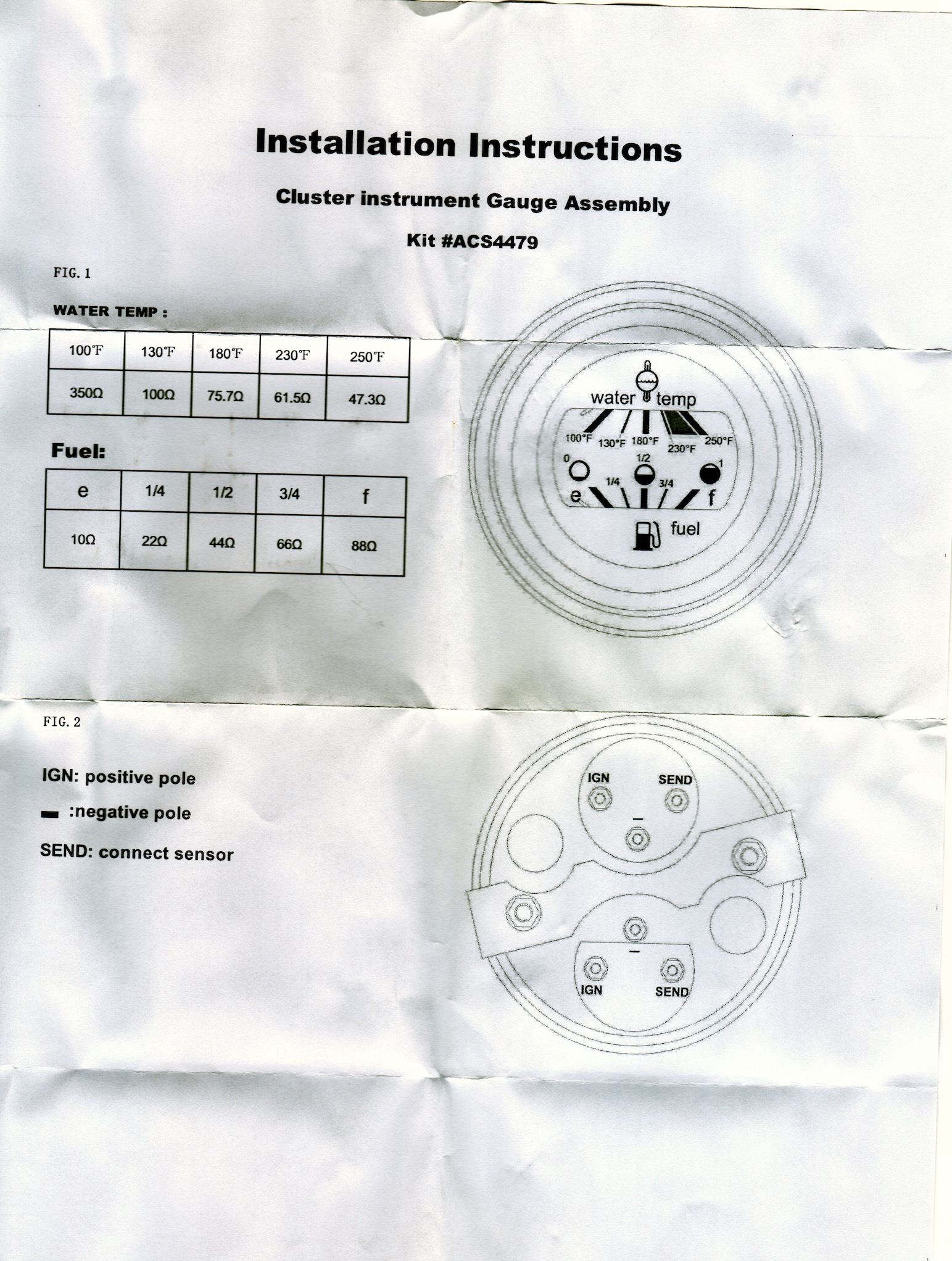

It does come with this sheet which is good info for ohms readings.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
LB0442 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 27 Dec 2014 Location: Boise ID Points: 767	Post Options Post Reply Quote LB0442 Report Post Thanks(0) Quote Reply Topic: repro 7000/8000 Fuel temp gauge Posted: 17 Dec 2020 at 12:25pm
	I just bought 2 of the new reproduction fuel gauges. Thought I would post what I notice. It is a steel case versus the new AGCO is plastic. All of the studs on the back are tight. The printing and colors on the front are excellent, very clear. Overall looks to be good. Of course only time will tell how the internals will stand up but I definitely like the original look better. It looks like they took the time to build a good looking unit. This is where I bought mine. https://www.ebay.com/itm/Allis-Chalmers-Cluster-Gauge-Fuel-Water-Temperature-7000-8070-4W220-4W305/114463144725?hash=item1aa688fb15:g:IhIAAOSw2LBfh18R This is what it looks like in a new dash panel(going in the 7580 someday). It does come with the hold down on the back, just took it off for picture. It does come with this sheet which is good info for ohms readings.

Sponsored Links

Lonn Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 16 Sep 2009 Location: Назарово,Russia Points: 29792	Post Options Post Reply Quote Lonn Report Post Thanks(0) Quote Reply Posted: 17 Dec 2020 at 4:31pm
	Where is it made
	-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... - Wink I am a Russian Bot

LB0442 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 27 Dec 2014 Location: Boise ID Points: 767	Post Options Post Reply Quote LB0442 Report Post Thanks(0) Quote Reply Posted: 17 Dec 2020 at 5:54pm
	Well I looked them over and nothing on the box and nothing on the gauge. Country of origin is unknown at this time.

Red Bank Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 18 Apr 2018 Location: Germanton NC Points: 1051	Post Options Post Reply Quote Red Bank Report Post Thanks(0) Quote Reply Posted: 17 Dec 2020 at 10:12pm
	Looks nice where did you get the new panel?

LB0442 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 27 Dec 2014 Location: Boise ID Points: 767	Post Options Post Reply Quote LB0442 Report Post Thanks(0) Quote Reply Posted: 18 Dec 2020 at 9:54am
	I bought several of those plastic dashes from AGCO years ago. This is the last one I have to install. Seems like there is just not enough hours to do the things I want to do and then I get distracted on another project.

LeonR2013 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 01 Jan 2013 Location: Fulton, Mo Points: 3500	Post Options Post Reply Quote LeonR2013 Report Post Thanks(0) Quote Reply Posted: 18 Dec 2020 at 3:05pm
	I got old. Leon
