Radiator fluid in oil Allis B

 Post Reply Post Reply Page  12>
Author
Message
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Topic: Radiator fluid in oil Allis B
    Posted: 02 Dec 2019 at 9:41pm

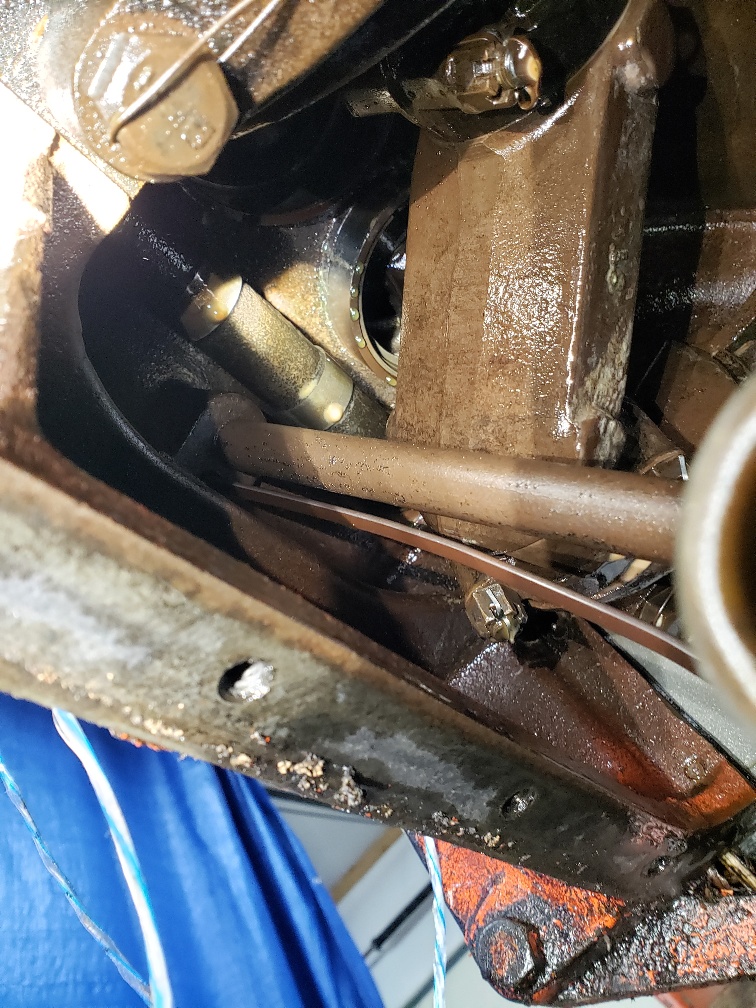

SO I finally pulled the oil pan and am planning to pressurize the cooling system to find my leak when I decided to just take a look up at the bottom of the sleeves. there on no.1 and 3 were very obvious drips of coolant. So then I pulled the head to look/inspect the cylinders and pistons and I find a fairly deep score on number 4 and some dents on top of piston # 2 guessing the Allis had been worked on before the question I have is would it make more sense to get a in frame overhaul kit considering I could only get 90lbs of compression out of this engine plus or minus 5lbs on each cylinder. or just replace the O-rings for the liners. I know that sure if money is no object I would overhaul everything but as with many things in life I need to weight the pros and cons. Just looking for your 2 cents I am also wondering what the SP stamp on the top of the piston means.




Edited by gman54313 - 02 Dec 2019 at 9:44pm
Back to Top
Sponsored Links


Back to Top
JC(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 27042
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Dec 2019 at 10:06pm
Did you check the frost plugs in the head for pinhole leak/s? Just wondering.
He who says there is no evil has already deceived himself
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 2469
Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 5:47am
I agree that you should check the core plugs in the head. It has been my experience that these are usually the culprit when there is antifreeze in the oil in these engines.

With that said, I would definitely replace (at least) that sleeve with the gouge in it. If money is a big factor, I have installed a used sleeve in a tractor that I didn't want to spend much money on. I have reused the head gasket, too (if it was in good shape). I know everyone is going to say do a complete overhaul, but I live in the real world where not everyone can afford to sink the money in an old tractor that they won't use very much.

Make sure to do a good job honing the sleeves. I would install new rings, new O rings on the sleeves and have the valves done.  You may have to buy (or make) new shims. New cam bearings will only cost about $30. Use plastigauge on the main and rod bearings.

Good luck !
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 7:14am
JC the frost plugs look new from the top and because I did not do a pressure test I am not sure if they leak but because of how inexpensive they are I will be replacing all three anyway
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 5394
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 8:06am
gman,
I understand the logic of not sinking a whole lot of money in one of these. But for sure that one cylinder sleeve has issues. Either a cracked block or bad o-rings. Yes used sleeve as mentioned would be a option along with the honing and fresh rings. By the time you get to that point it will feel like you did a engine rebuild but may save hundreds of dollars. I went through the same issues on my 45 project. And it did consume many many dollars to get it completed.  I sat down and did some soul searching for a while and then started in to it.
Little marv has a excellent thread on a C or CA engine he did.
I know one thing that if your going to fix it you got to take it apart. After that it will tell you how far you have to go. Then you need to decide if your going to save it or not.
Hate to say but some tractors do get set to the side when they have serious issues.
 I probably havent helped any?

Good luck, and your doing a good job documenting your work. Welcome to the Forum too!
 Regards,
 Chris

D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Ford Jubilee, IH TD6 Many IH Cub Cadets
Back to Top
Stan IL&TN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Elvis Land
Points: 6439
Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan IL&TN Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 9:24am
I would go ahead and replace the frost plugs just out of precaution. They are cheap insurance. good luck with the project!!
1957 WD45 dad's first AC

1968 one-seventy

1956 F40 Ferguson
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1065
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 2:55pm
I think you might want to consider replacing the o-rings on all 4 sleeves, if 1 sleeve is leaking the other 3 might be close to leaking also. And I agree, it would be good to replace the 3 core plugs while you have it apart. They rust through from the bottom to the top, so you don't see the hole till its too late. And if you pull the scored sleeve to replace the o-rings, you might as well replace with a new one or good used one. I see you are from Green Bay, I am 45 minuites NW near Shawano, WI. If you need any advice, questions, or parts, I can set you up with gaskets, and new or used sleeve. Alex
A&W TRACTOR REPAIR
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
ac fleet View Drop Down
Orange Level
Orange Level


Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 1364
Post Options Post Options   Thanks (0) Thanks(0)   Quote ac fleet Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 3:10pm
Might want to go with used sleeve/piston,--because a new one could add more strain on the crank. ---Its always best to try to balance the crank as much as possible. ----NOTHING wrong with used!! -- Been there, done that!-- even re-used gaskets, and made some of my own. -- It can be done and will work. --Main thing is to clean all of the surfaces real good and make sure all traces of o-rings, gaskets, sealer, etc. is removed. Just my 0002.

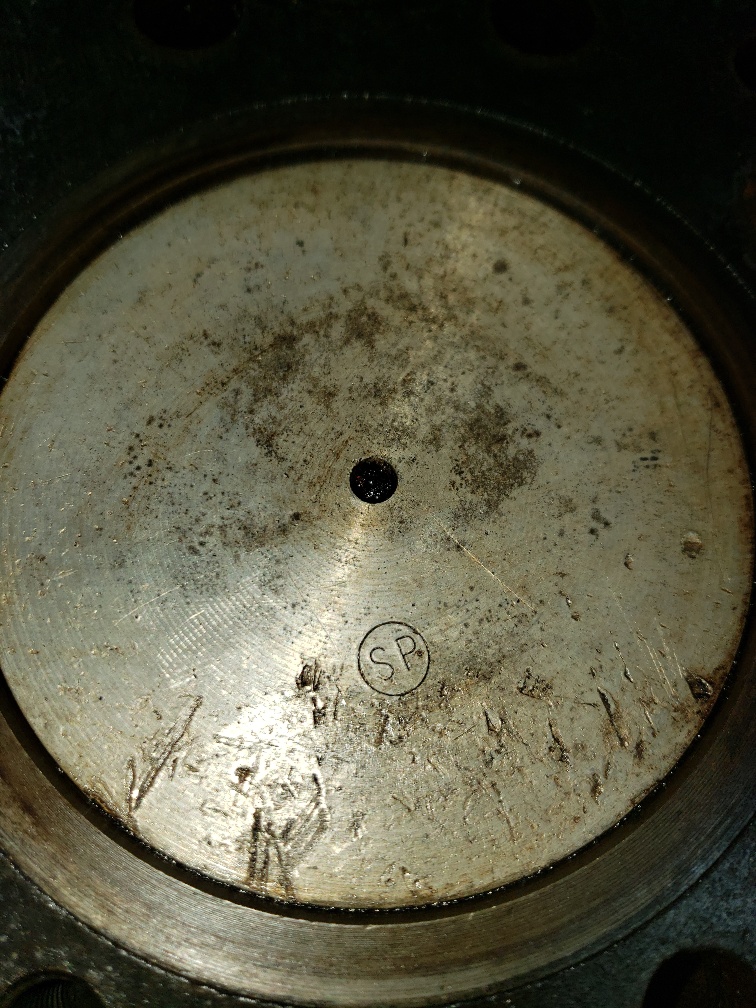

Not sure what the sp stamp means, have seen them before but never checked out what they mean!


Edited by ac fleet - 03 Dec 2019 at 3:12pm
http://machinebuildersnetwork.com/
Back to Top
DiyDave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 32306
Post Options Post Options   Thanks (1) Thanks(1)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 5:45pm
SP would be sealed power pistons, a trade mark of Federal-Mogul, would be my guess.

With 90 PSI compression, I would go for pulling the liners, re sealing, re ring the pistons, since you'll have them out, anyway.  When you are re-assembling, Use some plastigage to see the clearances on your crank bearings.Wink
Source: Babylon Bee
Back to Top
JC(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 27042
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 7:03pm
I was wondering if they are distilate pistons to be so low on compression...
He who says there is no evil has already deceived himself
Back to Top
steve(ill) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 45262
Post Options Post Options   Thanks (1) Thanks(1)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 7:10pm
groove in a liner is not good.......... BUT........ that being said, I have opened several of these motors, pulled the liners out.
--new O-rings on liners
--hone the original cylinders and reinstall
--new piston rings
--new gasket set
--lap the valves for a better seat
--replace the freeze plugs on top if the head.

when the liners are out, look at all the CRUD in the water passage... clean and wash that out.... verify that the crank and cam are " not too bad"... you can be a little out of spec and still get by... its RUNNING NOW, RIGHT ? ... anything you do will improve quality... it don't have to be NEW or EXPENSIVE.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 45262
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 7:13pm
Since it appears the pistons might not be STOCK, pull one out and mike the diameter to see if it is 3-3/8 or 3-7/16 diameter... also measure the ring height or thickness.... I bought a set of "RINGS" once and the motor had M&W pistons in it... they would not fit.. Some rings are 1/8 inch, and some a 3/32 inch thick.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 4607
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 7:41pm
You can't get a drip from the bottom of a sleeve from a frost plug in the head!
Your going to need to pull the sleeves and install new O rings to stop the drips.

After pulling out the pistons and making sure a current ring did not cause the score I wouldn't worry about it. Most likely looking at the color of the score it was done with a different piston. No way to know without taking it out and looking, Honing enough for a cross hatch should get you back running without breaking the bank. I doubt that score will cause it to burn a bunch of oil. If you decide to go this way be sure to check ring gap on the rings square down in the sleeve. I square a ring in the hole using a piston to push the ring some.

I assume your not wanting to dump a bunch of money into a new kit if you can get by without or you wouldn't ask the way you did.

Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 9:10pm
JC

What is a distillate piston?
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 9:24pm
Dick,

I agree with your assessment I pulled the piston out tonight and saw no ring damage to indicate scoring of the cylinder wall but I did see the rod bearing is in bad shape which tells me someone in the past may have pulled this motor apart and just replaced the piston and rings and left the bearing as is. I am also in agreement that you can't get drip in the bottom from a frost plug. The service manual says end gap of .007-.017 not sure what land clearance is if you or someone could advise me on that it would be helpful.

Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 5062
Post Options Post Options   Thanks (1) Thanks(1)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 9:54pm
Land clearance is what you measure with a feeler gauge stuck in the ring groove along with the ring. Too much "flop" leads to broken rings.
Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 5062
Post Options Post Options   Thanks (1) Thanks(1)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 9:55pm
Originally posted by gman54313 gman54313 wrote:

JC

What is a distillate piston?
 low compression....kerosene(distillate) fuel
Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 5062
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 10:01pm

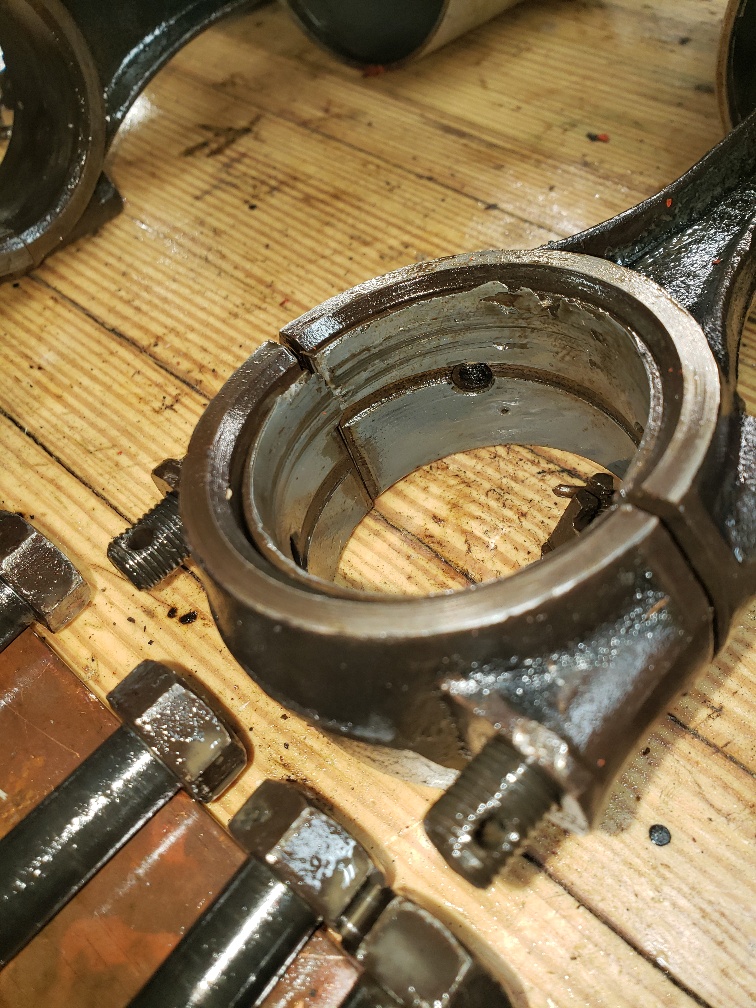

That bearing is ugly but it's just the soft metal buggered up. What's the crank like? Slight scoring can be polished out but too much out of round will require grinding . Crank grinding is not that expensive and you would be buying new brgs anyway so just as well do it right? Maybe you could buy a good runner for less than fiddling with this engine.
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1065
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2019 at 10:24pm
Originally posted by gman54313 gman54313 wrote:

Dick,

I agree with your assessment I pulled the piston out tonight and saw no ring damage to indicate scoring of the cylinder wall but I did see the rod bearing is in bad shape which tells me someone in the past may have pulled this motor apart and just replaced the piston and rings and left the bearing as is. I am also in agreement that you can't get drip in the bottom from a frost plug. The service manual says end gap of .007-.017 not sure what land clearance is if you or someone could advise me on that it would be helpful.


That picture of the bearing is a good indication of what happens when you run engines with antifreeze in the oil. Now I would suggest to pull the crankshaft out because there is a good chance all the other bearings look similar to that. You seem to know what your doing so you may have decided on that already
A&W TRACTOR REPAIR
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 4607
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 6:03am
That rod bearing looks like the rod was not orientated correctly when installed.
No way to have only one side of the bearing to be almost gone and the other side not showing much wear at all with the rod being installed correct.

look thru my pictures ay the link. The rods are offset. you can compare how yours were with my pictures. That my not have put your crankshaft out of round. Check the journals at 90ยบ places starting straight down.
You need that rod for being bent.



https://public.fotki.com/DickL/allis_chalmers_engi/allis-chalmers-c-st/

Edited by Dick L - 04 Dec 2019 at 10:53am
Back to Top
wekracer View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Oct 2009
Location: Tebbetts, MO
Points: 1378
Post Options Post Options   Thanks (0) Thanks(0)   Quote wekracer Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 6:54am
Have you priced an engine kit. You already talking about bearings and rings and head gasket etc. By the time you piece it together you can probably get a whole kit for about the same money.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 5394
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 9:46am
gman,
Your right into it! Looks like your pretty comfortable with the work. Great pictures too. We cant help you much on the cost. Nothing is cheap any more. I set aside a WD for 2 years due to some clutch parts it needed. I had to get my mind and wallet around the project and then at that point I was good to go. Several things have to come together at the same time for these things to happen too! I spent at least 9 months on the 226 engine I overhauled. So it takes time and money. Looks like your disassembly is going to lead you to make the correct choices for you, your tractor and this engine project!
Regards,
Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Ford Jubilee, IH TD6 Many IH Cub Cadets
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 7:13pm
Originally posted by SteveM C/IL SteveM C/IL wrote:

That bearing is ugly but it's just the soft metal buggered up. What's the crank like? Slight scoring can be polished out but too much out of round will require grinding . Crank grinding is not that expensive and you would be buying new brgs anyway so just as well do it right? Maybe you could buy a good runner for less than fiddling with this engine.


I am actually enjoying turning wrenches on Allis like most people I just want to be smart about it, money that is.
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 7:27pm
Dick L.

The photo album or the Alley rebuild was helpful, Wow I thought my cylinders were bad. Good point about the wear on the bearing and possible bent rod.
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 7:44pm
Thank you to everyone for there input a few views I never would have thought off.

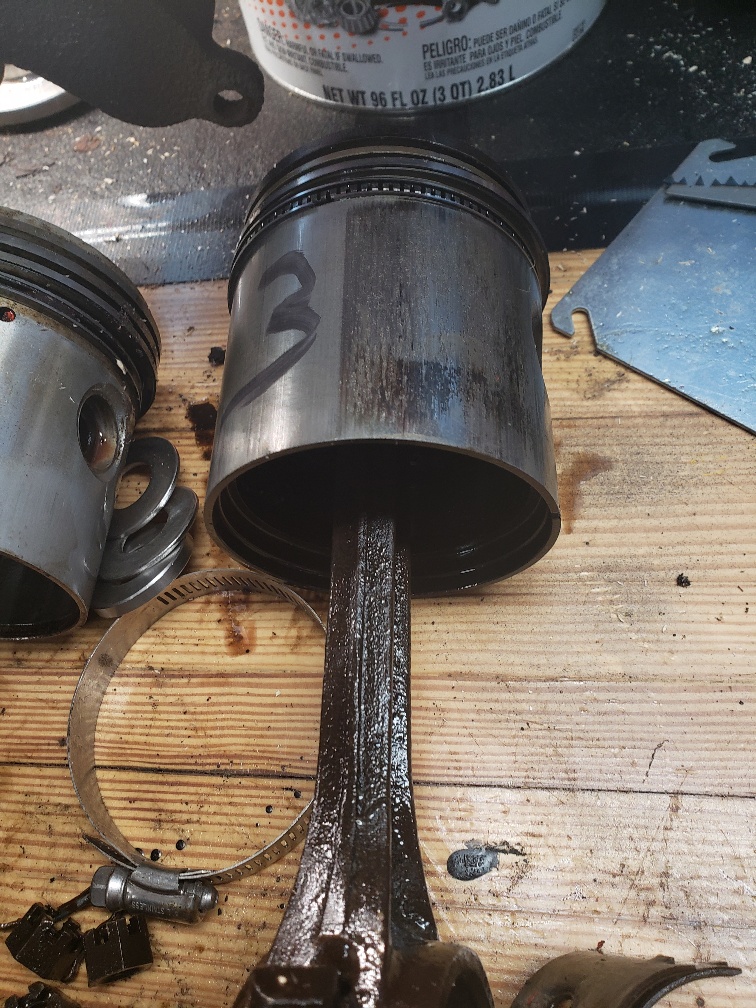

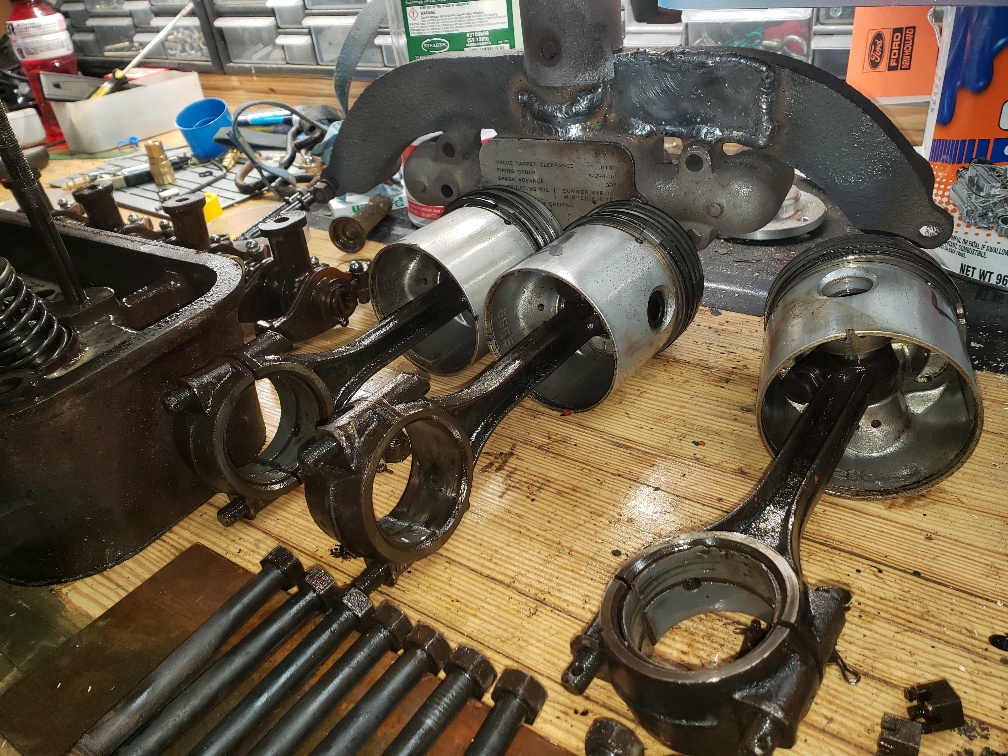

Last night I pulled out # 3 and it looks like a different piston even the oil ring is different from the others. rod bearing and crank looks good or at least go enough till I mic it. After work today I pull #1 sleeve which went really well with the puller we made. I did see the bottom oring had a gap in it. guess that had something to do with the leak. my biggest concern was if there was a crack in the block which I could not detect. I will have time tomorrow after work to pull the rest of the liners and then check the crank before I decide haw far I will have to go with buying parts.
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5577
Post Options Post Options   Thanks (1) Thanks(1)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2019 at 8:15pm
The shop manual might have some details to help figure out the conditions and repair details:

http://geraldj.networkiowa.com/Trees/Allis-Chalmers-G-B-C-CA-Service.pdf

Gerald J.
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 4607
Post Options Post Options   Thanks (1) Thanks(1)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 6:10am
Originally posted by gman54313 gman54313 wrote:

Dick L.

The photo album or the Alley rebuild was helpful, Wow I thought my cylinders were bad. Good point about the wear on the bearing and possible bent rod.


That picture album was of rebuilding an engine with all in spec used parts. New rings and bearings. I did this to show that it is not always necessary to throw the bank on a rebuild. I did this ten years, nine months ago and have used the tractor with a Woods 59 under it every since to mow 3 acres of yard and mulch manure in my hay fields. It will fire up today as easy as it did then and does not smoke. The point is in spec parts will give you very good service for a long time. It is in the (DETAILS)

Edited by Dick L - Yesterday at 6:11am
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 5394
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 10:05am
gman,

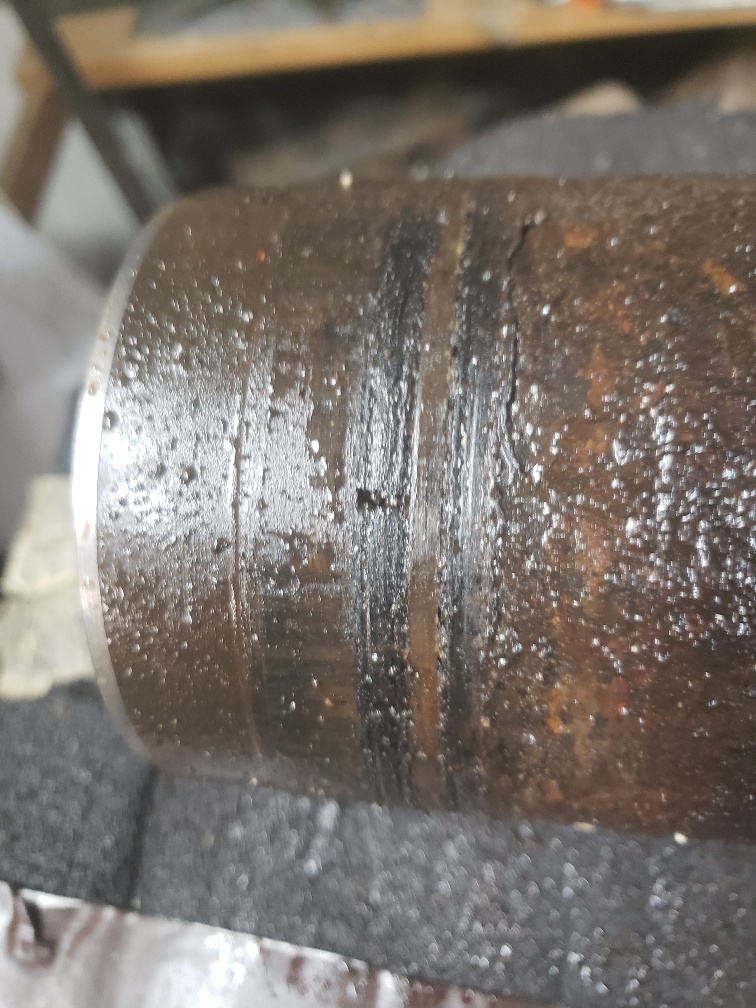

 Nice work pulling the sleeves! Yes that one o-ring is compromised. Hoping you dont have block issue. I think if you clean up the webs in the block you would be able to visually see cracks. They were obvious on the cracked block I had.
Your on your way.
I guess my thought on the rebuilds is that I will probably never have to overhaul the engine again so the cost of getting new parts is spread over a long time.
The things like mismatched pistons and new bearings lead me to think you will need a full kit with sleeves , pistons, rings, bearings, etc....
Regards,
Chris
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Ford Jubilee, IH TD6 Many IH Cub Cadets
Back to Top
JimD View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mounds, OK
Points: 2001
Post Options Post Options   Thanks (0) Thanks(0)   Quote JimD Quote  Post ReplyReply Direct Link To This Post Posted: 22 hours 4 minutes ago at 12:14pm

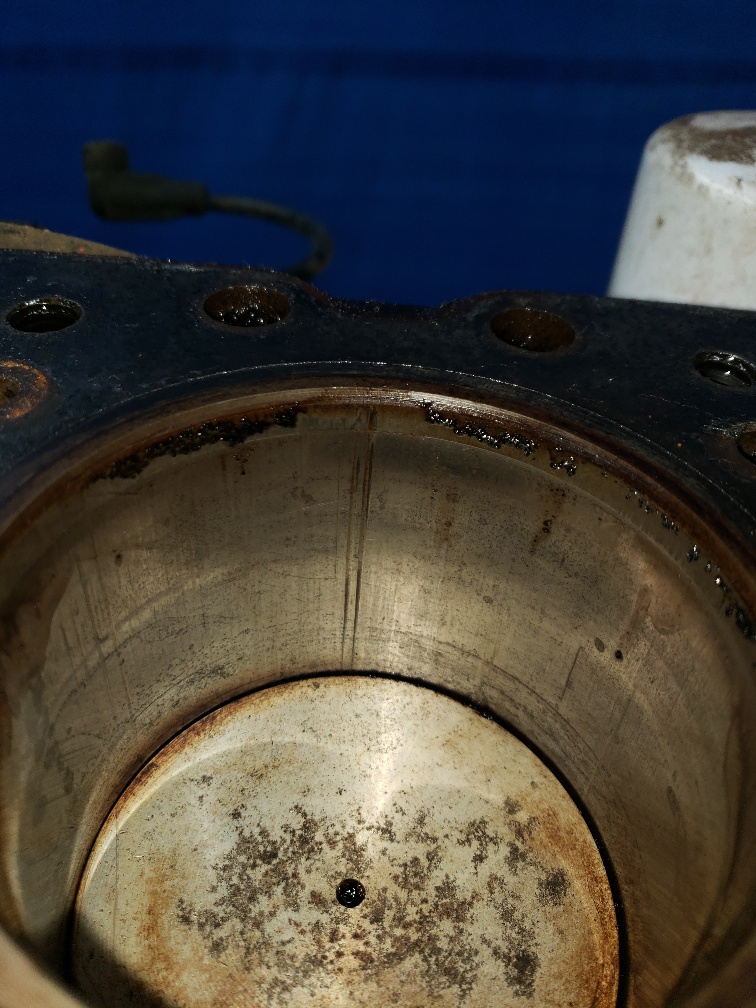

Sure looks to me like someone beat apart a stuck engine. I've made them marks myself :)  But I would never re-use with the damage.  Customer wanted t rebuilt and supplied the kit.
JImD
Owner of OKtractor.com PM for an instant response on parts. Open M-F 9-6 Central.

We have new and used parts. 877-378-6543
Back to Top
gman54313 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Nov 2019
Location: Green Bay WI
Points: 32
Post Options Post Options   Thanks (0) Thanks(0)   Quote gman54313 Quote  Post ReplyReply Direct Link To This Post Posted: 14 hours 34 minutes ago at 7:44pm
Again thank you to all for your input.

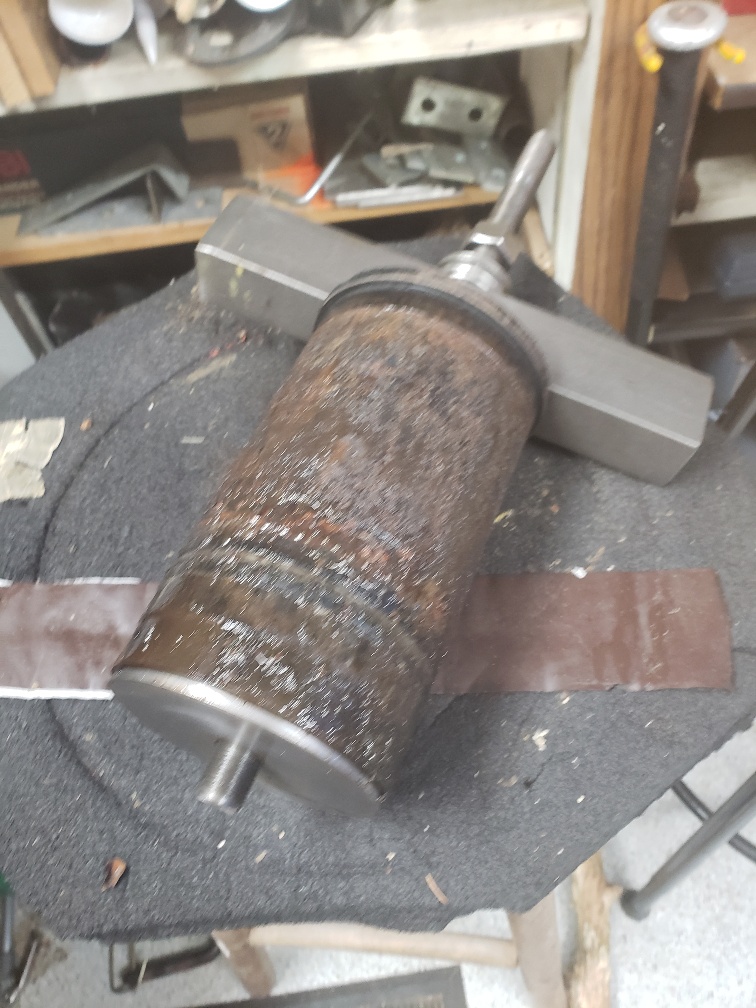

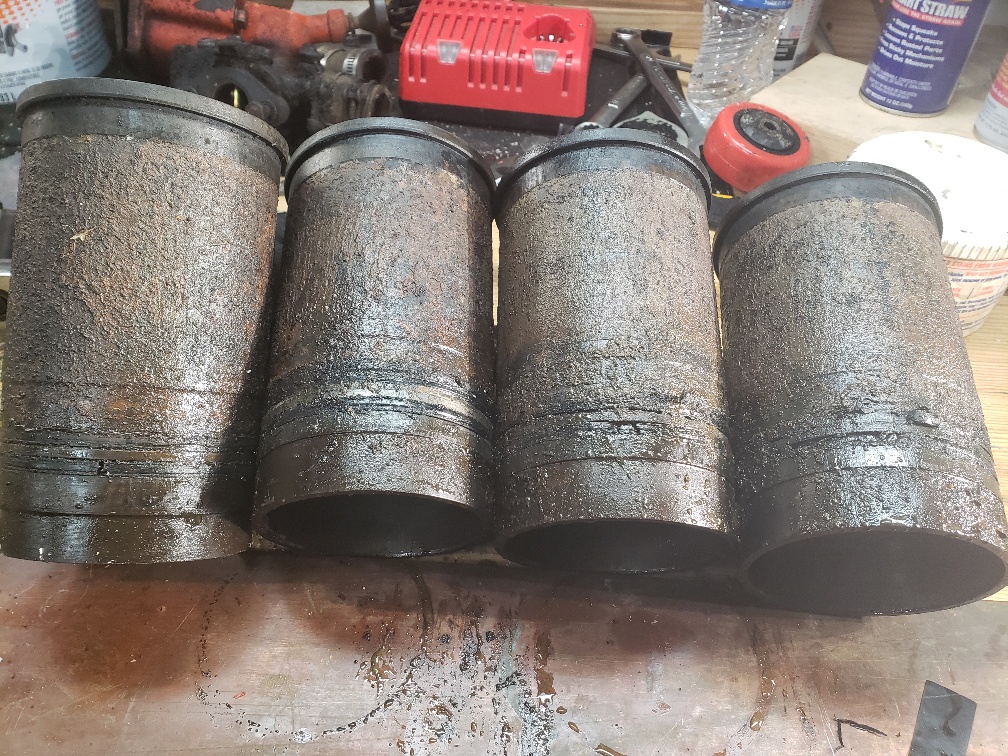

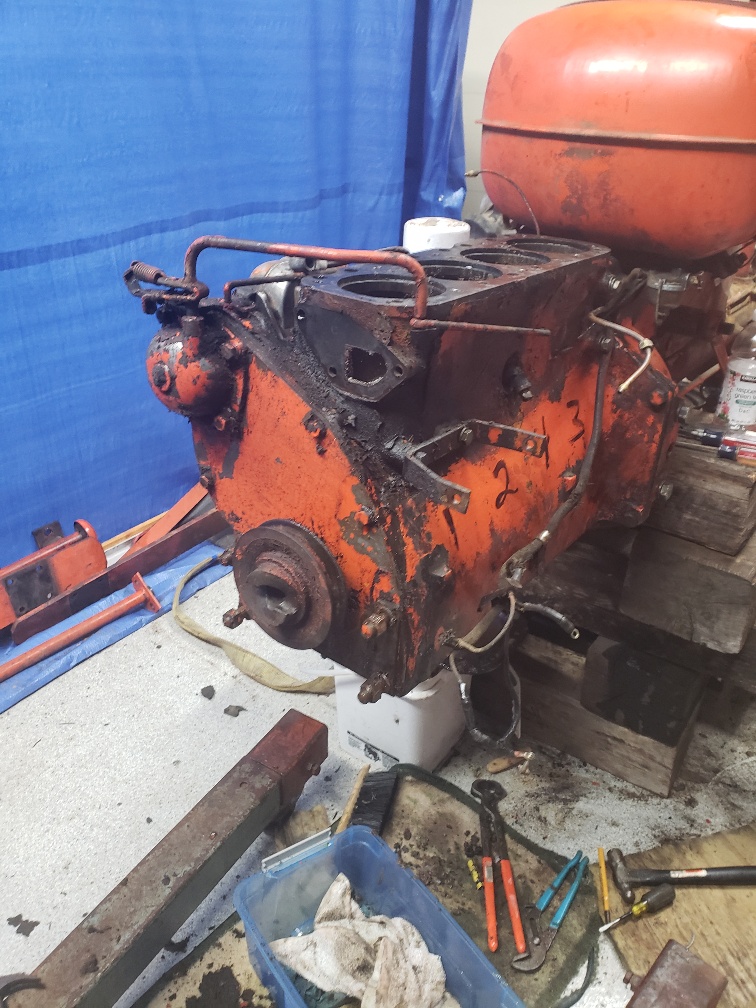

Today after work I was able to pull the remainder of the sleeves the fact that my plug for pulling the sleeves fit snuggly into the bottom of each sleeve gave me a clue all the bores were 3-3/8 and I did verify that with a gauge. After looking at all the sleeves two of the four had obvious gaps in the O-rings and all four look like they were 80 years old which i'm sure they are. After the sleeves where pulled and I covered up the crank journals and cleaned all the gak between the webs to inspect for cracks and to my surprise I did not see anything. I recently notice that the thermostat block and the lower radiator elbow with the peacock had been brazed. I am guessing because it froze at some point and cracked so I naturally was concerned about the block. The next step for me is to pull the crank and cam and check my tolerances.
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.078 seconds.


Help Support the
Unofficial Allis Forum
