Putting a tank heater on one ninety

 Post Reply Post Reply Page  12>
Author
Message
darrel in ND View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8691
Post Options Post Options   Thanks (0) Thanks(0)   Quote darrel in ND Quote  Post ReplyReply Direct Link To This Post Topic: Putting a tank heater on one ninety
    Posted: 23 Dec 2017 at 8:14am
I want to put a tank type engine heater on my very early one ninety gasser with the 265 engine in it, and need a little advice. I know from experience and looking at the directions, that I need to feed the bottom inlet port of the tank heater from the lowest point of the water jacket. Best option I can find for that, is a plug behind the carb appears to go into the water jacket; hopefully not an oil gallery. It is about a 3/8 or half inch pipe thread plug, so that is why I think it's a water plug. Most oil plugs are smaller. Assuming that plug does get me the source for the bottom port, where do I return the to out of the top port? I put a heater in the cab, with the help of a shop in town several years ago. One line to the heater is tapped in by the thermostat housing, and the other line by the water pump. If I remember right, one of them two ports, we had to drill and tap in, but that's somewhat irrelevant. Question is, can I just tee into one of these heater lines. It would be nice if the tank heater circulated through the heater in the cab, but obviously the most significant factor is that it warms the block up. Thanks, Darrel
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21490
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2017 at 8:46am
I used to drill and tap a hole in the side of the thermostat housing for the hot water to go back into the cylinder head, so try and use a tee on your heater hose connection?  Don't know if the hot water will go to the cab instead of the cylinder head ? If there is a hot water flow valve between the engine and cab (on either hose) closing it would insure hot water goes into the cylinder head.
Back to Top
darrel in ND View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8691
Post Options Post Options   Thanks (0) Thanks(0)   Quote darrel in ND Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2017 at 9:57am
Thanks Dr.
Darrel
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3966
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 5:38am
Why not put a freeze plug block heater on it works much better than a tank heater the freeze plugs are easy to get to there one the right side of the block just under the manifold. That's what my 190 has it works great.
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 5:45am
Originally posted by Dakota Dave Dakota Dave wrote:

Why not put a freeze plug block heater on it works much better than a tank heater the freeze plugs are easy to get to there one the right side of the block just under the manifold. That's what my 190 has it works great.

I was going to do this on my Diesel but there is no Bolt holes on mine. This was added on later series motors?
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490
Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 6:57am
Bolts on a freeze plug?  I'm not familiar with doing it that way.
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 7:46am
The rear port has 2 bolt holes to retain the heater in the freeze plug location like this one shows.





Edited by Charlie175 - 27 Dec 2017 at 7:50am
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21490
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 7:57am
I don't remember for sure, but I think that change in the block casting didn't occur until about 1972 ?? with the 200 tractor. Older 190/190XT and 180's were not like that.
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 8:09am
Does the Freeze plug in's have a way to retain the device in the hole without bolts?
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3966
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 9:29am
Yes they have a toggle bolt. You put the cross piece throught the hole and tighten it just like a Molly lock in a piece of sheet rock. After you punch out the freeze plug clean the hole lube the O-ring on the block heater stick the toggle in the hole and tighten it in place. When you get a car with a cold weather kit that's how the factory installers them. A 250w freeze plug heater will heat an engine up about the same as a 1200w tank heater. Since all the heat goes right to block. They almost never go bad and usually if they do you just change the cord. They only way to kill one is plug it in with no water.
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29792
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 9:44am
I put one on Dad's '65 gas XT but I don't remember much about it other than I think it bolted in like the pic above.... I think. It was about 20 years ago or more.
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 10:08am
That sounds easy enough. Too bad I have no electric near the shed!
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 10:12am
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3966
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 11:24am
At the farm when we've left the MAC out in the field and it's been real cold we have one of those little harbor freight 1000 watt generators just start it plug the block heater in and go back to what we were doing. Comeback in two hours and it starts right up.
Back to Top
darrel in ND View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8691
Post Options Post Options   Thanks (0) Thanks(0)   Quote darrel in ND Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2017 at 1:05pm
Odd that the whole block heater thing came up now, because I just got home from NAPA with a block heater for it that will bolt in to the hole just like in the picture. Main reason that I was initially thinking about the tank heater was because I had a brand new one on hand from a box of auction sale stuff. Then I come home and read my exact train of thought. LOL. Darrel
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 8:26am
I was about ready to install the kats circulating tank heater and then I saw this post. I have a 68 190xt and do not have the two bolt port. I tried to find the freeze plug and I don't see it? Since Dakota Dave seems to have solved this problem with a similar 190xt, am curious where he installed his heater. Also, what method was used to remove his freeze plug. I have installed the kats heater in another tractor with good results but purchased the optional T they sell that goes in the upper radiator hose to make it work correctly.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 34258
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 11:54am
Frost plug heater is the way to go faster heat time and with less wattage. 600 watts if your just plugging in for an hour, 400 watt with thermostate if you plan on leaving it plugged in longer periods of time. and then put insulation around the engine to block the cold off.

http://www.ebay.com/itm/Frost-Plug-Heater-1-1-4-600-Watt-120V-Massey-Ferguson-265-175-Allis-Chalmers-/132138665603?_trksid=p2385738.m4383.l4275.c10

Can't say this one fits but contact seller and see if the 180/190 are listed.
http://www.ebay.com/itm/KATS-K4CR-400W-120V-FROST-PLUG-ENGINE-HEATER-FREE-1ST-CLASS-AGCO-ALLIS-tractor/332477148387?hash=item4d692eace3:g:sFoAAOxykMpTIjZe:sc:USPSFirstClass!54840!US!-1&vxp=mtr

 Removing frost plug is punching the center  and then twist it out. Seems the scources say the frost plug is 1 1/4 inch hole.
  I installed a tank heater on 190 and I put the tank heater below the drain plug and then ran a hose down from the thermostat area to the inlet... otherwise when the heater was entering at the thermostat, it would open it and heat the radiator, and the thermostat was good... It did not do that on the 190XTD.
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 1:08pm
I buy into the value of the frost plug but I have looked at my engine and cannot find a traditional frost plug to take out! I certainly don't find one that is 1 1/4 inches. This tractor does have a cab and it did have a cab heater and it currently has a 90 degree elbow coming out of the block connected to a capped hose but it isn't 1 1/4 inches. The location of where the frost plug should be and/or a picture would be great, if someone could do that. Thanks.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1120
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 2:27pm
This frost plug is on my 1976 7000. Just above fuel injection pump.
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33316
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 2:46pm
My 180 is a Diesel but the heater fits into a bolted boss on the right side. Cord is hanging from it.

Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5153
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 5:30pm
The XT’s that I have seen have the heater in the rear freeze plug on the right side. So far my XT is starting well below 30 degrees with the manifold heater but agree block heater would be much easier on the ole gal. Ed’s pump rebuild resolved a lot of issues including the hard starting.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53511
Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 6:04pm
Charlie, just so's you know, a perfection 500 kerosene heater just fits under the oil pan of most D series tractors...  You can always slide a block under the heater, if the tractor in question is taller than a D series, and it don't use no lectric, and ya don't have to plumb it inta the tractor!

And, wif some high heat chevy orange engine enamel, along wif the triangular emblem, you can make it almost look like an AC original!



Edited by DiyDave - 28 Dec 2017 at 6:05pm
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 9:17pm
Really appreciate the pictures and these helped me locate the freeze plug. The reason why I couldn't see it is because the fuel lines and the fuel lines holder was blocking my view of it. Bad news is this means I have to bend these fuel lines and/or remove them to extract the plug and to make room for the frost plug electrical connection. All six of the lines are in the way too. Does everyone that has an early 190xt have this same problem? Are my fuel lines run differently than other 190xts?

Regardless this is going to be a bigger job than I wanted which may send me back to the circulating tank heater. I noticed that Dr. Allis indicated that I could tap into that heater hose I have coming out of the block, particularly since I don't use the cab heater anyway.

The 7000 picture above does not show the fuel lines in front of the freeze plug and it would be easy to install it if I had that view.

Thanks to all who replied.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2017 at 11:17pm
[IMG]uploads/16553/190frostplug_2017-12-28_23-08-59.jpg[/IMG]

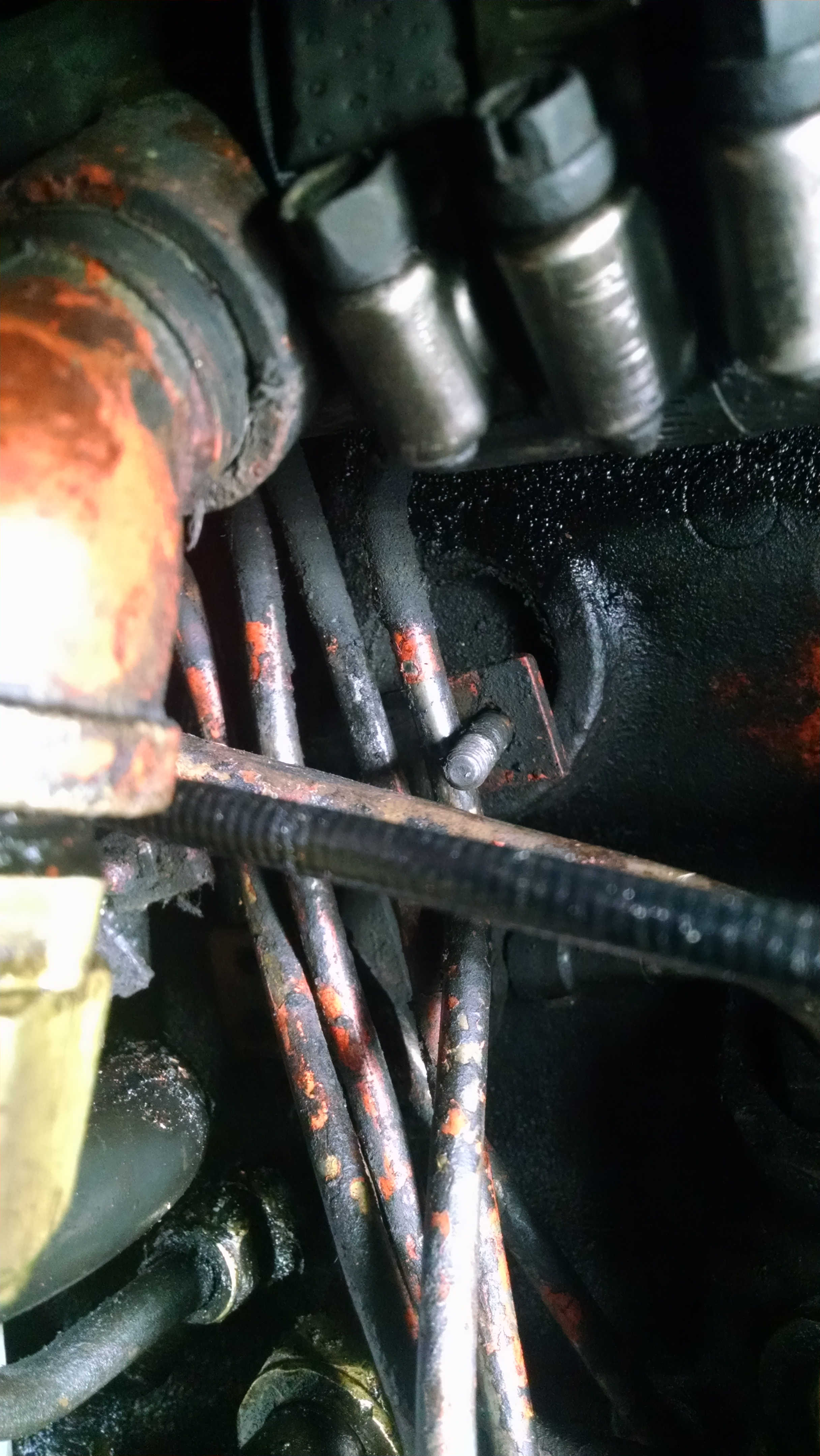

here is a picture of the lines in the way. You can see the corner of the frost plug once I loosened fuel line holder.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1120
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 4:56am
The reason you can see the frost plug easily on my 7000. Is the fuel pump has been taken out to send to Ed. I'm going to put a heater in that location this spring.  Tim
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 5:13am
Originally posted by DiyDave DiyDave wrote:

Charlie, just so's you know, a perfection 500 kerosene heater just fits under the oil pan of most D series tractors...  You can always slide a block under the heater, if the tractor in question is taller than a D series, and it don't use no lectric, and ya don't have to plumb it inta the tractor!

And, wif some high heat chevy orange engine enamel, along wif the triangular emblem, you can make it almost look like an AC original!


I like it! Sort of like what the tankers had to do in WWII when they lit a fire under the tank to warm it up!
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3800
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 8:20am
Originally posted by DMiller DMiller wrote:

My 180 is a Diesel but the heater fits into a bolted boss on the right side. Cord is hanging from it.


on a 190xt you have to use the rear hole because cant use that boss as its where the oil cooler bolts on.   only late tractors have the two holes tapped there so like my 67 xt you have to use the automotive style with the pull bolt in the center.
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 8:31am


I screwed up and used Microsoft Edge as browser and it didn't load picture correctly.  Here it is with Firefox.  You can see the rounded corner of the freeze plug hiding behind the fuel lines and the fuel line holder.  The clearance I have is less than 1/2 inch on the back side between the engine and the fuel line holder too.  So, I think I will wait until spring to clean up the engine and paint it, move the fuel lines around a little, so that I can get a frost plug in there as well.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (1) Thanks(1)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 8:35am
Use the one at the rear next to the starter
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
calico190xt68 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jan 2017
Location: Frankton, IN
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote calico190xt68 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Dec 2017 at 8:43am
I just noticed the above post about using the rear hole while I was writing my last post.  I didn't notice another frost plug on the right side of the engine but it sounds like there is another one next to the starter so that is good.  I will check it out tonight.  Thanks for the clarifications.
80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, AC 4 row Planter, AC 77G Rake, Member Indiana A-C Partners, Member TAC
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.188 seconds.


Help Support the
Unofficial Allis Forum
