i need help with acp150 forklift engine id
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3819 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Topic: i need help with acp150 forklift engine id
    Posted: 07 Feb 2020 at 7:42pm
need to id a engine so that i can order a waterpump  for a local fab shop i do bisness with it is a acp150 ds 2ps          control # f09603-80c-1421          sn 129252                      reg. no. 81e799                          nsn 3330-10-100-4162           engine sn. 363313        lbs. 10,000      date shipped 6 -30-81     could not find tag on engine but if i have to where do i look    thanks hud
Back to Top
Sponsored Links


Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2020 at 5:22am
A few good pictures of the engine might help.
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33263 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2020 at 6:07am
Most likely stamped into block on a casting ear around the bell housing area. casting numbers were just casting numbers in most cases.
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3819 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2020 at 5:40pm
is it possibly a waukasha  ?           it is a turbo diesel 4cyl. has 216020 cast on the block by the injection pump
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2020 at 9:59pm
Read through this post it might be a Waukesha D436T. I see a couple photos I had disappeared but that may be it.

Waukesha post
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2020 at 5:46am

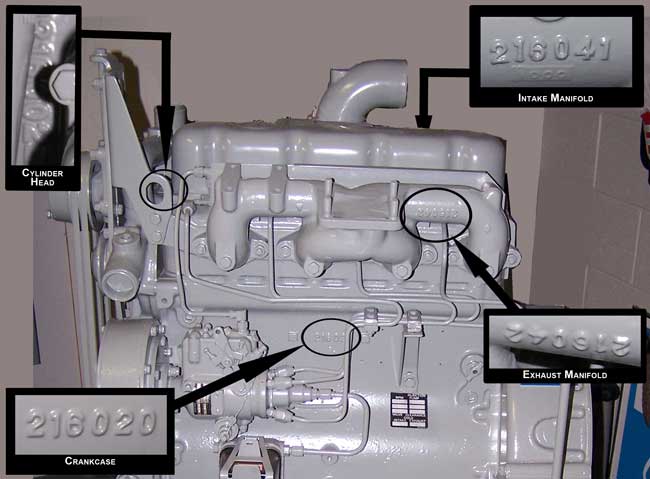

Found this picture on line
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3819 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2020 at 10:38am
its down deep in that forklift icould not readthat tag or was able to get closeenought to the tag to clean it off  but it did have  number on the block  the valve cover , injectors , exauhst manifold look like the picture .   having no luck finding a d436t engine listed any where .    will those other numbers apply ? i can find those out monday
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2020 at 11:19am
Those numbers are just casting numbers and I can't say they are totally specific to the D436T.

Sometimes they ask for water pump casting numbers if an engine used several different pumps, I don't know on this one.

Find a way to clean the engine tag if its there, a stick and a rag, something. Try reaching down and taking a picture of it, I've had luck doing that in some cases.
Back to Top
