HD6E Track adjuster stripped - Help

 Post Reply Post Reply
Author
Message
HD6 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2013
Location: Michigan
Points: 11
Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6 Quote  Post ReplyReply Direct Link To This Post Topic: HD6E Track adjuster stripped - Help
    Posted: 05 Jun 2019 at 12:09pm

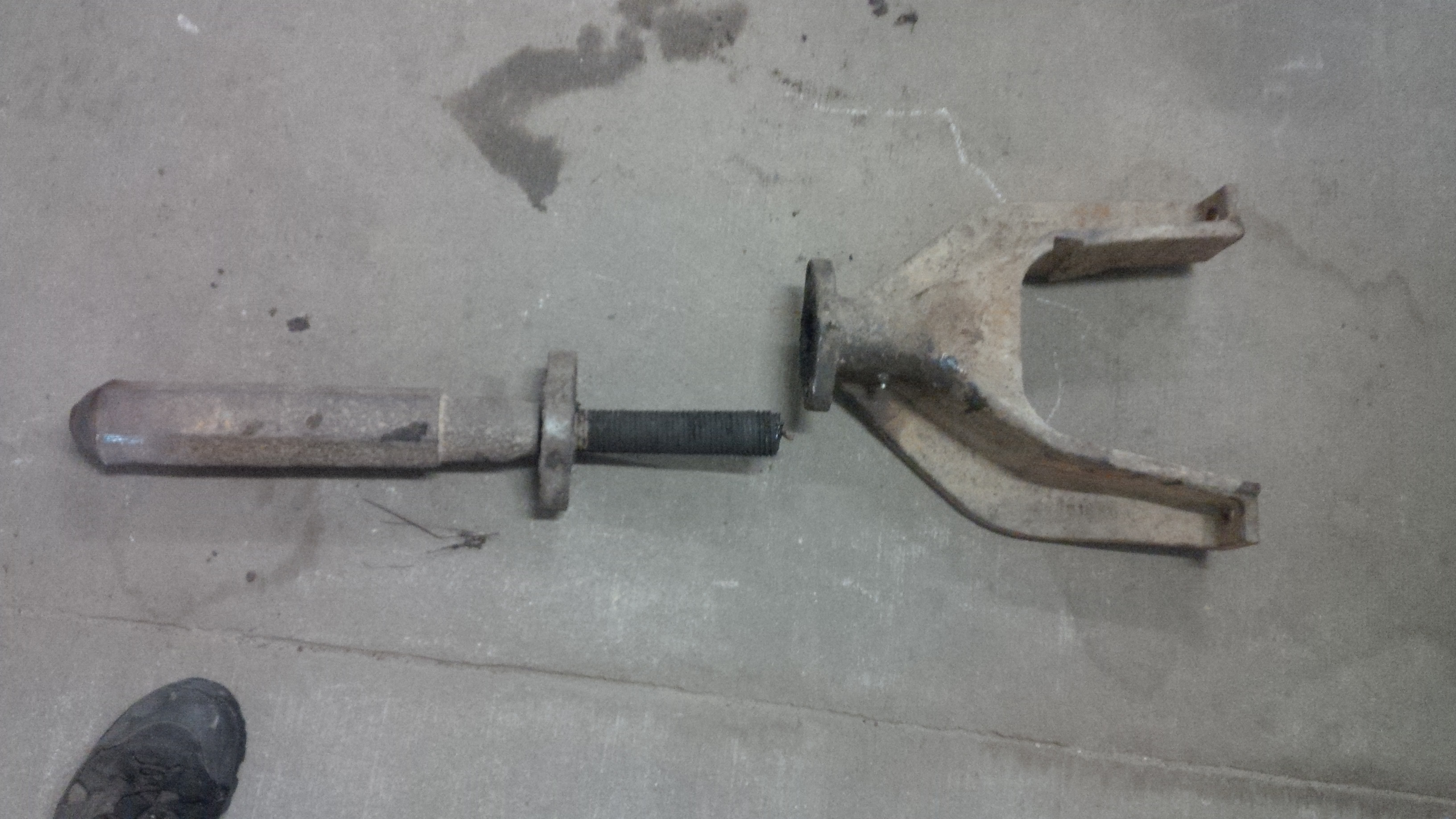

Good afternoon- The yoke on the Track release adjuster is stripped. Can anyone give me some advice on how I can repair the yoke or does anyone know where I can get another Yoke.  Any help would be greatly appreciated

.
Back to Top
Sponsored Links


Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3171
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 12:37pm
that yoke would be pretty easy to come by from a salvage machine.  general gear in Idaho www.tractorparts.com has a good selection but there is likely something closer to you.  hopefully someone else will chime in.

you could have it fixed at a machine shop but may cost more than a salvage one, but with freight who knows?
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD10W,HD16

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, R62, R72 HD15
Back to Top
HD6 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2013
Location: Michigan
Points: 11
Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 1:10pm
Thanks, So far I haven't found anything around me. I called General Gear in Idaho, they said they'll need to do some looking.  Thanks again for the tip.
Back to Top
gemdozer View Drop Down
Orange Level
Orange Level


Joined: 17 Sep 2009
Points: 623
Post Options Post Options   Thanks (0) Thanks(0)   Quote gemdozer Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 2:34pm
You could just use on more nut on the adjusting screw and adjusted the trak with the first nut and lock the second one on the first nut ,some guys do that
Back to Top
HD6 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2013
Location: Michigan
Points: 11
Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 2:46pm
Thanks Gemdozer- I found a couple of yokes $250 and $275 plus shipping.  I'll probably buy one but I'm going to look for a couple of 1.5 inch nuts and try your suggestion to get me going again asap.
Back to Top
jerbob View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 Aug 2017
Location: Michigan
Points: 923
Post Options Post Options   Thanks (0) Thanks(0)   Quote jerbob Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 3:50pm
Originally posted by gemdozer gemdozer wrote:

You could just use on more nut on the adjusting screw and adjusted the trak with the first nut and lock the second one on the first nut ,some guys do that


Good suggestions everyone.
HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
Back to Top
DiyDave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 30684
Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 6:15pm
Another approach would be to thread the yoke, to the next size up, and weld a piece of that sized all-thread, to the back half...Wink
Source: Babylon Bee
Back to Top
Coke-in-MN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 38620
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2019 at 6:50pm
As long as that lock plate is there and is threaded yet - a single nut is all that is needed and use the plate as the locknut - just use longer bolt to attach to the yoke .
 On a HD5B I had I turned a new threaded shaft for the yoke and then used a piece of square tube to make up the section to use adjusting wrench on - welded threaded to square tube and done
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
Back to Top
jerbob View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 Aug 2017
Location: Michigan
Points: 923
Post Options Post Options   Thanks (0) Thanks(0)   Quote jerbob Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2019 at 10:04am
Hello Everyone.

I had to rebuild both of my track adjusters on my HD16. They were not the screw type but hydraulic type using a grease gun to move adjusters. They work great and my tracks at spec.

However, I saw member Mortan who had to repair his on the spot by using a hydraulic ram in place of the original adjuster on his 16.

Could a new yoke and adjuster be made using the marriage of a high capacity jack with parts of the yoke and ram welded to it?" One step further could be plumbing in to the tractor hydraulics so you could adjust with the push of a button so to speak?

HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 308
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2019 at 11:54am
Morten and others have done the marrying of a hydraulic ram (Port-a-power type or other) to the yoke so that is very doable. You say jack do you mean the pump section? I would want to stay with a grease fill/adjust. Using oil can add to leaks. I don't think tying it to the crawler hydraulics would lead to anything good. My thought is if you needed to add oil often enough you just want to turn a valve you must have other troubles, i.e. the ram leaks the oil out or the hose to it got ripped off. JMHO.
Back to Top
Coke-in-MN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 38620
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jul 2019 at 8:30am
A ram from a snow plow turn cylinder could be used also - would be expanded wit hgrease gun - would just have to have end made up to fit into yoke and use the lock to retain it int yoke
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
Back to Top
jerbob View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 Aug 2017
Location: Michigan
Points: 923
Post Options Post Options   Thanks (0) Thanks(0)   Quote jerbob Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 1:31pm
Originally posted by Jim.ME Jim.ME wrote:

Morten and others have done the marrying of a hydraulic ram (Port-a-power type or other) to the yoke so that is very doable. You say jack do you mean the pump section? I would want to stay with a grease fill/adjust. Using oil can add to leaks. I don't think tying it to the crawler hydraulics would lead to anything good. My thought is if you needed to add oil often enough you just want to turn a valve you must have other troubles, i.e. the ram leaks the oil out or the hose to it got ripped off. JMHO.


Good points Jim. Yes I was referring to the ram off a porta power or hydraulic jack in the 30 ton range. You could tap it for grease fitting and like on my 16, use a grease gun to pump up pressure. If I did that, I would use the type of grease fitting used on the old JD 450 dozers. It used a specific fitting that had a mate on the end of the grease gun. Kind of a flat pancake type of a head. Grease gun held on better and would not fall off.

HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
Back to Top
jerbob View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 Aug 2017
Location: Michigan
Points: 923
Post Options Post Options   Thanks (0) Thanks(0)   Quote jerbob Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 1:33pm
Originally posted by Coke-in-MN Coke-in-MN wrote:

A ram from a snow plow turn cylinder could be used also - would be expanded wit hgrease gun - would just have to have end made up to fit into yoke and use the lock to retain it int yoke



Also a good idea Coke-in-MN. Hope you are well.

HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 308
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 1:44pm
You can google this if you want to confirm, I might be wrong. Grease fittings have a pressure rating of what they will hold as a "check valve". Some relieve and hold no pressure, others will be various pressures to 10,000 psi and maybe beyond. While they may work, many are not rated for the pressure an adjuster may see on impact. This is true for the common zerks. I believe the button heads, I think you are talking about, are low pressure. Their primary use was on track rolls, idlers and other applications where a volume gun/bucket could be used. There might be some that are high pressure rated but it would need to be researched.
Back to Top
jerbob View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 Aug 2017
Location: Michigan
Points: 923
Post Options Post Options   Thanks (0) Thanks(0)   Quote jerbob Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 2:28pm
Thank you. Good to know.

The JD 450 I ran for a construction company used the button style zerk on the track adjuster. At least what I remember from 1970.

Lol
HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
Back to Top
Mactractor View Drop Down
Orange Level
Orange Level
Avatar

Joined: 20 Jun 2011
Location: New Zealand
Points: 525
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mactractor Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 4:16pm
Thats true Jim. Zerks on pressure track adjusters have tapered seats on them screwing into mating tapered seats in the cylinders like SAE and JIC seats on hydraulic hose fittings. The thread has a channel to release pressure by unscrewing just enough to unseat the seal, and keeping the zerk most of the way into the thread. Similar to  brake cylinder bleed points.


Edited by Mactractor - 03 Jul 2019 at 4:18pm
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 308
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 5:04pm
Yes, you remembered correctly. Some of the early 450s used a button head fitting with a relief valve also in the adjuster. The point is not all grease fittings are suitable, like most things, one needs to be sure of what they are getting.
Back to Top
Ian Beale View Drop Down
Orange Level
Orange Level


Joined: 03 Oct 2011
Location: New South Wales
Points: 654
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ian Beale Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jul 2019 at 10:34pm
FA 10 uses a standard grease nipple but has a ball check valve in the fitting below.  Also has a valve that releases grease if cylinder pressure gets too great.

A good idea as that area is a bloody pain to work on - you need to strip the track frame
Back to Top
