 Topic: D19 alternater
Posted: 28 Dec 2020 at 5:02pm |
|
Has any put one on a d19 gas if so can you show pictures of the brackets you made to do it or if you bought them somewhere. Thanks Bob
|
|
great-grandpa's wc with picker, 20/35, speed patrol, uc, m crawler, 620, 653 dozer d21 d17 d19
|
 |
|
Sponsored Links
|
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3950
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Dec 2020 at 8:24pm |

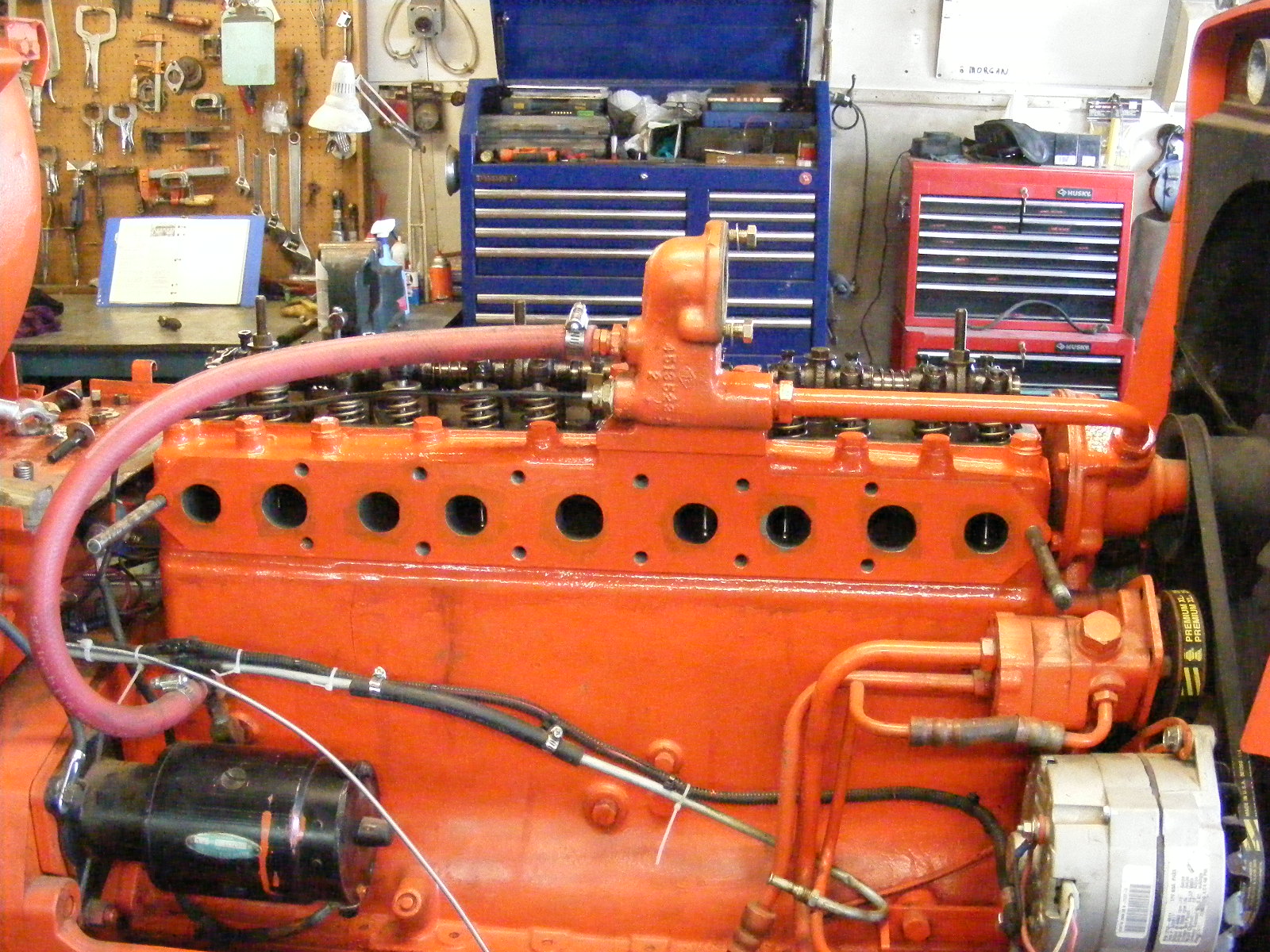

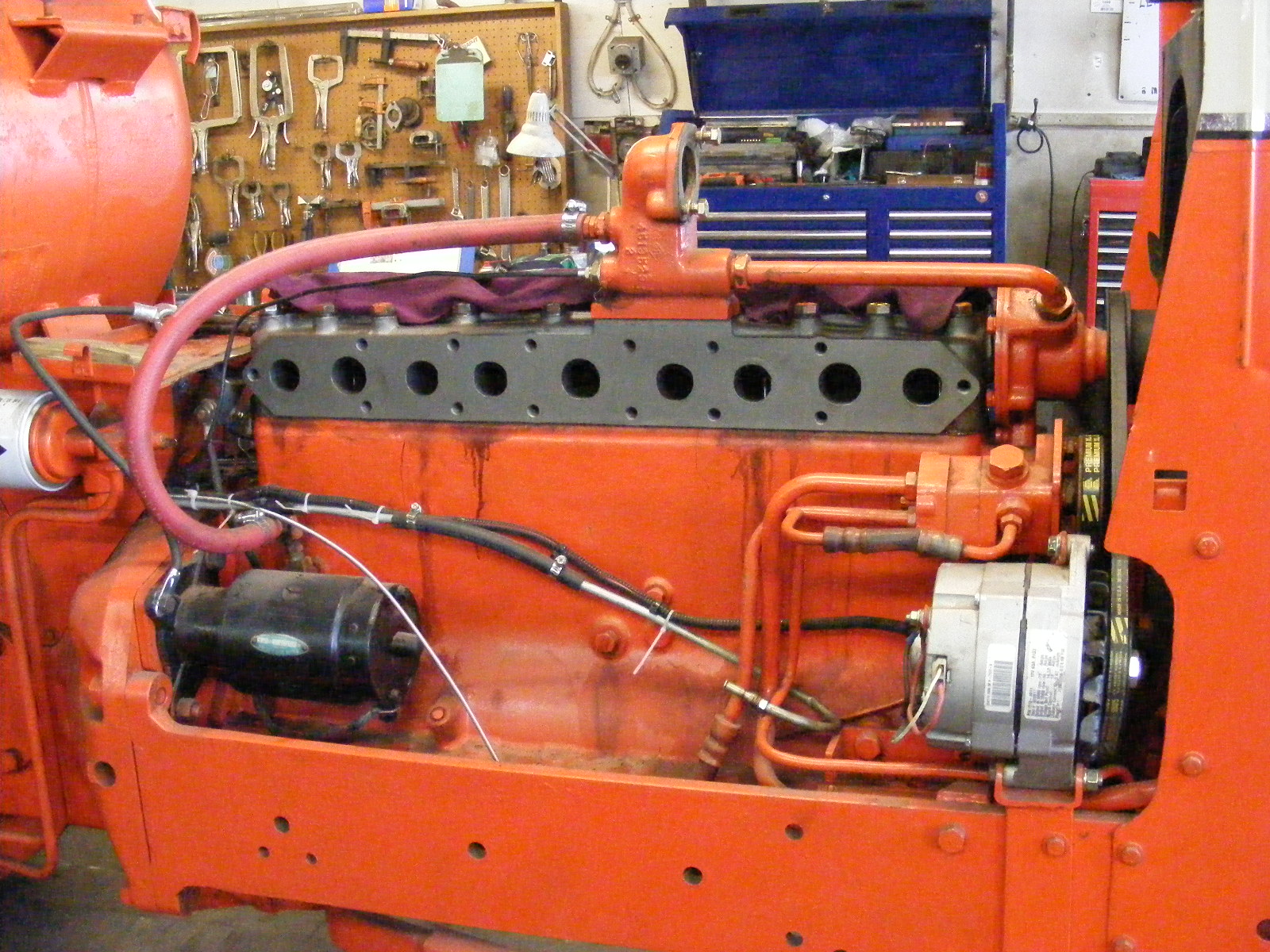

Here are a couple of pics of my neighbors D19 The mounting bracket is a flat bar with the alternator mount welded on to and it's bolted to the frame rail. The upper adjusting bracket is the original.
|
|
brettssac
Bronze Level
Joined: 09 Feb 2015
Location: alabama
Points: 60
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Dec 2020 at 9:18pm |
|
There is a cs130 saddle mount that can be a one wire or not that works great and you don’t even hurt the sheet metal
|
|
BX2,IB,WC,D15IG, D15IIDX3,D17DI,IID,IIID,IVD,D19DX3,D21II,HD3,185,AND GOD ONLY KNOWS THE EQUIPMENT
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 89131
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Dec 2020 at 9:31pm |
That vertical strap probably has another bolt at the bottom that is not shown in the photo, to stabalize the bracket ?
|
|
Like them all, but love the "B"s.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24872
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 5:56am |
|
I '2nd' the CS130 alt. Being smaller , it'd probably save a few knuckles and bandaids !
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 4049
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 7:06am |

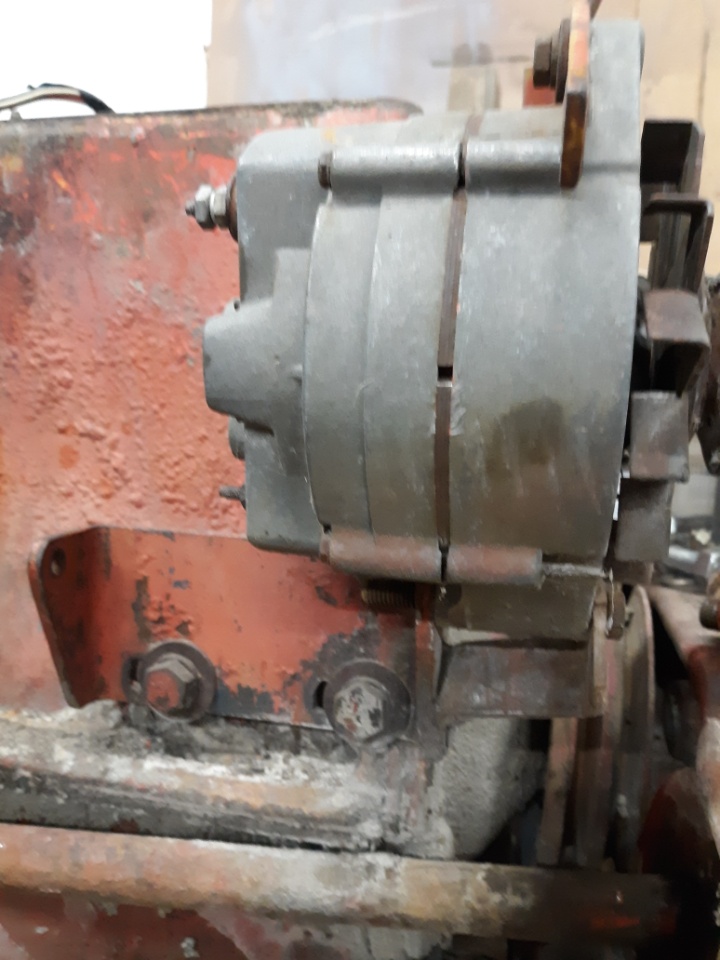

My dad fabbed this some 40 plus years ago. It's in a WD frame.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 22300
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 7:13am |
|
Use something newer and physically smaller than an old Delco. There's not much room in that area on a D-19.
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 12043
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 8:53am |
I agree with the good Doctor. A "CS" series or even the Denso pint size Alternator would be a much better fit in that particular application. One thing when fabbing Alternator mounting brackets, always make sure the Alternator is as straight and aligned with the other pulleys as possible. A crooked or misaligned Alt will eventually prematurely wear out the mainshaft bearing wiping out the Alternator inside. Another little trick if using the larger "SI" series Delco's, and the fan interferes with any sheetmetal, you can run the Alternator without the fan. That Alt will never have to work that hard on a Tractor to where it will overheat. In the case of interference, its better to use one of the smaller Delco cousins like the CS122 or a Denso as mentioned. HTH
Steve@B&B
|
|
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3950
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 10:12am |
In answer to Steve.ill. Yes the strap extends to the bottom of the frame rail and there is a second bolt down there. Just didn't show in that pic.
|
|
Albert
Silver Level
Joined: 11 Sep 2009
Location: NW MO
Points: 410
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2020 at 8:45pm |
I just did one, got the alternator at our local alternator shop used a small alternator and yes front bolt is a bear. No change on bracket used the generator pulley with 3 shim washers behind pulley and machined the pulley so the nut would go on far enough. PM me if you want the phone number for the alternator shop. Albert
|
|
