D15 Henry Backhoe Parts

 Post Reply Post Reply Page  12>
Author
Message
LSChalmers View Drop Down
Bronze Level
Bronze Level


Joined: 20 Apr 2011
Location: Conneaut
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote LSChalmers Quote  Post ReplyReply Direct Link To This Post Topic: D15 Henry Backhoe Parts
    Posted: 20 Apr 2011 at 3:23pm
I could really use some help finding parts for this backhoe. The tractor is a 62 D15 Industrial and the Backhoe I'm told is a Henry Mark V. The hoe has a serious drifting problem. I took the valve cluster to a local hydraulic shop who informed me that at least one of the valves has a nasty internal crack in the housing. (the pressure adjustment did nothing). I have put a lot of time and some money into this tractor and I really do like it as it runs beautifully! I would really like to fix this problem with the Backhoe attachment if I could just find the parts. I would even resort to installing parts that werent original if it would enable me to use the hoe. Thanks for any help you can give me
Back to Top
Sponsored Links


Back to Top
DonDittmar View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Sep 2009
Location: MIllersburg, MI
Points: 2476
Post Options Post Options   Thanks (0) Thanks(0)   Quote DonDittmar Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2011 at 3:53pm

You are correct on the Henry part, but I dont know how many were made. it may come down to you installing a different valve bank, unless someone else will chime in if they have a used one

Experience is a fancy name for past mistakes. "Great moments are born from great opportunity"

1968 D15D,1962 D19D
Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start
Back to Top
Breeze View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ga
Points: 8931
Post Options Post Options   Thanks (0) Thanks(0)   Quote Breeze Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2011 at 5:07pm
Whats the tractor number?  I had d15 4694 or 4964 (dont have info handy).  It was equipped with a henry Mark IV backhoe and henry L-100 front loader. Sorry cant help with parts. Did you try hydraulic shop for replacement?
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4515
Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2011 at 6:25pm
I think that the hydraulic valves and rotory swing motor are Cessna.
About 35 years ago I bought a loader control valve for my I 60 and it was a Cessna, the same as used on a MF 50 TLB and it was less than half price from MF. All rotory swing motor backhoes will drift sideways at the best of times.


Edited by Calvin Schmidt - 20 Apr 2011 at 6:26pm
Nothing is impossible if it is properly financed
Back to Top
Breeze View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ga
Points: 8931
Post Options Post Options   Thanks (0) Thanks(0)   Quote Breeze Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2011 at 7:28pm
You are correct Calvin
Back to Top
LSChalmers View Drop Down
Bronze Level
Bronze Level


Joined: 20 Apr 2011
Location: Conneaut
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote LSChalmers Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2011 at 3:23am
Thank you for the tip Don. I have no issues with replacing the whole bank if I need to. Any thoughts on where I should shop for one?
Back to Top
LSChalmers View Drop Down
Bronze Level
Bronze Level


Joined: 20 Apr 2011
Location: Conneaut
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote LSChalmers Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2011 at 3:25am
Breeze, the number is 7311. It could be a Mrk IV, I am really not sure. the loader is a TS500.
Back to Top
LSChalmers View Drop Down
Bronze Level
Bronze Level


Joined: 20 Apr 2011
Location: Conneaut
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote LSChalmers Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2011 at 3:28am
Thank you Calvin. I dont have too much problem with the side to side movement but the hoe drifts down rather quickly, has no down force and very little lifting ability.
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4515
Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2011 at 5:38am
If the valve is repaired and you still have drift, the seal on the end of the rod of the cylinder is bypassing and will need to be replaced. Any good hydraulics shop will be able to do the repair.
Nothing is impossible if it is properly financed
Back to Top
LSChalmers View Drop Down
Bronze Level
Bronze Level


Joined: 20 Apr 2011
Location: Conneaut
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote LSChalmers Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2011 at 10:14am

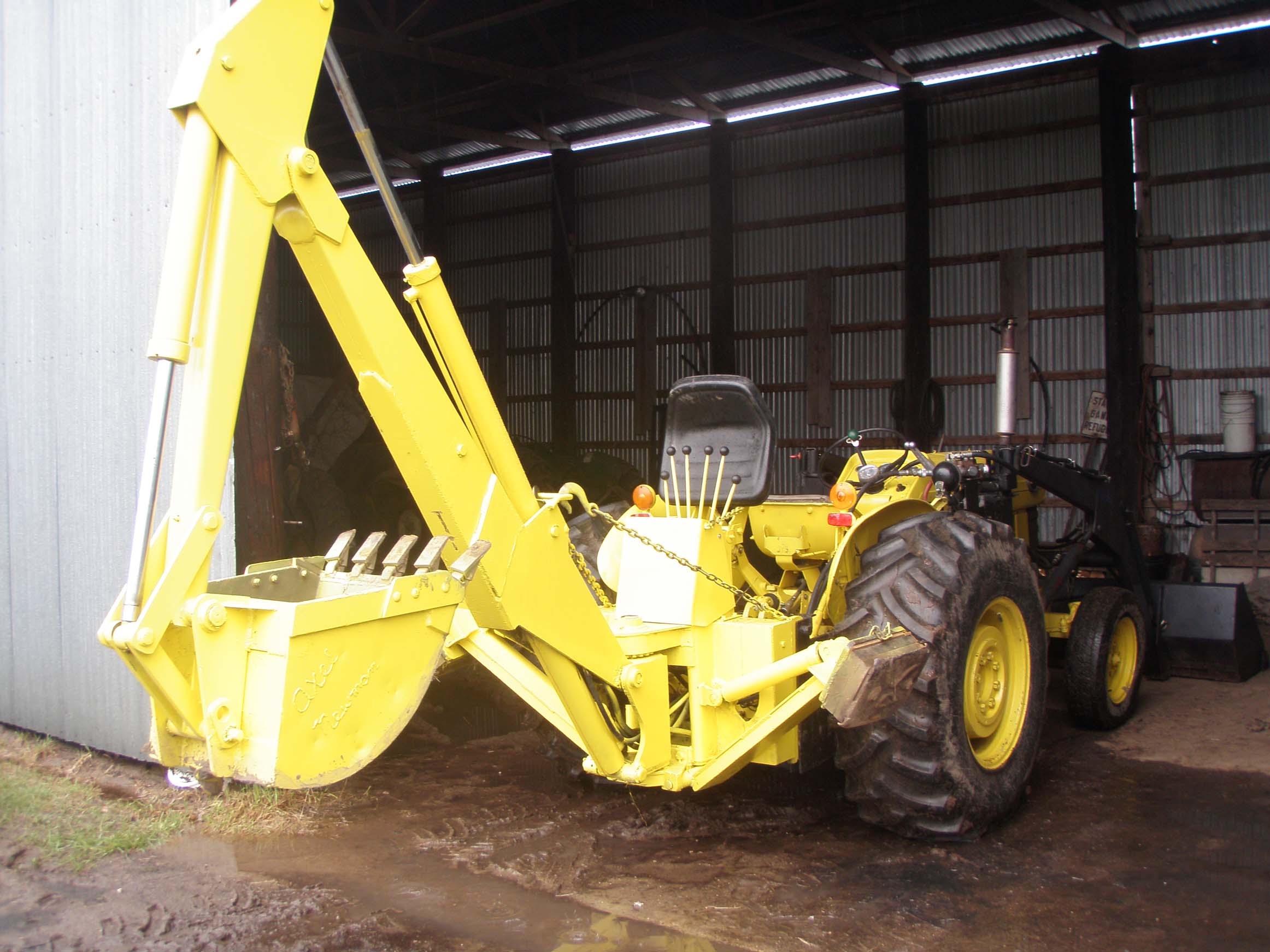

I thought I would poste a few pics as a reference.uploads/4855/IMG_3512.jpg
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2011 at 6:41pm
I have a mark iv backhoe and I need a seal rebuild kit for the rotary actuator.....the swing hyd motor.  HELP!!!!!
Back to Top
Breeze View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ga
Points: 8931
Post Options Post Options   Thanks (0) Thanks(0)   Quote Breeze Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2011 at 7:24pm
Loren thanks, I hope you get it straightened out. I would think a good sized hydraulic shop would be able to hook you right up. I bought a single valve for a log splinter from harbor freight recently and they had various sizes and models.. Maybe even a dealer or two on here can get them delivered to your door.
 Rusty  whats your mark iv mounted on? I dont know much about your seal kit but give it a day or two and let some of the gurus check in and they may be able to help you guys out. Theres a wealth of Allis and other knowledge here and I just hang on for the ride.
But still, welcome to unofficial allis, "the site" to see.


Edited by Breeze - 22 Apr 2011 at 7:25pm
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2011 at 7:40pm
Those rotary piston swing motors take a little time to reseal, mine drifted and found a chip in the piston I had to weld and machine down. The most problem I had is the top seal where shaft comes out top casting , ended up with a leak there and I still need to replace that seal
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 04 May 2011 at 6:07am
Good morning, Calvin.  I read you post about the D15 Henry backhoe parts.  I have a Mark V that needs a rebuild kit for the swing cylinder.  Any ideas??  Rusty
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 04 May 2011 at 6:10am
Good morning, Coke-in Mn.  I read your post about the swing cylinder on a Mark V backhoe.  I need a rebuild kit for the swing cylinder.  Any ideas?  Rusty
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 04 May 2011 at 11:01am
Same motor was used on MF hoes and on some other mfg units , it is a Cesna rotary piston.
 can try MINNPAR in Mpls MN as they were AC industrial supplier. Herc-U-Lift in Mpls was dealer and they have been helpful in parts for HD4, 615 AC detatchable hoe parts, and 715B TLB parts.
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
pineyjd View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Sep 2009
Location: Southern NJ
Points: 100
Post Options Post Options   Thanks (0) Thanks(0)   Quote pineyjd Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2011 at 5:21am
Is this same hoe as on I 40 ??,I think I have I 40 hoe parts list w/diagrams.
Back to Top
acer View Drop Down
Bronze Level
Bronze Level


Joined: 10 Jun 2010
Points: 134
Post Options Post Options   Thanks (0) Thanks(0)   Quote acer Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2011 at 10:12pm
i bought a brand new one (swing cylinder) from minnpar about 5 years ago, i still have the old swing cyl if any one could use it it work fine just leaked out top a little. if you have pn for valve assembly  give minnpar a call
Back to Top
AChoe View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 May 2011
Location: illinois
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote AChoe Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2011 at 7:22pm
I have an AC backhoe with a addon hoe attchment that has the swing cylinder. I rebuilt the entire backhoe attchment two years ago and had a horrible time finding any info. So here is what I know. I finally ordered parts and repair books online from jensales at WWW.ssbtractor.com. I had to do some searching and looking around and even ordered some books that didnt apply because I just couldnt tell by the title. My machine is a I-600 industrial backhoe on a D-17 AC tractor. My serial number is 7bn 18---. If this looks familliar with yours then the book is titled I600 Backhoe for H4&HD4 crawlers & I600 industrial. This is an excellent resource for the backhoe. For the D-17 I ordered the Service Manual I-60 & I600 Industrial book. This is also an ecellent book for service. The last book I ordered is the operators manual and parts list for Mark IV & V backhoe. This manual is very close to the I-600 backhoe but it is not an Identical match, It might however be just what you are looking for for the henry model. I purchased many of my parts on the minnpar website and a local dealer in  El Paso, IL, called Dunmire Equipment Co. inc. their phone number is 1-309-527-6300. I ordered a seal kit from them and they actually had the parts books to help. The Kit cost me $300 for the swing cylinder. Fred is very helpful. I also looked on the minnpar website and the part # for the I600 swing clyinder seal kit is 2017992. I hope this helps.
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2011 at 5:20pm
WOW!!!!!!!  Thanks so much for the time and trouble to make such a complete and informative reply.  Your information  is invaluable.  I have forwarded the reply to my hydraulics shop and look forward to his success.  Do you have a pic of your machine.  If so, I would enjoy seeing it.
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2011 at 5:34pm
Here is the re;ply I got for  Minnpar:  Three pages attached reference request of 05/04/11 MKV-2B-795.  I have quoted what is currently available.  Also I have marked items that are no longer available.  Part numbers that are not noted can not be found, thus I am unable to determine if they are available or no longer available.

Larry Paulsen, Product Support Specialist, MinnPar LLC, Minneapolis, MN 55414.

Do you have a picture of your swing cylinder??




Back to Top
AChoe View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 May 2011
Location: illinois
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote AChoe Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2011 at 7:28pm

I can e-mail you some pics but I cant seem to download them to this forum, the file size is to big ??? My email is cdirks00@hotmail.com

Back to Top
AChoe View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 May 2011
Location: illinois
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote AChoe Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2011 at 7:52pm
As I stated in an earlier post I also replaced all the valve body controls for the backhoe that are stacked under your feet when running the machine. My hoe also drifted bad and settled very bad. I used the service and parts manuals that I bought and(after lengthy internet searches and a number phone calls) contacted Fluid Power INC. 3755 Grand Rapids, MI 49548. I talked ith Gordon Ralph and sent him some copies of the specs in the service manuals and some of my own descriptions and some photos of my old valve bank and (after a few back and forth calls and emails) He sent me a quote for a valve bank that was nearly an excact replacement and even bolted in the same holes as my old one. His phone # 616-241-4695. If I remember right the valve body cost around $1000 to $1200  but It was totally worth it. It completely solved my problems and made the machine link new. I have my entire spec sheet and pictures of my old valve body if it would help anyone. I just need your email address as I cant seem to figure out how to download files of any size on this forum but I
will gladly send you anything that would help with your project.


Edited by AChoe - 13 May 2011 at 7:58pm
Back to Top
Breeze View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ga
Points: 8931
Post Options Post Options   Thanks (0) Thanks(0)   Quote Breeze Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2011 at 9:16pm
WOW! we have managed to get another Illinois "good" one to visit the forum. Thanks for some good info and heads up phone numbers. Welcome aboard AChoe.
Back to Top
Rusty View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Apr 2011
Location: Salem, VA
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rusty Quote  Post ReplyReply Direct Link To This Post Posted: 14 May 2011 at 8:58am
Here is my email address:  allenmail66@gmail.com  Please send your pics to this address and I will gladly send you mine.  Thanks so much for the post and your kind offer.  Rusty
Back to Top
acer View Drop Down
Bronze Level
Bronze Level


Joined: 10 Jun 2010
Points: 134
Post Options Post Options   Thanks (0) Thanks(0)   Quote acer Quote  Post ReplyReply Direct Link To This Post Posted: 08 Aug 2011 at 9:14am
anyone know of a good source for pump for i 600 backhoe mine is weak.  it is a 2 section pump  min parr has them but a little pricey
Back to Top
AChoe View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 May 2011
Location: illinois
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote AChoe Quote  Post ReplyReply Direct Link To This Post Posted: 08 Aug 2011 at 12:47pm
Have you had your pump apart? They are a gear pump and the wear that causes them to produce low pressure at the top end is usuallly end clearence on the gears. This is easily seen with the casing apart. If this is the case then you can either have the face resrufaced or if its not that bad then sometimes the case has shims and some shims can be removed to close up the tollerance. If the gears are wore to badly (unusual) then the pump will need to be replace. I dont know of a good place to get a pump.
Back to Top
64 D-15 Industrial View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 10 Feb 2012
Location: Newtown CT
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote 64 D-15 Industrial Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2012 at 9:46pm
For anyone on this post looking for part number info on a AC d-15 Series II tractor, serial number 13000 and up, I have the original operator & dealer's Parts Manuals.  I also have them for the Henry TS-500 Loader and the Henry Mark IV & V Backhoe.Smile
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 17 Feb 2012 at 10:26am
My HD4 had the AC 615 detachable hoe as a separate unit . It mounted onto tool carrier and used a diverter valve in the hyd system,  bucket control was bypassed while hoe was in use.
 Using the MF parts books i was able to find parts for the swing motor and at a lower  price than through Minnpar (AC prices) for same items.
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
truce1000 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 May 2012
Location: minneapolis
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote truce1000 Quote  Post ReplyReply Direct Link To This Post Posted: 04 May 2012 at 5:50pm
I need part numbers for the main gear and bushings that turns the swing arm side to side . I think MnPar has the parts but they have archived the manuals for the Henry Backhoe mine is a model 120 SN 41g670. Possibly similar enough to a Mark V or IV.



Back to Top
