 Topic: D14 Gas Line Shape/Routing
Posted: 06 Feb 2019 at 2:46pm |
I have acquired a well-used gas line for my D14. It needs to be reshaped to fit properly. I'm wondering if anyone could provide an accurate drawing that shows the lines twists and turns. I've looked at the line shown in the parts manual - it doesn't provide much detail. Also, I assume that the line passes behind the air cleaner; is this correct?
Thanks very much! Dave
|
|
WC, CA, D14, WD45
|
 |
|
Sponsored Links
|
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1125
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Feb 2019 at 6:06pm |
|
Dave I'll take a picture of the gas line on my D 14 tomorrow, and post it. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Dave(inMA)
Orange Level
Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2399
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Feb 2019 at 8:00pm |
|
|
|
WC, CA, D14, WD45
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1125
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2019 at 4:01pm |

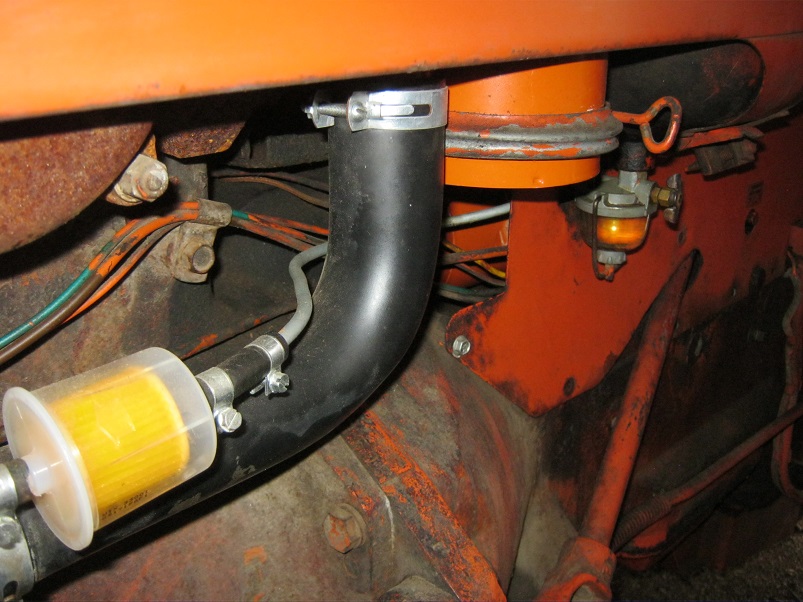

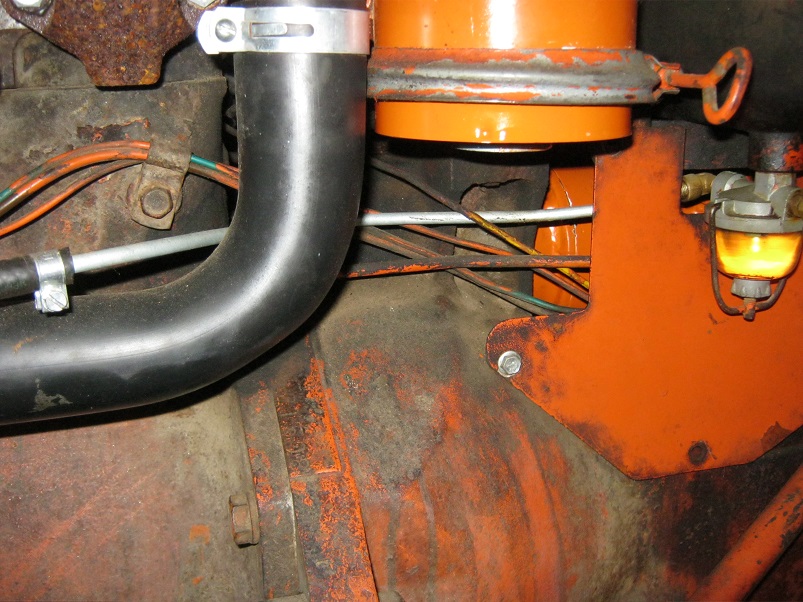

So I took the oil cup off. I still haven't painted that gas line yet. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Dave(inMA)
Orange Level
Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2399
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2019 at 9:53pm |
Thanks, Tim. I think I need to rotate the sediment bowl 90* to reduce the sharpness of the bends in the line. Will have a look tomorrow.
Dave
|
|
WC, CA, D14, WD45
|
|
Dave(inMA)
Orange Level
Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2399
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2019 at 3:53pm |
|
Was able to look at the D14 today. The sediment bowl needs to rotate 180* so the gas line will run behind the side panel. The panel will have to come off - one of my least favorite things on that tractor! I'll make a list of a few tweaks that can be done with that off and get to it once the weather warms up a bit.
|
|
WC, CA, D14, WD45
|
|
wfmurray
Orange Level
Joined: 13 Sep 2009
Location: Bostic NC
Points: 1225
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2019 at 5:47pm |
|
Why the filter ,sediment bowl took care of one we had [ D 14 ]. since 57.My B stopped because of new type gas . Sealed screen in sediment bowl.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24669
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2019 at 5:54pm |
|
there's at least 2 styles of sediment bowls, one has outlet 90* from the other one..I've got both on my D-14s so I can't say which is 'officially' correct.
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Dave(inMA)
Orange Level
Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2399
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2019 at 9:20pm |
|
Good point on the different sediment bowl styles. Will have to check that before I get too deep into this.
|
|
WC, CA, D14, WD45
|
|
Dave(inMA)
Orange Level
Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2399
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Feb 2019 at 5:00pm |
Okay! Today I pulled the side panel so I could rotate the sediment bowl and adjust the hood latch. After getting that done, I routed the line as shown in Tim's pictures and tightened both ends of the line. No leaks! She fired right up. Thanks for the help.
