D12 three point hitch arms
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 4932 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Topic: D12 three point hitch arms
    Posted: 11 Jul 2022 at 11:08am
I bought a D12 Series 3 a while back and I am finally getting around to doing some work on it. It has a three-point hitch, but the lift arms are cobbled up.

The lift arms are 34" long and someone welded a piece at the very back to attach the adjustment (lift) arms, which I know is wrong. I am wondering if the list arms I have are the right length (34") and if anyone knows where the adjustment arms should attach to the bottom lift arms.

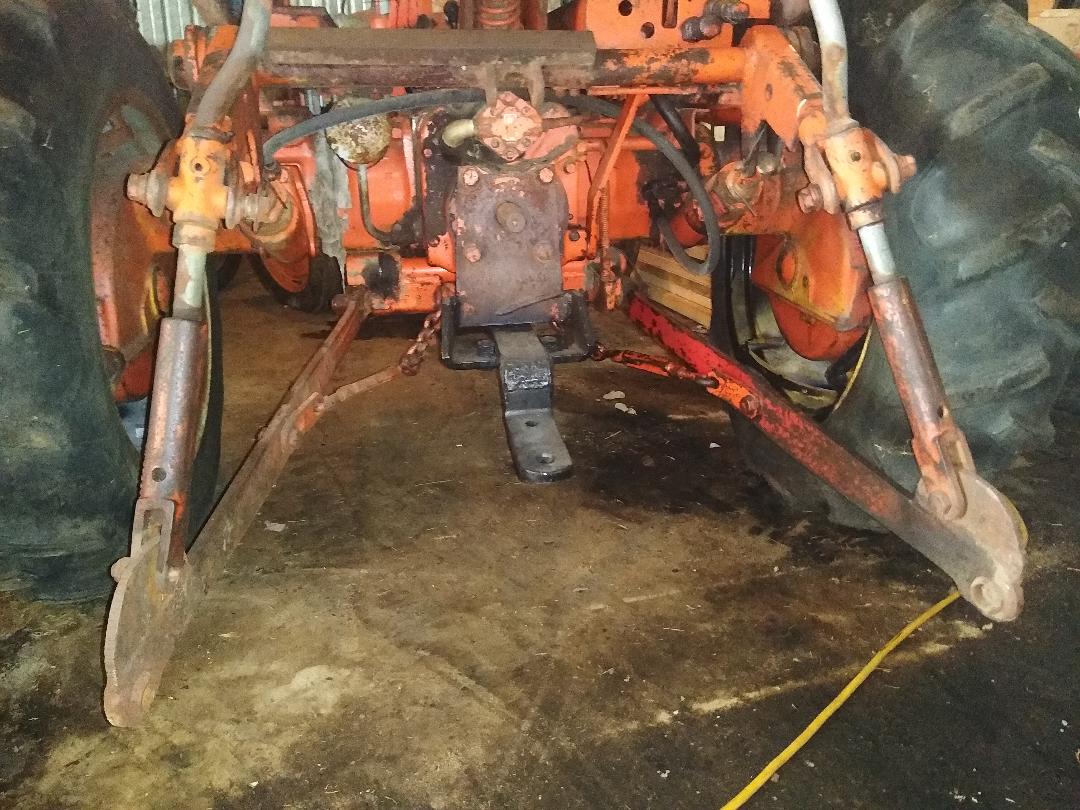

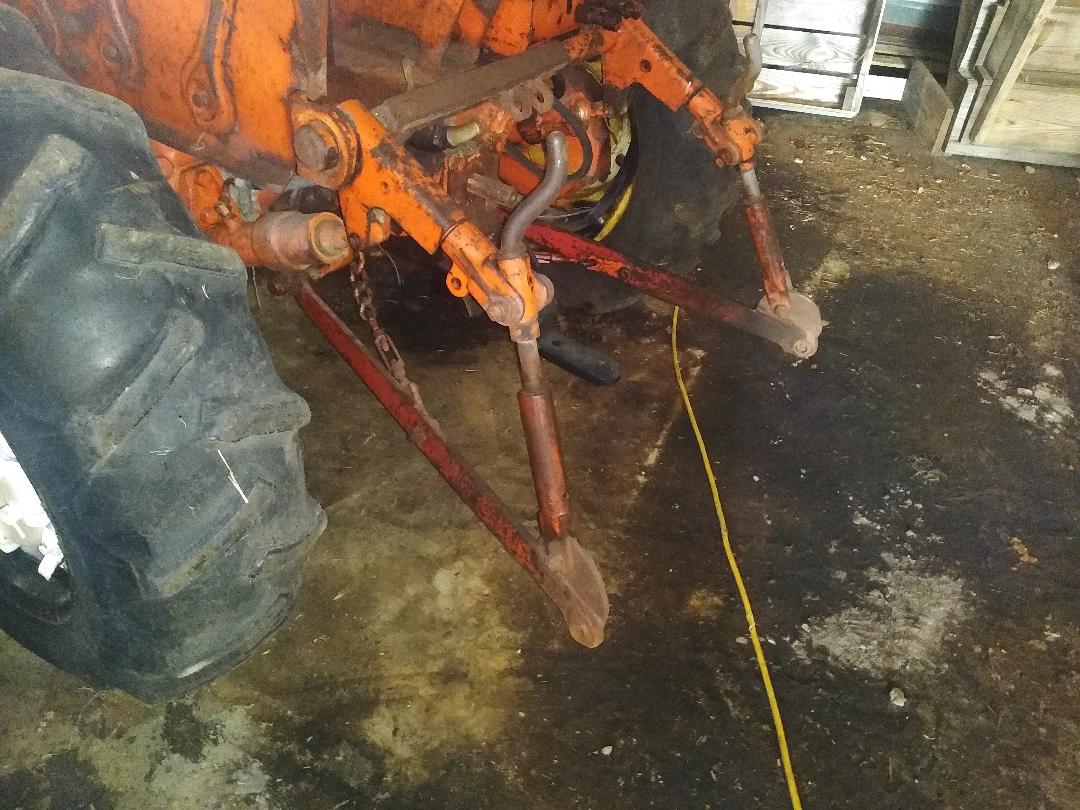

Here are a couple pictures.
Back to Top
Sponsored Links


Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53579 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2022 at 5:35pm
Let the lift links dangle straight down, while the tractor is on a level surface.  That is about where the hole should be.  Those arms look ford/ferguson-ish, to me.Wink
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86377 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2022 at 6:08pm
https://www.allischalmers.com/forum/how-many-3-point-d10d12d15_topic154042.html

couple of photos lower in the post...
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86377 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2022 at 6:15pm
lets say the pin was suppose to be at 24 inches ... and they welded the NEW point to 32 inches ( from the anchor under the rear end)....  32/24 = 133% ( 33% MORE)........ I would guess they had some HEAVY 3 point tool and wanted MORE LIFT POWER to raise it.. Moving the pin BACK will give you MORE LIFT POWER... but less TOTAL LIFT INCHES..

Edited by steve(ill) - 11 Jul 2022 at 10:11pm
Like them all, but love the "B"s.
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 4932 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2022 at 9:11pm
Thank you guys! You have given me some ideas!
