 Topic: D 15 Head gasket
Posted: 23 Jun 2022 at 3:21pm |
|
My old head gasket looks like a FEL-PRO 7914 . Can't confirm that on-line . Anyone know ? This is a 149 cubic inch gas engine . THANKS !
|
 |
|
Sponsored Links
|
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jun 2022 at 3:33pm |
|
Think I found it . It's a FEL-PRO 7914 SB . THANKS !
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jun 2022 at 5:05pm |
|
Make sure it has the fire rings.
|
|
No greater gift than healthy grandkids!
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jun 2022 at 5:46pm |
|
Not sure what fire rings are? Metal rings around each cylinder? Thanks Tracy
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2022 at 2:22pm |
|
My service manual says to use sealant on both sides of the gasket . Just wanted to ask what you fellas use ? My head is still at the machine shop . I'm just trying to round everything up . Probably buy new bolts . Guess they're just reg grade 8 bolts ? THANKS !!
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2022 at 9:35pm |
|
Yes, steel rings around cylinder. IIRR, there is a special head bolt with a washer in center of head. Probably should replace the washer. HTH Tracy
|
|
No greater gift than healthy grandkids!
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2022 at 6:17am |
|
Thanks Tracy. Don't remember seeing a washer but I'll check.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21712
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2022 at 6:24am |
|
You want new head bolts? That's fine but unless they are pitted, not needed. There is no "special" head bolt in the center location on a G-149 engine.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2022 at 7:58am |
|
Thanks Dr Allis, I do have a couple that are pitted
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Jun 2022 at 11:51am |
|

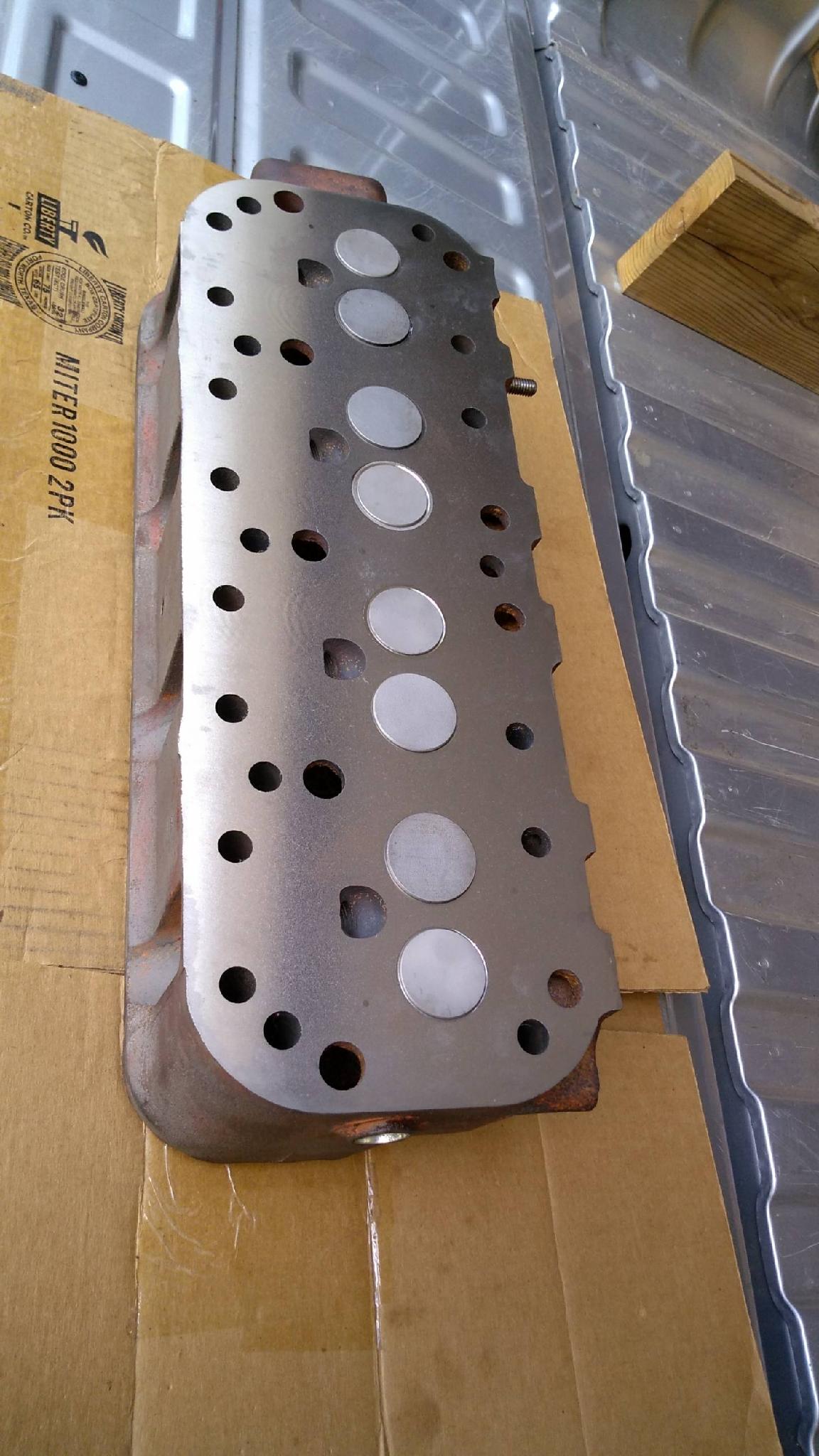

Back from the machine shop . They found 2 stripped bolt holes that they fixed . Also a bent pushrod and a broken rocker arm support . Brenda at Sandy Lake to the rescue on them . Sad thing is when I put it all back together and pressure test the cooling system I may still have coolant in the oil . Oh well . Fav son should post pics soon .
|
|
WeisAC2
Bronze Level
Joined: 02 Feb 2017
Location: Aiken SC
Points: 112
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jul 2022 at 7:22am |
|
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jul 2022 at 5:26pm |
|
When tightening down of loosening the rocker arm, make sure you do it evenly, not all at one tower. It will help out. HTH Tracy
|
|
No greater gift than healthy grandkids!
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jul 2022 at 6:07pm |
|

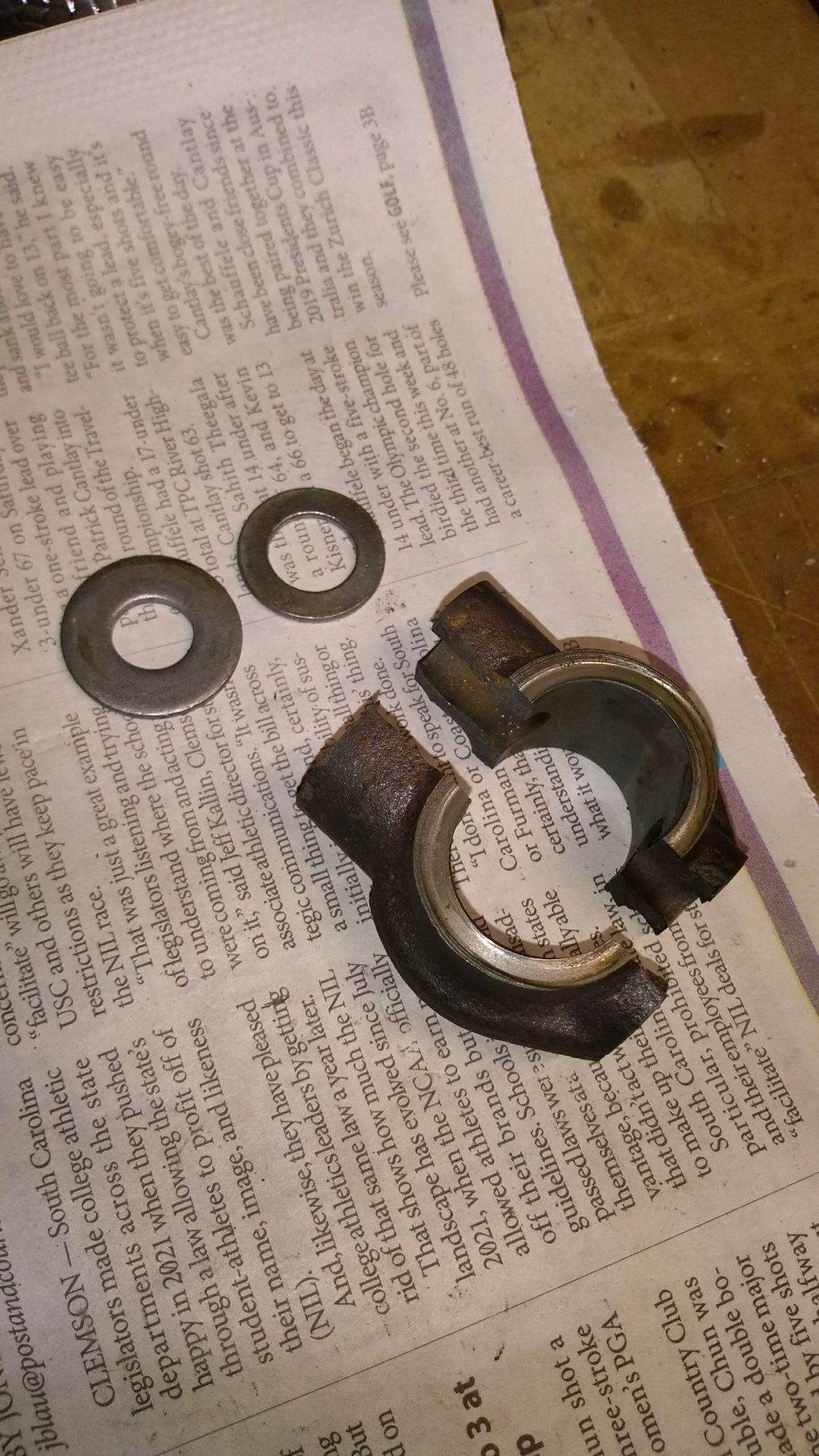

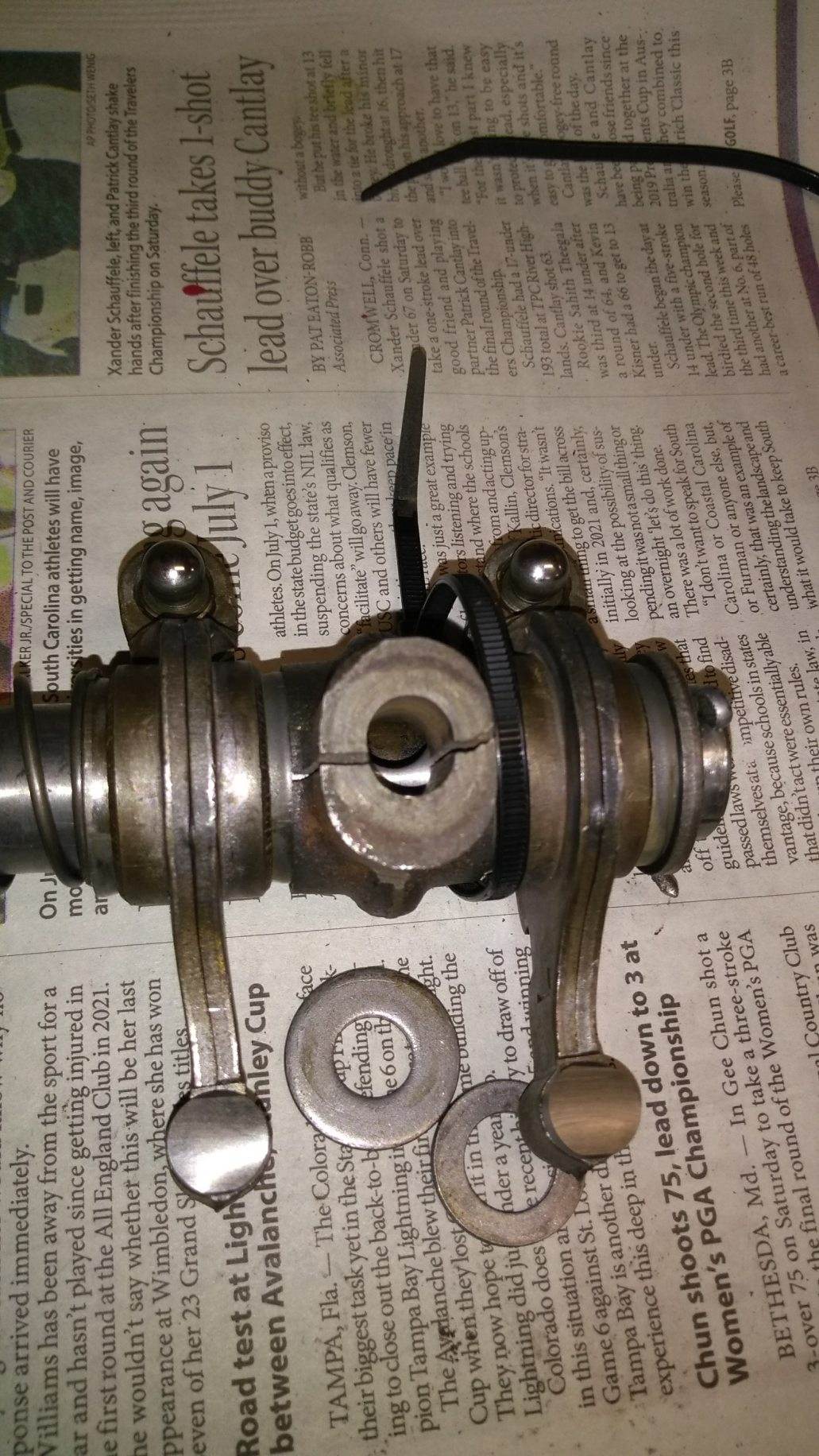

Thanks Tracy I'll keep that in mind. I'm thinking that support was broken the last time someone was in there. It had those 2 washers under it. Not sure why? That stud was also slightly bent. I'm guessing that's where the bent pushrod came from? Thanks again
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jul 2022 at 9:23pm |
|
Do not over tighten rocker hold down bolts. That is what brakes the stands. MACK
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jul 2022 at 12:52pm |
|
Thanks Mack , I'll torque them to 20-25 lbs like my service manual says . A little at a time like Tracy suggested .
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2022 at 3:41pm |
|
Finally have all my parts . Noticed I have no sleeve stand out on the block . Book says I need .002 -.005 . Starting to think I should pull this engine and get it rebuilt ? That should fix my coolant in oil problem . Imagine that'll cost at least $1,000 ? It's only money right ? Thanks !
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5044
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2022 at 3:45pm |
|
You might buy the parts for that price, Although you just had the head done, so now onto the short block. Those rocker arm are common to be found broken on the 138/149/160 engines.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jul 2022 at 10:14am |
|
Thanks Paul. I guess it is what it is. Crazy thing is I thought everything was fine before I found coolant in the oil.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21712
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jul 2022 at 10:42am |
|
I have never seen an A-C gas engine EVER have a sleeve stand-out problem. But, I sure have seen a lot of Buda/A-C diesels, as that is their biggest flaw. Do you realize what you are now getting into ?? New sleeves and possible block decking or even cut the counterbores square. I really don't think you have an issue. It may not be .005", but I'll bet it isn't flush and even then, it isn't a high compression diesel. Coolant in the oil wasn't diagnosed properly, so now you're guessing again.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jul 2022 at 11:04am |
|
Thanks Dr Allis. I guess as was already suggested I should put the head back on and put 12 lbs of pressure on the cooling system overnight and see if I have a leak out of the oil pan. Thanks again
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Jul 2022 at 8:58am |
|
Update . Finally got a rad pressure tester (Auto Zone) that would work . It held 10 PSI all night with no coolant leak . Should have everything back together soon and finish the oil change I started a month ago . THANKS !
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Aug 2022 at 7:06am |
|
Another update. Finally ran my tractor about 15 minutes. Runs good. No leaks. Is it too soon to re torque the head and manifold ? Also check valve clearance ? Thanks! I set valves at .015
Head at 80 lbs
Manifold at 25
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8565
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Aug 2022 at 9:50am |
|
I would advise running for an hour or so to be sure it is heat soaked. Park it and come back tomorrow when totally cold and do your re-torque and reset valves. .015 is good on 226's but don't know about the little ones. Doc will know.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2934
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Aug 2022 at 10:05am |
|
Thanks Steve . Sounds like good advice .
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Aug 2022 at 5:35pm |
|
Very good advise! Tracy
|
|
