Crank pulley Problems

 Post Reply Post Reply Page  12>
Author
Message
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Topic: Crank pulley Problems
    Posted: 09 Jun 2012 at 8:51pm
Anyone come across a crank pulley on a WD motor that has a bolt in it but no head on the bolt? I bought the motor and the crank pulley has broken ears on it fo rthe hand crank. When I went to take it off today the bolt has no head on it. I thought of cutting a slot in it with a hack saw and using a big screwdriver and heat to try to get it out or, taking a dremel tool and trying to cut a square head on it.  Any suggestions. Thanks, Roger.
Back to Top
Sponsored Links


Back to Top
Gary in da UP View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: EUP of Mi.
Points: 1885
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary in da UP Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2012 at 8:56pm
Can you weld a nut to it ?
Back to Top
MNLonnie View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Baxter MN
Points: 4791
Post Options Post Options   Thanks (0) Thanks(0)   Quote MNLonnie Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2012 at 8:56pm
Cutting a slot might work. If it doesn't you could always drill it out, I'm guessing it's fairly soft.
Waukesha B, B, IB, G, styled WF, D15, 615 backhoe, 2-Oliver OC3's, 4 Ford Model T's, 3 Model A Fords, AV8 Coupe, AV8 Roadster, 1933 Ford Wrecker
Back to Top
Orange Blood View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Nov 2010
Location: ColoradoSprings
Points: 4053
Post Options Post Options   Thanks (0) Thanks(0)   Quote Orange Blood Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2012 at 8:57pm
You pretty much nailed what I would do,.  I think I would put it bolt up, and soak the heck out of the thing for a couple weeks first, then cut your slot, and then heat just the bolt with a brazing tip on the torch, and let it cool to completely cold, and try it then.  If the bolt is flush with the cast pulley, I would seriously consider welding a 1/2 nut on from the inside.
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2012 at 9:02pm
It's not long enough to put a couple of nuts on it, and it is close to the pulley. I thought of that first. I am going to soak it with PB Blaster and then try the slot and heat thing later next week. Have to put a roof on the first of the week and will probably take 3-4 days to do it. Thanks. I will let you know how it goes.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2012 at 9:56pm
It isn't a socket head set screw is it? Maybe dig around on to to see if it has a socket for an allen wrench??????????????????
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 6:51am
I loojed at it in the hopes that it had a allen hole in it. It is going to be in the 90s here today so I am going to work on it a little this am while it is still relatively cool. We will see what happens.
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 6:59am
Just weld the nut to the bolt that is there .There  are about 1,ooo,ooo of these botls and nut's out there that you can buy .
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 7:00pm
I was just talking to my BIL today, who is a mechanic and told me the same thing. I am going to try this tomorrow.  I looked at the pulley that came off the original motor in the WC and it has been built up inside with brass? I am guessing that either the pulley was wobbled out ot the crank end was buggered up and they did this for a fix. Going to try to put this on tomorrow after I get the other pulley off.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 8:26pm
The crank is just a 7/8 inch round rod and the cross pin is 3/8 by about 2 inches long. You can replace the solid pin with a roll pin. I have seen pulleys totally wore out inside from being cranked on for many years.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 8:52pm
I thought it was a problem with the rod and pin until I looked a lot closer and saw the ears on the pulley were broken off. If I ever figure out how to post pics here they will explain better than I can write about. I hope this works.
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2012 at 8:52pm
well I guess it didn't.
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 5:27pm

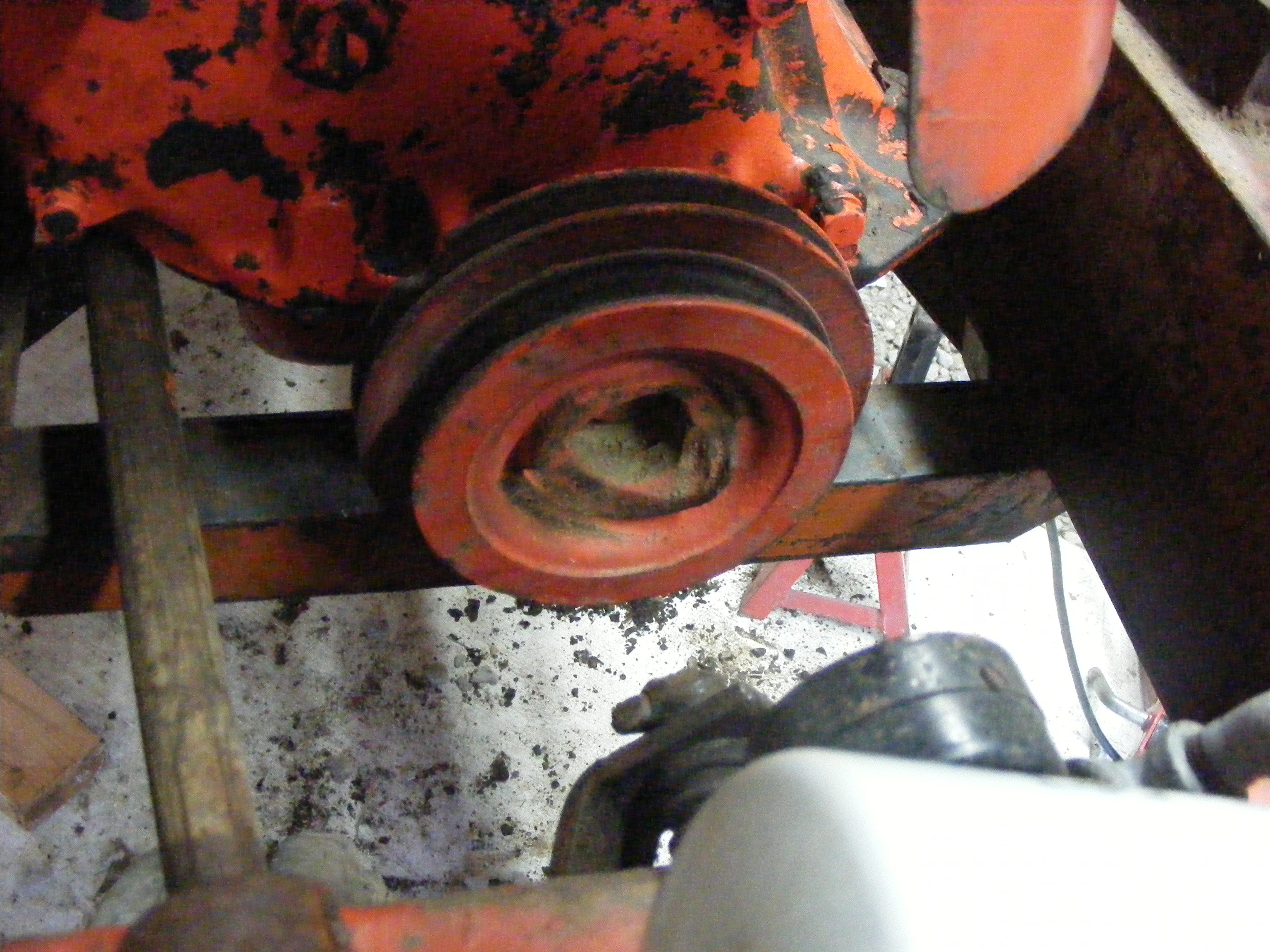

Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 5:28pm
Well I partially got it to post. What is the reccomended size for pics on this forum? Thanks for the help all of you.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 6:20pm
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Mike56073 View Drop Down
Silver Level
Silver Level


Joined: 14 Nov 2010
Location: New Ulm
Points: 154
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mike56073 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 6:59pm
    I'm probably wrong on this, but I thought that all the double pulleys used an allen head bolt??????
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 7:03pm
And if it is a socket head set screw, there is a good chance it is short enough to allow a second one under it since there would be no jam nut.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 7:25pm
We were just out there working on it and it is a bolt that has had the head cut off. My BIL suggested I square off a head to fit a socket on it and take it out that way. It is still almost 90* here and high humidity. We are going to look at it tomorrow while it is in the high 60s. If I square it up it should come out. I will let you know how it goes. Thanks.
Back to Top
MikeinLcoMo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: west plains mo
Points: 620
Post Options Post Options   Thanks (0) Thanks(0)   Quote MikeinLcoMo Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 7:26pm
An awfull lot of the B's were double set screwed. Found my first after breaking the flange off with a puller.
Back to Top
norm[ind] View Drop Down
Orange Level
Orange Level


Joined: 29 Oct 2010
Location: bourbon,ind
Points: 2992
Post Options Post Options   Thanks (0) Thanks(0)   Quote norm[ind] Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 7:40pm
  we have seen them with a screwdriver slot also  inspection is the key????  not the internet    my 2 cents  we have the bolts to prove it
Back to Top
skipwelte View Drop Down
Orange Level
Orange Level


Joined: 29 Oct 2009
Location: Anthon, Iowa
Points: 723
Post Options Post Options   Thanks (0) Thanks(0)   Quote skipwelte Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 10:20pm
yea, youve got a power steering double pulley setup.  The pulley setscrew is an allen headed setscrew, the allen wrench will just barley clear the larger pulley to unscrew the setscrew.  Of course its possible youve got something else, but check it over again to be sure your not missing something.  Good luck.
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2012 at 10:28pm
If that is the pulley you are talking about, there should be two setscrews; a short on one top to lock in the tapered one that screws into the crankshaft; bopth allenhead
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 6:46am
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 6:47am

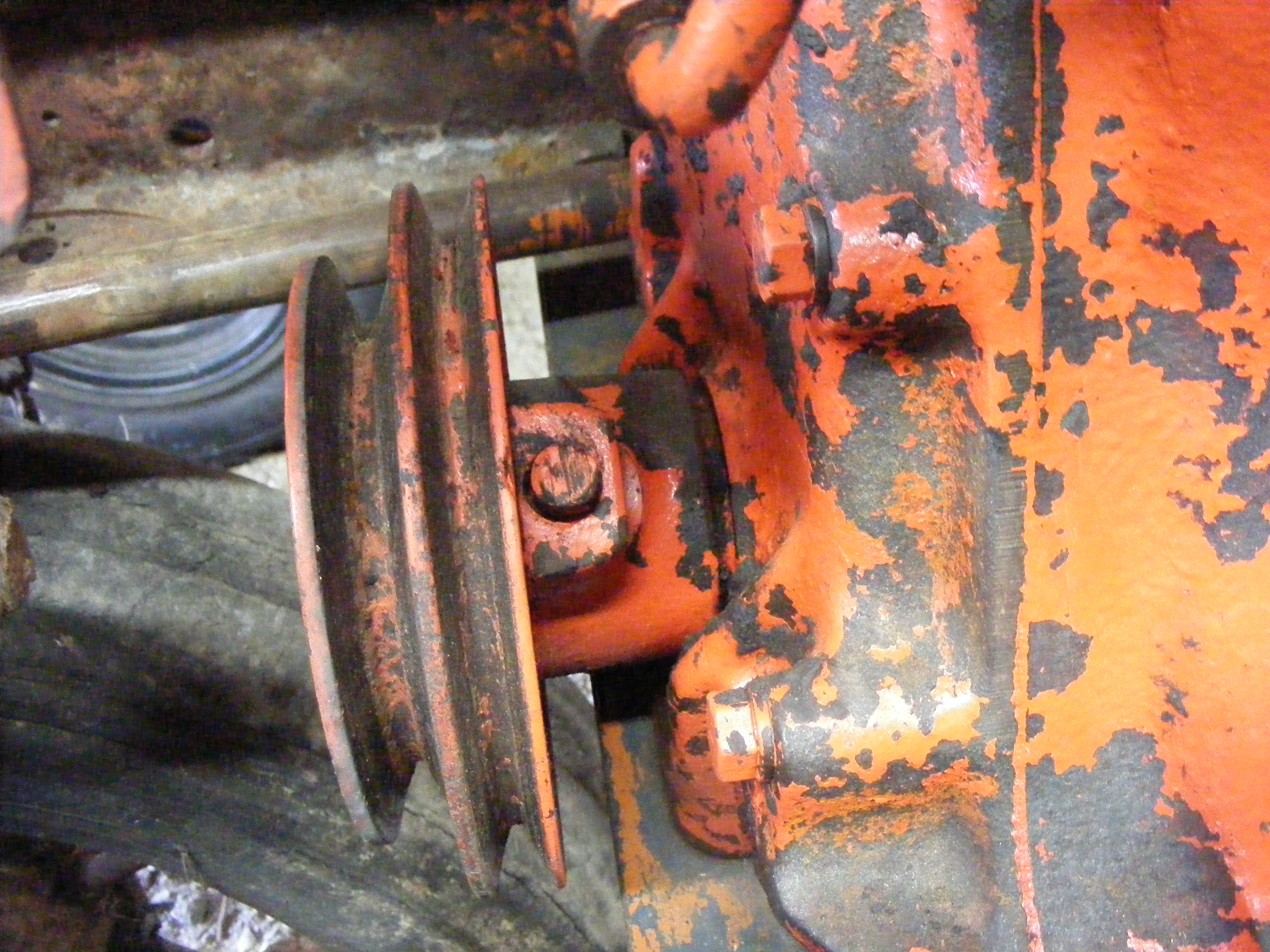

this is the bolt that I am dealing with. I almost have this picture thing figured out. I will have this off today.
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 6:50am
There is another flat spot on the opposite side of the pulley, however there is no hole or bolt of any kind in it! I thought there shold also be another set screw.
Back to Top
Redwood View Drop Down
Orange Level
Orange Level


Joined: 16 Jan 2012
Location: Ontario
Points: 631
Post Options Post Options   Thanks (0) Thanks(0)   Quote Redwood Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 7:40am
Do you have the 180 degree photo shot of that bolt/pin?
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8521
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 8:23am
Nah! They only pinned from one side.Looks like what you said,a bolt run in and cut off.The normal deal was tapered allen screw in first and a short one run in on top of it.
Back to Top
hamman01 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 18 Dec 2011
Location: Lewiston, MI.
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote hamman01 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 8:32am
As soon as I get the rest of the morning ritual done here in the house I am going to try to get it off. I will take more pics and try to ge them to post. I should of looked at this a lot closer when it was out of the tractor. I t would of been easier while hanging from the chain fall. I never noticed that the ears were broken off until I went to turn the crank to tighten the flywheel bolts.
Back to Top
Don(MO) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
Post Options Post Options   Thanks (0) Thanks(0)   Quote Don(MO) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 8:33am
Originally posted by hamman01 hamman01 wrote:

this is the bolt that I am dealing with. I almost have this picture thing figured out. I will have this off today.
I'd just grind the paint off the top of the old bolt and weld a nut on it heat the old bolt up and take it out if it has the right setup in there there will be a 2th set screw in it too.
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.

Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8521
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2012 at 8:37am
Well, I haven't cranked my 45 since the O/H in early 80's.Any time it was dead or low you just treat it like modern equipment and 'jump" it. You don't really need to fix that pulley.
Back to Top
