Changes to D-14 in 1959 and after?

Grille was changed to match the new D-10/12 tractor line...

went to 12 volt...ring gear and starter have different # of teeth(don't ask HOW I KNOW that one....) but starters WITH a band near the end are 6 volt, NO band = 12 volt.

Did the drawbar change some? Like the D17 changed

Steve(SEMN) wrote: 1. steering wheel 2. steering wheel shaft 3. 12 volt system 4. longer pto lever 5. wider draw bar bale 6. mesh grill vs black bar grill 7. headlight size 8. 93 teeth ring gear vs 116 teeth ring gear 9. D14 decals 10. Bolts vs studs on adjustable front end (Earlier had bolts - never seen studs) 11. Bigger tail lights, not the bullets (STILL BULLET, but bigger) 12. Four blade vs five blade fan 13. Front crank pulley, no longer having the crank provision 14. New style key starter vs push button

(Some earlier models did not use push button - my 1958)

Aside from my updates, very accurate.

Thanks Everyone!

No, because there were no major changes to the tractor.  These are all minor things that did not require a different manual..

If I am understanding right they made a factory 12 volt D14? I still have nightmares about stalling a d14 and hearing that six volt starter try unsuccessfully to start the engine. Nothing was worse than telling Dad I stalled it and needed a pull. Once in a while with a few prayers it would start when hot but most time not. The series II D15 on the other hand never failed me at anything. Tom

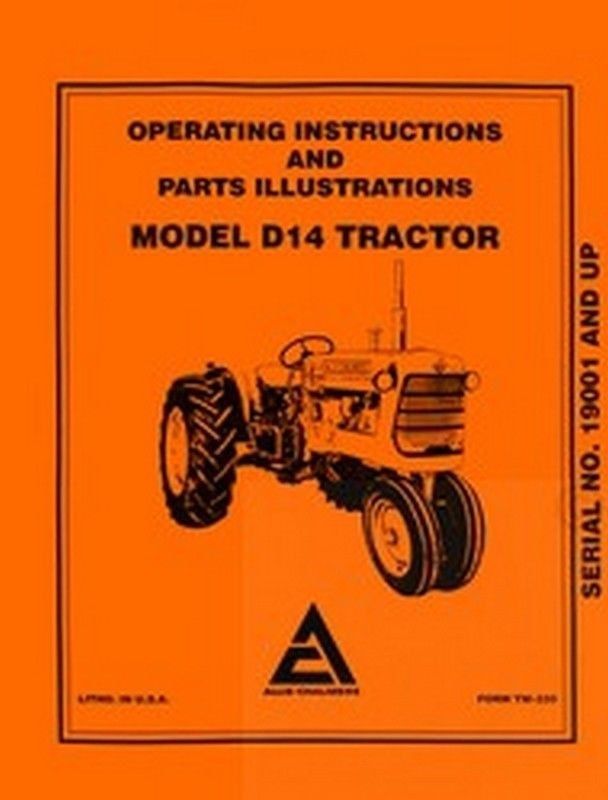

Found this on ebay. Can't read the form number, but since I have an original white covered manual that has publication code 257969 and has the Label on the right edge reading: (Prior to Serial Number 19001), I'm thinking there was a such a manual published.



I'll be on the search for it. My Reproduction business goes online next month. So far I have the following ready, a special edition WD operator and parts illustrations manual FORM TM-9 E, a WD-45 operator and parts illustration manual FORM TM-85 D, a D-14 operator and parts illustrations manual combining all of the forms upto TM-137 C, dealers repair parts manual for wd and wd45 tractors dated 1955 and original dealers repair parts catalog for the D14 dated 1961. I also have a complete pdf version of the 2017 AGCO parts catalog (current parts numbers included) for each that will go along with the reproduction parts catalogs for free. 3/4 done with the WD and WD45, WD45 Diesel and D14 Service Manual. No funds at the moment, but I'll be searching for that late model d14 manual.



Edited by Tracy Jones - 12 May 2017 at 5:01am

is that the Late model d14 manual?

tomstractorsandtoys wrote: If I am understanding right they made a factory 12 volt D14? I still have nightmares about stalling a d14 and hearing that six volt starter try unsuccessfully to start the engine. Nothing was worse than telling Dad I stalled it and needed a pull. Once in a while with a few prayers it would start when hot but most time not. The series II D15 on the other hand never failed me at anything. Tom

Yes, one of the changes mentioned in this post - Over serial number 19001.  My 58 is volt.  My 59 is 12 volt.  Both unmolested originals.

Good day - I have been following your posts about changes to 1959, 1960 D-14 tractors. I am looking for a D-14, either year, either fully restored or in good shape that I could have it restored.  I have been wondering about a number of things for those 2 years.  Was the D-14 decal, near the gas tank, in that location for both years? Was the grill black, with horizontal bars across it?  Were both those years essentially the same?  I am not sure from the posts if both years were 6 or 12 volt?

Original early D-14 Operators and Parts Illustration is Orange for Form TM-137C.

Gary

http://www.ebay.ca/itm/ALLIS-CHALMERS-D14-OPERATING-OPERATORS-INSTRUCTIONS-OWNERS-MANUAL-PARTS-ILL-/390573368861?hash=item5aeffca61d:g:t~4AAOxyJs5RdZLI

Todd
