CA trans input shaft splines/repairable?

 Post Reply Post Reply
Author
Message
KMAG View Drop Down
Orange Level Access
Orange Level Access


Joined: 26 May 2020
Location: Elizabethtown,
Points: 678
Post Options Post Options   Thanks (0) Thanks(0)   Quote KMAG Quote  Post ReplyReply Direct Link To This Post Topic: CA trans input shaft splines/repairable?
    Posted: 21 Mar 2022 at 9:42am
I got a trans with good gears, but most everything else seems to be junk (cracked case, rusty/pitted bearings, worn input shaft).

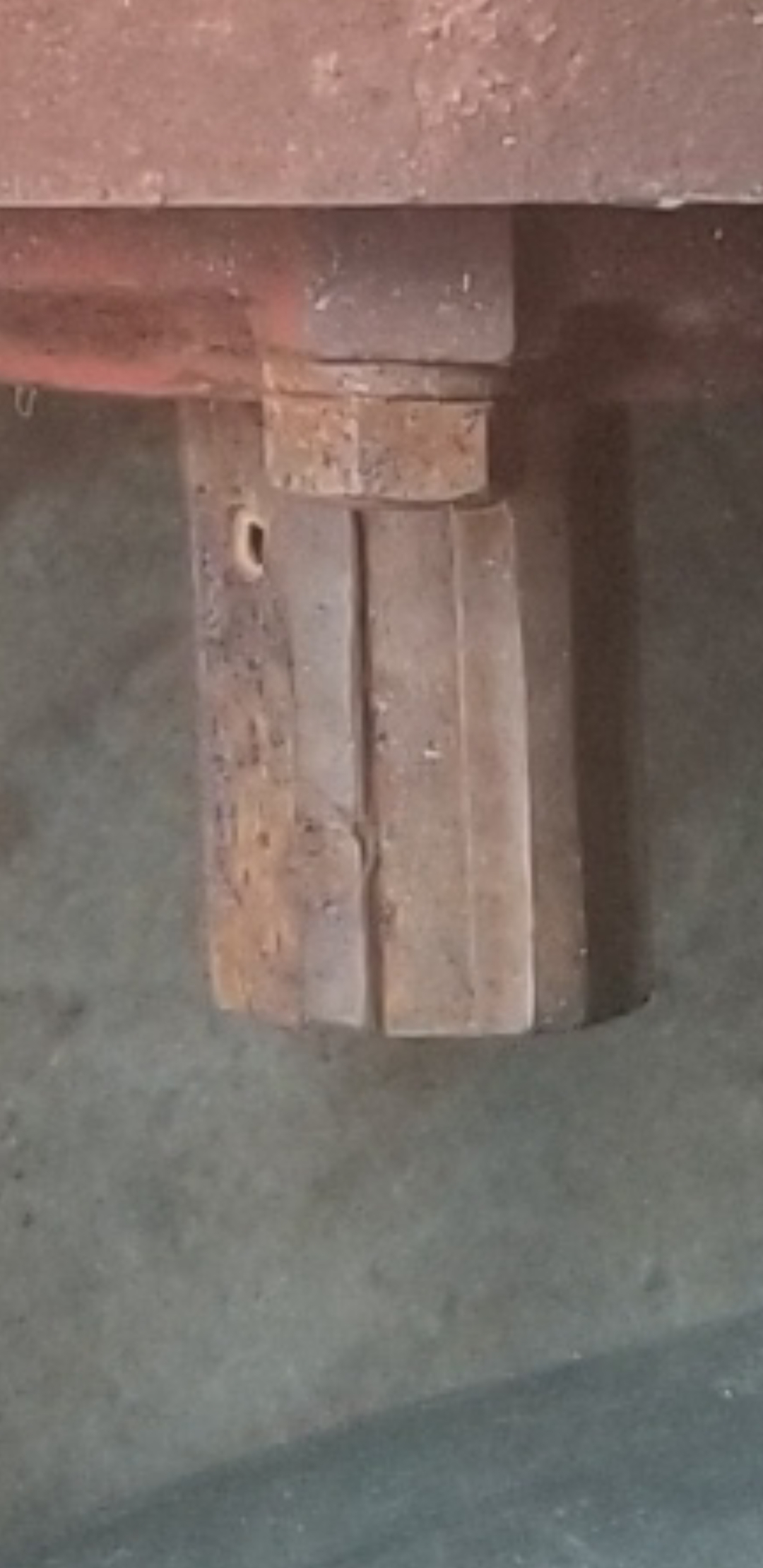

The main shaft input splines are well worn - 1/2 gone wear edges.




Are the splines heat treated?

If not, I plan to weld them up, turn the o.d. down to spec, and cut in new splines.

At first glance, the CA and B seem to use the same mainshaft. Anyone know (verify common part # CA seems to be 70225410 and C is 76111242)? I may have a good B shaft.
Thanks


Edited by KMAG - 21 Mar 2022 at 12:01pm
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86167
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Mar 2022 at 12:25pm
the CA-B look the same on the front and allows the trans UNITS to be interchanged.. The CA is a 4 speed with a bigger hydraulic pump... so internal differences.
Like them all, but love the "B"s.
Back to Top
KMAG View Drop Down
Orange Level Access
Orange Level Access


Joined: 26 May 2020
Location: Elizabethtown,
Points: 678
Post Options Post Options   Thanks (0) Thanks(0)   Quote KMAG Quote  Post ReplyReply Direct Link To This Post Posted: 21 Mar 2022 at 12:55pm
Really?

A B/C pto assembly bolts onto a CA trans housing.

The CA and B/C main shaft have the same stick out from the trans housing.

CA and B/C main shaft ends have identical spline count, o.d., and snap ring locations.

I bet a B/C end gear on the end of a CA mainshaft would allow the use of a 2 piston B/C hydraulic pump as well as B/C pto with a CA trans and visa versa to use a CA end gear to use a CA pto and 4 piston pump on a B/C.

Once I tear down the ib trans case, I'll know if there is more internal casting clearance to fit the extra forward gear in a CA case.



Edited by KMAG - 21 Mar 2022 at 12:57pm
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86167
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Mar 2022 at 4:01pm
I bought a B that had the tapered spline bull Axle damaged when the cast steel hub was loose and wobbled around on it... I welded up the axle, turned the taper back on the lathe, then recut the splines with a hand grinder wheel...I tried to fix the hub but it came loose about once a year. I finally bought a good HUB and works great on the repaired axle.

My point is the Shaft was not real hard as it was worn by the cast steel HUB.. Harder than a grade 2 bolt, but not like a grade 8. ......... I would think the trans shaft was similar..
Like them all, but love the "B"s.
Back to Top
KMAG View Drop Down
Orange Level Access
Orange Level Access


Joined: 26 May 2020
Location: Elizabethtown,
Points: 678
Post Options Post Options   Thanks (0) Thanks(0)   Quote KMAG Quote  Post ReplyReply Direct Link To This Post Posted: 21 Mar 2022 at 4:16pm
I tried the weld and angle grinder method on a garden tractor and got similar results.

Now I have a milling machine and indexer to go with my 36" metal lathe.

Edited by KMAG - 22 Mar 2022 at 2:50pm
Back to Top
Lon(MN) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Merrill Wi
Points: 2003
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lon(MN) Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 8:10am
CA shaft is longer then B/C
http://lonsallischalmers.com
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3991
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 9:56am
I'd look for a good used shaft.

The amount of time welding it up and machining it back will be monumental! Getting the geometry right on those splines won't be easy! You might be able to find a 'gear-cutter' with the right profile, that would help a bunch. Even then getting it indexed correctly every time will be a challenge. It would be a tricky machining project for even very experienced persons.
Back to Top
tadams(OH) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 17 Sep 2009
Location: Jeromesville, O
Points: 10691
Post Options Post Options   Thanks (0) Thanks(0)   Quote tadams(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 10:13am
  I have a CA transmission that jumps out of 3rd gear in Ohio if your interested.
Back to Top
alan-nj View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: oxford, nj
Points: 847
Post Options Post Options   Thanks (0) Thanks(0)   Quote alan-nj Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 10:43am
I have an entire CA rear axle with transmission;  about 2 hours from Harrisburg
If ignorance is bliss, than happy days are here again.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21485
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2022 at 12:27pm
Pack it in anti-seize or moly-kote paste and I'll bet it will last for many more years.
Back to Top
