 Topic: allis WD narrow front
Posted: 20 hours 35 minutes ago at 6:32am |

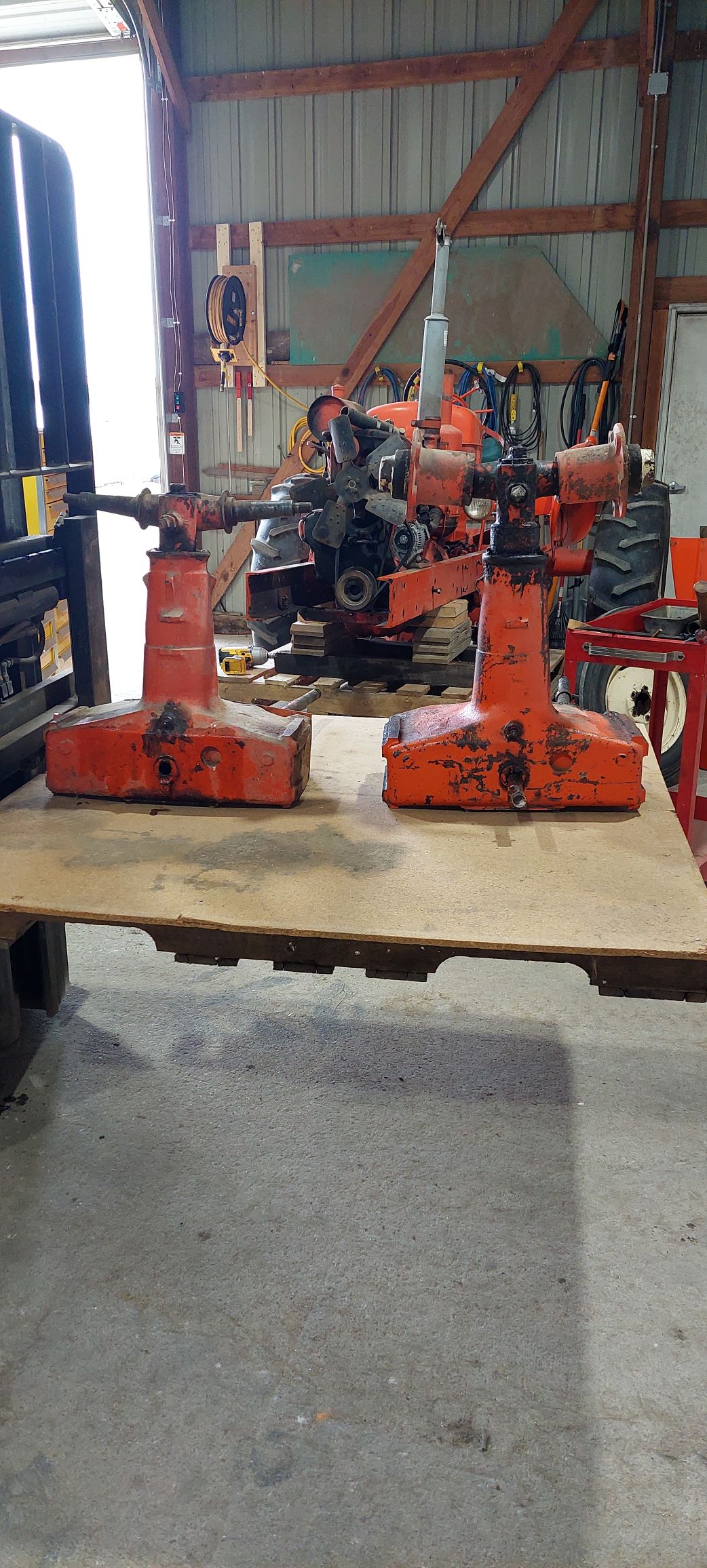

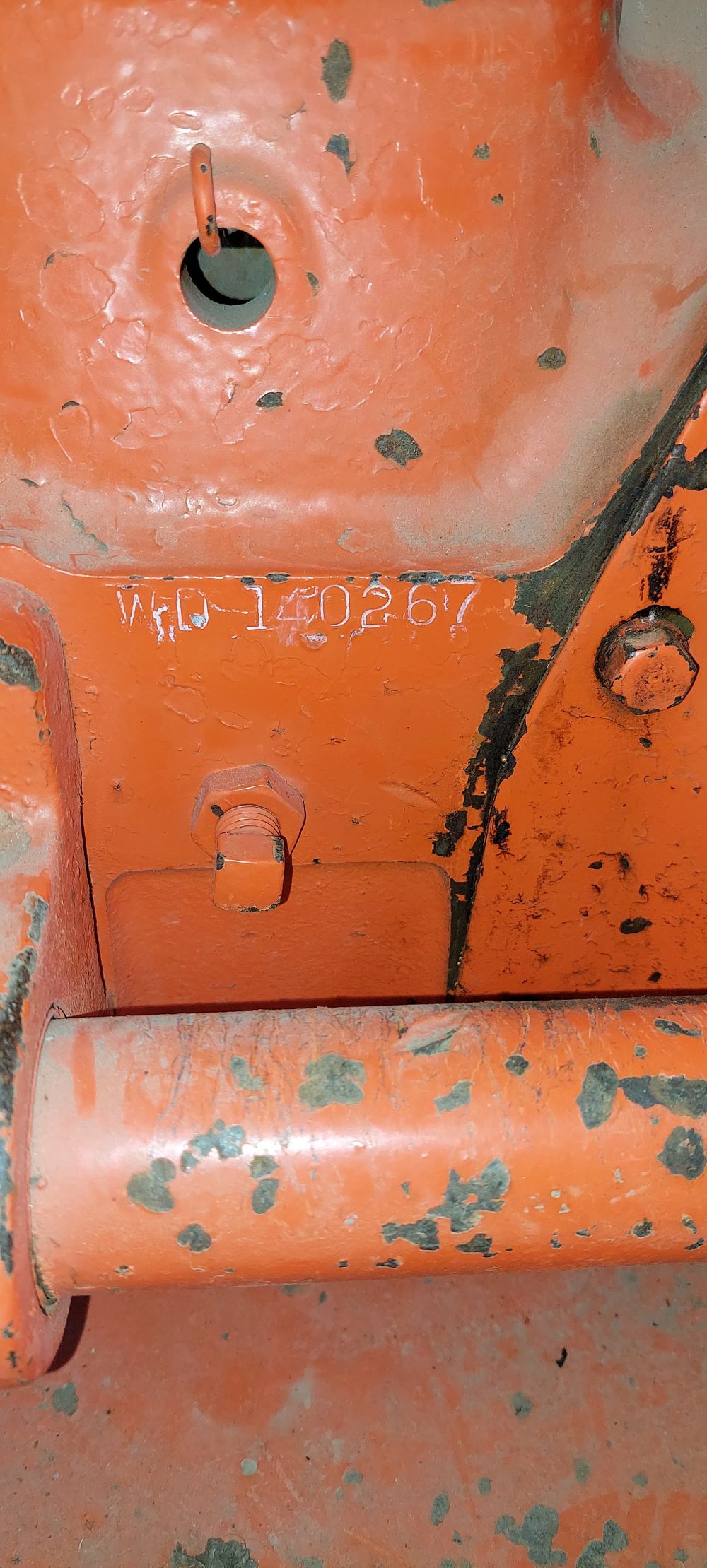

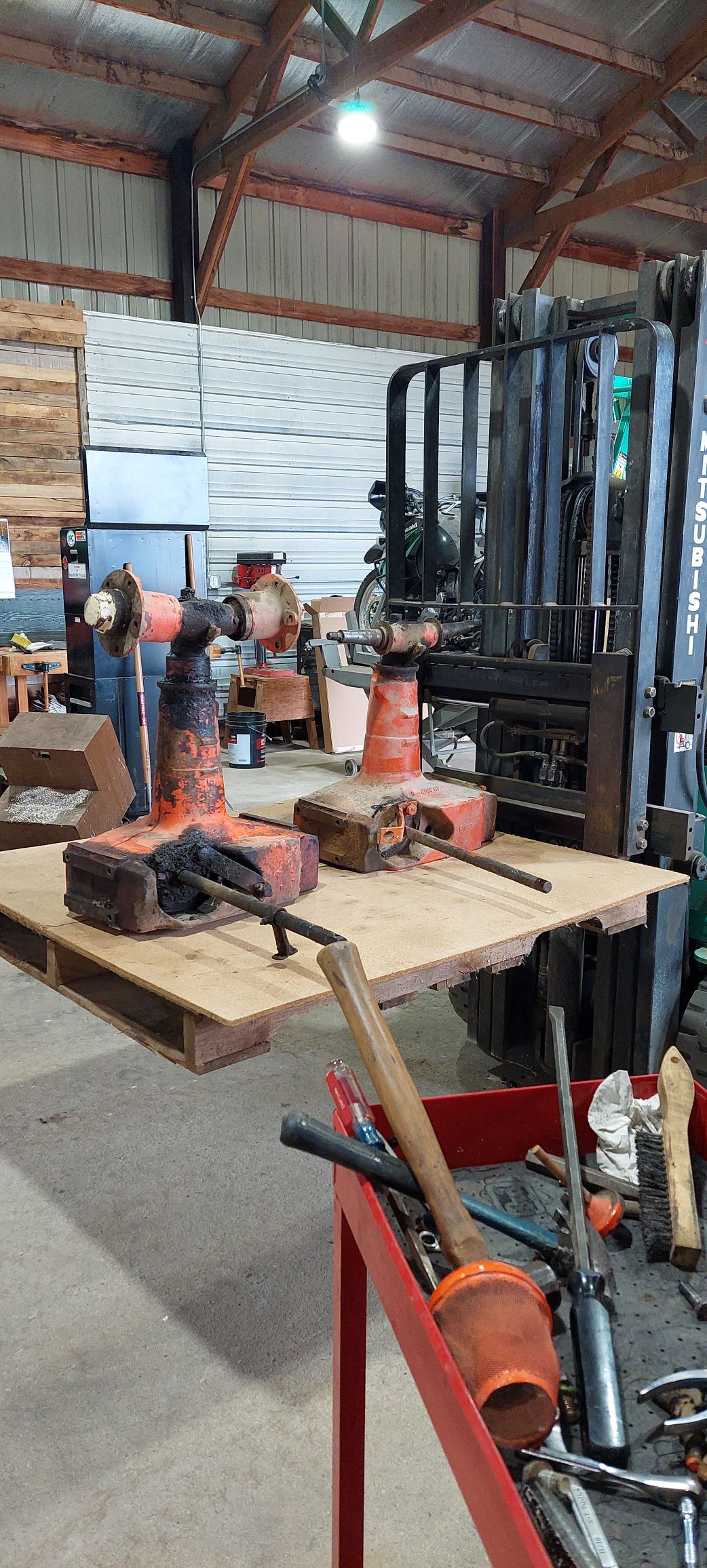

The pedestal with the hubs is my original, the other one is the replacement I bought from forum member mike,both from WD's,same casting #'s but cast in different spots.Don't know if I want to lower the front of my tractor that much.
|
|
53WD
|
 |
|
Sponsored Links
|
|
|
jmrehn
Bronze Level
Joined: 05 Aug 2024
Location: Iowa
Points: 7
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 hours 21 minutes ago at 6:46am |
Mine is a late WD,Is my original more like a WD45 pedestal?
|
|
53WD
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6419
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 hours 10 minutes ago at 6:57am |
|
Welcome to the Forum. Odd that they would have the same casting number unless the extra piece at the bottom is separate. The difference in height might not be that noticeable once you get it installed.
|
|
Just an old country boy saved by the grace of God.
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8525
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 hours 59 minutes ago at 8:08am |
|
Something don't add up. I think yours has a spacer added at the bottom. Will have to look at mine.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21497
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 hours 36 minutes ago at 8:31am |
|

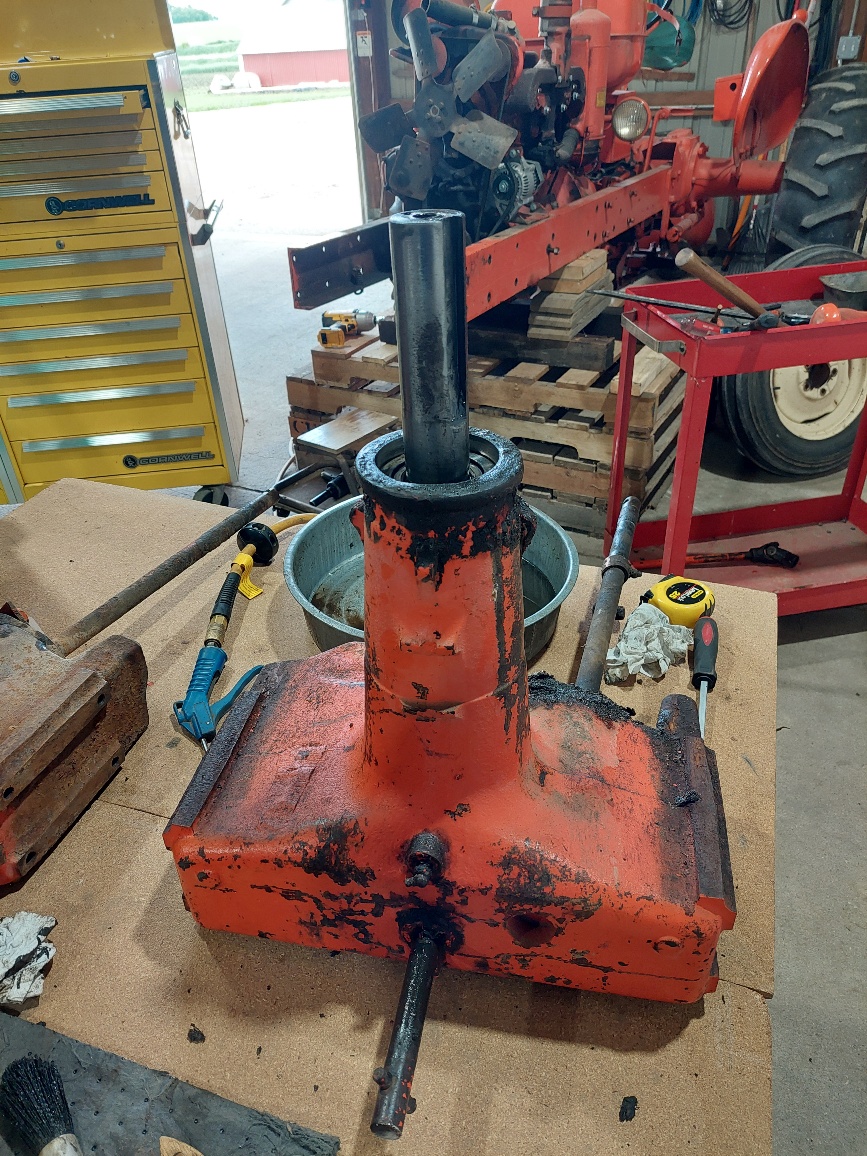

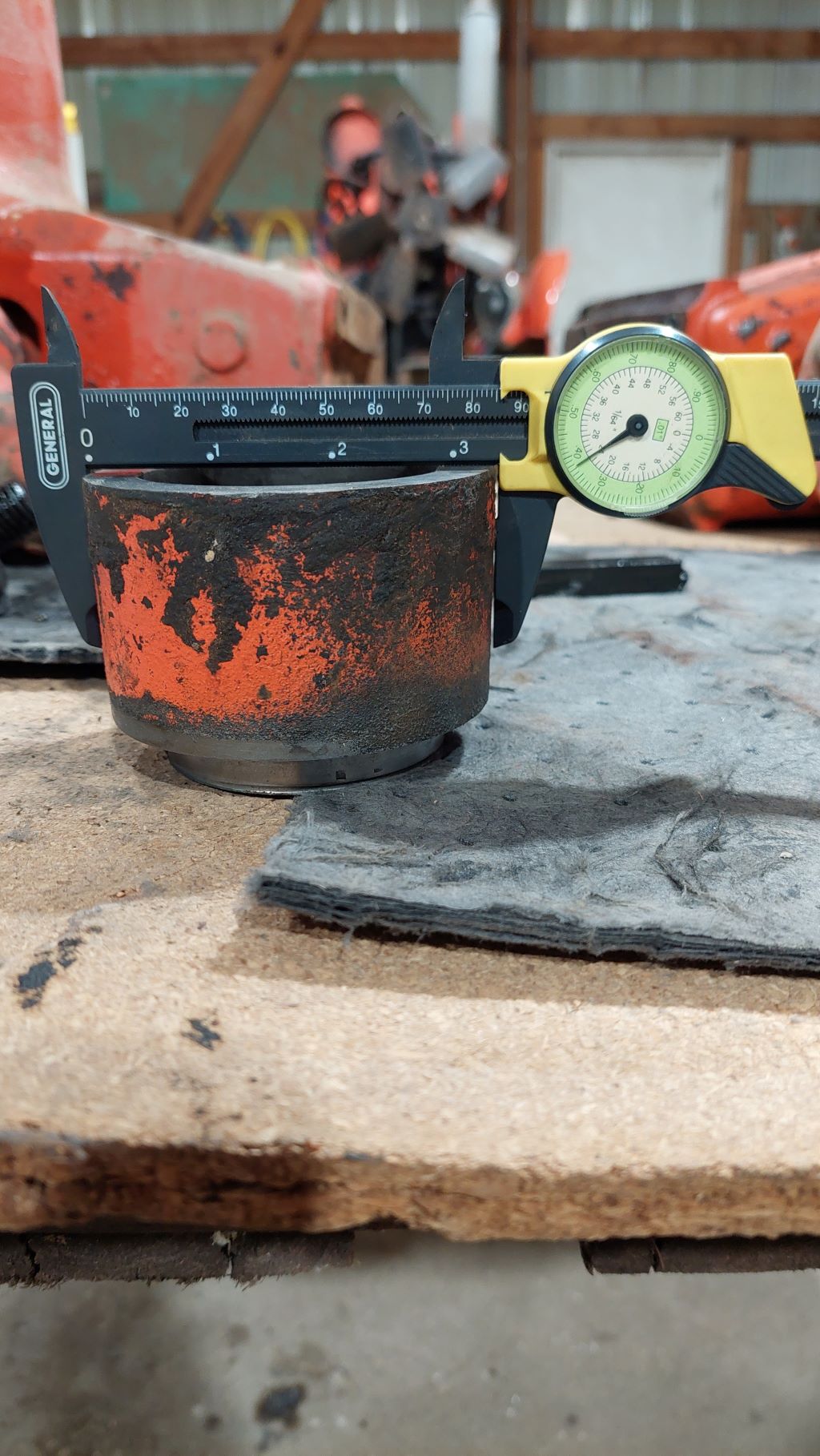

The short one is NORMAL. Yours ain't. It even has a longer shaft to match the added in spacer. maybe a Thompson Hi-Crop accessory ??
|
|
jmrehn
Bronze Level
Joined: 05 Aug 2024
Location: Iowa
Points: 7
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 hours 13 minutes ago at 8:54am |
|
My original intention was just to do a swap, my wobbly loose, for Mikes much tighter pedestal.
Now I am curious.

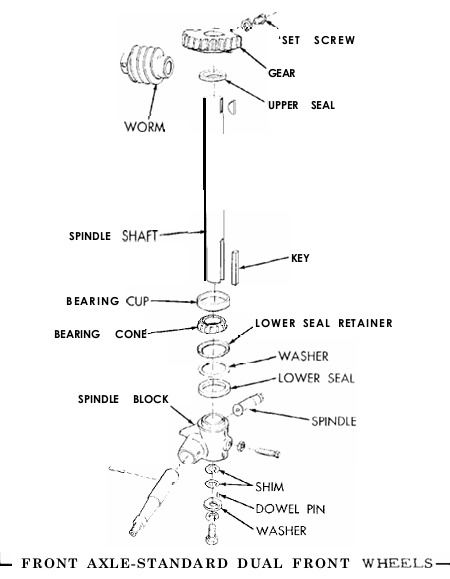

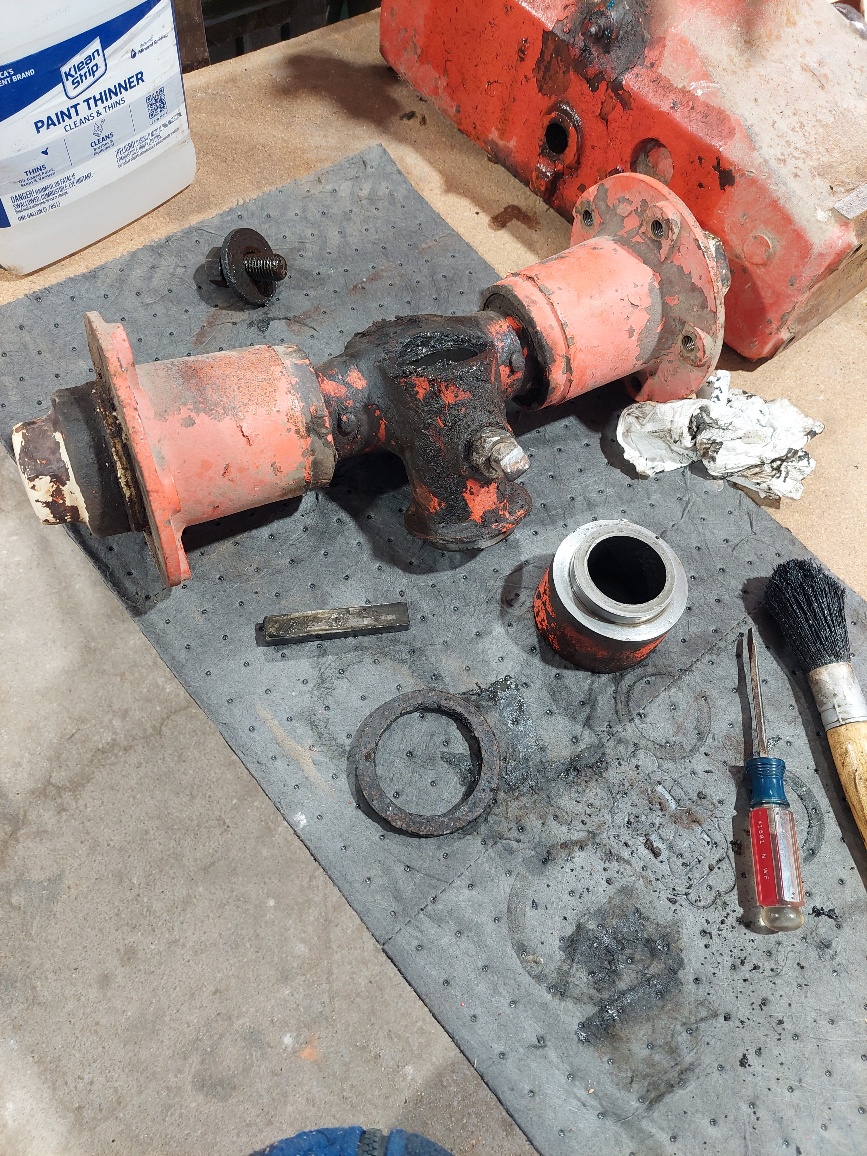

Going to do some further disassembly on the long one to see whats up.If the parts are not to worn maybe swap the spindle blocks.
I was going to take that one apart to see how bad of a job it would be to put in a new lower seal. Practice before taking the one I want to use apart.
Maybe I have a super rare million dollar WD. I wish.
|
|
53WD
|
|
Kip-Utah
Orange Level
Joined: 14 Sep 2009
Location: Southern Utah
Points: 899
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 hours 36 minutes ago at 10:31am |
|
Thompson cane tractor conversions were wide fronts & factory high crops were typically either single front wheel or wide fronts. I've never heard of a tricycle high crop. Your original part looks factory...kind of a mystery?? Kip
|
|
HANSEN'S OLD ORANGE IRON. Showing, Pulling, & Going!!
|
|
jmrehn
Bronze Level
Joined: 05 Aug 2024
Location: Iowa
Points: 7
|
Post Options
Thanks(0)
Quote Reply

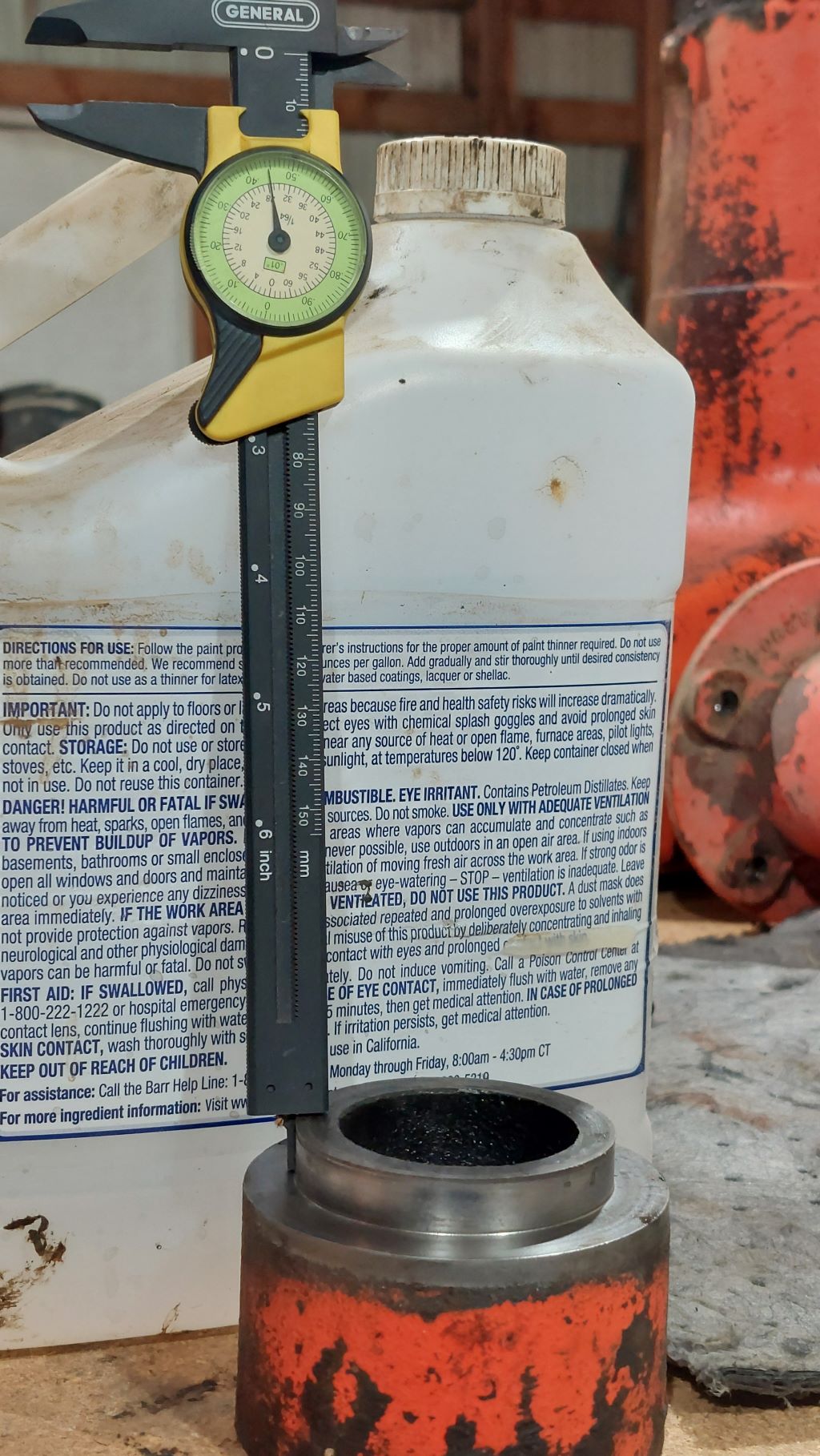

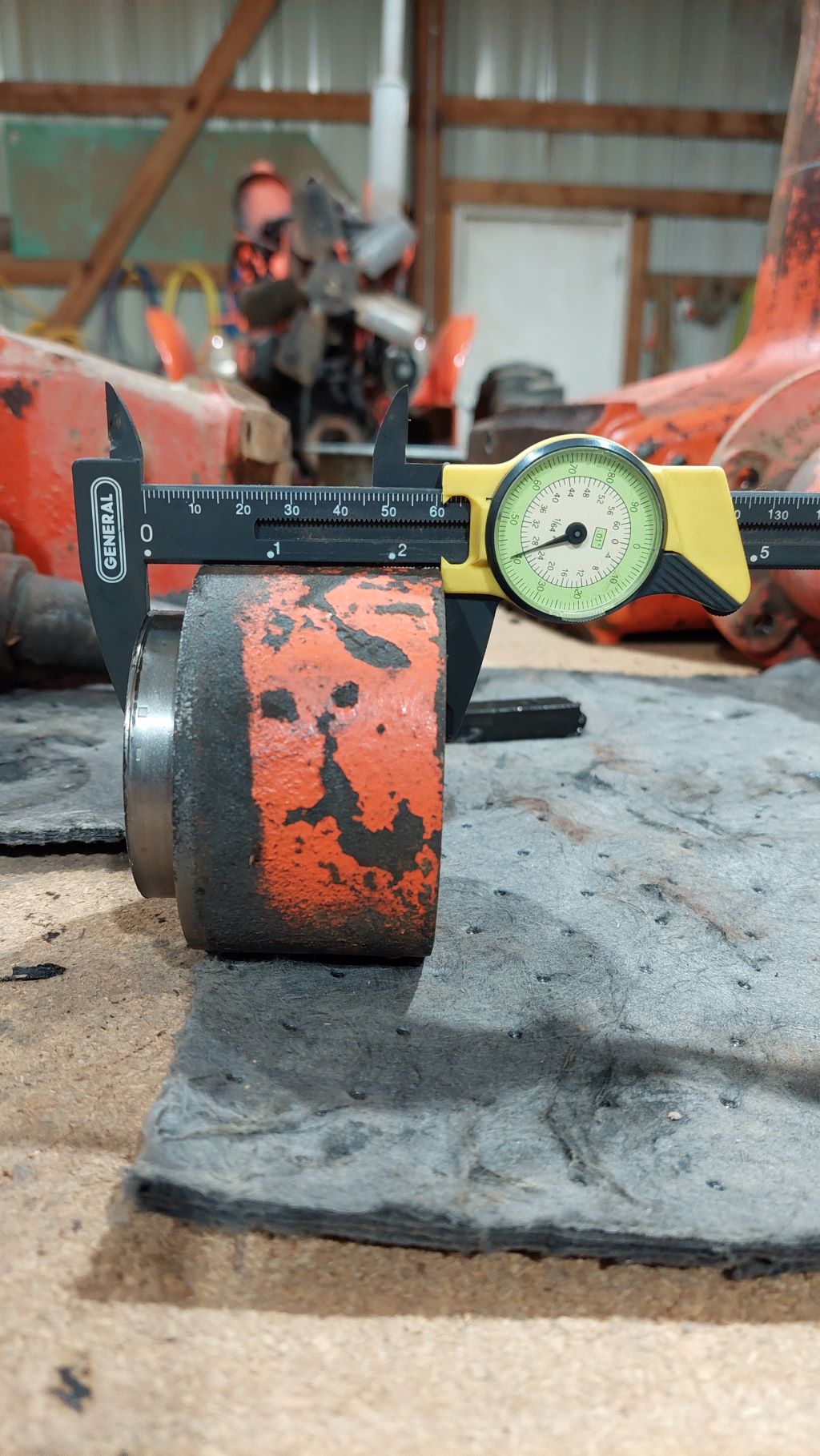

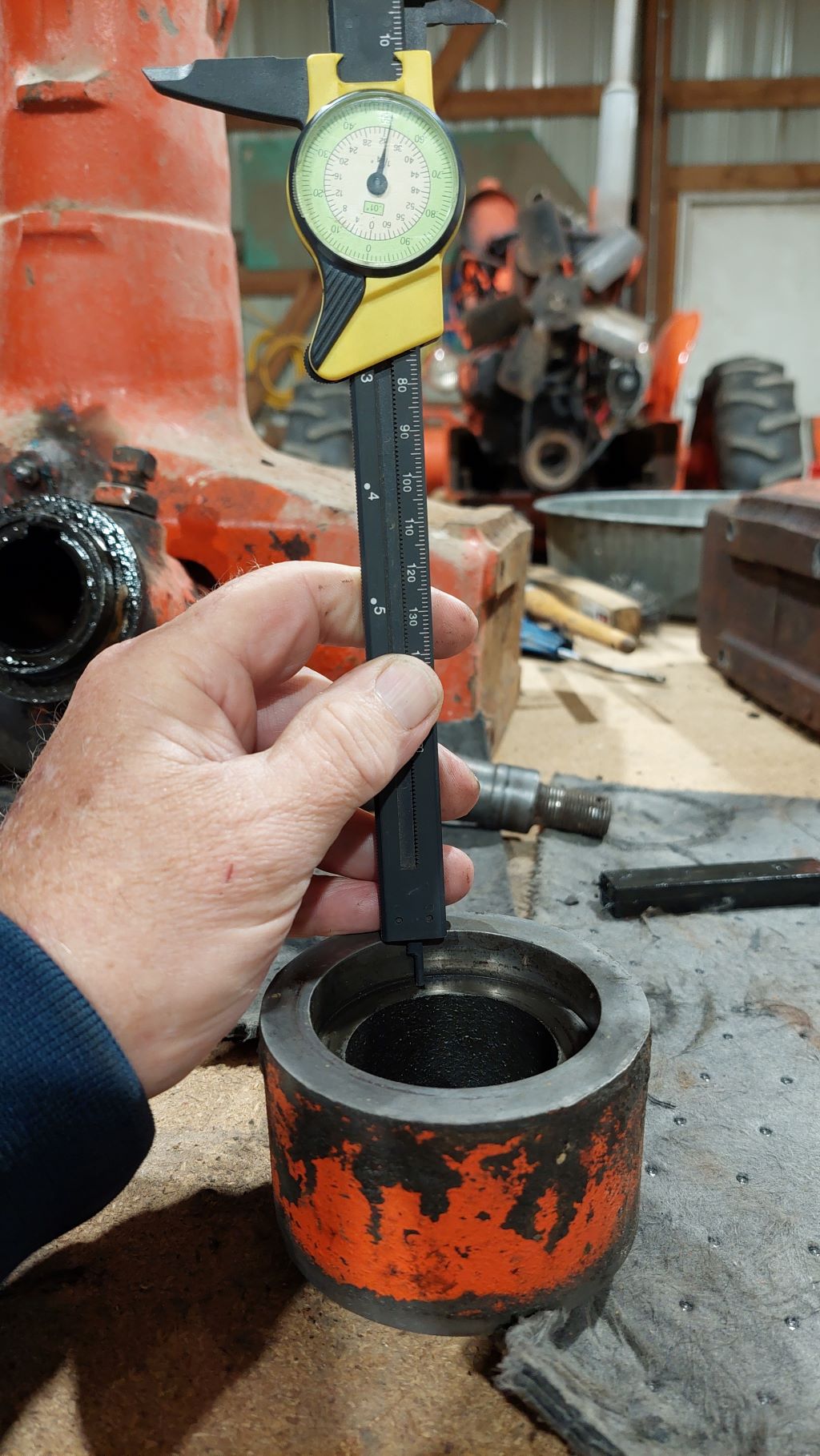

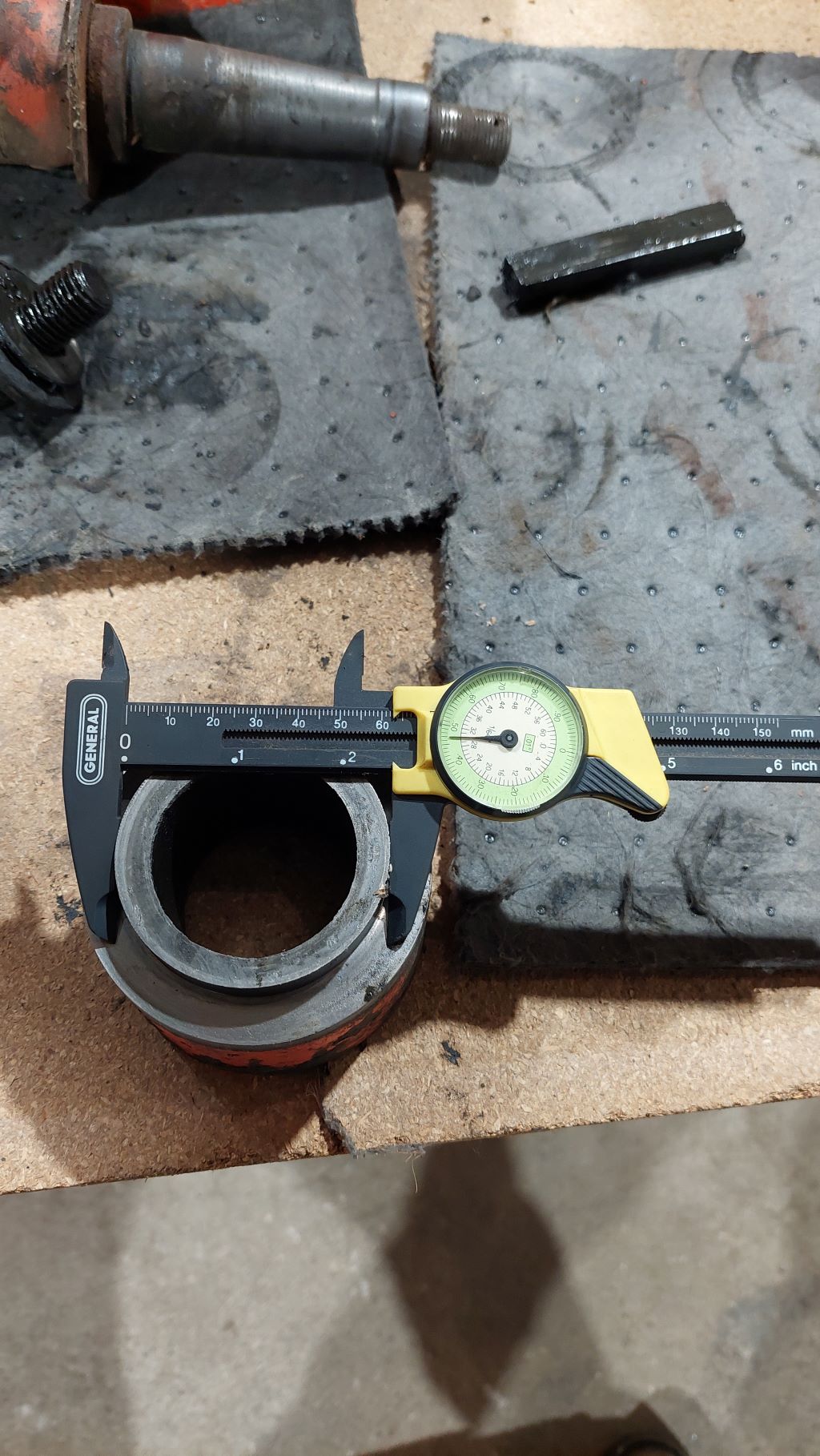

Posted: 16 hours 6 minutes ago at 11:01am |
|
|
|
53WD
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4967
|
Post Options
Thanks(0)
Quote Reply
Posted: 8 hours 9 minutes ago at 6:58pm |
|

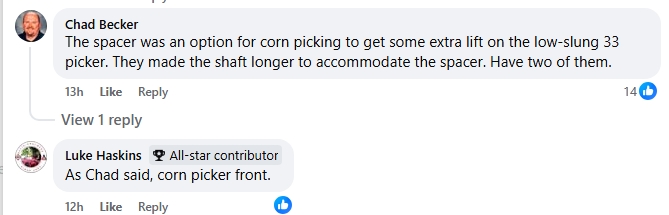

I'm throwing darts in the dark here: Is it possible that someone at sometime had reason the raise the front end and made a longer shaft and the spacer???
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21497
|
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 15 minutes ago at 7:52pm |
|
If it had 13.6 x 38 rear tires it would level it out.
|
|
