Allis two bottom plow
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
dustinmars View Drop Down
Silver Level
Silver Level
Avatar

Joined: 29 Jul 2013
Location: Arkansas
Points: 146 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dustinmars Quote  Post ReplyReply Direct Link To This Post Topic: Allis two bottom plow
    Posted: 22 Mar 2015 at 6:42am

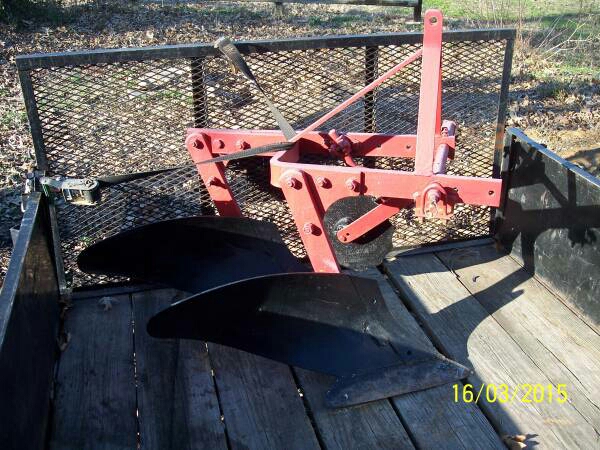

Does anyone know if this is an Allis plow or not?
Back to Top
Sponsored Links


Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54125 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2015 at 7:07am
No beaming screw, might just be a well done cut down of SC plow...
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2015 at 10:42am
I'll second Dave's opinion. It's a 60 series that has been made into a 3pt model. AC would not have welded the mast to the frame.
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2015 at 11:35am
If you study the plow parts manual referenced in AC Plows Parts 101 above you will see that the AC frame is the same for all hitches, that the three point, SC, and pull behind are bolt ons. It is a 62 and the tower would have slid on the three point lower lift bar. The upper link of three point provides the tilt adjustment provided by the beaming screw in the SC.

Gerald J.
Back to Top
dustinmars View Drop Down
Silver Level
Silver Level
Avatar

Joined: 29 Jul 2013
Location: Arkansas
Points: 146 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dustinmars Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2015 at 5:32pm
Thanks guys I don't mind that it was cut down and made into three
Point but I didn't want to buy it if it wasn't a part of an allis plow. This will be great on my D15.
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2015 at 6:29pm
It hasn't been cut. Just the three point hitch has been welded on where an AC three point hitch would have been bolted on.

Gerald J.
Back to Top
