 Topic: Allis Chalmers Model 500 Loader Help
Posted: 09 Oct 2020 at 7:06pm |

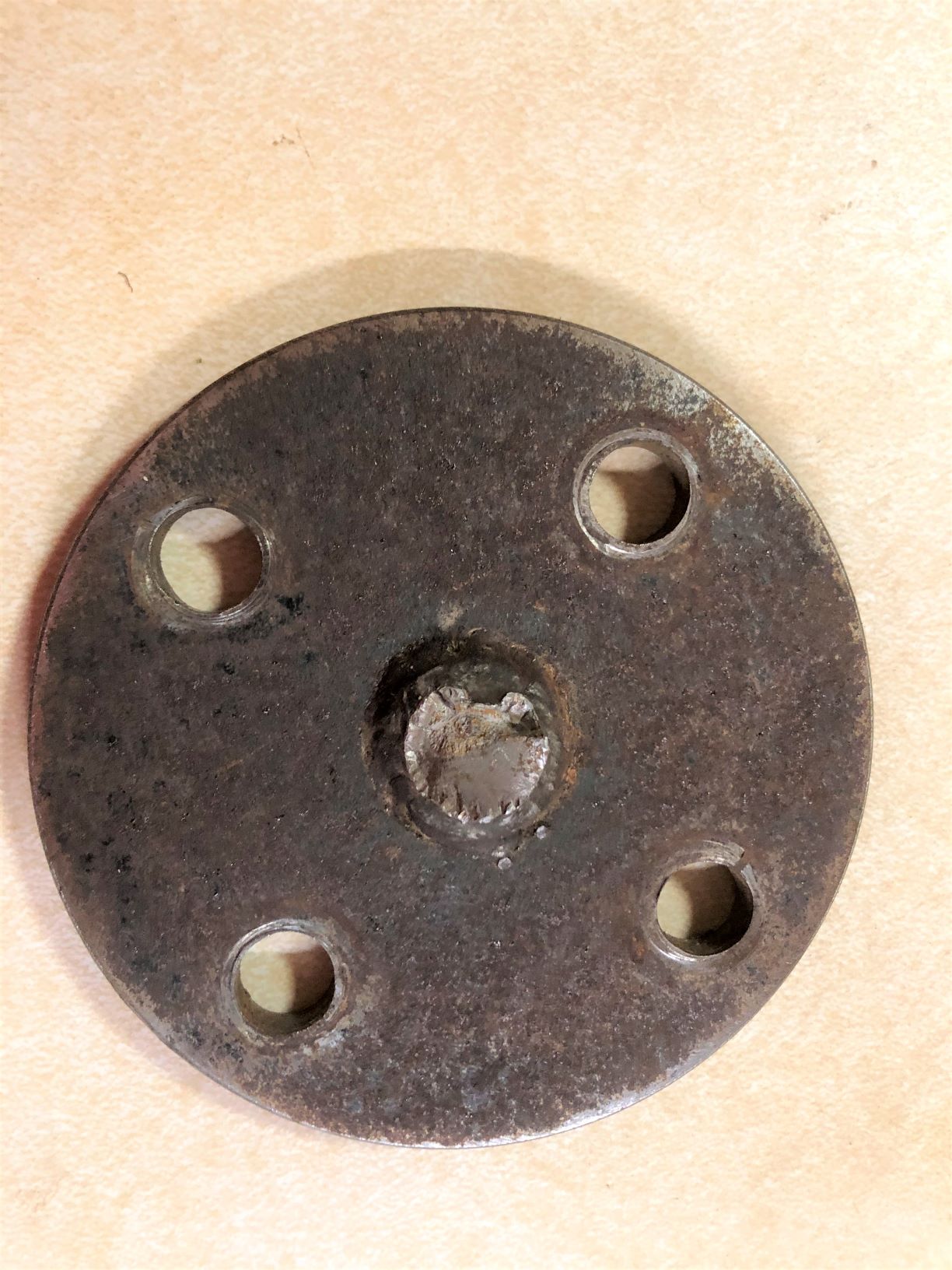

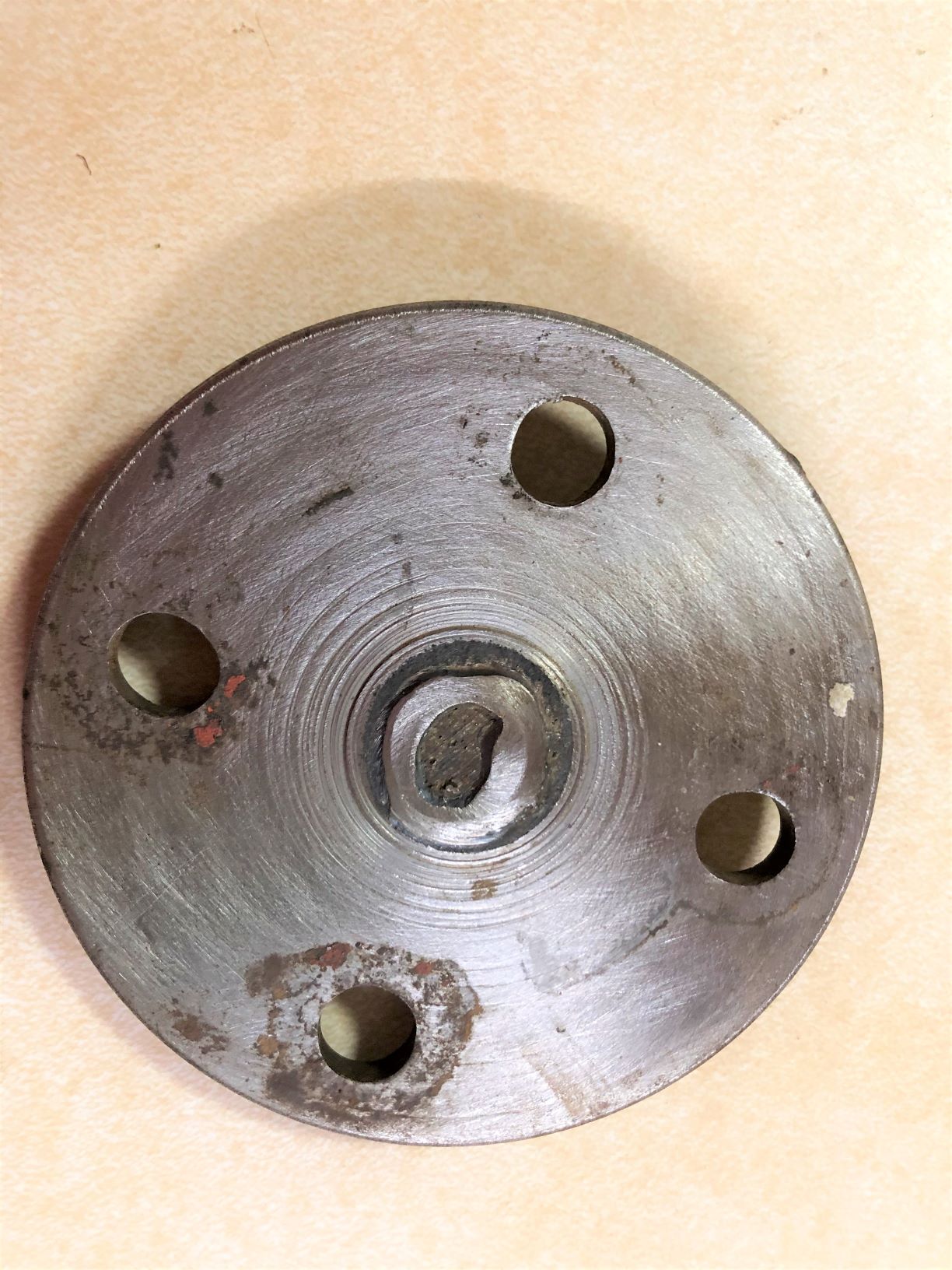

I have a AC loader model 500 taht I need some hlep on. I have a peice that is on the hydulic pump drive that I need to know about, It connect the pump to the crank shaft. I have uploaded pictures of the peice I was wandering about. Does anyone know if the shaft rod that goes against this pecie is suppose to be welded or if it was threaded in it. Any help is apprecited. uploads/10326/IMG_1058_2.JPGuploads/10326/IMG_1059_2.JPG
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21995
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2020 at 7:10pm |
|
What model tractor ????????? looks homemade to me.
|
|
Boss Man
Orange Level
Joined: 03 Mar 2018
Location: Greenleaf, WI
Points: 617
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2020 at 7:22pm |
|
Been my experience that there is usually a keyed or splined hub welded to that piece and the corresponding shaft slips into that hub. Supposed to make it easier to change the belt and such.
|
|
gordonh
Bronze Level
Joined: 04 Oct 2013
Location: West TN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2020 at 7:24pm |
|
D 17 gas
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21995
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2020 at 7:27pm |
|
That ain't factory. Factory had a splined cast iron hub and a splined shaft with a chain coupler on the pump end.
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2020 at 8:37pm |
|
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5902
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 6:11pm |
|
I believe you have a Model 400 Loader if you have a front pump, Model 417 on an earlier D-17.
|
|
DaveWisc.
Orange Level
Joined: 11 Oct 2009
Location: Wisc.
Points: 1012
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 6:38pm |
|
A and W in Wisc makes new reproduction of the assembly they have the hub and shaft along with the shaft. I have there number if interested .
|
|
gordonh
Bronze Level
Joined: 04 Oct 2013
Location: West TN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 8:39pm |
Thanks can you send me the number? Do you know how to tell what model the loader is? I cannot find a serial number on it? Here is some pictures of it. uploads/10326/IMG_1063.JPGuploads/10326/IMG_1064.JPG
|
|
gordonh
Bronze Level
Joined: 04 Oct 2013
Location: West TN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 9:08pm |
|
How will I know if it is a model 400 loader?
|
|
gordonh
Bronze Level
Joined: 04 Oct 2013
Location: West TN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 9:26pm |
|
D17
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10816
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Oct 2020 at 9:28pm |
|
There are several differences over the span of the manufacturing. What tractor is it on? The cross bar that ties the uprights will be close to fuel tank if a 400 series. The 500 series upright is taller and bar will be several inches off of tank. Both models had a reservoir in one of the uprights on some models. Later ones did not. HTH Tracy
|
|
No greater gift than healthy grandkids!
|
|
