 Topic: 433I valve clearance
Posted: 30 Nov 2016 at 9:49pm |
I need to adjust the valves on my repowered 170 but I don't have a manual for this engine. Think it came out of an F2. Can anyone tell me what they should be set at?  Ok don't know how to rotate pic from my phone.
Edited by Chad S - 30 Nov 2016 at 9:50pm
|
|
36 WC,41 WC,53 WD45,57 D14,65 D21,68 XT,72 XT,81 7045
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21505
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Nov 2016 at 10:43pm |
|
.017" COLD intake and exhaust.
|
|
injpumpEd
Orange Level Access
Joined: 13 Sep 2009
Location: Walnut IL
Points: 5075
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Dec 2016 at 8:07am |
|
Now that is how the 170/175 should have been built from the start! Sad that they could buy an outside sourced engine more cost effective than their own engine! Though the 2200(200 cid)wasn't made popular until they revised it for the 6000 series.
|
|
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
|
|
Peterson
Orange Level
Joined: 05 Mar 2011
Location: Westboro, Wi
Points: 864
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Dec 2016 at 10:29am |
|
Nice tractor!! Always wanted to do that swap on a 170/175! Tell use more about it.
|
|
7095-685I at 255hp, 8070-225HP,8050-210Hp,8030 with 155HP,220 with 670T engine with A-pump, 7580, 185 with 140HP, 2-6080's,6070, S4 D17,wd45,CA,st34 agco, S1 D17 with 3500MK2
|
|
Chad S
Bronze Level
Joined: 13 Sep 2009
Location: CENTERAL IOWA
Points: 87
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Dec 2016 at 12:45pm |
|
Thanks DrAllis.

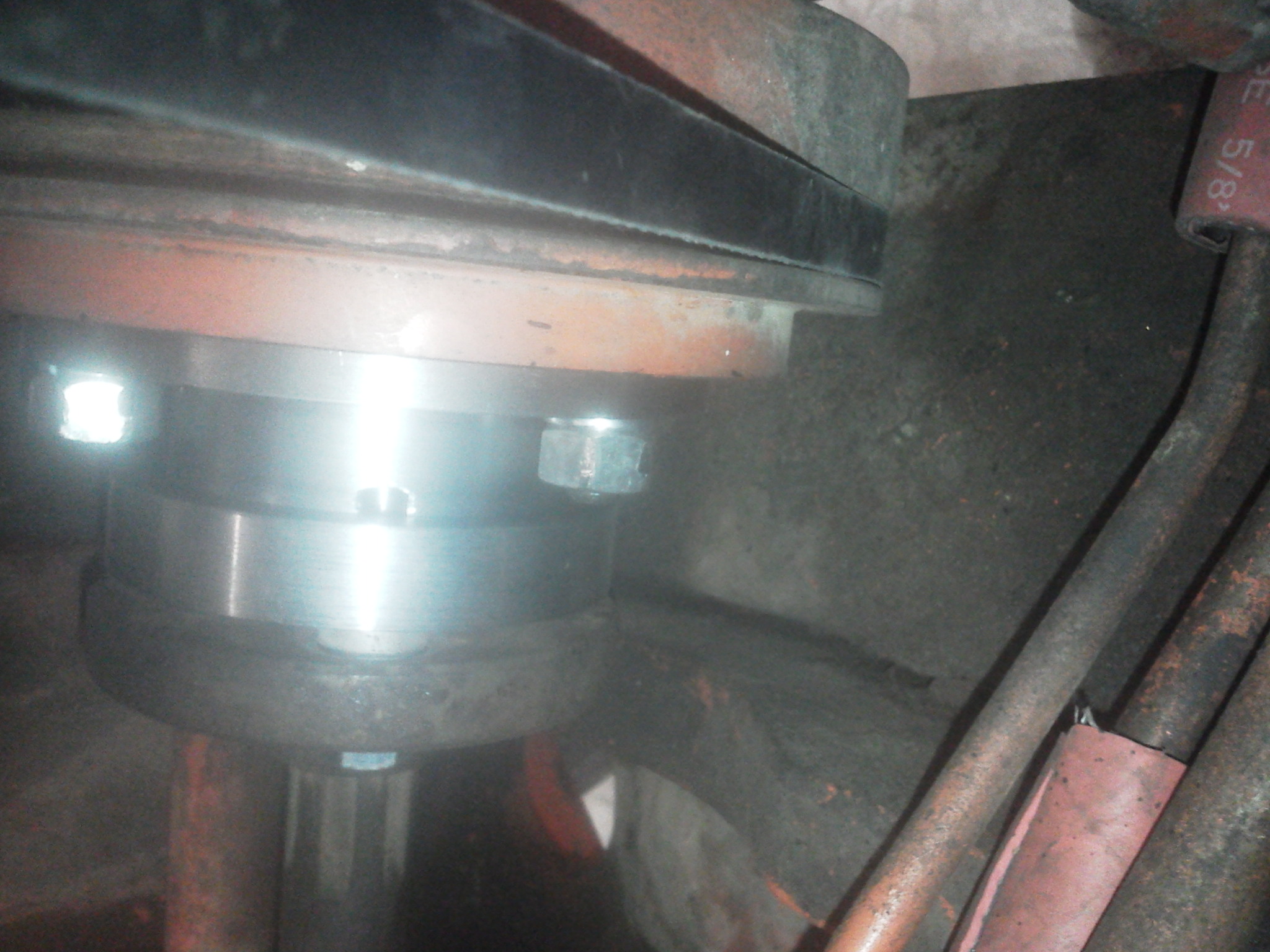

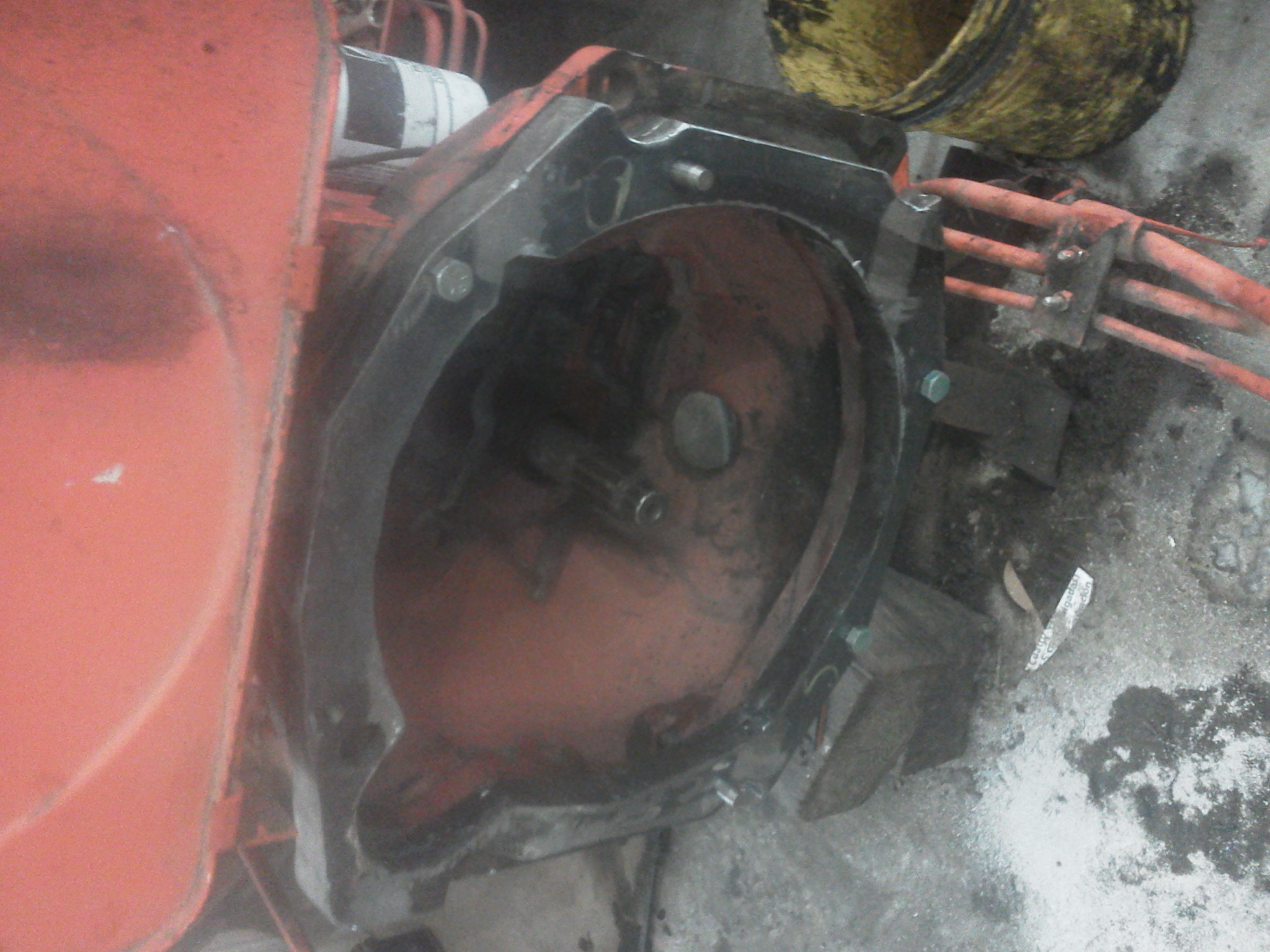

peterson. Tractor was a gas. We used a 190 fly wheel and clutch. Fabricated an adapter of 1 3/8 in. to space engine out for the longer input shaft and had an adapter made for the front HYD pump drive. And the rest was just intake and radiator plumbing.
|
|
36 WC,41 WC,53 WD45,57 D14,65 D21,68 XT,72 XT,81 7045
|
|
Chad S
Bronze Level
Joined: 13 Sep 2009
Location: CENTERAL IOWA
Points: 87
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Dec 2016 at 12:48pm |
|
|
|
36 WC,41 WC,53 WD45,57 D14,65 D21,68 XT,72 XT,81 7045
|
|
Chad S
Bronze Level
Joined: 13 Sep 2009
Location: CENTERAL IOWA
Points: 87
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Dec 2016 at 12:49pm |
|
|
|
36 WC,41 WC,53 WD45,57 D14,65 D21,68 XT,72 XT,81 7045
|
|
