3138-4 and -5 wheel weights
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
HaroldOmaha View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Omaha
Points: 862 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HaroldOmaha Quote  Post ReplyReply Direct Link To This Post Topic: 3138-4 and -5 wheel weights
    Posted: 13 Jul 2016 at 9:48pm

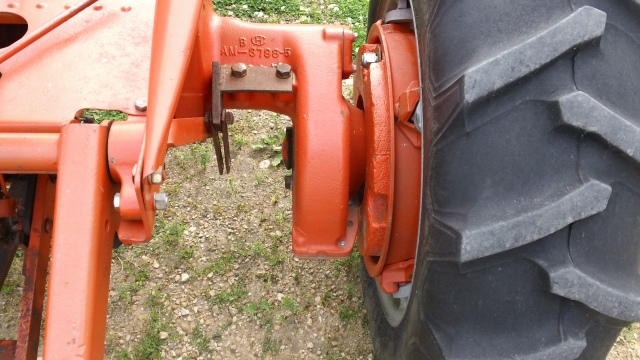

On the inside rear wheel weights for the B-C-CA- D10-D12 I've found AM3138-4 and-5
Are the 4s for the Bs + Cs
and the -5s made with a steeper dish for CAs, D10s andD12s with power shift ?
along with fitting the older Bs + Cs

   Harold
Back to Top
Sponsored Links


Back to Top
HaroldOmaha View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Omaha
Points: 862 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HaroldOmaha Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jul 2016 at 1:59pm
Any Ideas on B-C-CA, D 10-D-12 wheel weights ?

Any one have bolts for sale ?  Square head( 1" ) -  3/4 x 4"
need 4 to go with the weights when I sell them when the paint is dry.
Back to Top
DSpears N IL View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 411 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSpears N IL Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jul 2016 at 5:03pm
Could you measure the over-all outside decisions, are they the same?
Could you take a photo of the two for comparison?

I do not know the difference of the 2 numbers or what they may fit.

I do see pictures of the -5 weight on Brian Aharts  web site.

Thanks

DeWayne
Back to Top
HaroldOmaha View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Omaha
Points: 862 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HaroldOmaha Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jul 2016 at 9:51pm
I only have the -5s
The dimensions are ; 8" axel hole is beveled on one side and 71/2 on the opposite flat side ,
mounting holes are 14" to center
mounting holes are 3/4", bolts are 1" square head by 4"
the flat side of weight is  dished in 1" toward the center axel hole.
Back to Top
HaroldOmaha View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Omaha
Points: 862 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HaroldOmaha Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jul 2016 at 9:52pm
there are pics of the-5s on ebay, no -4s last time I looked
Back to Top
DSpears N IL View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 411 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSpears N IL Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2016 at 7:47pm
Harold, thanks for the measurements on the weights.
I have been looking for the Part# for the inside weights for the CA spin-out wheels.
DeWayne
