 Topic: 3 pt conversion dimensions.
Posted: 13 Nov 2019 at 1:05am |
Greetings all. Planning to fab a three point conversion on my '53 wd45 and I was wondering if someone might have the dimensions like the length and cross section of the bottom arms, length of vertical attachments, location of vertical attachment on the bottom arms and maybe a photo of where youre top link bolts on, and length of the top link. Many thank yous in Advance. As an aside not related to the post my machine is about the 300th 45 manufactured.
Edited by the3880 - 13 Nov 2019 at 1:06am
|
 |
|
Sponsored Links
|
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8517
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 7:55am |
the3880, Top link should be a std from any tractor supply store, The dimension for the hole for the vertical lifts can be about the same dimension as the holes in the lift arms. if the side lift arms are solid (no adjustable dont make them too long. My guess is about 16 inches is close to what you want. The center attachment for the top link can be a U shaped bracket with hole: Center cross piece for drawbar is about 14 inches wide ish?? or about the same width as the Guide that holds the drawbar.
HTH Sorry I dont have mine here to measure. Regards, Chris
Edited by Sugarmaker - 13 Nov 2019 at 7:58am
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
JoeO(CMO)
Orange Level
Joined: 11 Sep 2009
Location: Cent Missouri
Points: 2696
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 8:19am |
Recalling from the past; Wait until the lower lift arms are positioned in working position before determining the length of top arm. This being determined by the mounting position and length of lower arms. I seem to remember 8-10 inches or so(this to mount a one row corn picker on a WD, mid '50's) and a little dusty on details. Top link was not needed until a carry-all came out of shop fabrication area. HTH
|
|
|
|
Ross D.
Silver Level
Joined: 02 Sep 2013
Location: Erin, Ont.
Points: 339
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 9:25am |

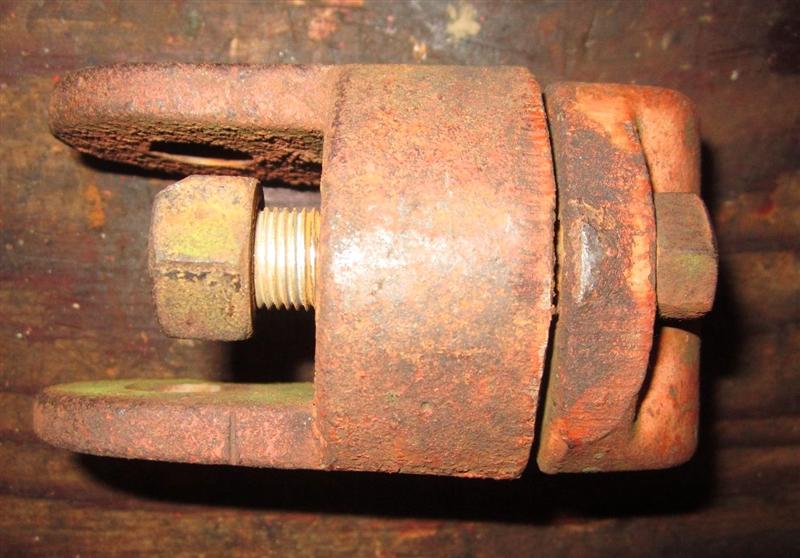

Hi. Check these pictures out. Ross.
|
|
modirt
Orange Level Access
Joined: 18 Jul 2018
Location: Missouri
Points: 8729
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 10:42am |
Would this be an alternative to fabricating one?
|
|
JoeO(CMO)
Orange Level
Joined: 11 Sep 2009
Location: Cent Missouri
Points: 2696
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 10:52am |
Sure would! Location showed- Wasilla AK
|
|
|
|
chaskaduo
Orange Level
Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 11:46am |

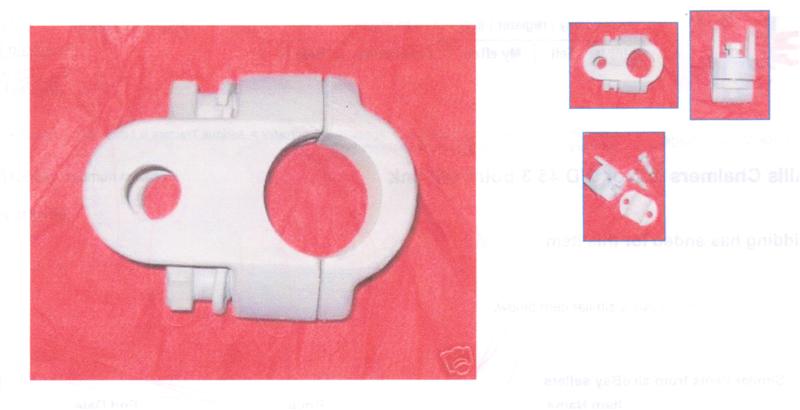

Picture for Modirt's link
|
|
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
|
|
TimCNY
Orange Level
Joined: 15 Apr 2014
Location: Upstate NY
Points: 1551
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 3:55pm |
|
That's the one I bought. Like the3880, I had visions of fabricating my own. In the end it was far more worth it to just buy that kit. Perfectly satisfied with it!
|
|
I need more than 200 characters for my "signature." I'd love to see that changed to 250!
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54106
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2019 at 6:31pm |
The advantage to this type(the one pictured) 3 point kit, is that it foes not negate the tractor's traction booster draft control, if so equipped...
If it were my tractor, I would prolly search local auctions, where AC stuff is being sold, and pick up an original AC made conversion. Don't know how plentiful these are, in your area, but around here, they are a few, still.
Here's a link to a picture of the original...
Edited by DiyDave - 13 Nov 2019 at 6:32pm
|
|
