I was blowing snow with the WD-45 today at the cabin and all was well then not well. The pto shaft stopped going. The bolt for the gearbox to extension shaft was gone. Is this a special shear bolt? I will buy the bolt, but if I can source it locally I would prefer that. What does everyone else use? What size bolt would I need if I can just use a bolt?  Thanks for a reply. Mike
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
Sponsored Links


Back to Top
KMAG View Drop Down
Orange Level Access
Orange Level Access


Joined: 26 May 2020
Location: Elizabethtown,
Points: 645
Post Options Post Options   Thanks (0) Thanks(0)   Quote KMAG Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 3:45pm
A pic would help verify this, but it is highly likely the missing piece was a shear bolt.

I would only replace it with same or weaker spec shear bolt.
Back to Top
mdm1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2591
Post Options Post Options   Thanks (0) Thanks(0)   Quote mdm1 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 3:49pm

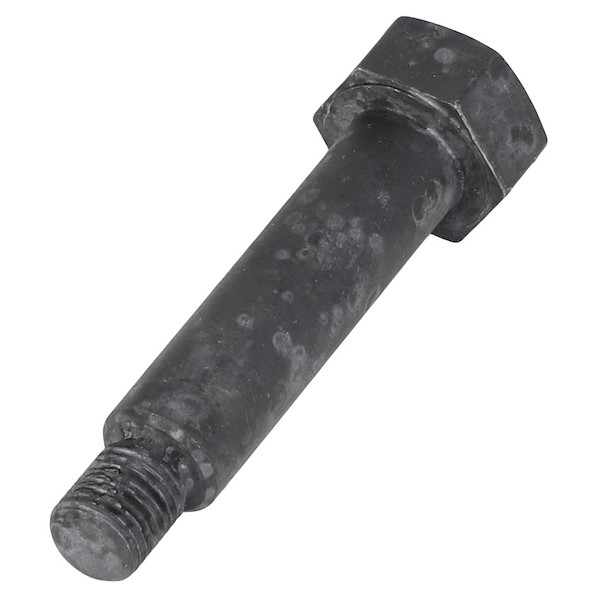

The factory bolt is a shoulder bolt. Just checked with a Agco dealer and price was around $30.00.
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77221
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 3:57pm
most probably just use a soft grade 2 plated bolt from the hardware store.. You need a lock nut or something to keep it from falling out... should shear the bolt if you hit something hard.
Like them all, but love the "B"s.
Back to Top
mdm1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2591
Post Options Post Options   Thanks (0) Thanks(0)   Quote mdm1 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:00pm
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
den/southern illinoi View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Sparta, Illinoi
Points: 1930
Post Options Post Options   Thanks (0) Thanks(0)   Quote den/southern illinoi Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:07pm
Do not do what one guy did.  He was buying his second pto gear from me when I
asked him what he was using for a bolt.  He said a Grade 8.  I told him he needed to
go way softer.  He has not been back  I'm guessing he took my advice.   Den


Own 5 720 garden tractors with associated equipment,1 620 garden tractor, 4 wheel 20
2-5015, 5020 and associated equipment and 2 electric forklifts.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77221
Post Options Post Options   Thanks (1) Thanks(1)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:13pm
the shoulder is so you can bottom out the nut and have it TIGHT so it will not back off... Using a selastic nut with a grade 2 bolt will do the same think... dont want the nut to vibrate off.

Edited by steve(ill) - 07 Feb 2023 at 4:14pm
Like them all, but love the "B"s.
Back to Top
mdm1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2591
Post Options Post Options   Thanks (0) Thanks(0)   Quote mdm1 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:39pm
Thanks for the input. But since I don't have the old bolt does anyone know the size? I can't measure  because the tractor is 2hrs away. Sorry to be a bother.
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77221
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:41pm
I have seen 7/16 and 1/2 inch in various shafts .... just take a couple bolts... if they are an inch too long, that dont hurt.

when you get the size, keep a couple spares in the tool box. Wink


Edited by steve(ill) - 07 Feb 2023 at 4:48pm
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77221
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:46pm
Like them all, but love the "B"s.
Back to Top
mdm1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2591
Post Options Post Options   Thanks (0) Thanks(0)   Quote mdm1 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 4:47pm
Thanks I didn't want to just put a bolt in and do more damage. Learning things as  I get older.
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 19358
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 6:10pm
The design of the bolt is such that when you tighten the nut tight, you are not crushing the tube onto the PTO output shaft. The bolt floats in the hole.
Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 33589
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 8:15pm
Make sure you don't have threads in the bolt hole when drawing nut up tight.
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2023 at 9:54am
Doc makes a good point. If you ever want to pull the pto shaft, which is recommended for moldboard plowing, you don't want it crushed. My thinking, and I could be totally wrong, is that bolt was NOT designed to be a shear bolt.
