Followup on WD WD45 pistons

 Post Reply Post Reply
Author
Message
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Topic: Followup on WD WD45 pistons
    Posted: 20 Nov 2015 at 8:38pm
I finally had a chance to get to the farm and take some pictures. I will post each engine kit or set of pistons in a separate post to minimize confusion.

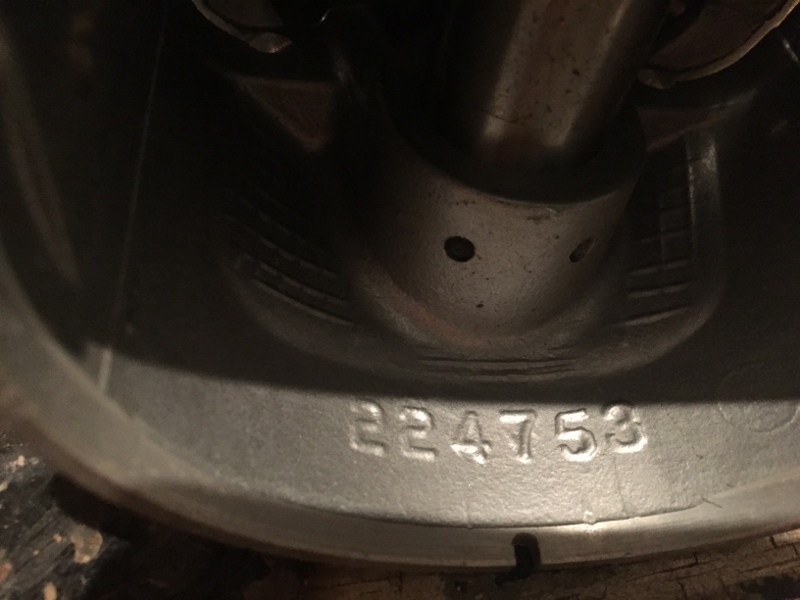

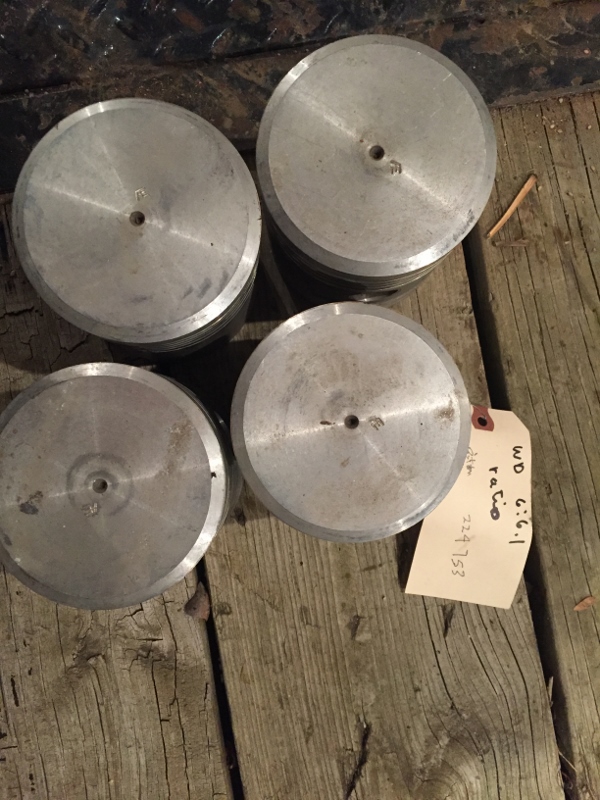

This is a set of 4 WD 6.6:1 ratio pistons.






Edited by Michael Crowe - 24 Jan 2018 at 3:11pm
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Sponsored Links


Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2015 at 8:43pm

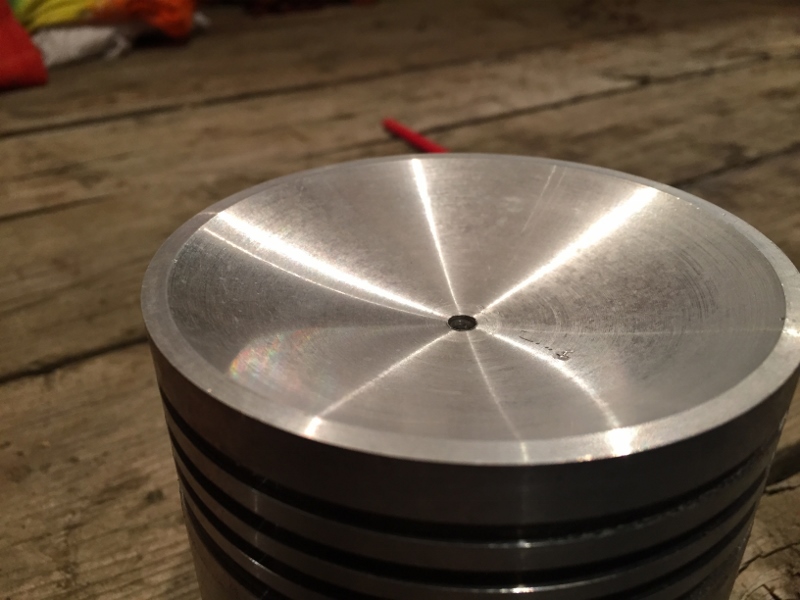

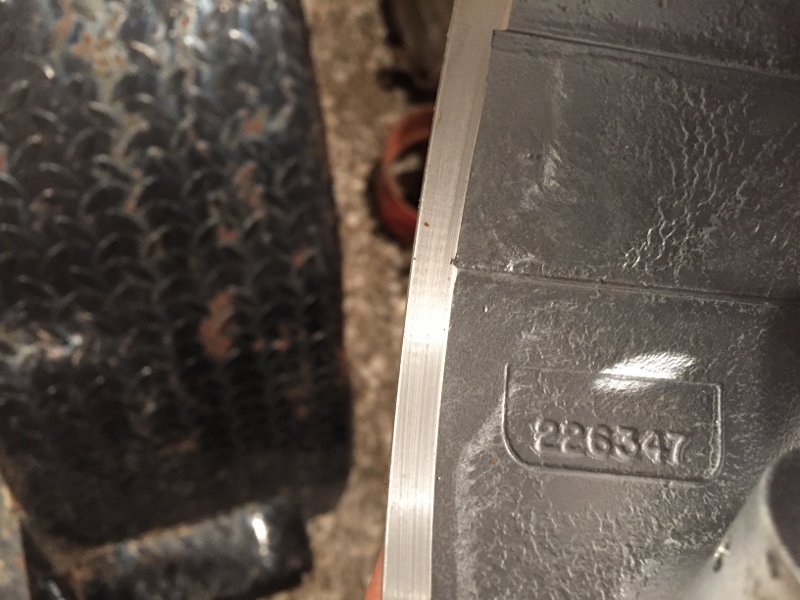

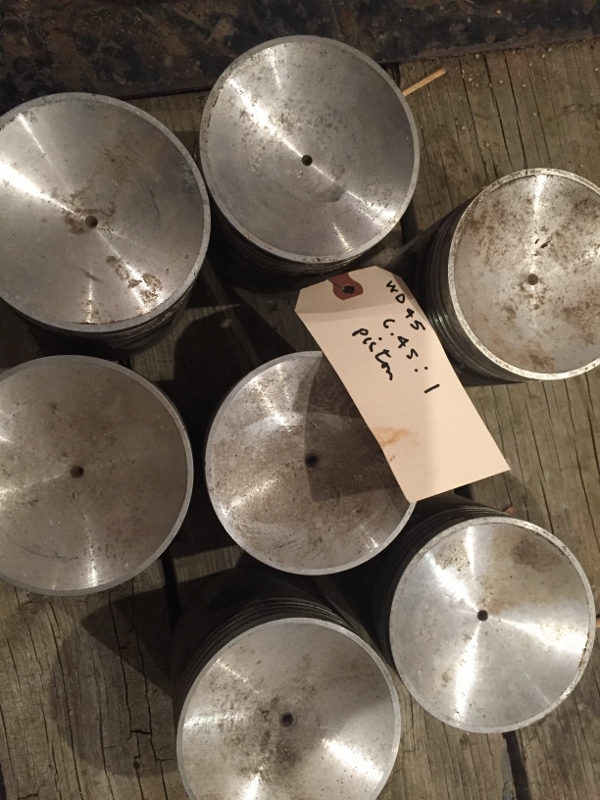

This is a set of 6.45:1 compression pistons for a WD45.








Edited by Michael Crowe - 24 Jan 2018 at 3:15pm
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2015 at 8:45pm

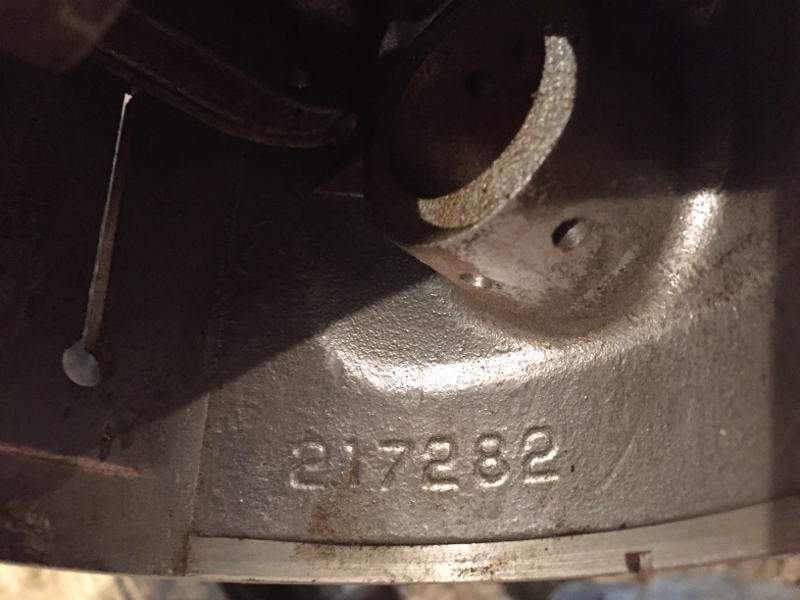

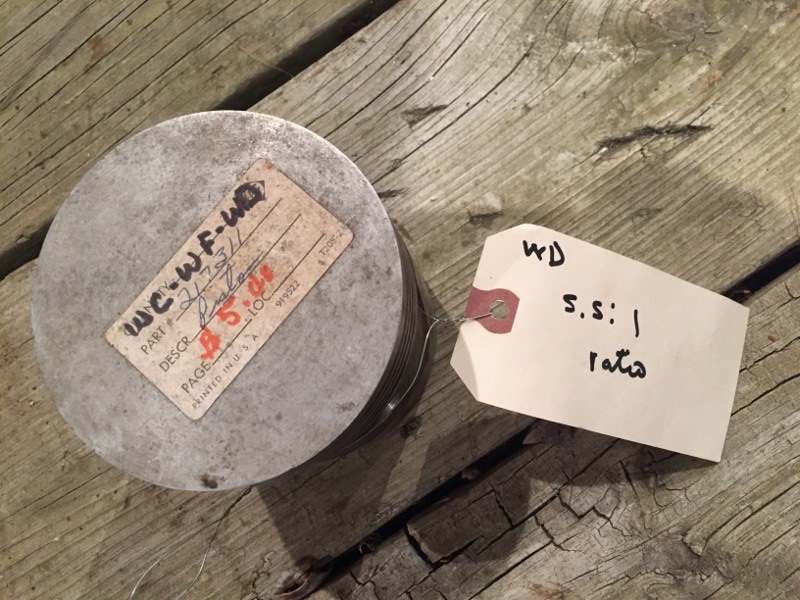

This is a 5.5:1 compression piston for a WD.

I only have one of these; not sure where I got it.





Edited by Michael Crowe - 24 Jan 2018 at 3:17pm
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2015 at 8:47pm

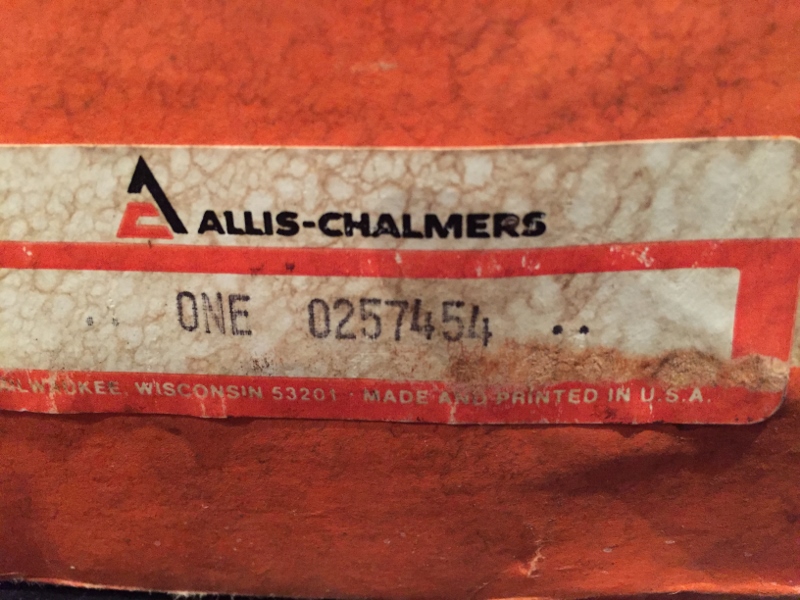

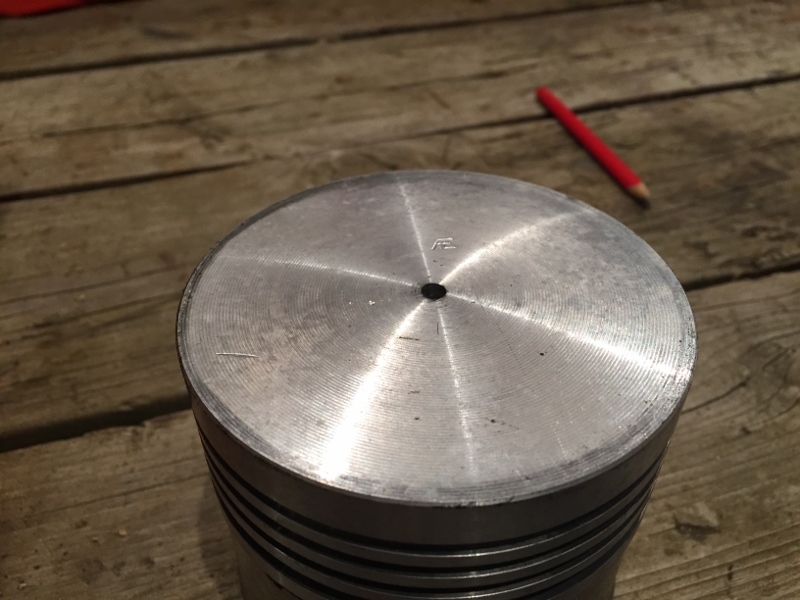

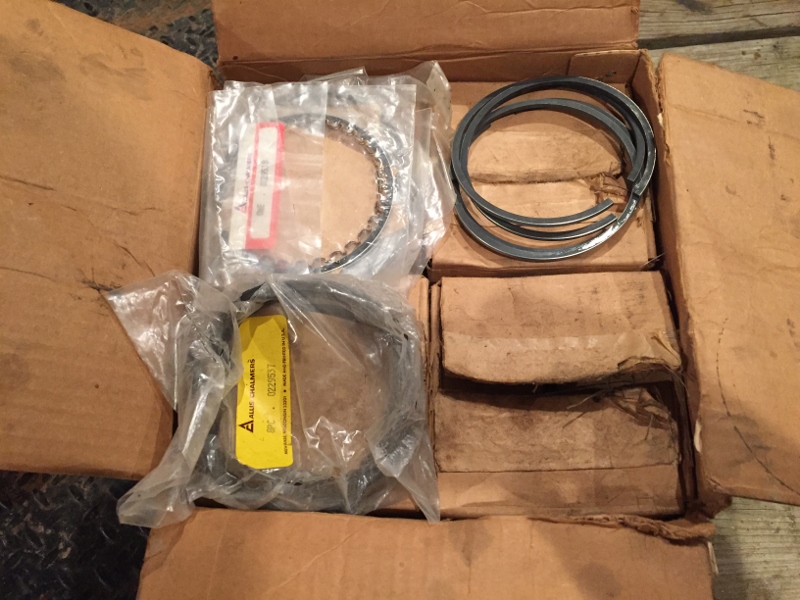

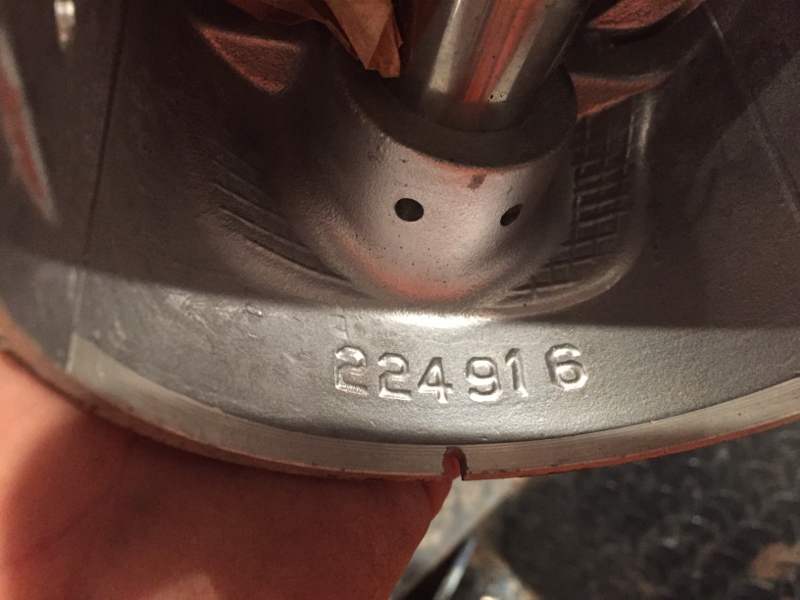

This is an Engine Kit, 257454, this is a 5.7:1 compression ratio for a WD engine.










Edited by Michael Crowe - 24 Jan 2018 at 3:23pm
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2015 at 8:49pm

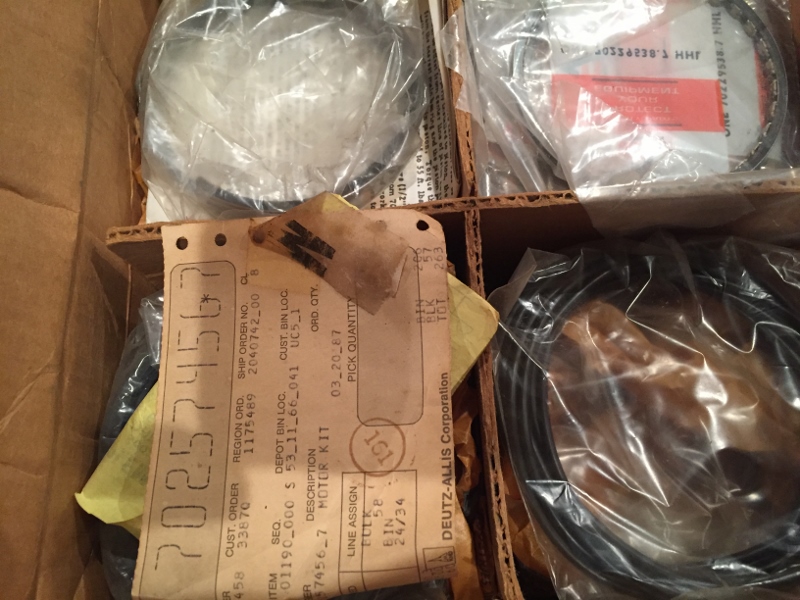

This is an Engine Kit for a WD45 with 6.45:1 compression ratio pistions.








Edited by Michael Crowe - 24 Jan 2018 at 3:27pm
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2015 at 8:51pm

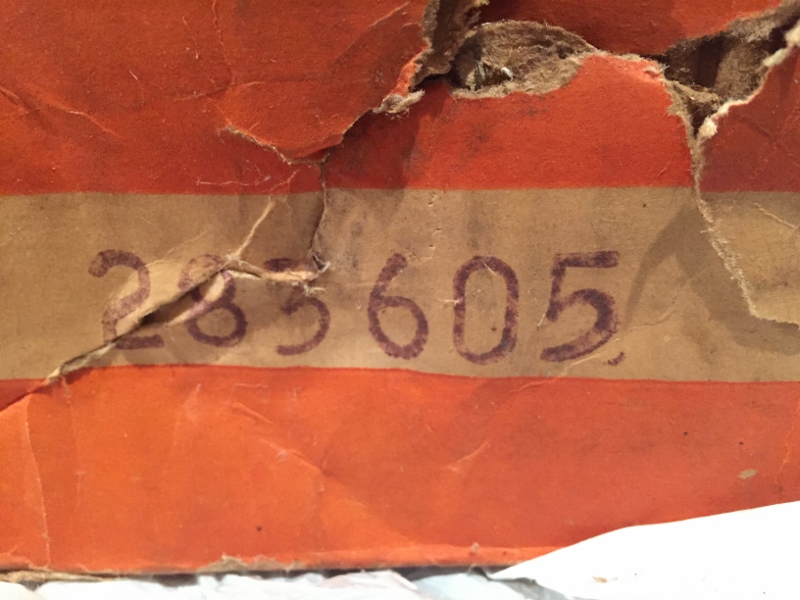

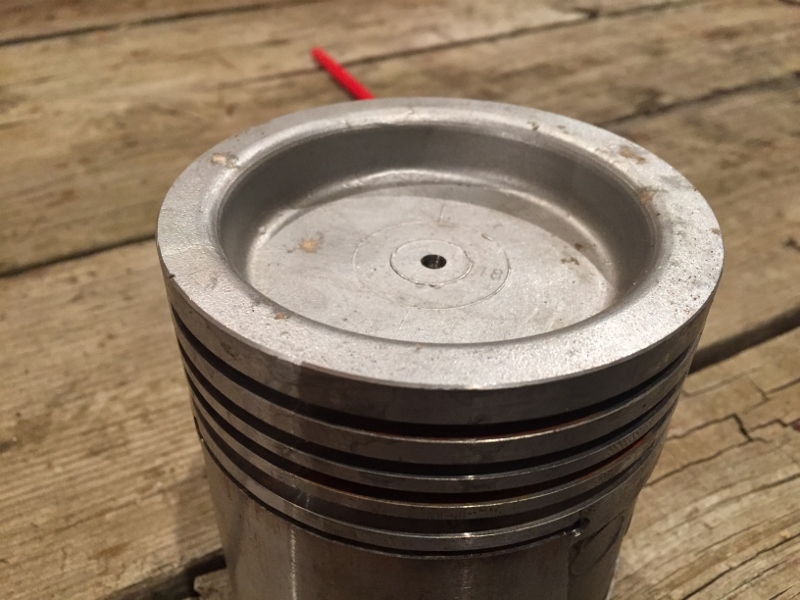

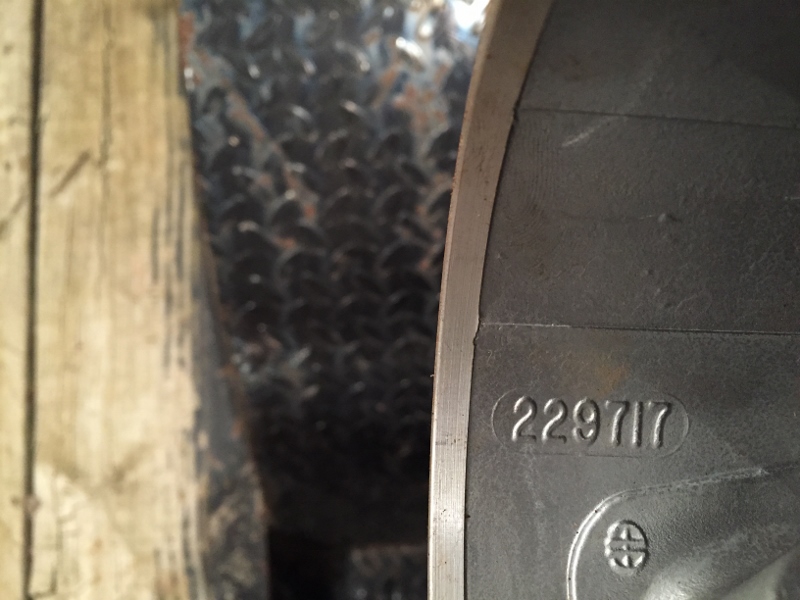

This is an Engine Kit for a WD45 with 7.25:1 compression pistons.
