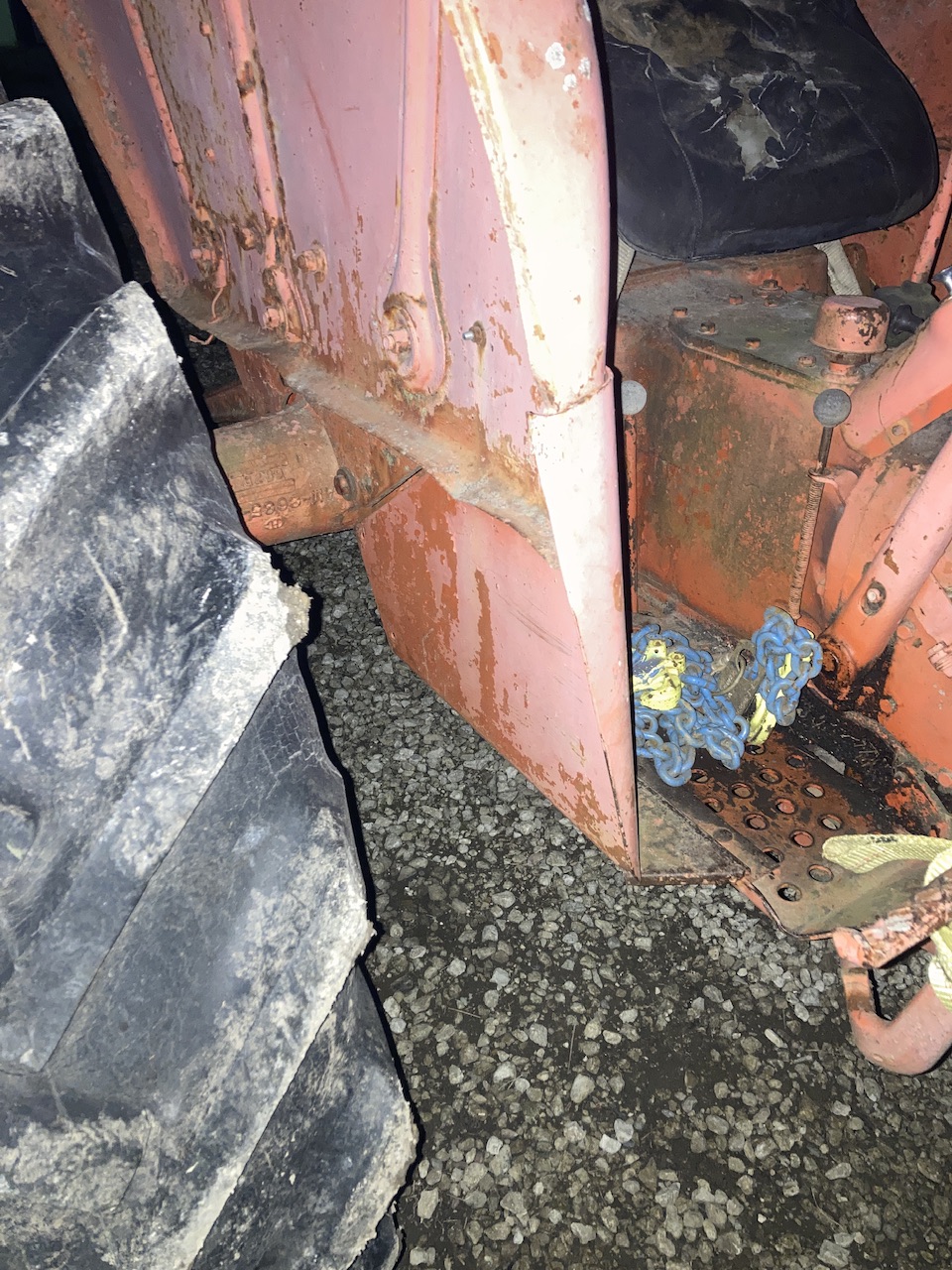

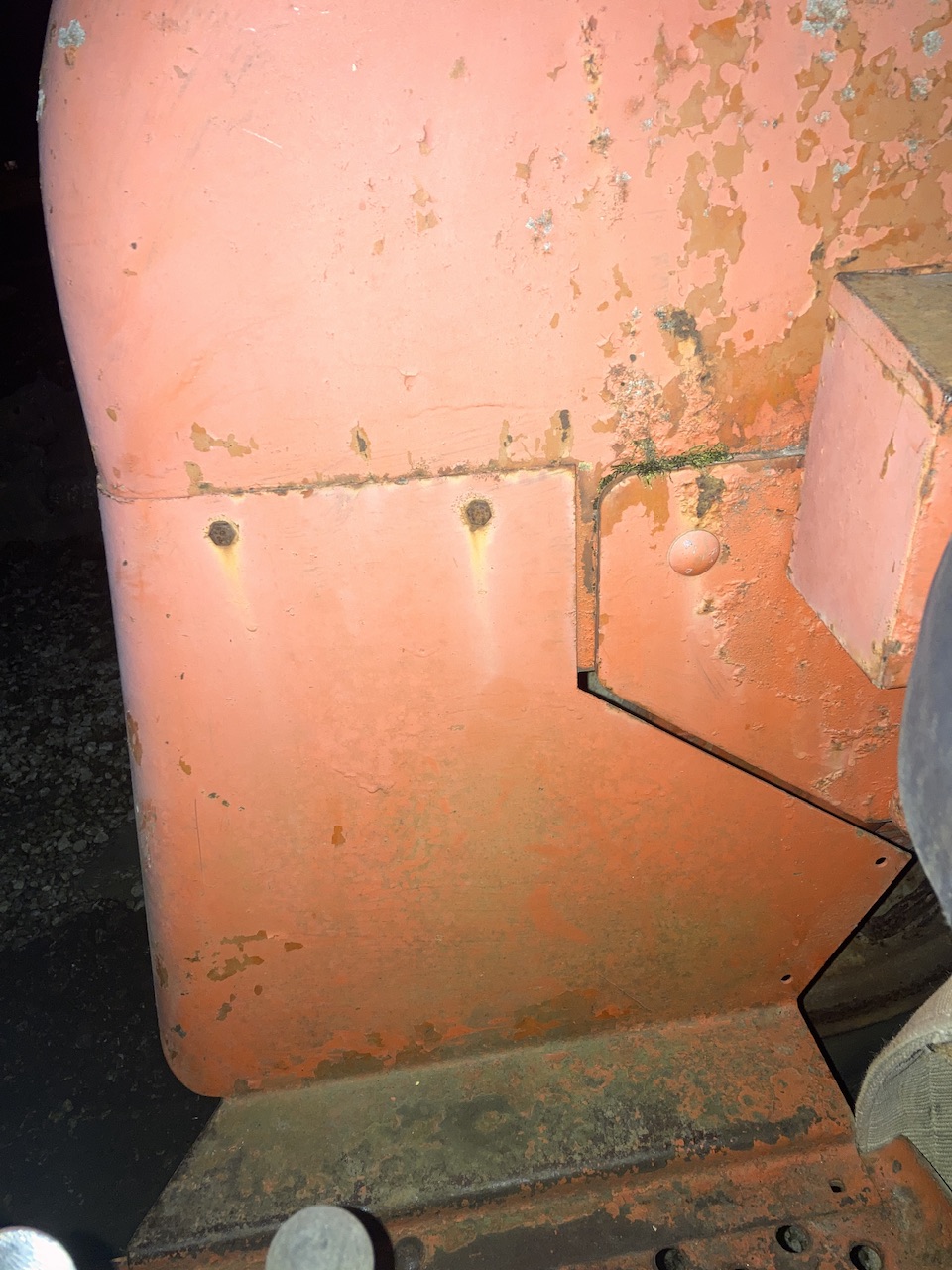

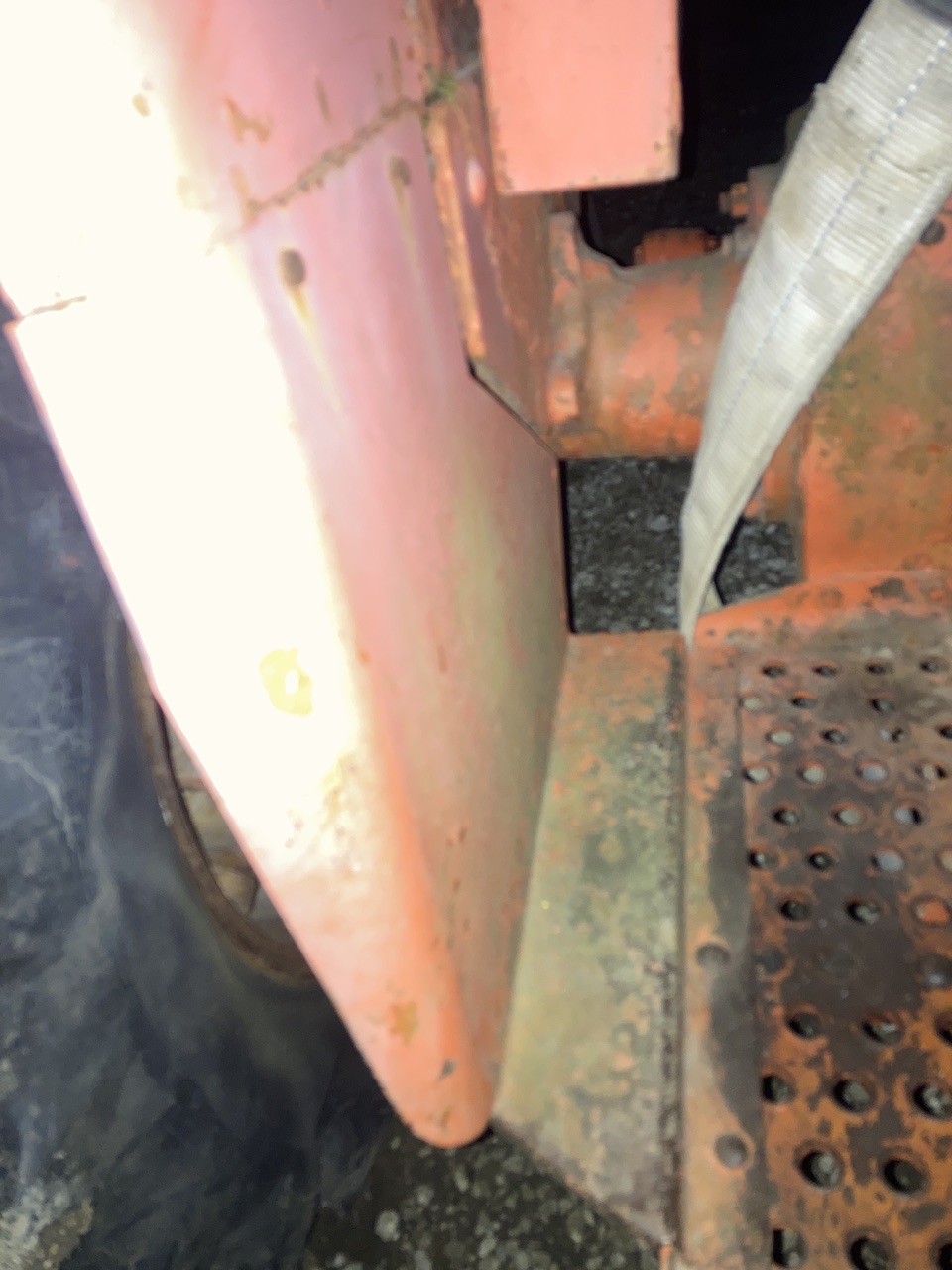

 Topic: D-series fender extension / guard / shield?
Posted: 01 Mar 2025 at 8:19pm |
|
|
 |
|
Sponsored Links
|
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5131
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 8:48pm |
|
Never seen those before, my guess would be aftermarket but appear to be well made. Maybe for an orchard tractor?
Looks like you need a new o-ring on your PD shaft according to the oil leak. Other side leaking? Not a difficult job.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 188
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 9:02pm |
|
This one is just a parts tractor, so I won’t be worried about the PD shaft seal leaking
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21398
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 10:29pm |
|
That isn't a "Wheat-Land" fender extension is it ??
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 188
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 10:39pm |
|
I believe the wheatland tractors had the big wide full fenders and non-adjustable rear wheels, from the pics I have seen
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21398
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 10:40pm |
|
Yes. That's right. But these sure look similar in how they are beyond the platform.
|
|
rtwfarm
Orange Level
Joined: 26 Feb 2012
Location: nebraska
Points: 1311
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2025 at 11:33pm |
|
Rice ??
Edited by rtwfarm - 01 Mar 2025 at 11:34pm
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7438
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 7:51am |
|
My guess is for rice models. Seen them on D15s, but not on a 17 yet.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 188
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 8:38am |
Maybe that’s correct… the wheatland extensions are similar but wider, and look like diamond tread steel, at least the ones pictured in this link… https://bids.aumannauctions.com/auctions/30565/lot/5779092-allis-chalmers-d17-wheatland-gasOf course I wouldn’t know if the ones pictured are correct or not…
Edited by RedHeeler79 - 02 Mar 2025 at 8:39am
|
|
tbran
Orange Level
Joined: 14 Sep 2009
Location: Paris Tn
Points: 3482
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 8:57am |
|
70240174 is a parts # - factory, saw a bunch south of I10 in LA. Fender extensions for Series IV 17's - D15's had an axle extension for widening the stance. Usually Rice equipped with 14.9-38 tires and extesion used these fender extensions. .
|
|
When told "it's not the money,it's the principle", remember, it's always the money..
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8614
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 8:58am |
Interesting. Did rice tractors have parts book. What about mounted pickers.
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 188
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 9:18am |
|
Thanks! I found them in the D17 series IV book on AGCO site. They are special equipment for rice tractors. Good call!
|
|
rtwfarm
Orange Level
Joined: 26 Feb 2012
Location: nebraska
Points: 1311
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2025 at 12:46pm |
|
I have them on a d17 s3 from Lousiana
|
|
