 Topic: D17 Hydraulic Pressure Switch
Posted: 08 Feb 2020 at 8:10pm |
|
I have a D17 series 3 and have finally gotten around to fixing/getting the lights to work. But the light for the pressure switch on the instrument panel that comes from the hydraulic pressure switch does not work. The wiring is correct and have tested the wiring going into the switch and it has juice. Is there a way to test this switch to see if it still works? And does anybody know if there is any replacement for the switch if it doesn’t work. Does Agco still have them available.
Thanks
|
 |
|
Sponsored Links
|
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7534
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2020 at 8:20am |
|
Check to make sure the light works first - very common for water to get in there and rust things up. Yes the pressure unit is readily available through AGCO and some vendors here and they are pretty cheap too, so you are in good shape.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8742
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2020 at 8:48am |
|
And welcome to the forum
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 22147
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Feb 2020 at 9:29am |
|
AGCO p/n 70240150. I assume it is a 5 or 7 psi switch that if you walked into a NAPA store with the old one in hand, they would have one on the shelf.
|
|
Jack(Ky)
Orange Level
Joined: 12 Sep 2009
Location: Ky
Points: 1153
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Feb 2020 at 8:27pm |
|
Just out of curiosity is a 170 supposed to have a hyd pressure switch?
|
|
'59 D14 '68 170 Diesel '81 7020 40 All Crop
|
|
DanD
Orange Level
Joined: 11 Sep 2009
Location: WI
Points: 856
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Feb 2020 at 8:59pm |
|
If I remember correctly, that switch just completes the path to ground for the light. So, if you take a jumper wire and ground out the terminal, the warning light should come on. Can at least know if the rest of the system is correct anyway. I suspect it is if you have 12 volts at the terminal. If the light comes on when ground it out and doesn't come on with clutch pushed in, then switch must be bad.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8742
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Feb 2020 at 11:35pm |
|
I can't place our 17 haveing a light but remember neighbors 170 having light. Where is it on the 17
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29817
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2020 at 6:26am |
 Mikez wrote:
I can't place our 17 haveing a light but remember neighbors 170 having light. Where is it on the 17 |

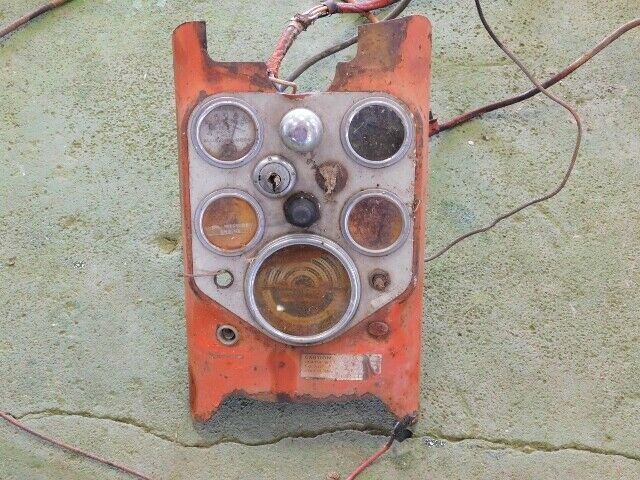

Lower part of the dash.
I ripped this pic from ebay but it is at the bottom left where that empty hole is.
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
Alvin M
Orange Level
Joined: 24 Jun 2018
Location: PA
Points: 804
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2020 at 6:33am |
|
Only Used After S # 42001
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8742
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2020 at 10:49pm |
|
Thanks
|
|
FREEDGUY
Orange Level Access
Joined: 15 Apr 2017
Location: South West Mich
Points: 5396
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 5:24pm |
|
Can someone explain what/why this particular light is "important"? Does it signify that the hydraulic system is not putting out enough pressure? I would think that slow lift arms/remote cylinder response would tell the same?? Our XT and 180 don't have this light,but now am curious if it's a green bulb?? Thanks
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29817
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 6:20pm |
It indicates that the lubrication pump is working. Nothing to do with the regular hydraulic system.
And it uses a red bulb.
Edited by Lonn - 12 Feb 2020 at 6:21pm
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
FREEDGUY
Orange Level Access
Joined: 15 Apr 2017
Location: South West Mich
Points: 5396
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 6:34pm |
|
Thank you. Have heard of a green light, what does that signify,seems like on the 100/200 series?
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7534
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 8:23pm |
FREEDGUY wrote:
Thank you. Have heard of a green light, what does that signify,seems like on the 100/200 series? |
Not many (or any) on the 100s, but the 200 did use a red light and green light. Red light comes on when engine oil pressure is low. Green light is for transmission oil - stays lit constantly during normal operation. My D21 has this same set up and it is confirmed in the owner's manual. Dunno why they made the green light stay on all the time...
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2426
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 8:36pm |
|
200's that had a turn signal switch also had a small green light to indicate that you were using that feature, just as a reminder to turn it off when the turn was completed. I don't remember if that was for cab tractors only. If not,then the 185 and 175 might have had it too. Turn signals might only be on late series tractors as a safety issue??
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8742
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2020 at 11:29pm |
|
Where's the green light in 200. Ours has red like you said.
Sorry mdguy for hyjacking your post.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 22147
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 9:14am |
|
The series 3 and 4 D-17's and all D-19's had this red light, which indicates that lube for the Power Director clutch was circulating thru the hydraulic filter underneath the battery. It was an effort to clean up the new and larger hydraulic compartment by filtering the hand clutch area, even tho the hydraulic pump was in the forward portion of the compartment. I'm not sure if the spin-on filter was plugged if the red lite was turned on or not ?? All the pre series 3 D-17's had the same lube pump inside the Power Director clutch area, but no filtering of the oil.
|
|
Acdiesel
Orange Level
Joined: 15 Jun 2012
Location: Rochester Ohio
Points: 2578
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 10:58am |
the wire off the pressure switch creates a ground, its a normally closed switch, when oil pressure is applied the switch opens the ground goes away and the light goes off.
Dan
|
|
D19 Diesel,D17 Diesel SER.3
2-D14, 2-D15 SER.II WF/NF
D15 SER.2 DIESEL
D12 SER.I, D10 Ser.II
2-720'S D21 Ser. II
Gmc,caterpillar
I'm a pharmacist (farm assist) with a PHD (post hole digger)
|
|
