D14 help
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
ironac View Drop Down
Silver Level
Silver Level


Joined: 06 Jan 2011
Location: Plainfield IA
Points: 283 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ironac Quote  Post ReplyReply Direct Link To This Post Topic: D14 help
    Posted: 26 Mar 2012 at 12:55am

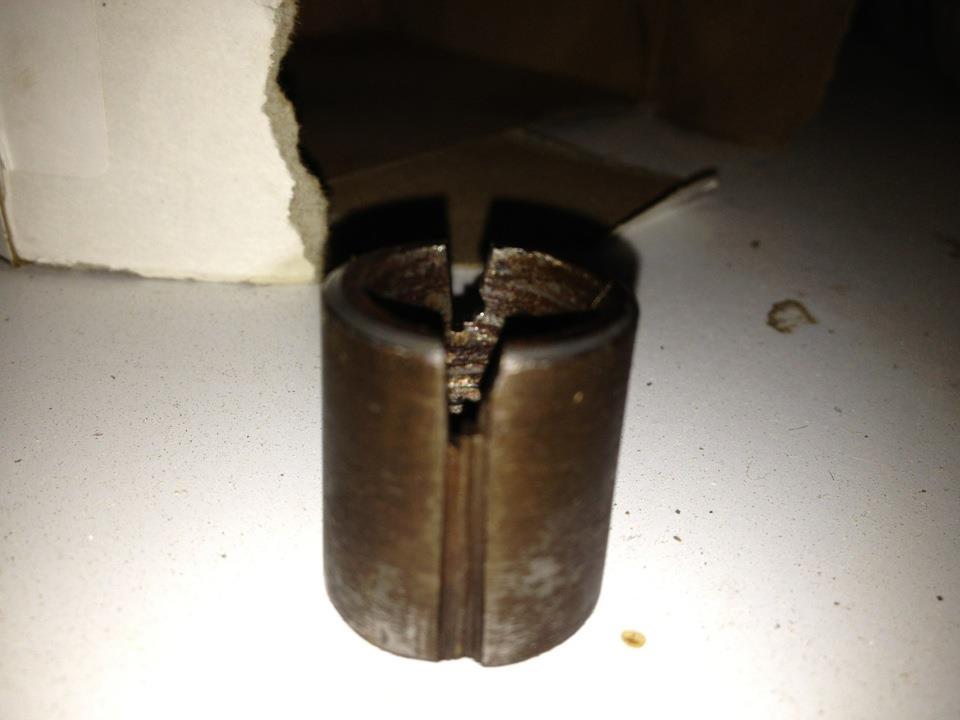

i am overhauling my d14. when i was tearing down this fell out of the camshaft. problem is i dont know when end it came out of or what it is. can anyone help me out???
Back to Top
Sponsored Links


Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24663 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2012 at 6:03am
Well, I can't see anything in the parts book that looks like it ! What are the 'ballpark' dimensions...that might help ...

Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Chuck(ONT) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario
Points: 1055 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Chuck(ONT) Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2012 at 6:49am
Looks like it is from the oil pump.
Never take life too seriously.

Nobody gets out alive anyway!

1C 1 WD45 1 AC180
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5899 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2012 at 8:14am
Looks like it might be the coupler from the end of the Oil Pump Shaft.

The Open Ended Slots slip over a pin in the rear of the Camshaft.

DickL will know for sure.

Gary
Back to Top
