Best head gasket for 190xt diesel |
Post Reply |
Author | |
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
Posted: 10 Oct 2022 at 7:50pm |
I had to pull the rocker shaft off of my tractor and will have to renew the head gasket wondering what gasket is the best thanks
|
|
Sponsored Links | |
MACK
Orange Level Joined: 17 Nov 2009 Points: 7664 |
Post Options
Thanks(0)
|
Why do you need to replace head gasket after removing rocker shaft? MACK
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
The rocker shaft is held on by 5 or 6 head bolts on one side. My understanding is a head gasket is only good for one time compression
|
|
DrAllis
Orange Level Access Joined: 12 Sep 2009 Points: 19563 |
Post Options
Thanks(0)
|
Clean all the oil completely out of each of those head bolt holes and put it back together. Don't even think anymore about it.
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|

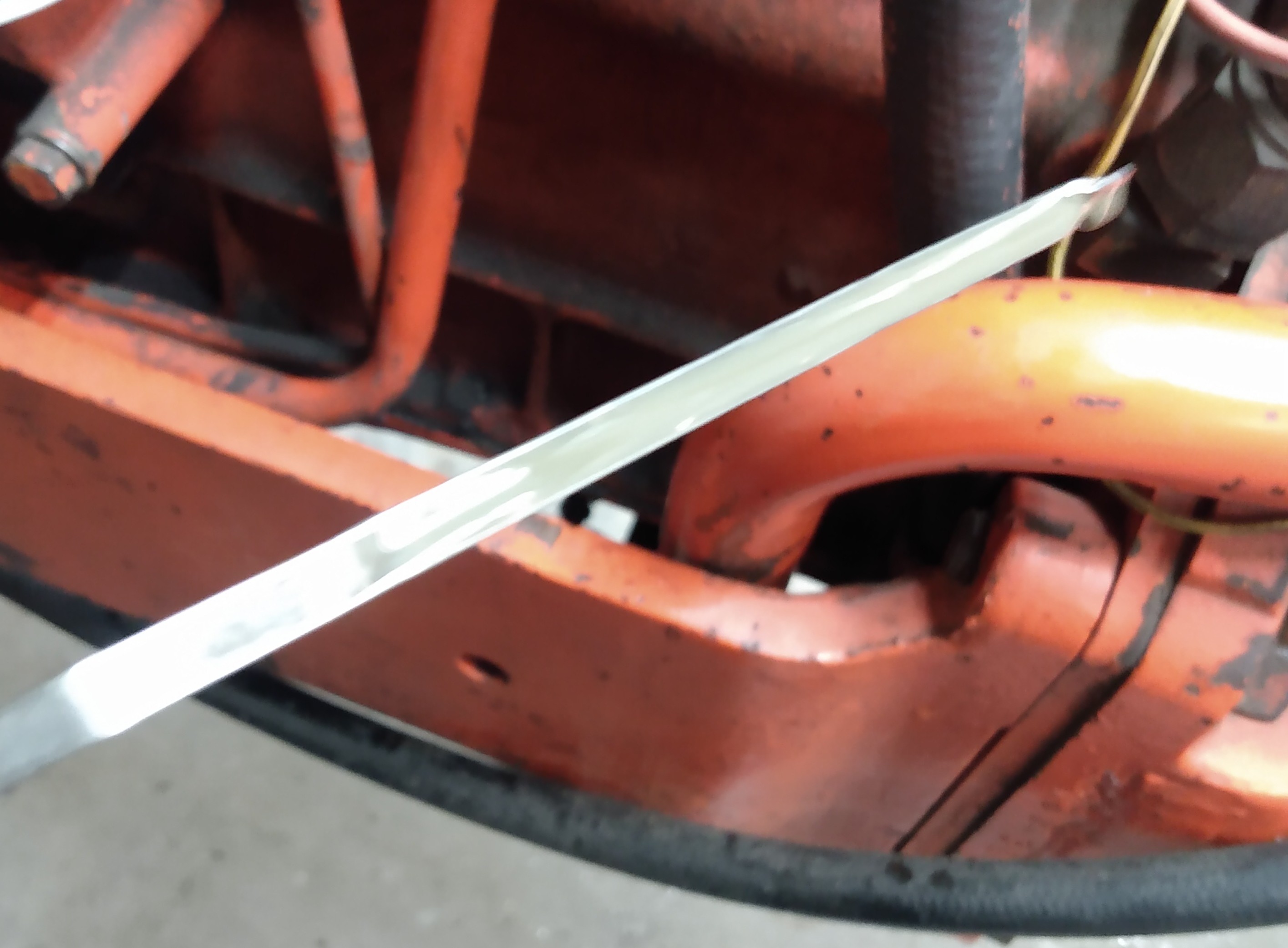

In the fall I swapped the cam and everything was good tightened head to spec and filled with new oil and antifreeze. Ran tractor without the hydraulic pump for about 10 minutes all was good. I put my resealed hydraulic pump back on and drove into the shop today and found I have a lot of milky oil. The oil pictured below has 20 minutes run time tops. I am pretty sure it's antifreeze I am going to pull the hydraulic pump just in case it's the new pump end seal mixing hydraulic fluid. The head gasket and whole inframe only has 15 hours at most. I'm leaning towards the cheap head gasket that came in the reliance kit. I don't think it liked being partly undone and re tightened. Other than pulling the pan and pressurizing the antifreeze where should I be looking next? Thanks
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
Forgot to add the oil that was in there before was in there for 3 years and when I drained it after the cam broke I got like 4 drops of pure water then the oil was as clean looking as new. The tractor has also been kept outside for all this time I assume the couple drops were condensation
|
|
DrAllis
Orange Level Access Joined: 12 Sep 2009 Points: 19563 |
Post Options
Thanks(1)
|
Well, start by letting it sit for a couple of days and hopefully the tractor sits level. Remove the oil drain plug just to the last thread and slowly let out a few drops of oil. If there truly is antifreeze in the engine oil, it will be right there on the bottom, provided the tractor is sitting level.
|
|
Calvin Schmidt
Orange Level Joined: 11 Sep 2009 Location: Ontario Can. Points: 4515 |
Post Options
Thanks(0)
|
The only head gasket that I could get a few weeks ago was from Agco. Others have discontinued the 301 and 426 head gaskets .
|
|
Nothing is impossible if it is properly financed
|
|
victoryallis
Orange Level Joined: 15 Apr 2010 Location: Ludington mi Points: 2859 |
Post Options
Thanks(0)
|
Not Reliance
|
|
8030 and 8050MFWD, 7580, 3 6080's, 160, 7060, 175, heirloom D17, Deere 8760
|
|
DrAllis
Orange Level Access Joined: 12 Sep 2009 Points: 19563 |
Post Options
Thanks(0)
|
If you have drops of water at the drain plug, water ain't antifreeze. If you're getting hydraulic oil from your hyd pump, the engine oil level should show somewhat overfull.
|
|
WF owner
Orange Level Joined: 12 May 2013 Location: Bombay NY Points: 4414 |
Post Options
Thanks(0)
|
When you installed the head gasket, did you coat it with anything or did you just put it in dry?
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
Kw coppercote
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
After having the tractor sit inside overnight I cracked the drain plug on the pan and had a couple drops of pure water so I decided to see how much pure water I would get. Well I got a lot. There was 0 sing of antifreeze whatsoever.
|
|
youngorange2000
Silver Level Joined: 27 Mar 2019 Location: eastcentral MN Points: 308 |
Post Options
Thanks(0)
|
And now for one of my many mistakes: I did the cam swap outside as I had no inside workspace available at the time and when I did in October I removed the then locked up junk hydraulic pump and ran the engine with the new cam and oil and antifreeze for about 10-15 minutes and shut it down and put the hood,stack with rain cap,aircleaner assembly and a RAG in the hydraulic pump mounting hole.... My guess is that when the 2 plus feet of snow on its hood and engine melted and ran down the block the rag must have acted as a wick to wick water into the pan. Lesson learned:always seal any openings with a water tight seal! My mistake. Plans moving forward is to drain and fill with clean oil and let sit unran in the heated shop for about a week and crack the drain plug and it "should be good"
|
|
