 Topic: WTB Shares for Pickup Plow
Posted: 28 May 2025 at 7:56pm |
|
I'm looking for replacement shares or lathes for a pickup plow that was paired with a 1950 Wd
|
 |
|
Sponsored Links
|
|
|
jiminnd
Orange Level
Joined: 16 Sep 2009
Location: Rutland ND
Points: 2278
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2025 at 9:19pm |
|
14 or 16 inch? this is the old black smith sharpened ones? I have a set but would have to check the size.
|
|
1945 C, 1949 WF and WD, 1981 185, 1982 8030, unknown D14(nonrunner)
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4967
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 hours 20 minutes ago at 6:42am |
Without a number from the share you have unless you are absolutely sure what bottom you have asking for share is like throwing darts in the dark. There are 27 different bottoms that AC used and most shares don't interchange. I have a few NOS shares available for the #24 & #124 bottoms, also a single LH share for a #325 14" bottom. If you can't find a number on the underside of your share, look for a number on the back side of any wear part.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
jlaage
Bronze Level
Joined: 28 May 2025
Location: Fenton, Iowa
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 hours 32 minutes ago at 10:30am |

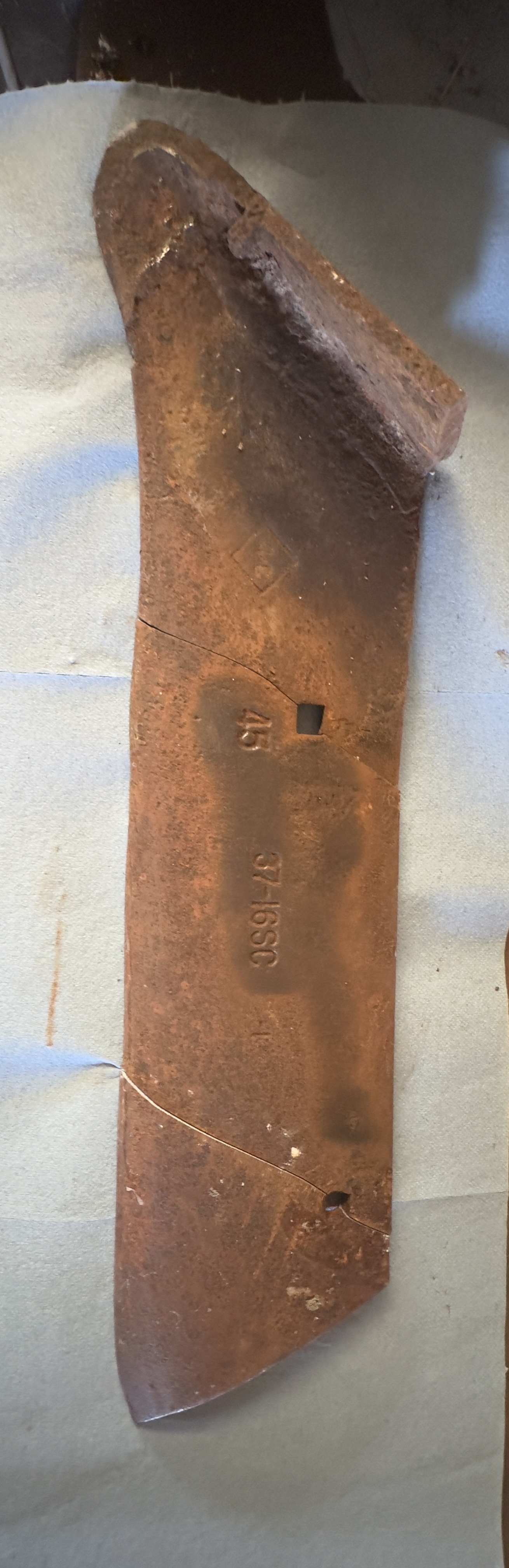

This is a picture of the share I need to replace. Does anyone think it could be welded?
|
|
jlaage
Bronze Level
Joined: 28 May 2025
Location: Fenton, Iowa
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 hours 23 minutes ago at 10:39am |
The number on the part is 37-16SC A number 45 also appears nearby. Not sure my picture got through uploads/25655/IMG_1493.jpg
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4967
|
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 56 minutes ago at 7:06pm |
 jlaage wrote:
The number on the part is 37-16SC A number 45 also appears nearby. Not sure my picture got throughuploads/25655/IMG_1493.jpg |
That number is NOT an Allis Chalmers number but someones aftermarket number. However I'd say you have a #37 bottom that has a 16" cut. Is it a slat bottom? With all the the plow parts book shows 2 shares for the #37 bottom: 321558 & 321559
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
jiminnd
Orange Level
Joined: 16 Sep 2009
Location: Rutland ND
Points: 2278
|
Post Options
Thanks(0)
Quote Reply
Posted: 6 hours 41 minutes ago at 8:21pm |
|
I have about 10 old plows, they all have one bolt and the hook for the j draw bolt.
|
|
1945 C, 1949 WF and WD, 1981 185, 1982 8030, unknown D14(nonrunner)
|
|
