 Topic: What Plow is This?
Posted: 12 Aug 2016 at 6:21am |

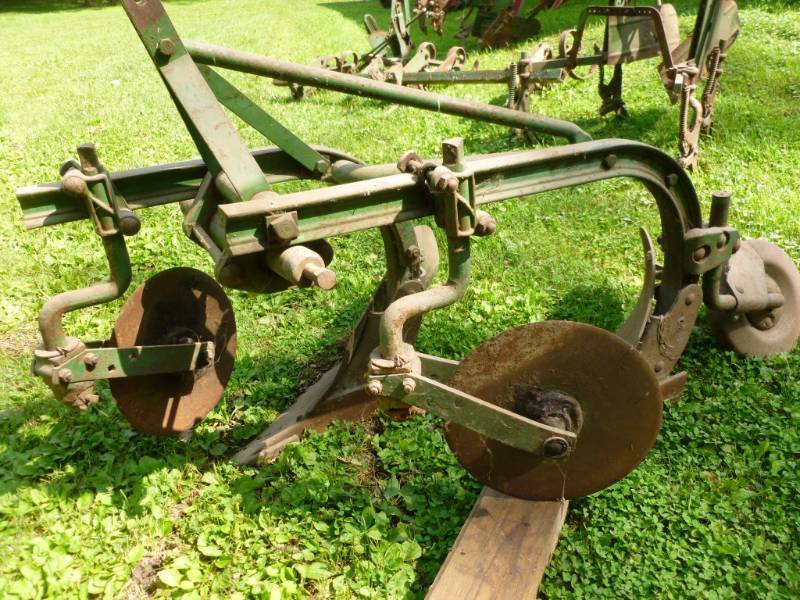

Just purchased this plow and have not even picked it up yet but the seller said he thinks it is a JD but I dunnno about that. Figured someone here might know. Thanks
|
 |
|
Sponsored Links
|
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 6:47am |
|
Should be a name stamped in curved beam just above curve. MACK
|
|
hardwood61
Bronze Level
Joined: 16 Aug 2010
Location: MN
Points: 29
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 6:56am |
|
I will check it for a number/name when I pick it up. Also anybody know what is up with the linkage pins ... they look like bolts, never seen them before. FYI this is my first 3pt plow so not to knowledgeable about them.
|
|
WNYBill
Silver Level
Joined: 04 Jun 2016
Location: WNY
Points: 276
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 7:41am |
Might be printing on back of moldboards, something like Syracuse Plow works. They made bottoms for JD and several others. If the shears (points) are forged, be careful in hard stony ground, they will break. Will also break if you drop them too fast on a cement floor. Don't ask, but they cost 50 bucks each!
Bill
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 9:03am |
|
It's doesn't look like any John Deere I've seen before, but it looks like JD paint and there's JD stuff in the background. Could been made by someone else and resold by Deere for the smaller 320's or 420's. Oliver made a lot of plows for other guys. They made some plows for Ford.
You can use bolts for the hitch, but usually you'd use a linch pin. It's a pin with a loop on the end that folds down to keep the pin from coming out. Google Linch pin. You'll see what I mean.
|
|
Karl in MD
Silver Level
Joined: 04 Nov 2009
Location: Pocomoke, MD
Points: 97
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 10:10am |
|
Case Eagle Hitch from the looks of the pins and toplink tower.
|
|
A man's got to know his limitations.
'51 WD, Roto-Baler,, A-C rake, '44 C, '42 B
|
|
dawntreader74
Orange Level
Joined: 28 Oct 2013
Location: Manteno
Points: 1770
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 6:20pm |
|
looks more like a oliver-stover plow' have one the tail wheel looks the same' look it over more' may find markings or numbers on bottoms..
|
|
steelwheelAcjim
Orange Level
Joined: 06 Dec 2009
Location: Blissfield,Mi
Points: 1257
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 9:10pm |
|
John Deere's will have a "JD" casted or stamped on various parts. An Oliver will have "E****" or X**** casting numbers. Case's will have the image of "Old Abe" eagle casted in certain areas. Take a closer look.
|
|
Pre-WW2 A-C tractors on steel wheels...because I'm too cheap to buy tires!
|
|
Ben s
Silver Level
Joined: 16 Jan 2015
Location: Ontario Canada
Points: 61
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2016 at 10:18pm |
|
I also believe it's a case eagle hitch plow I know some of there plows were painted green also
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Aug 2016 at 12:54am |
|
Dearborn made some with that curved style framework too.
|
|
hardwood61
Bronze Level
Joined: 16 Aug 2010
Location: MN
Points: 29
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2016 at 7:07pm |
|
Well I picked it up Yesterday and I have looked all over it and cannot find any numbers ... one thing that I found interesting is the lift pins/bolts are screwed into a heavy cast iron piece that is removable and adjustable from side to side. Anybody ever seen one of these?
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2016 at 12:13am |
|
there's one like it on an auction coming up. www.delpeterson.com
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2016 at 12:16am |
|
listed under "planting equipment"
, auction closes aug 23rd
|
|
