what are these parts???
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
RockyBottomFarm View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Oct 2011
Location: Fall Creek WI
Points: 253 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RockyBottomFarm Quote  Post ReplyReply Direct Link To This Post Topic: what are these parts???
    Posted: 15 Nov 2011 at 6:26am
They were given to me when i bought my 38B, old guy said they were for plow or something....... NOT  they appear to be AC though

38 & 41 B, sickle mower, 2 way plows, rear field cultivator, 2 row drill planter
40 Combine
66 Combine
Roto Baler
Back to Top
Sponsored Links


Back to Top
TexasAllis View Drop Down
Silver Level
Silver Level
Avatar

Joined: 14 Sep 2009
Location: Texas
Points: 396 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TexasAllis Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2011 at 7:15am
Looks like part of a mounted moldboard plow.
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3974 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2011 at 7:43am
Its for setting the plow depth. the bar mounts under the brake pedal side of the cross arm. and the rod goes back to the right side cultivator depth adjustment lever.
Back to Top
Bud(WI) View Drop Down
Bronze Level
Bronze Level


Joined: 12 Sep 2009
Location: Wisconsin
Points: 69 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bud(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2011 at 6:54pm

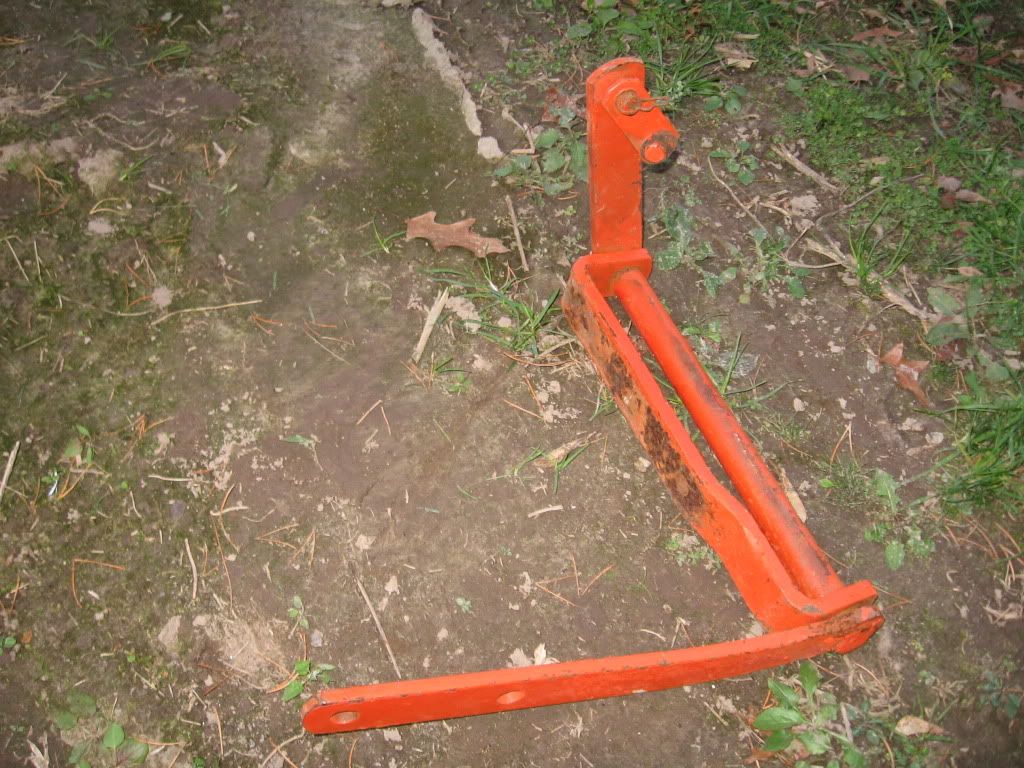

Like Dakota Dave said - Top picture sure looks like 309942 - Shaft Hanger Assy - Depth adjustment lever plow on a C - effective Oct. 1942.

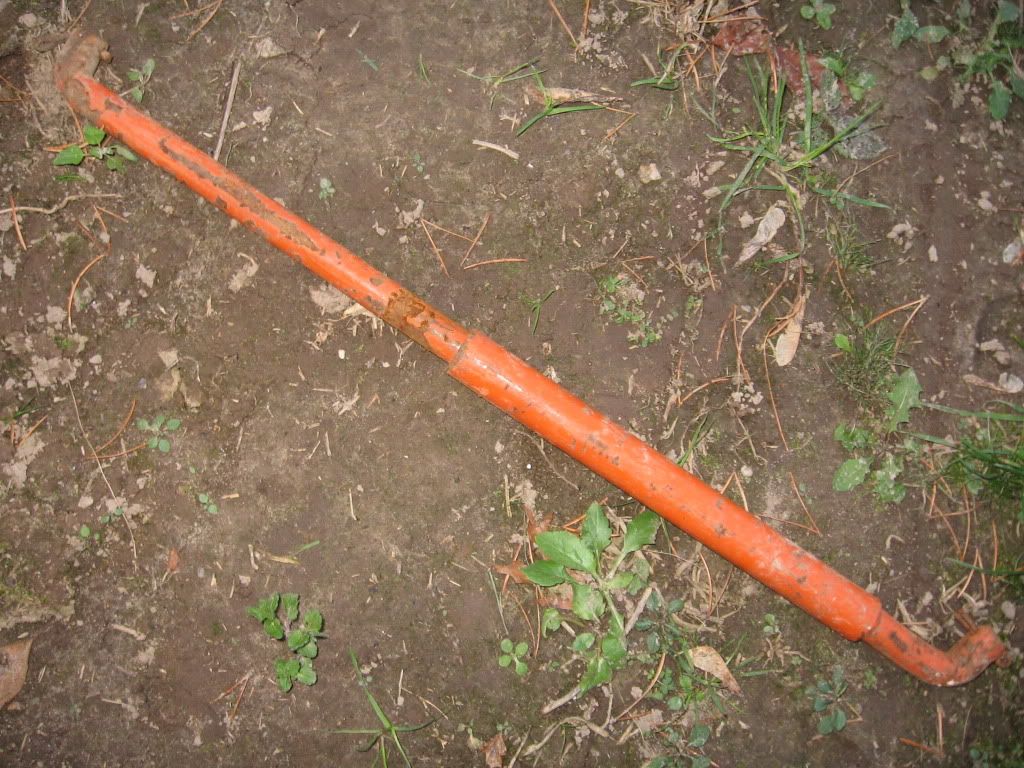

Bottom picture looks more like lift parts for a B cultivator - 311568 - Rod, Lift & 311567 - Rod assy, lift (including sleeve)
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2011 at 9:28pm
The top one is for a C with a  plow !
Back to Top
