WFE Installation Questions |
Post Reply |
Author | |
Dale (Stonelick)
Bronze Level Joined: 13 Jun 2019 Location: Stonelick, Ohio Points: 157 |
Post Options
Thanks(0)
Posted: 06 Feb 2020 at 12:39pm |
I have an adjustable Wide Front End that will replace a NFE on a 1951 CA after it's painted.
#1 - Is it easier to install this heavy WFE all in one piece (front support and front axle, but without hubs or wheels), or should I install these two parts separately? I'm concerned that if the front axle is installed separately, I might have a hard time fitting it between the front pivot and the rear pivot after the front support is already installed. I do have forks on a front end loader that I can use to help install. #2 - The hole in the front pivot bracket seems to be worn and elongated. Is this elongation part of the normal design? If not and normal steering would be affected, should I try to weld a bearing in the elongated hole to tighten things up? |
|
Sponsored Links | |
Lonn
Orange Level Joined: 16 Sep 2009 Location: Назарово,Russia Points: 29773 |
Post Options
Thanks(0)
|

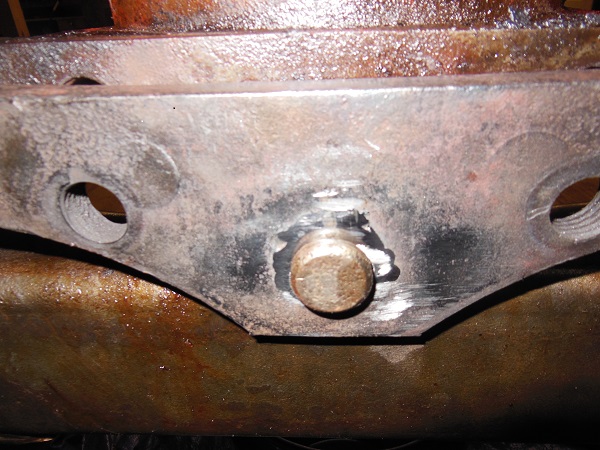

I used carbon rod to fill the hole so I could fill in the lost metal with a welder.... that was on my WD. Don't know where to get carbon rod and more..... old fencer batteries used to have, I think 7/8" rods in them.
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink I am a Russian Bot |
|
Ted J
Orange Level Joined: 05 Jul 2010 Location: La Crosse, WI Points: 18657 |
Post Options
Thanks(0)
|
WOW.....the price on them has really gone up Lonn...
https://store.acpsales.com/products/2372/carbon-fiber-solid-round-rods |
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17 |
|
Dale (Stonelick)
Bronze Level Joined: 13 Jun 2019 Location: Stonelick, Ohio Points: 157 |
Post Options
Thanks(0)
|
My neighbor used his mig and filled the elongated hole with welding wire.
|
|
Lonn
Orange Level Joined: 16 Sep 2009 Location: Назарово,Russia Points: 29773 |
Post Options
Thanks(0)
|
Edited by Lonn - 10 Feb 2020 at 6:59pm |
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink I am a Russian Bot |
|
jeickman01
Silver Level Joined: 24 Feb 2017 Location: Dyer, TN Points: 205 |
Post Options
Thanks(0)
|
I have a worn rear pivot in a D17 Series 3 wide front end and was planning on building it up with weld and reboring. Have never used carbon rod. Do you insert this in the hole and build up weld around it?
|
|
Michael V (NM)
Orange Level Access Joined: 12 Sep 2009 Location: NM Points: 2334 |
Post Options
Thanks(0)
|
I used a 7/8" 3 point adapter bushing,welded it in, grind to fit length, then put a new bolt. that is what I done on the rear pivot on one of my WD's
|
|
Dale (Stonelick)
Bronze Level Joined: 13 Jun 2019 Location: Stonelick, Ohio Points: 157 |
Post Options
Thanks(0)
|
No. My neighbor said he just used mig welding wire build up.
|
|
Dakota Dave
Orange Level Joined: 12 Sep 2009 Location: ND Points: 3892 |
Post Options
Thanks(0)
|
When I reinstalled mine I just rolled the complete front end and bolster under the tractor hanging from the cherry picker a 2x4 across the wishbone will support the bolster so it doesn't fall down some duct tape holds the 2x4 inplace. I did it by myself it wasn't that hard. Duct tape the tie rods to the same 2x4 as long as the wheels are some what straight it'll roll fairly well. Adjust the rest of the tractor with the cherry picker to get the final alignment.
|
|
Lon(MN)
Orange Level Joined: 11 Sep 2009 Location: Elk River,MN Points: 1902 |
Post Options
Thanks(0)
|
I made up new three bolt front supports and new rear supports for all my WDs and WD45s. I have a few extra I would sell if anyone has an interest. email lselkriver@gmail.com
|
|
Dale (Stonelick)
Bronze Level Joined: 13 Jun 2019 Location: Stonelick, Ohio Points: 157 |
Post Options
Thanks(0)
|
Dakota Dave - I'll try your method. Thanks.
|
|
