WD45
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Bubba1957 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Apr 2025
Location: Indiana
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bubba1957 Quote  Post ReplyReply Direct Link To This Post Topic: WD45
    Posted: 03 Jun 2025 at 10:03am

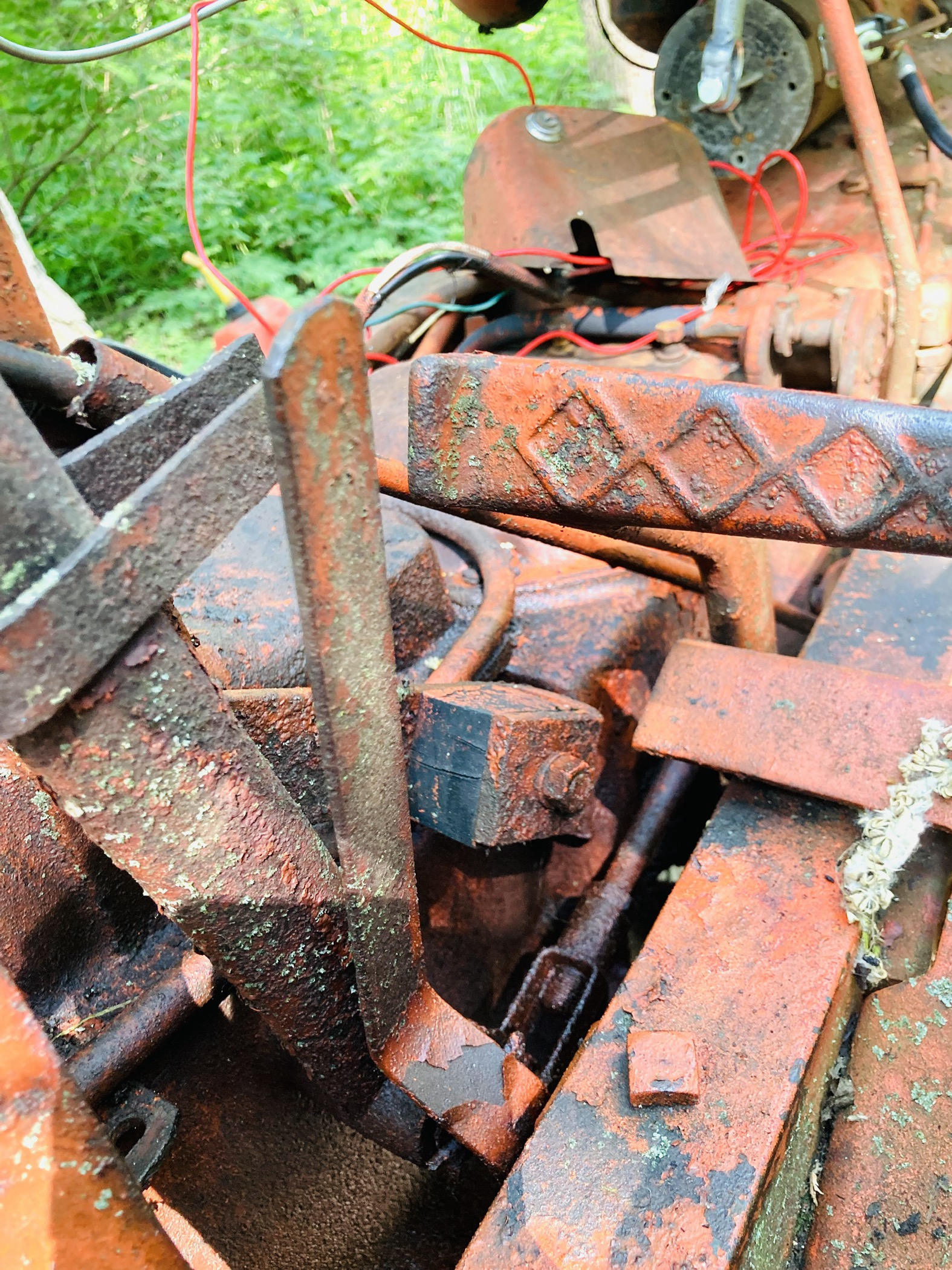

    Can anyone tell me what the flat lever controlsuploads/25593/IMG_9857.jpg
Back to Top
Sponsored Links


Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 3006 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 10:33am
Does your tractor have a belt pulley that this lever goes to? It might engage and disengage the pulley. If so, that a cool rare option.
Back to Top
Bubba1957 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Apr 2025
Location: Indiana
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bubba1957 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 10:45am
No it does not doesn't look like it ever has tractor is in woods can't get a great look at it

with all the brake pedals and stuff right beside it seems to go down to some linkage rear

wheels are locked up thought maybe this had something to do with it can't get it to move at all
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3036 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 12:47pm
Looks like its where the brake lock mechanism should be located.Maybe used that lever to lock the brakes?
Back to Top
Bubba1957 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Apr 2025
Location: Indiana
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bubba1957 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 12:59pm
Could be but doesn’t look like a normal mechanical brake lock looks more to be internal I was hoping it had something to do with the rear wheels being locked up
Back to Top
ac hunter View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jan 2011
Location: OHIO
Points: 1042 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ac hunter Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 5:22pm
Is that  the mechanism that disconnects the hand clutch when you hit something with the plow or other snap coupler implement?
Back to Top
wjohn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: KS
Points: 2170 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wjohn Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 9:13pm
Originally posted by ac hunter ac hunter wrote:

Is that  the mechanism that disconnects the hand clutch when you hit something with the plow or other snap coupler implement?

+1
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
Back to Top
Dennis J OPKs View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Overland Park,
Points: 501 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dennis J OPKs Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2025 at 9:39pm
At least on mine, the flat lever has nothing to do with the hand clutch kick-out.  Could possibly be a brake lock in place of the rod.  Surely there is another one out there with that oddity?
Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 34261 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 1:31am
Might find it is used to unlock the snap coupler... sort of like used on WD45 Diesels.
Never seen a rubber stop block for the hand clutch either, maybe never took notice of them before.
Maybe in the 75 +/- years it has been around, the owner modified the tractor.
  Like Dennis J's comment that it could be a more positive modified brake lock.
  What is the serial number?
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 3006 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 22 hours 57 minutes ago at 6:08am
My WD45 has the rubber stop block on it just like that
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21522 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 22 hours 48 minutes ago at 6:17am
The rubber stop block for the hand clutch lever was when it was equipped with the "rock throw-out" accessory for plowing, which this tractor has. The violent release of the hand clutch lever would eventually break the brass collar or something else, so there was a rubber stop designed to solve that problem.
Back to Top
Bubba1957 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Apr 2025
Location: Indiana
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bubba1957 Quote  Post ReplyReply Direct Link To This Post Posted: 20 hours 6 minutes ago at 8:59am
I haven't been able to find the serial number bought property next to mine and inherited the tractor it has sit for 5 to 6 years but I knew it ran at one time. I put another post up about rear wheels locked and seems to be brakes locked up I thought maybe this lever had something to do with it but didn't see this lever in any illustrations anywhere. Tractor is in woods hard to see where it is connected with all the brake pedals and pto lever and hand clutch .I really appreciate all the input
Back to Top
Dale Hardtke View Drop Down
Bronze Level
Bronze Level


Joined: 12 Sep 2009
Location: Watertown WI
Points: 171 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dale Hardtke Quote  Post ReplyReply Direct Link To This Post Posted: 16 hours 43 minutes ago at 12:22pm

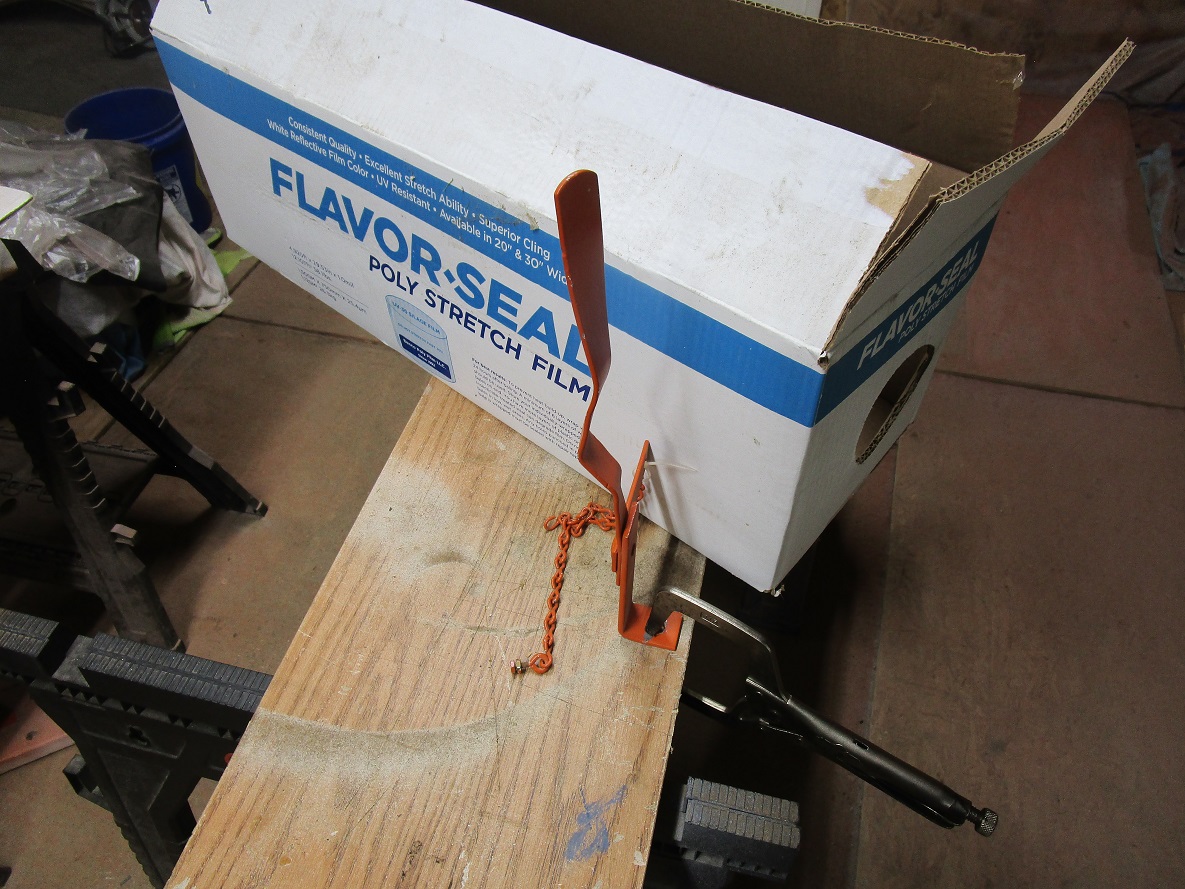

Hand lever  ?????  Looks like it could be a guard to keep Heat Houser away from the hand clutch lever.  If it was a lever, it sure was not used much
Back to Top
sparky View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 May 2011
Location: So. Indiana
Points: 1735 		Post Options Post Options   Thanks (0) Thanks(0)   Quote sparky Quote  Post ReplyReply Direct Link To This Post Posted: 9 hours 5 minutes ago at 8:00pm
One of my 45’s has that lever and it sets the brakes.
It's the color tractor my grandpa had!
Back to Top
dr p View Drop Down
Orange Level
Orange Level


Joined: 24 Feb 2019
Location: new york
Points: 1339 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Posted: 8 hours 25 minutes ago at 8:40pm
Didn't somebody make an aftermarket parking brake? Could that be it?
Back to Top
sparky View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 May 2011
Location: So. Indiana
Points: 1735 		Post Options Post Options   Thanks (0) Thanks(0)   Quote sparky Quote  Post ReplyReply Direct Link To This Post Posted: 8 hours 22 minutes ago at 8:43pm
After some of thought I think I have another one in my parts stash.
It's the color tractor my grandpa had!
Back to Top
55allis View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 875 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 5 hours 35 minutes ago at 11:30pm
Looks like the foot clutch lock out I had on my 45 but I know it’s the wrong side.
The rubber block is for the rock kickout as
Dr Allis said.
I know that because I have a nos kit for a 45.
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
Back to Top
Steve A View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Apr 2012
Location: NLP Mi
Points: 233 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve A Quote  Post ReplyReply Direct Link To This Post Posted: 45 minutes ago at 4:20am
Keep following the linkage and see where it goes. If you can't figure it out there, take a picture of whatever is at that point and post it.
Back to Top
