 Topic: Wd45 Rear wheel weight bolts
Posted: 18 Jul 2017 at 8:44pm |
Can anyone give me the dimensions of the bolts I need for mounting these weights? I believe they are carriage bolts, but what strength, diameter and length? Many thanks!
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
 |
|
Sponsored Links
|
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2455
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jul 2017 at 9:44pm |
|
3/4" carriage bolts. The first one that goes through the steel wheel is like 3-4" ,, it takes about 1" longer for additional weights...I don't think 1" or so too long will be a problem,, ya only use2 per weight and the extra length will jus stick out....as long as there is enough threads to tighten then up good
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3016
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 8:13am |
I still have it written down from when I bought bolts a few years ago. 3/4" carriage bolts. 3.5" long for the 1st weight and add 2.5" for each additional weight. I have 2 bolts holding on 2 weights 6" bolts. 2 more 9" bolts hold on the 3rd weight. Grade 2 bolts are plenty strong enough.
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2154
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 10:14am |
|
3/4" x 3 1/2" carriage bolts, as mentioned above.
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3968
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 1:57pm |

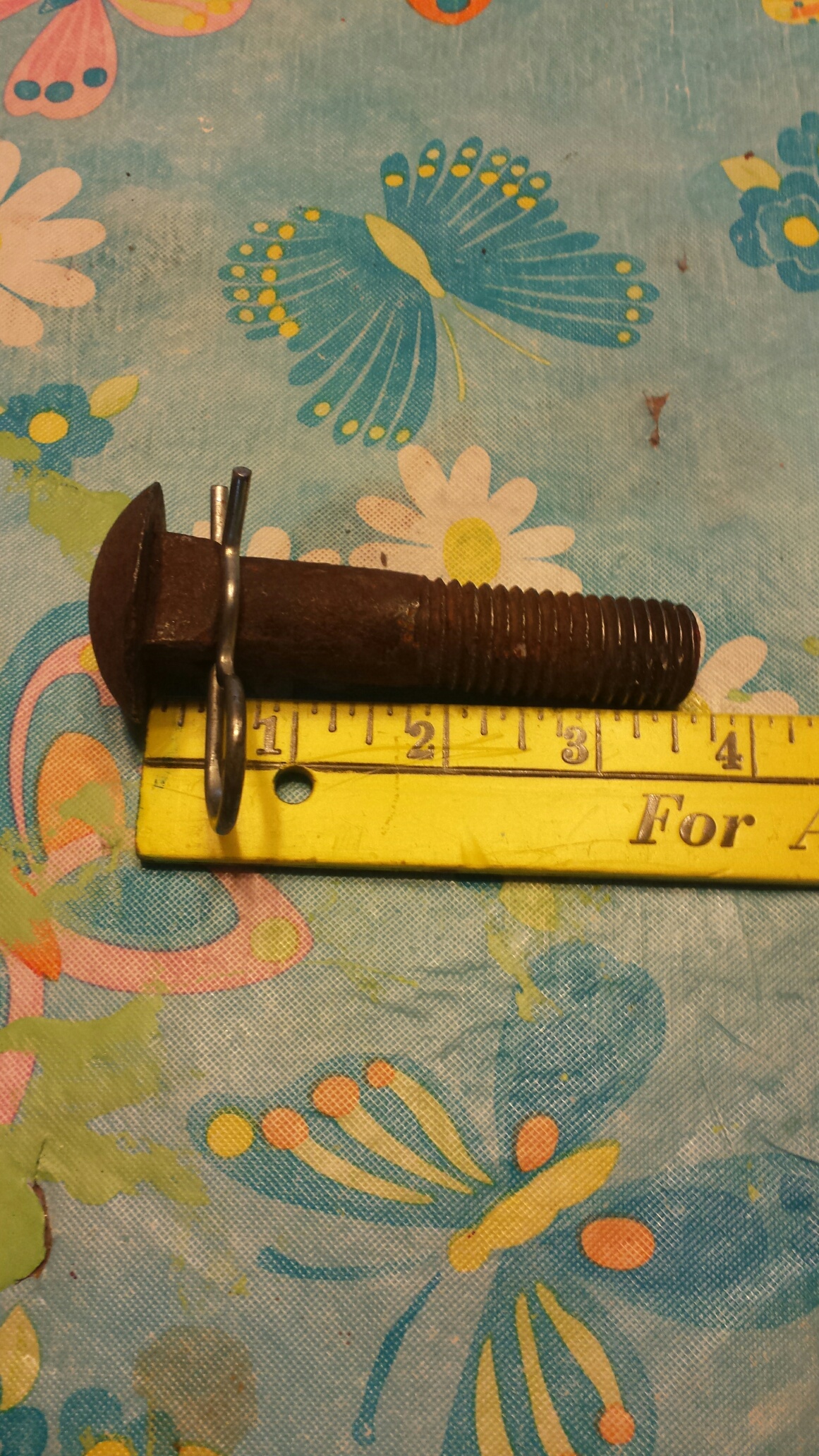

 3/4" by 3 1/2" carrage bolts. Hole drilled throught the square part of the bolt for the keeper. A cotter pin is placed through the hole after the bolt is pushed through from the back side of the wheel center. The cotter pin keeps the bolt from backing out of the hole when the wieght is put on it.
Edited by Dakota Dave - 19 Jul 2017 at 2:06pm
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7460
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 8:54pm |
|
Thanks Gentlemen, I'll go and grab some!
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8547
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 9:37pm |
|
being that large,the could even be grade 2 but any you find probably be grade 5
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 10:17pm |
|
Grade 5 carriage bolts are extremely rare because their intended use in wood doesn't need grade 5 to compress the wood.
JD did like special grade 5 carriage bolts for their rear wheel weights.
Gerald J.
|
|
john(MI)
Orange Level
Joined: 12 Sep 2009
Location: SE MI
Points: 9262
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2017 at 11:42pm |
|
None of the usual places carry 3/4" bolts around here, SE MI. I had to go to Midstate to get mine.
|
|
