Wd45 electrical help please! |
Post Reply ![]() |
Page 12> |
Author | |
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() Posted: 14 Mar 2022 at 12:46pm |
So long story short I did a 12 V neg ground alternator conversion on my 45:0wide front. I wired it per the instructions but I did not know how to wire my toggle switch on off switch. I have the one wire alt going to my new ammeter. I am keeping the rod start to the starter and a toggle on off. I have something wrong because it starts right up and when the alt kicks in to charge it stumbles and backfires! Thanks. Dana
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
Sponsored Links | |
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
If you actually have a ONE WIRE alternator, you connect the BIG LUG on the back, to the PLUS side of the battery ( or solenoid cable).... You dont use the smaller wire / plug and there is not ON-OFF for the alternator... The ON-OFF just kills power to your ignition coil.
Edited by steve(ill) - 14 Mar 2022 at 4:29pm |
|
Like them all, but love the "B"s.
|
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
IF you have a 3 wire system and you are using the two prong plug on the side of the alternator...... thats different..
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Thanks steve. Yes it’s a true 1 wire alt. I need to know exactly how to wire from alt to batt to ammeter to coil to starter and how to include on off toggle. Thanks! Dana
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
jaybmiller ![]() Orange Level Access ![]() Joined: 12 Sep 2009 Location: Greensville,Ont Points: 24360 |
![]() ![]() ![]() ![]() ![]() |
if the one wire uses a D22AC1 regulator, it'll eventually drain the battery . That regulator 'leaks' about 2ma of current (think Red LED). Not a problem if you start at least once a week,but leave for 1-2 months you could hear grrr,gr,,gr, click...
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
The ALTERNATOR is not part of the ignition circuit... The BIG LUG on the back of the alternator should have a #8 wire connected to it and run to the HOT starter SOLENOID wire, or the HOT battery terminal ( +12 volts - NOT SWITCHED)...
The IGNITION system has a smaller wire from the battery - to ignition switch - to the coil - to the distributor..... this is your ON- OFF switch ( ignition switch or toggle).. There is a second smaller wire that goes from the IGNITIONS switch to the starter solenoid and is MOMENTARY energized for cranking to start..
Edited by steve(ill) - 14 Mar 2022 at 4:28pm |
|
Like them all, but love the "B"s.
|
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |

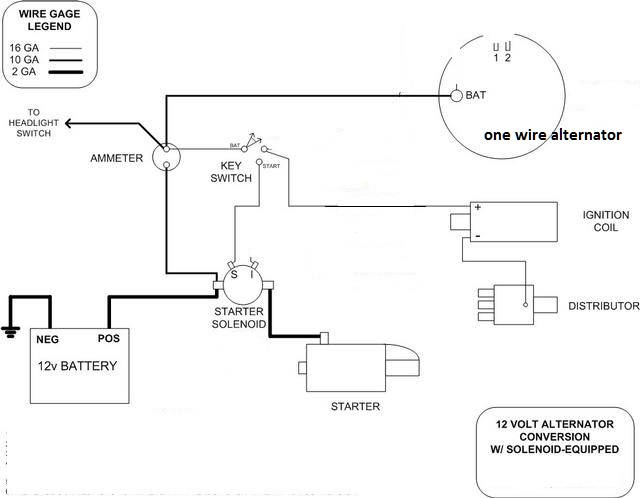

something like this ........... small terminals 1 and 2 on the side of the alternator are not used..
the battery feeds the ammeter with something like #12 wire. Ammeter feeds the switch.. Switch send power to the coil for ignition when running... and also MOMENTARY to the starter solenoid when cranking.
![]() |
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |

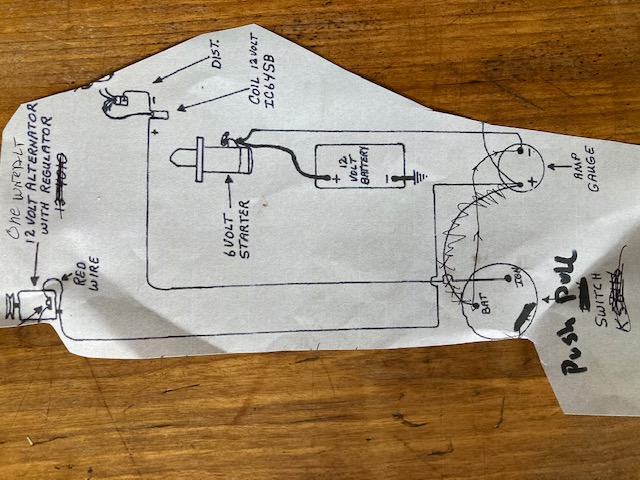

![]() If this works here is what I’ve done. Thanks Steve I Have to run and will work on your last reply tomorrow. Thank you again!! Dana |
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
I have no key switch just push pull and I start with the original pull rod and original starter. It starts and runs rough and when I add power and alt kicks in charging it misses and backfires and….I shut it down real quick like!
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |

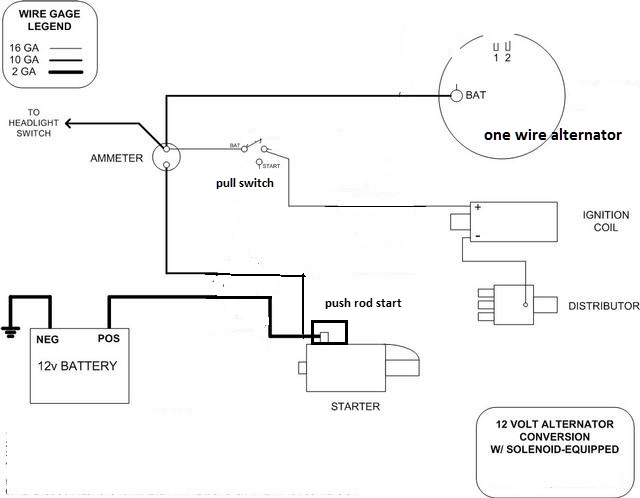

OK... looks like your starter solenoid ( or maybe rod push starter) is on the starter motor.. No problem........
What might be happening is in the alternator wiring.. If you REALLY have a 1 wire alternator, then you dont need the small jumper from the BIG LUG on the back to the small #2 terminal on the side... You dont use either of the small 2 terminals.. Remove that wire and test. ![]() Edited by steve(ill) - 14 Mar 2022 at 4:47pm |
|
Like them all, but love the "B"s.
|
|
![]() |
|
jaybmiller ![]() Orange Level Access ![]() Joined: 12 Sep 2009 Location: Greensville,Ont Points: 24360 |
![]() ![]() ![]() ![]() ![]() |
A 'real' one wire alternator will (should) have a plastic cap to hide the 1 and 2 terminals, which apparently CAN be connected to the 'innards' of the alternator . Actually the 1 and 2 terminals shouldn't even be there......
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water |
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Hi again. My alt came from jds. It’s only one wire and I do not see any other terminals whatsoever. I did ground the alt with a separate wire from a threaded hole towards the bottom. I also purchased from jds the mount and the 12v internal resistored coil. Somethings really screwy here. It starts badly runs badly but when I add throttle and the ammeter jumps up over 20 it backfires uncontrollably so I hit the toggle to kill it instantly. Could they have sold me a 6v coil? I’m stumped! She was totally tuned up and ran perfect before this conversion so ?? Thanks y’all! Dana
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
Kenny L. ![]() Orange Level Access ![]() ![]() Joined: 12 Sep 2009 Location: NEIOWA Points: 1331 |
![]() ![]() ![]() ![]() ![]() |
captaindana, you can go to the farm equipment knowledge base sections and look for Duey's helpful homepage it has a link to his homepage and you can see how and he tell you how to do it.
Edited by Kenny L. - 14 Mar 2022 at 10:24pm |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
It starts badly runs badly but when I add throttle and the ammeter jumps up over 20 it backfires uncontrollably
Disconnect the power wire from the alternator and start the tractor... That will show you that the alternator is not the problem, and probably the coil / point / ignition is the problem....... If all you did was replace the coil, i would start there.
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Great idea Steve. I wired this job using Dueys diagrams. I thought the points condenser didn’t care if 6 or 12 v? But after 65 years on this beautiful old girl somethings cooking that she don’t like lol! This morning she’s getting all new tie rods. And yes I will disconnect the alt and see…. Thanks! It’s easier to jet all day and not look out the window than to wire this job successfully! Lol. 😤
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
"could" be the condenser dieing out.......... But normally they are a GO- NO GO type of component.....they dont slowly die.
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Hey this is turning into a freaking soap opera! It won’t fire with the alternator wire off! WTF🤷🏻♂️
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
You better check all your wires...

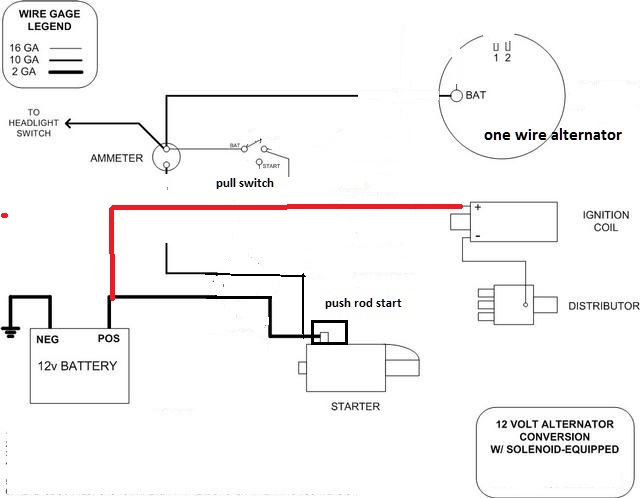

At this point i would put a jumper wire from the POSITIVE terminal of the battery , to the POSITIVE terminal on the coil ( take the old wire off)... Now you got power to the coil.. Crank and it will start...... ( if it dont start with the jumper, then you have burnt up the coil or condenser). If that works, you need to look at all the wiring.. Somehow the IGNITION is getting POWER from the alternator wire ??? Not a good plan.
Edited by steve(ill) - 15 Mar 2022 at 12:27pm |
|
Like them all, but love the "B"s.
|
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
A jumper wire from the coil back to the battery should make the tractor start.. Use an aligator clip or something on one end so you can remove to kill the motor.
![]() |
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
OK here is what I do not understand. The wire coming off the alternator goes to the positive side of the ammeter and on the negative side of the amateur it goes to the starter solenoid there’s also a wire on the starter solenoid going back to the positive post of the battery. On the neg side of the ammeter is yet another wire going to my toggle on off switch and when it’s on it connects the wire going to the coil. Just look at my diagram that I included towards the beginning of this post. When this engine starts it runs rough but when I cracked the throttle and the ammeter shoots up over 20 amps the engine almost self destruct‘s with backfires and I have to shut it down immediately. In my diagram above I don’t see any way that the ignition switch can’t get power from the ammeter. The on off switch is hooked right to the same terminal as the wire coming off the alternator and then it goes to the starter post which is hooked to the battery what am I missing. Ugh. Dana. If anyone would like to call me to help me understand what I’m missing here I’ll be available from now (2 pm edst until 7 o’clock tonight 518-542-8779 thank you so much Capt. Dana
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
Everything you describe and your drawing all appear to be correct... The problem is when you disconnect the alternator wire , you said you loose power to the coil ?.... and if the alternator kicks in, the coil becomes erratic on firing... Neither of those two symptoms make any sense if the wires are connected as you said.
I still think i would jumper from battery to the coil and see if it starts and runs proper.. If so, then verify or replace the wires at the ammeter and push/ pull ignition switch... Something is not connected right........... You should be able to pull the wire off the alternator and have the tractor start and run without problems.
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Thank you I am on the road flying for two days but I can assure you I took all of the wires off and put them all back on 10 times over with the same results. But Friday I will do what you just said with the coil. I did replace the new condenser with another new BlueStreak condenser and I had all kinds of beautiful spark yesterday so I started it up and the same thing it backfired so loudly and blew the rain cap flapper through the ceiling!
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
bypassing everything and running a jumper straight to the coil will do two thing...
--- it will eliminate the possibility of the ON_OFF switch , ammeter, and alternator being a problem.. --if it still backfires, then you need to start looking at the timing , point gap has changed, etc.... I know it ran great before you installed the coil and alternator... maybe just a coincidence and something else failed.... bypass wire will help confirm.
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Can hardly wait to get home😆!
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
Sugarmaker ![]() Orange Level ![]() ![]() Joined: 12 Jul 2013 Location: Albion PA Points: 8433 |
![]() ![]() ![]() ![]() ![]() |
Dana,
I used a slightly different approach recommended by Steve NJ. I used a volt meter instead of a ammeter. have 4 tractors wired like this and it seems to work good. ![]() Humm, I may have run the wire from the voltmeter to the bat terminal on the switch rather than the acc terminal?? Regards, Chris
Edited by Sugarmaker - 17 Mar 2022 at 8:51am |
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
Chris... did Steve recommend running the alternator power wire thru that key switch to shut off the alternator ? Normally the alternator runs straight to the battery due to its output capacity.
|
|
Like them all, but love the "B"s.
|
|
![]() |
|
Sugarmaker ![]() Orange Level ![]() ![]() Joined: 12 Jul 2013 Location: Albion PA Points: 8433 |
![]() ![]() ![]() ![]() ![]() |
Steve(ill),
I have slept since then. will have to go back and try to look at my crude diagrams again. I think the answer is yes. Regards, Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
![]() |
|
captaindana ![]() Orange Level ![]() Joined: 14 Sep 2009 Location: Fort Plain, NY Points: 2539 |
![]() ![]() ![]() ![]() ![]() |
Got home, checked wiring for the 20th time, said to myself keep it simple. Bought another set of blue streak points, installed, runs PERFECTLY! The other set of points had maybe 20 minutes total time. I took a ride on her. She’s tuned perfectly. New tie rods. Power steering. Bout the only tractor I have of the 23 that kinda scares me when I add power. If you’re not holding on you could definitely fall off backwards and die! SNAPPY with a capital S! Thanks to all whom helped me!! Capt. DANA
|
|
Blue Skies and Tail Winds
Dana |
|
![]() |
|
steve(ill) ![]() Orange Level Access ![]() ![]() Joined: 11 Sep 2009 Location: illinois Points: 85743 |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() |
|
Like them all, but love the "B"s.
|
|
![]() |
|
tractorboy ![]() Silver Level ![]() Joined: 03 Oct 2009 Location: southern Va Points: 468 |
![]() ![]() ![]() ![]() ![]() |
Glad you got it going ! I put some genuine blue streak points/condensor in my d-10 they lasted bout 4 hrs run time !
![]() |
|
![]() |
