 Topic: wd45 3pt conversion swaybar
Posted: 16 Dec 2022 at 4:25pm |
i have a wd 45 with a three point coversion. it has factory ps. wide front end with two sets of two way hyd. ports. the problem i am having is the sway of the lift arms when using some of the attachments. has anyone added sway bars to the 3pt converted wd's. i am looking to fabricate something to control the sway of the implement.
|
 |
|
Sponsored Links
|
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2022 at 4:37pm |
Should look like this.
Edited by exSW - 16 Dec 2022 at 4:38pm
|
|
Learning AC...slowly
|
|
TOOLMAKER4
Bronze Level
Joined: 06 Apr 2014
Location: nw ohio
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2022 at 4:52pm |
|
not sure what your picture is showing me or how it works
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2666
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2022 at 6:03pm |
|

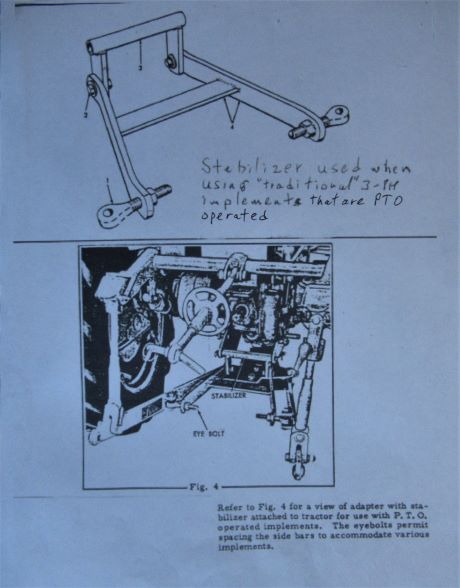

That goes between the lift arms on one style of conversion. I took mine off and put cross chains on instead because it interfered with a pto shaft. Do a search for allis 3pt conversions. Had trouble uploading a pic.
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
jvin248
Silver Level
Joined: 17 Jan 2022
Location: Detroit
Points: 421
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2022 at 6:33pm |
.
Pull up pictures of Ferguson 3 point tractors. You'll see how sway chains and bars are attached for different conditions. Then adapt to your AC.
Edited by jvin248 - 16 Dec 2022 at 6:38pm
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2022 at 6:52pm |
 TOOLMAKER4 wrote:
not sure what your picture is showing me or how it works |

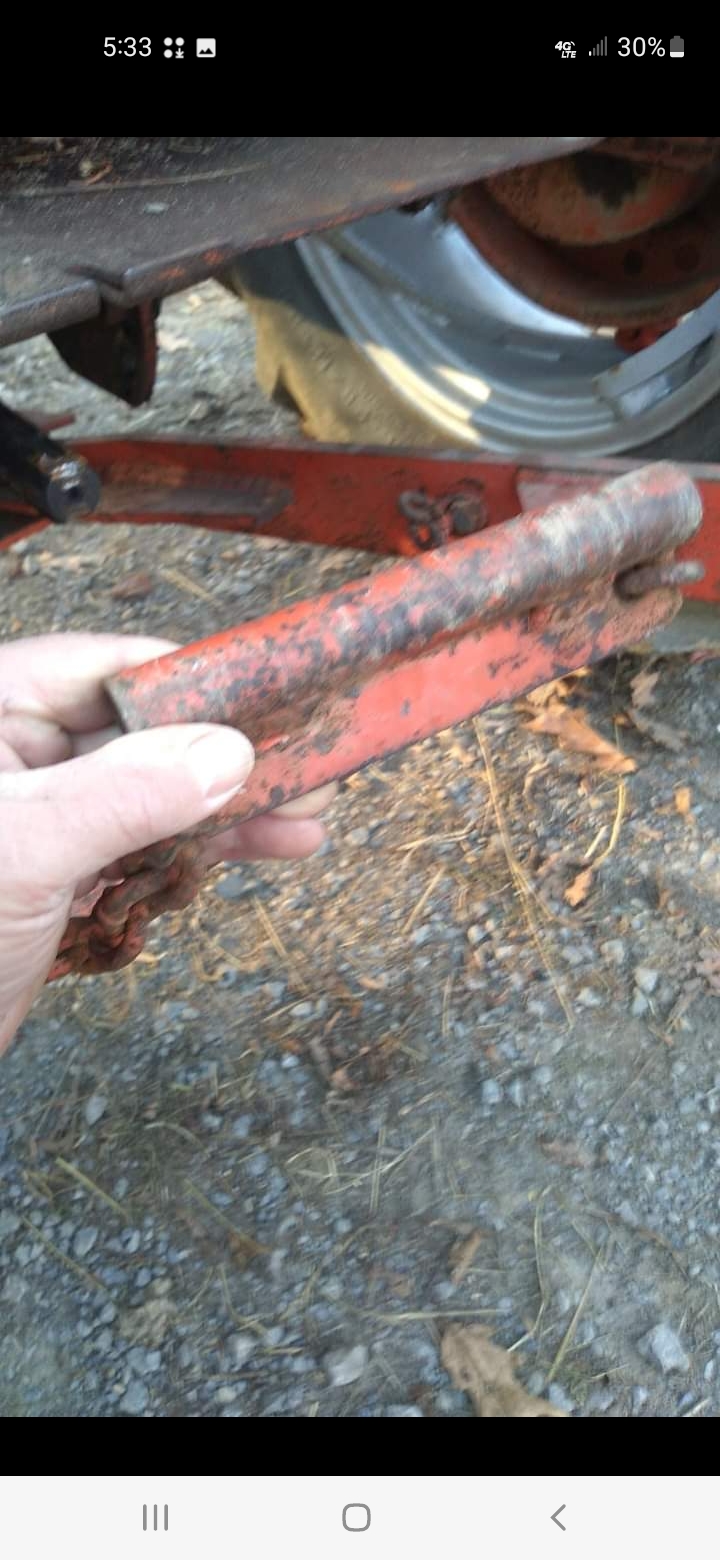

I'll get better pictures. The part in my hand has a long bolt(14") that runs transversely through it mounting it between the two lift brackets bolted to the bottom of the rear end housing. Does an excellentjob of limiting sway a keeps the three point apparatus from contacting the ground. I've been moving 800# round bales with standard three point bale spear with no issues.
Edited by exSW - 16 Dec 2022 at 6:56pm
|
|
Learning AC...slowly
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2666
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 6:37am |
 This is the hitch that he is showing the pic of. I have the same style and I'm sure it works fine with a bale spear. My pto shaft for my brush mower would get in the way so I just put cross chains on it. What do you have for a conversion on your tractor?
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
TOOLMAKER4
Bronze Level
Joined: 06 Apr 2014
Location: nw ohio
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 12:16pm |
i have the 3pt conversion that has a 3" square tube with flat brackets that bolt to the draw bar bracket. i am thinking to add another short piece of 3" square and another flat piece with a hole to put another threaded pin in to keep the swing point the same as the lift arms, then drilling a hole for another threaded pin in the lift arm just out past the scew jacks that go up to the snap coupler on the ac factory lift arms. then making a center link style arm to go between the two treaded pins.
|
|
TOOLMAKER4
Bronze Level
Joined: 06 Apr 2014
Location: nw ohio
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 12:23pm |

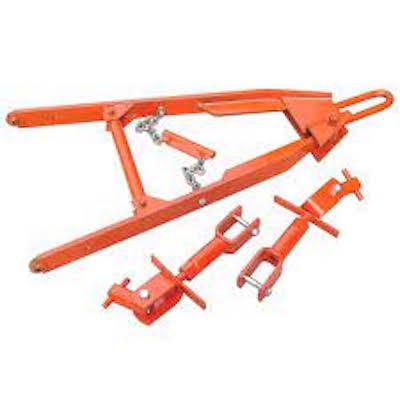

this is the three point conversion i have
|
|
TOOLMAKER4
Bronze Level
Joined: 06 Apr 2014
Location: nw ohio
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 12:26pm |
|
|
|
TOOLMAKER4
Bronze Level
Joined: 06 Apr 2014
Location: nw ohio
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 12:29pm |
sorry first try at sending pic was a epic failure.
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2666
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2022 at 12:40pm |
|
That horizontal piece that sits on the drawbar should take care of your problem.
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2256
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Dec 2022 at 4:02pm |
That little piece with the chains is not a real anti sway setup. It more or less keeps the arms from flopping all over when no 3PH implement is attached. The A-C 3PH adaptor uses this setup.
