WD rear rim size
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Souder01 View Drop Down
Bronze Level
Bronze Level


Joined: 17 Aug 2019
Location: Indiana
Points: 8 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Souder01 Quote  Post ReplyReply Direct Link To This Post Topic: WD rear rim size
    Posted: 07 Sep 2019 at 1:12pm

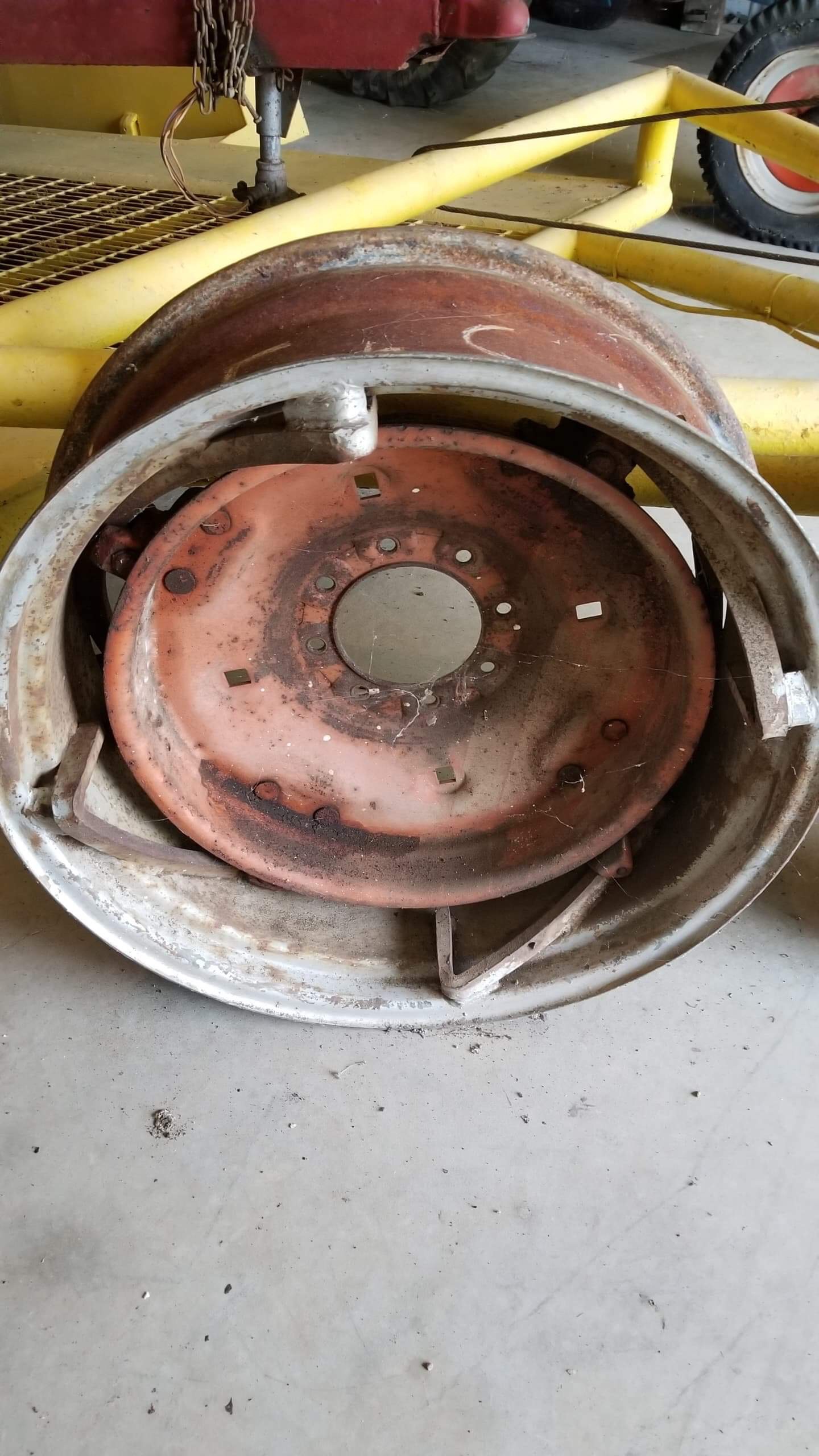

I am restoring my first WD and I need a new rear rim. I have found one locally for sale but I’m not sure if it’s the right size. My tire size is 13.6-28 on a 12-28 rim (that is what it says on the tire). Below are photos of the rim I am looking to buy. I think it’s a 11-28 but I’m not sure. Anyone know?
Back to Top
Sponsored Links


Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3972 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 07 Sep 2019 at 2:41pm

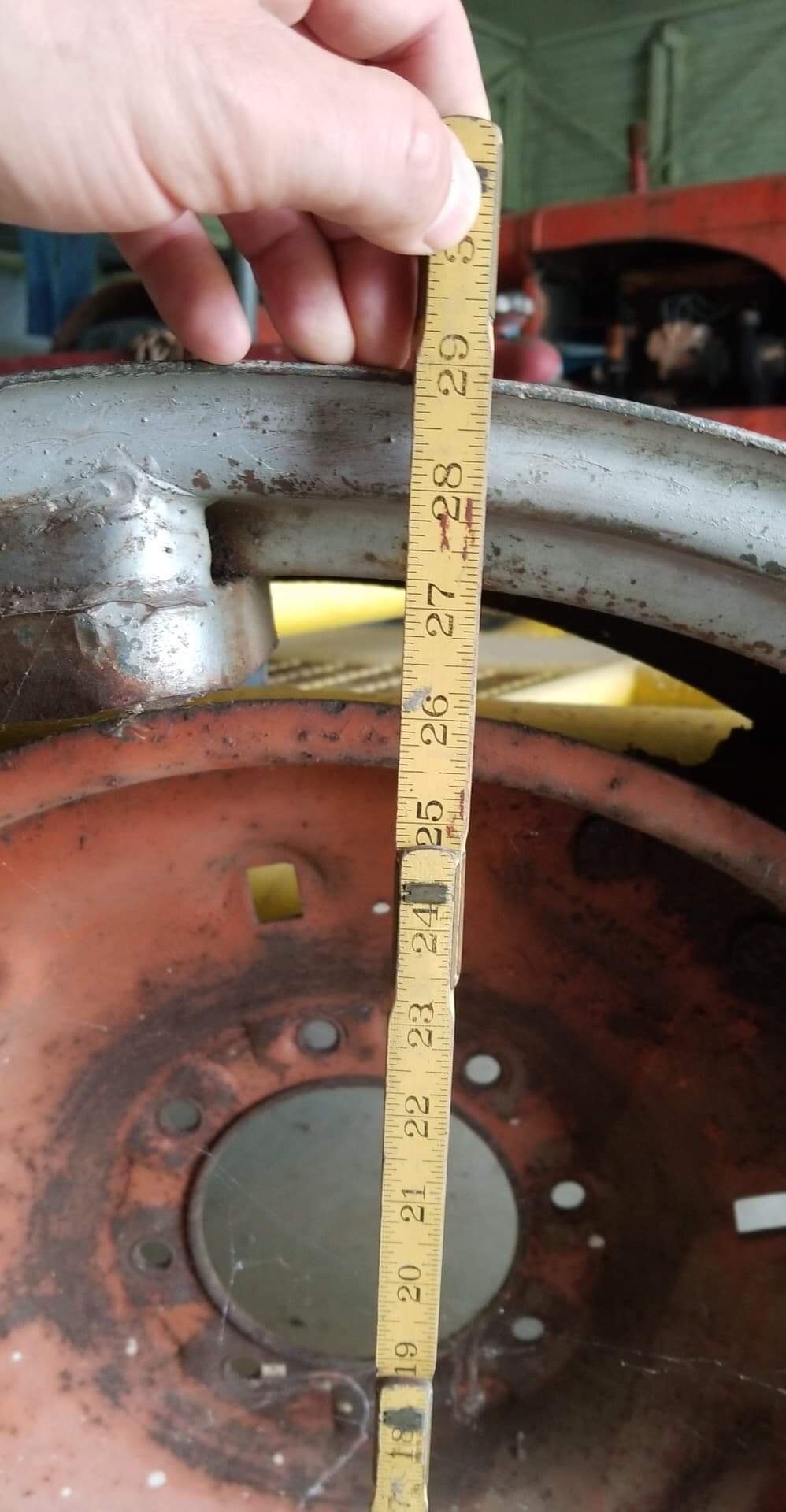

From your pictures that apeats to be a 10x28 rim.why dont you stick the tape between your rim and center and measure it. I think my WD 45 had 10x28 rims on it
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9262 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Sep 2019 at 7:02pm

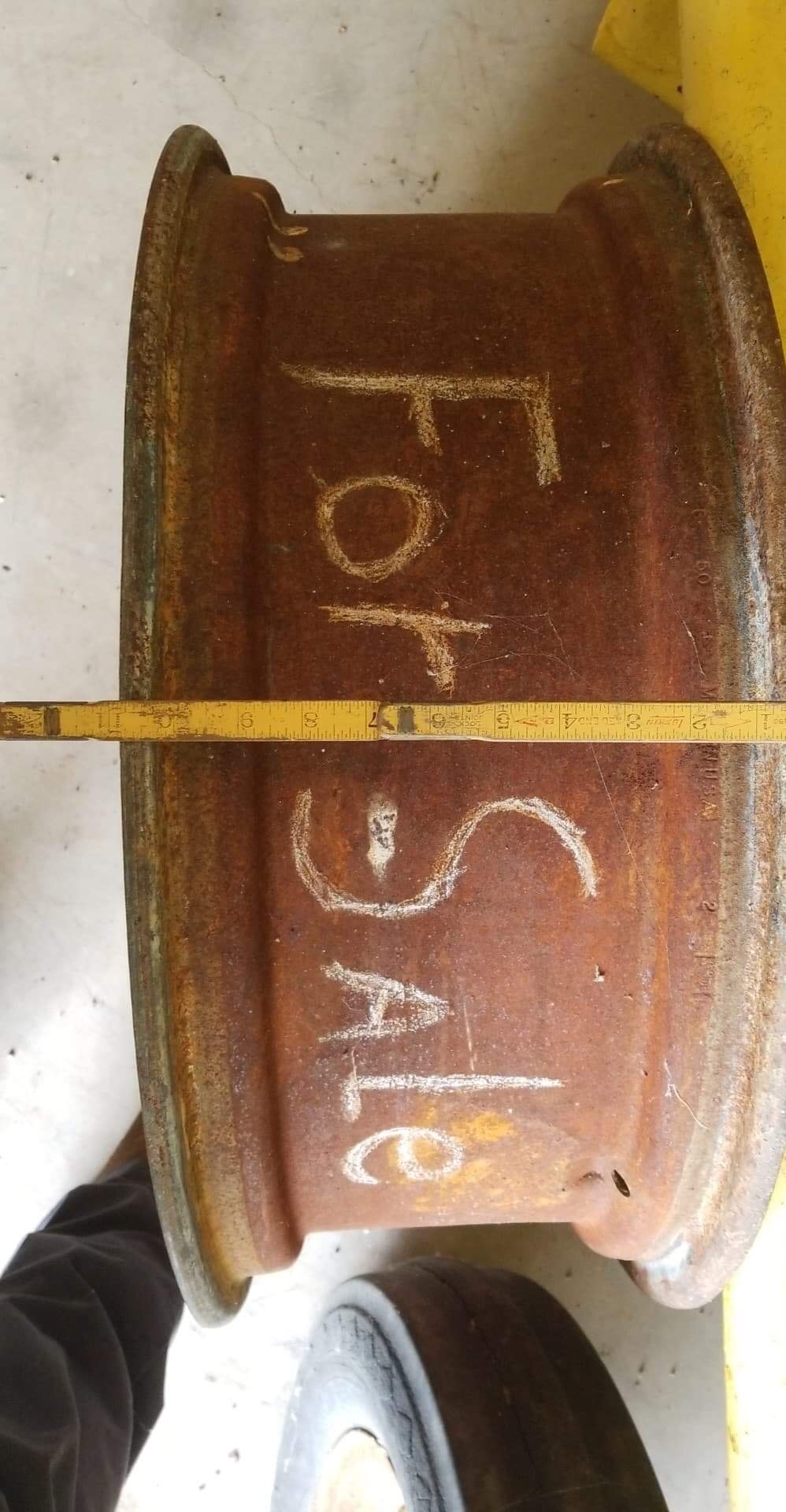

From your measurement, from bead to bead it appears to be a 9" rim.  Would probably work but you should measure the old rim or the rim on the other side and match it.
D14, D17, 5020, 612H, CASE 446
Back to Top
Souder01 View Drop Down
Bronze Level
Bronze Level


Joined: 17 Aug 2019
Location: Indiana
Points: 8 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Souder01 Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2019 at 4:15pm
Thanks everyone for your help!
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2269 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2019 at 9:23am
It sure does look like a 9" X 28"......seems unusual......the narrowest I've seen is 10".
I notice some very legible stamped letters and numbers right under your ruler......I bet you could clean them up real well and find the rim size printed there.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22136 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2019 at 10:06am
10's, 11's and 12's on WD and WD45's.  D-17's were mostly 13's with some late models maybe 15, but I've never seen one.
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2269 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2019 at 3:23pm
After looking closer, I'm inclined to believe this is a common 10" X 28" rim.
Back to Top
