 Topic: WD- Play in the hydraulics control lever
Posted: 07 Jan 2017 at 8:09pm |

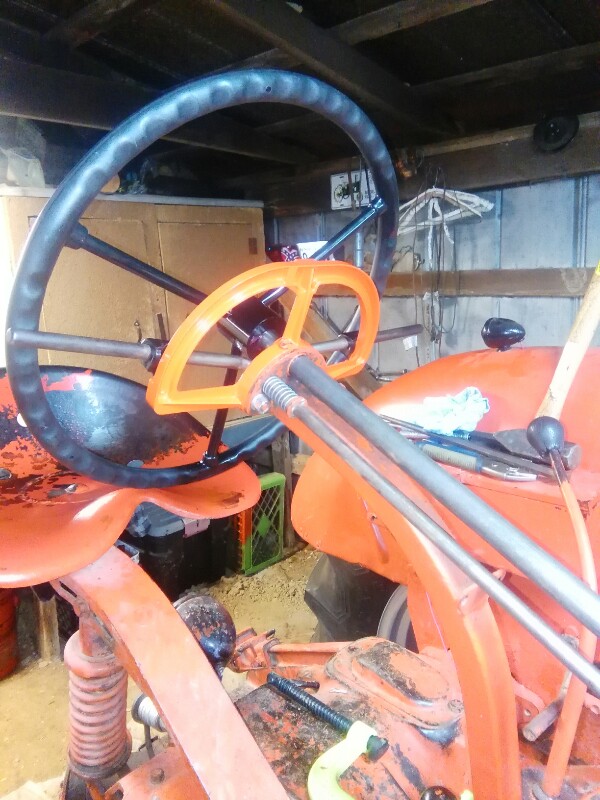

My hydraulics always seemed to have a mind of their own. At first
I was adjusting the flow regulator so that the hydraulics would adjust only
slightly, but doing this was a real pain. Then I noticed the hydraulics control lever
at the steering wheel was moving up on its own. Curious if anyone knows the fix

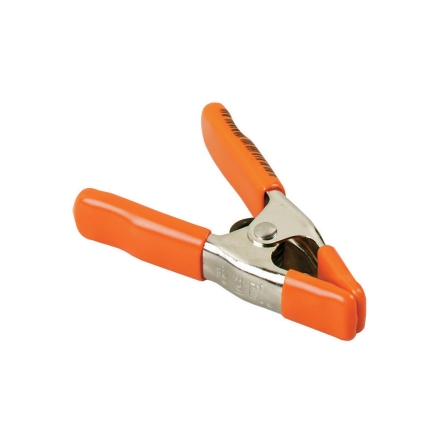

for this? Currently I’m using an orange spring clamp which is perfect for now
(no more dismounting and adjusting the flow regulator and control lever then hopping back on).
Edited by john0030 - 07 Jan 2017 at 8:11pm
|
 |
|
Sponsored Links
|
|
|
Auntwayne
Orange Level
Joined: 23 Apr 2011
Location: Edwardsville Il
Points: 1589
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 8:42pm |
|
Had the same exact problem, replaced the friction block.......problem solved. Duane
|
|
Dad always said," If you have one boy, you have a man. If you have two boys, you have two boys". "ALLIS EXPRESS"
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 8:50pm |
|
Make sure spring is not broken that holds tension on block. MACK
|
|
NICKMI
Orange Level Access
Joined: 15 Sep 2009
Location: Greenville
Points: 534
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 9:07pm |
|
Try the block first and if that don't do it replace the spring
|
|
79fordblake
Orange Level
Joined: 01 Jul 2010
Location: West Kentucky
Points: 827
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 9:16pm |
Replaced blocks and springs on mine last week. Along with a new steering wheel, steering shaft, renewed throttle quadrant and lower steering support. Also had both control rods built up and turned down.
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 10:03pm |
Here's what you need, look in your tool-box, one came in all WD45 tool-boxes.
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
john0030
Bronze Level
Joined: 01 Jan 2017
Location: Michigan
Points: 47
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2017 at 10:24pm |
|
THANKS!!!
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8434
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 9:10am |
|
John,
I agree replacing worn friction blocks and the springs can help assuming they are worn and or weak? Don OK I have never seen one of the clamps you show? And I don't remember one in the tool boxes on Dad's 45's!:) Picture on the tractor? I assume this is a stop for the quadrant handle???
Regards,
Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2256
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 10:25am |
I have never seen one of those either. I have not happened to see reference to it in the operator's manual either. It is called" STOP ASS'Y., adjusting, hyd. pump lever". It is shown on page 266 of my parts manual under "Tools and Miscellaneous". It is also shown on page 276 attached to the quadrant under the heading "Hydraulic Pump Hand Control". In that illustration, it is clamped on the quadrant below the lever which would indicate to me it is designed to limit how far the lever can be lowered rather than to hold the lever down. Nevertheless, it sure looks like it could be used for holding the lever down as well.
|
|
john0030
Bronze Level
Joined: 01 Jan 2017
Location: Michigan
Points: 47
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 10:45am |

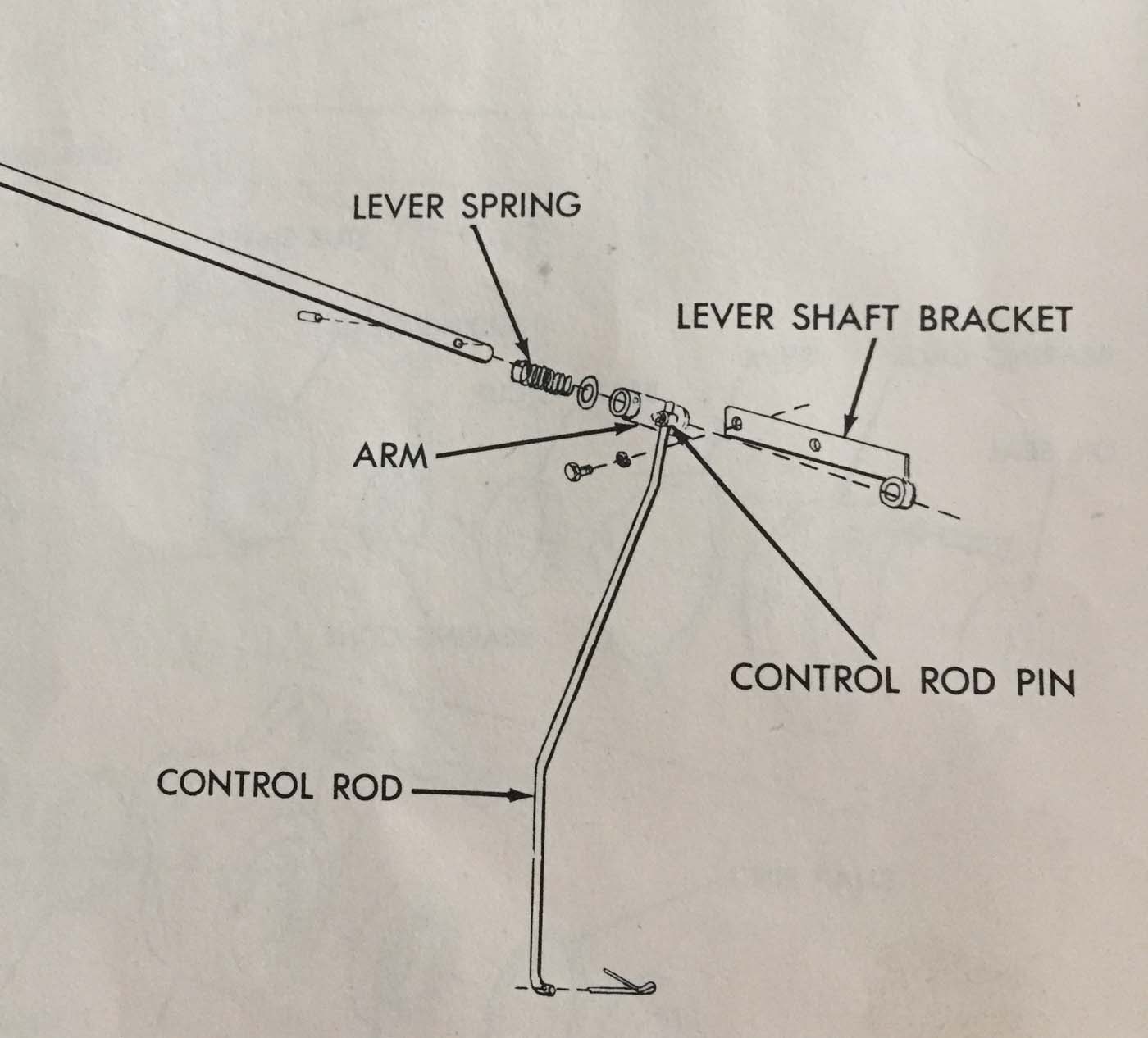

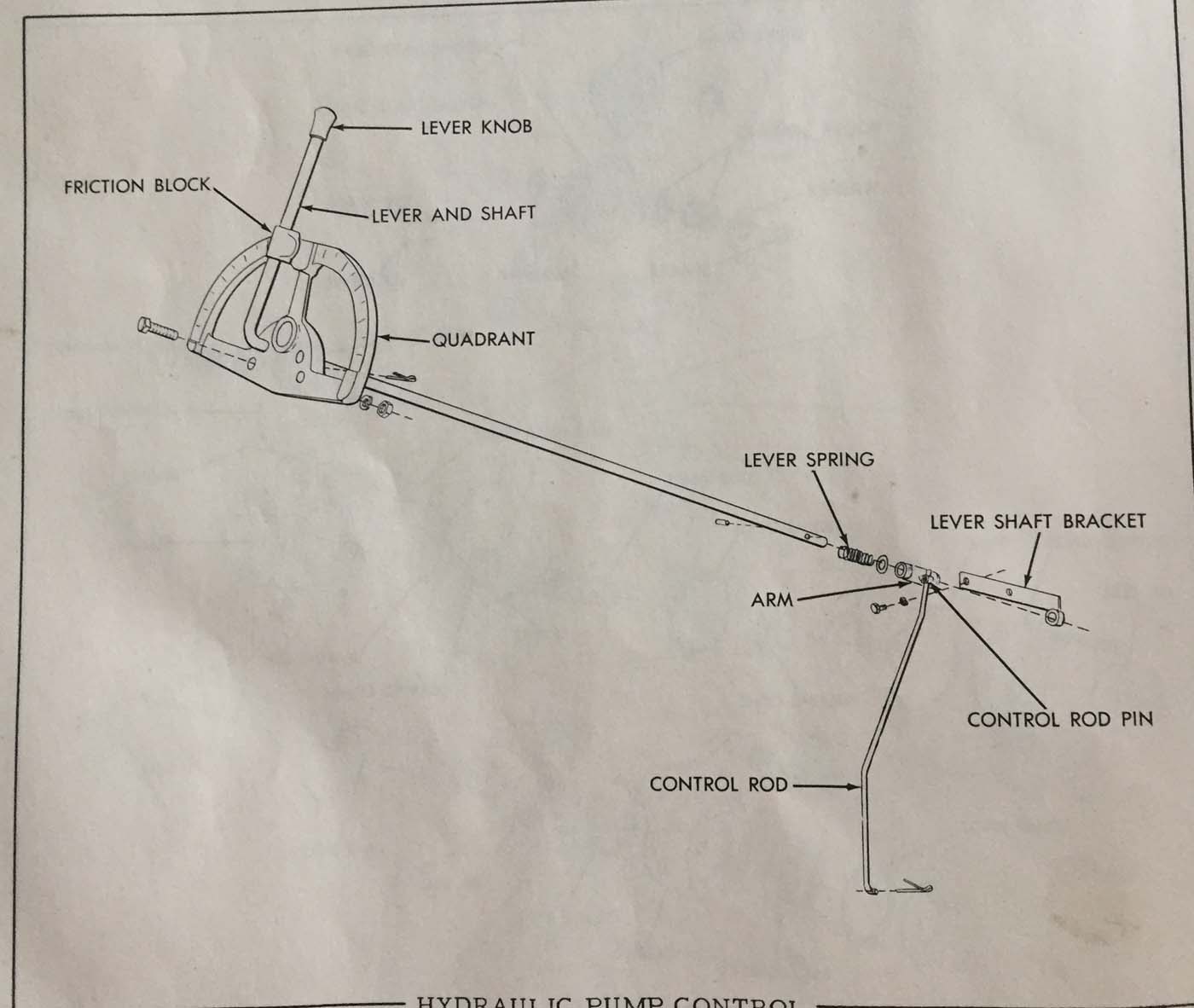

Quick question, according to the diagram in the owners manual, it would almost appear there should be a second spring somewhere at the bottom between the end of the lever shaft and the lever shaft arm. is this the case or just one spring up by the quadrant?
Edited by john0030 - 08 Jan 2017 at 11:03am
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 10:47am |
|
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3794
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 1:56pm |
|
don can you toss one of those in my two tool box's it seems like the slightest movement on the quadrant on my wd45 makes it creep up or down but all of my linkages need tho be re biult to take up all the play
|
|
NICKMI
Orange Level Access
Joined: 15 Sep 2009
Location: Greenville
Points: 534
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 2:19pm |
|
The part diagram shows the order it goes together spring goes on bottom because that's where it's put on shaft to slide it up towards quadrant with the retainer and pin
|
|
Michael Crowe
Orange Level
Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 2:41pm |
|
Don, finding those is like finding hens teeth! I've scavenged a4 or 5 over the years and it's always fun when you do find one, but hard to do!
|
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
john0030
Bronze Level
Joined: 01 Jan 2017
Location: Michigan
Points: 47
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jan 2017 at 3:00pm |
|
Thank you all!
|
|
