 Topic: Wd hand clutch dilema
Posted: 11 Feb 2013 at 12:24pm |
|
How do you completely take the hand clutch out? What i mean is what parts or what do i need to accomplish this? Anybody do this?
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 19519
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2013 at 7:33pm |
|
If you find yourself a used PTO top gear (the hand clutch bolts to it) on the clutch shaft, that is the only part you need besides four 7/16" Gr8 bolts and lock nuts. The used gear can even have the teeth worn out or missing. Split the tractor and remove the hand clutch and install this gear back to back to the existing gear and connect with the four bolts/nuts. You'll need to do a little grinding on each gear to remove a lip so they fit flat, but that's it. I'm sure there is a splined coupler that would also work, but this way you know for sure that while it's split, you have the parts to make the repair.
|
|
Fields
Orange Level
Joined: 25 Apr 2011
Location: Reedsburg, Wi
Points: 359
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2013 at 8:30pm |

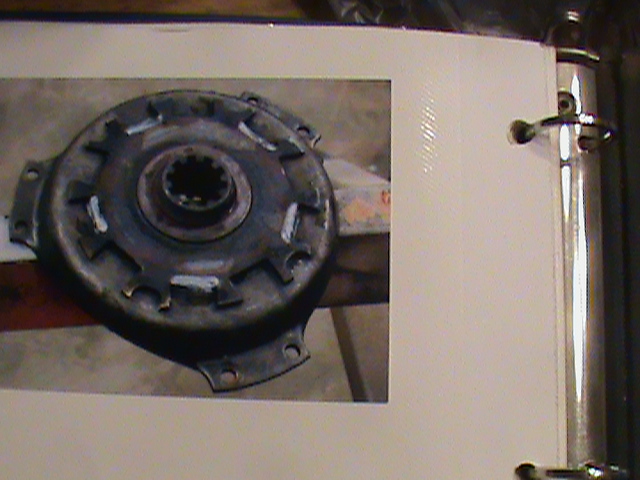

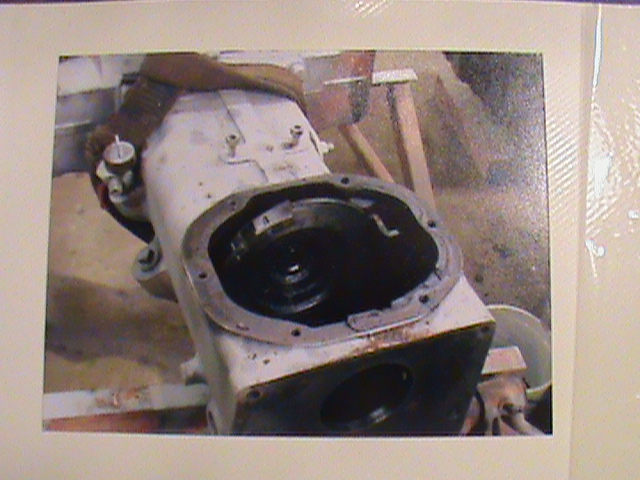

Phil Brown made mine. I found a couple of pics for it. He used parts of the hand clutch and center from a truck 10 spline disk. Phil should make and market these. Very strong and light.
|
|
Fields
Orange Level
Joined: 25 Apr 2011
Location: Reedsburg, Wi
Points: 359
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Feb 2013 at 8:32pm |
|
|
|
mattb
Orange Level
Joined: 11 Jan 2011
Points: 348
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Feb 2013 at 11:14am |
its 10 spline 1 1/4 u canbuy a coupler at a hyd supplier or i got one out of wc trans output shaft
|
|
cotncrzy
Orange Level
Joined: 07 Oct 2009
Location: TENNESSEE
Points: 599
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2013 at 7:08am |
|
OK I looked on E bay, there are several 10 spline 1 1/4 couplers. Grainger lists one , it gives dimensions, its 3.25" long. Is this long enough? How long does it need to be? How do you keep it on; drill a hole in the center of the coupler and drive a roll pin through to keep it from sliding?
|
|
C, WD45,WD puller, 185, 200, 7060 Red Belly, 7060 Black Belly,8010, and a R52 Gleaner, AND PROUD OF THEM!
|
|
mattb
Orange Level
Joined: 11 Jan 2011
Points: 348
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2013 at 7:23am |
|
that should be long enuf id drill and tap it and put a allen head jam screw in it to lock it on the shaft
|
|
