 Topic: WD burning out kill switch.
Posted: 05 Nov 2022 at 5:44pm |
'52 WD with distributor. Converted to 12v. Still positive ground. Generator puts out 13.6 charging. 12v coil with an in line resistor. Lights work. All wires chased and enclosed in loom. Keeps burning out kill switches.
|
|
Learning AC...slowly
|
 |
|
Sponsored Links
|
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Nov 2022 at 8:52pm |
You say kill switch. It should be a off-on switch with 12v to one side with the other wire going to resister. A kill switch grounds current from mag. MACK
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11950
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Nov 2022 at 9:04pm |
I don't know how you have your Tractor wired, but if you're using a toggle type switch for a Ignition kill switch, toggles are only rated at 10-15 amps. Put in a high amp switch like a key switch or push/pull like a Cole Hersee or equivilent. Have the Generator checked at a local shop to see what amperage it's pushing out. If it's pushing some high amperage out of it, that could be why you're cooking switches also....
Steve@B&B
|
|
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Nov 2022 at 9:19pm |
 MACK wrote:
You say kill switch. It should be a off-on switch with 12v to one side with the other wire going to resister. A kill switch grounds current from mag. MACK
|
That's how it's wired. It is indeed an "on/off" switch.
|
|
Learning AC...slowly
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Nov 2022 at 9:24pm |
Steve in NJ wrote:
I don't know how you have your Tractor wired, but if you're using a toggle type switch for a Ignition kill switch, toggles are only rated at 10-15 amps. Put in a high amp switch like a key switch or push/pull like a Cole Hersee or equivilent. Have the Generator checked at a local shop to see what amperage it's pushing out. If it's pushing some high amperage out of it, that could be why you're cooking switches also....
Steve@B&B
|
It's cooked both. The one it came with. The push/pull from DJ's. The brass Marine grade push/pull,a three way on /off /on (both sides) and the latest a rubber shielded toggle from the starter/alternator shop. But I think your onto something with the amps. I'll put a handheld meter on it tomorrow.
Edited by exSW - 05 Nov 2022 at 9:50pm
|
|
Learning AC...slowly
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 10:06am |
|
Checked the amps (running) at the switch with my ES 585 Multimeter. 10 amp setting. Blew the multimeters internal fuse . So I may be on to something.
|
|
Learning AC...slowly
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 4:41pm |
wire coming off the switch ONLY feeds the coil ? Dont want too much load thru that toggle... just the coil / distributor, which should be minimal..
12 v coil with "NO INTERNAL RESISTOR" ?? That works, but a new design which ELIMINATES the external resistor is a good long term plan. ... maybe thats why the coil is pulling too many amps ?
|
|
Like them all, but love the "B"s.
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 5:34pm |
steve(ill) wrote:
wire coming off the switch ONLY feeds the coil ? Dont want too much load thru that toggle... just the coil / distributor, which should be minimal..
12 v coil with "NO INTERNAL RESISTOR" ?? That works, but a new design which ELIMINATES the external resistor is a good long term plan. ... maybe thats why the coil is pulling too many amps ? |
That wire only feed the coil.The coil does have an internal resistor. The tractor came to me with a bad coil. Already had the in line resistor. I replaced the old coil with a resistor equiped one. I've been messing with it off and on all day. This system doesn't have a regulator, just a cutout. I took the cover off and the cutout seems to work properly.
The generator delivers power to the battery through the same starter post that the starter switch pulls power from and the coil on/off pulls power from.
Edited by exSW - 06 Nov 2022 at 5:43pm
|
|
Learning AC...slowly
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 6:10pm |
normally a cutout does not go with a 12 volt system.. On a 6 v system, the light switch with a resistor acts as a current limiter... You have NOTHING if your using a cutout on a 12v system and no regulation of current..
If you have a 12v coil with INTERNAL resistor.. you dont need the external resistor..
a 12v generator should be wired something like this.. You need to REGULATE the voltage and current outputs..
Edited by steve(ill) - 06 Nov 2022 at 6:18pm
|
|
Like them all, but love the "B"s.
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 6:49pm |
steve(ill) wrote:
normally a cutout does not go with a 12 volt system.. On a 6 v system, the light switch with a resistor acts as a current limiter... You have NOTHING if your using a cutout on a 12v system and no regulation of current..
If you have a 12v coil with INTERNAL resistor.. you dont need the external resistor..
a 12v generator should be wired something like this.. You need to REGULATE the voltage and current outputs..
|
Well I'm sorting my way through someone elses mess. I had suspected something got lost in the 12v conversion. The burnt out coil, there was a master cutoff blade switch on the battery plus the repositioned on/off switch. So I have to install a regulator,eliminate the cutout and wire accordingly.
|
|
Learning AC...slowly
|
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1466
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 6:57pm |

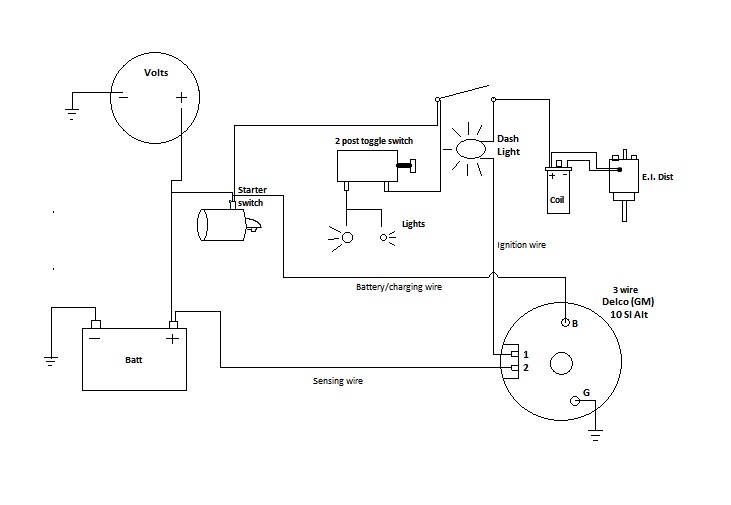

Unless you're trying to look somewhat original I'd start over with an alternator and wire it like this
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 7:11pm |
|
Probably going to stick with the gennie for now. Wiring in a regulator and rerouting a couple wires is quick,cheap and easy. When it eventually gets repainted I'll do the upgrade then.
|
|
Learning AC...slowly
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 8:03pm |
drawing shows a regulator with a "L" terminal.. You may get one that does not have that... L is just a another feed from the BATTERY... so use the BAT terminal..
Since you have a POSITIVE GROUND... you need to get a regulator that it setup for POSITIVE GROUND... or consider just changing to NEG ground... Depends on the REG you buy..
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Nov 2022 at 8:07pm |
Specifications
- This external voltage regulator has 4 terminals (lights, battery, field and generator).
- Designed for A type circuits in positive or negative ground systems
- 7 to 9 output amps
|
|
Like them all, but love the "B"s.
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2022 at 8:02pm |
steve(ill) wrote:
Specifications
- This external voltage regulator has 4 terminals (lights, battery, field and generator).
- Designed for A type circuits in positive or negative ground systems
- 7 to 9 output amps
|
That's the regulator I used. Replaced the ammeter gauge and wired accordingly. Everything works and it's running ten amps off a cold start and then settles back to 4-5 with the lights on. Thanks for all the help.
Edited by exSW - 12 Nov 2022 at 8:03pm
|
|
Learning AC...slowly
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2022 at 8:10pm |
 ... did you eliminate the RESISTOR in the line to your NEW Coil ?
|
|
Like them all, but love the "B"s.
|
|
exSW
Orange Level
Joined: 21 Jul 2017
Location: Pennsylvania
Points: 914
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2022 at 8:55am |
|
|
|
Learning AC...slowly
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86251
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2022 at 9:50am |
|
There is suppose to be a resistor INSIDE the coil on a new 12 v unit... If you have a OLD coil with no INTERNAL resistor, then you need the OUTSIDE resistor... Normally when you buy a NEW coil it has INTERNAL and you can eliminate the outside coil.
|
|
