 Topic: WC High Crops
Posted: 07 May 2012 at 10:13am |

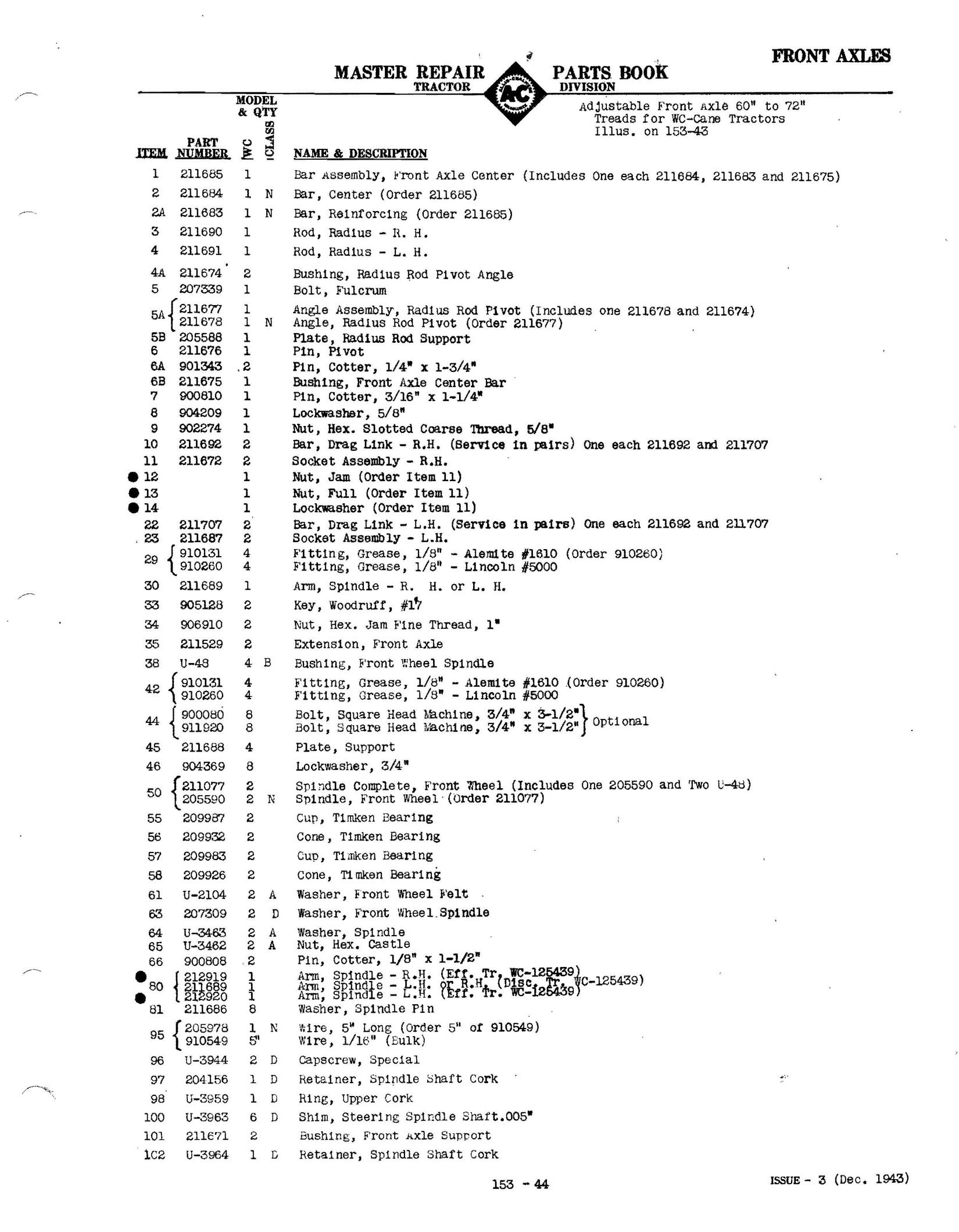

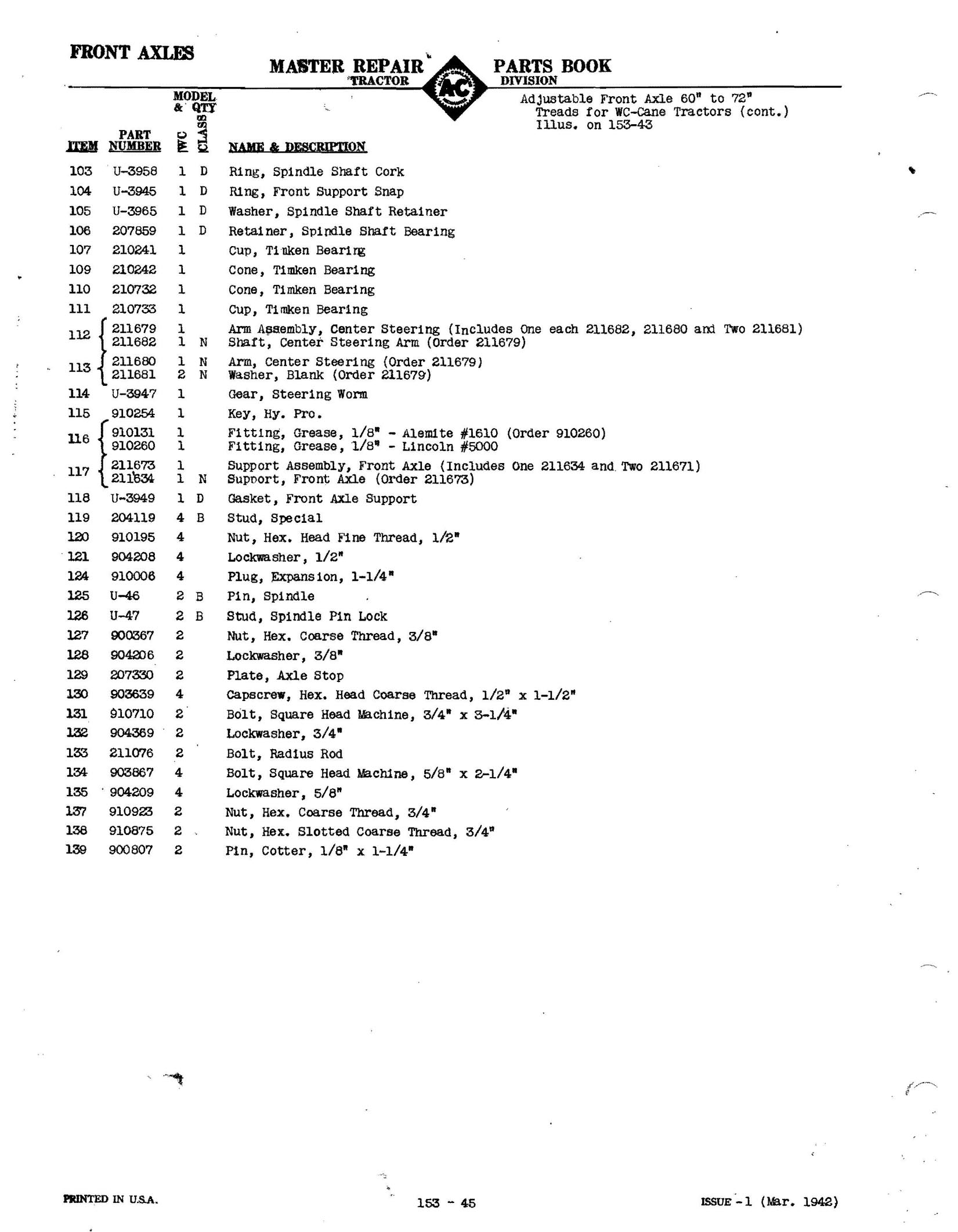

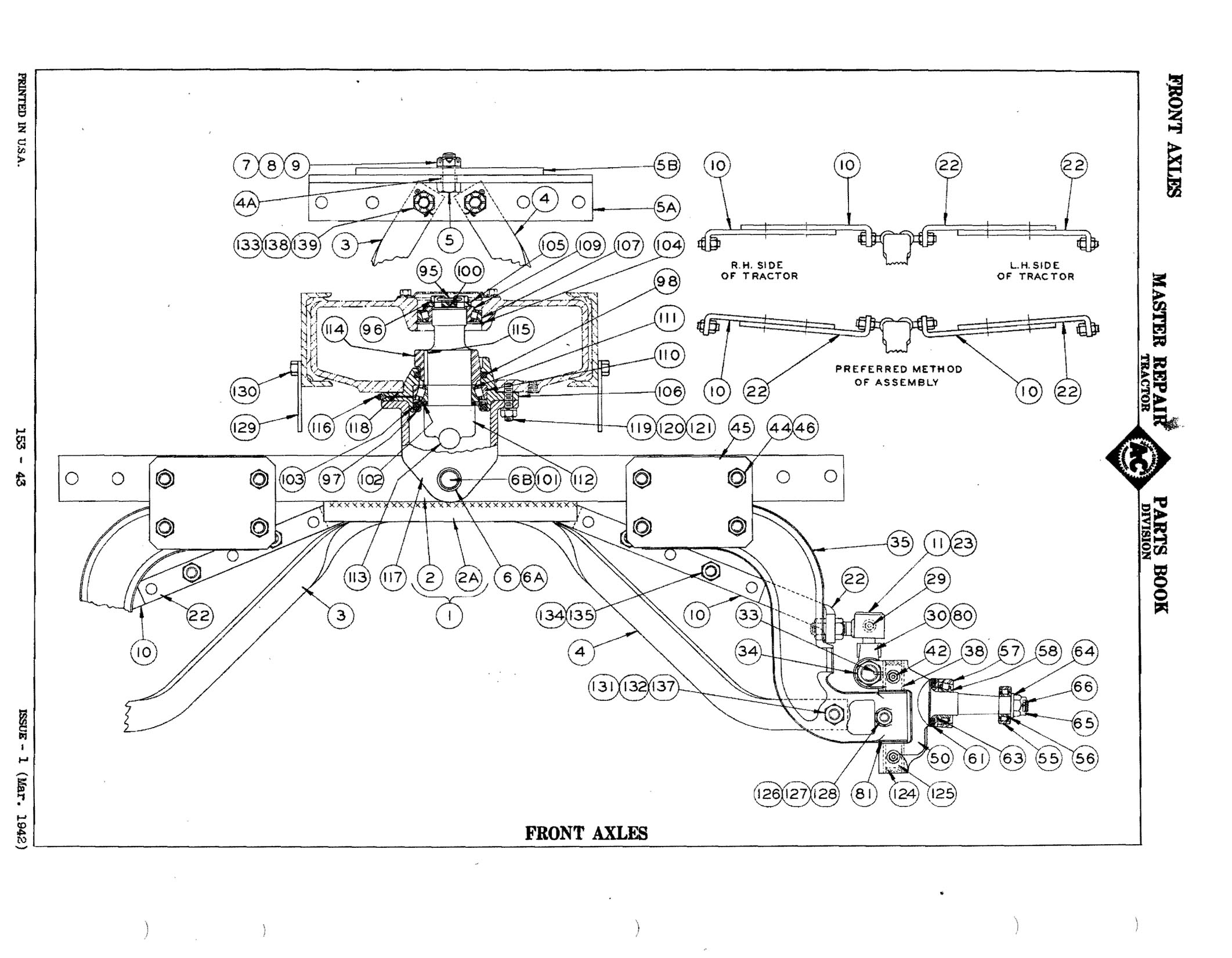

OK - now you got me started - I have a list of about 20 WC HC from 1945-48 which appear to be a factory configuration as the parts including the Adjustable Wide Front are in my 1946 Master Repair Parts Book - though they do not appear in the Dealer Repair Parts Catalog D3. See photos if they come thru. I would be interested in any more information anyone has on the WC HC configuration and any production information. Also would like to update my list to include tractor s/n , motor s/n, location, owner, condition of any more of these tractors. Best, Ed
|
 |
|
Sponsored Links
|
|
|
Sheridan-Utah
Silver Level
Joined: 16 Jan 2010
Location: Southern Utah
Points: 107
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 May 2012 at 7:00pm |
|
I have had two single wheel HI CROPS. A 1938 unstyled sn WC68934 and a 1939 sn WC77509. I restored the 1939 but because of the condition the 1938 was parted out. I have written articles for OldAllis in saveral issues about the 1939. There is an Article in the the 2009 Winter issue A High-Crop by any other name... There are photos of it and a wide front like yours owned by Rod Mondor of Forest Lake, Minnesota. I have never been able to determine how many were built.
|
|
HANSEN'S OLD ORANGE IRON
We show, pull, & go!
|
|
ACEd2010
Silver Level
Joined: 23 Oct 2010
Location: Bogalusa, La
Points: 84
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 May 2012 at 7:29pm |
|
I think we talked right after the article came out - I have a bit more background info - particularly the Master Repair Parts Book which illustrates the Adjustable Wide Front in 3 variations as early as 1942 - but most of the ones I have actually seen are 1945-48. I've only seen 1 earlier than yours. Still looking for anything on production history as these seem to be AC made rather than Thomson conversions.
|
|
LilACGuy
Bronze Level
Joined: 09 Aug 2017
Location: Ordway, CO
Points: 2
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Aug 2017 at 2:38pm |
Hi,

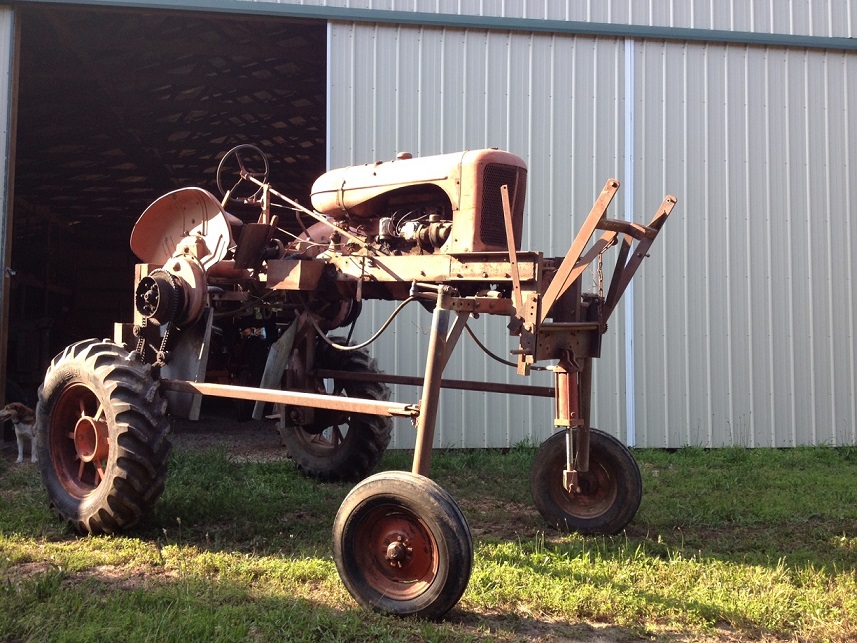

I'm new to this forum but I'm trying to find some information on a WC high crop.  |
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1466
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 7:02am |
|
Welcome to the forum, the WC in your picture has an aftermarket high crop kit. We featured John Deere a few years ago at our threshing show and there was a B with the same type of high crop parts, the big plates for the front end and the chain drive to the rear wheels.
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
grinder220
Orange Level
Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2367
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 7:09am |
|
Looks very tipsy,wouldn't want to turn to fast and how on earth do you crank start it(safely)? I've seen a farmall H with the same setup on it also.
Edited by grinder220 - 14 Aug 2017 at 7:12am
|
|
Richardmo
Orange Level Access
Joined: 12 Sep 2009
Location: Rolla mo.
Points: 1746
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 8:11am |

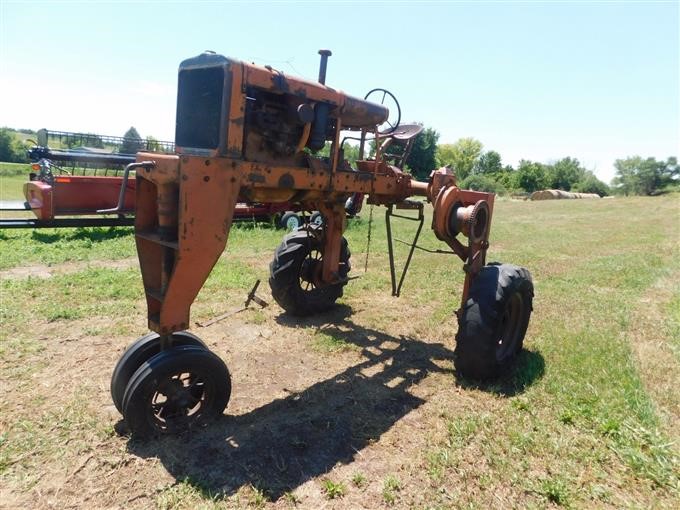

There was article that found on the internet about the conversations. If any knows and can send a link would be helpful. That one is not factory as the other person stated I have seen a John Deere made the same way. Here is my WC that has been built they used WD45 4 bolt front axle.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8602
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 8:34am |
|
Wouldn't want to hit a woodchuck hole ether.
Neat pictures
|
|
LilACGuy
Bronze Level
Joined: 09 Aug 2017
Location: Ordway, CO
Points: 2
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 9:08am |
|
Thanks for the info... what were these types of tractors primarily used for? I found this one in corn country but didn't know if it was for late season cultivation or corn topping?
|
|
rtwfarm
Orange Level
Joined: 26 Feb 2012
Location: nebraska
Points: 1310
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Aug 2017 at 11:05am |
|
In Nebraska they were used as spray or wicking( mopping) rigs
|
|
WC7610
Orange Level
Joined: 11 Sep 2009
Location: Sioux City, IA
Points: 764
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2017 at 2:31pm |
|
That looks like the one on Big Iron last week :)
|
|
Thanks
Most Bad Government has grown out of Too Much Government- Thomas Jefferson
|
|
banjerhead
Bronze Level
Joined: 10 Jan 2016
Location: bolivar mo
Points: 30
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Mar 2019 at 9:54am |
|
I have been searching all over the place for this book with no luck at all. Is there possibly a form number listed on the cover or somewhere to maybe help narrow the search down?
|
|
