Trans brake on maroon 7000
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1125 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Topic: Trans brake on maroon 7000
    Posted: 09 May 2020 at 9:27am

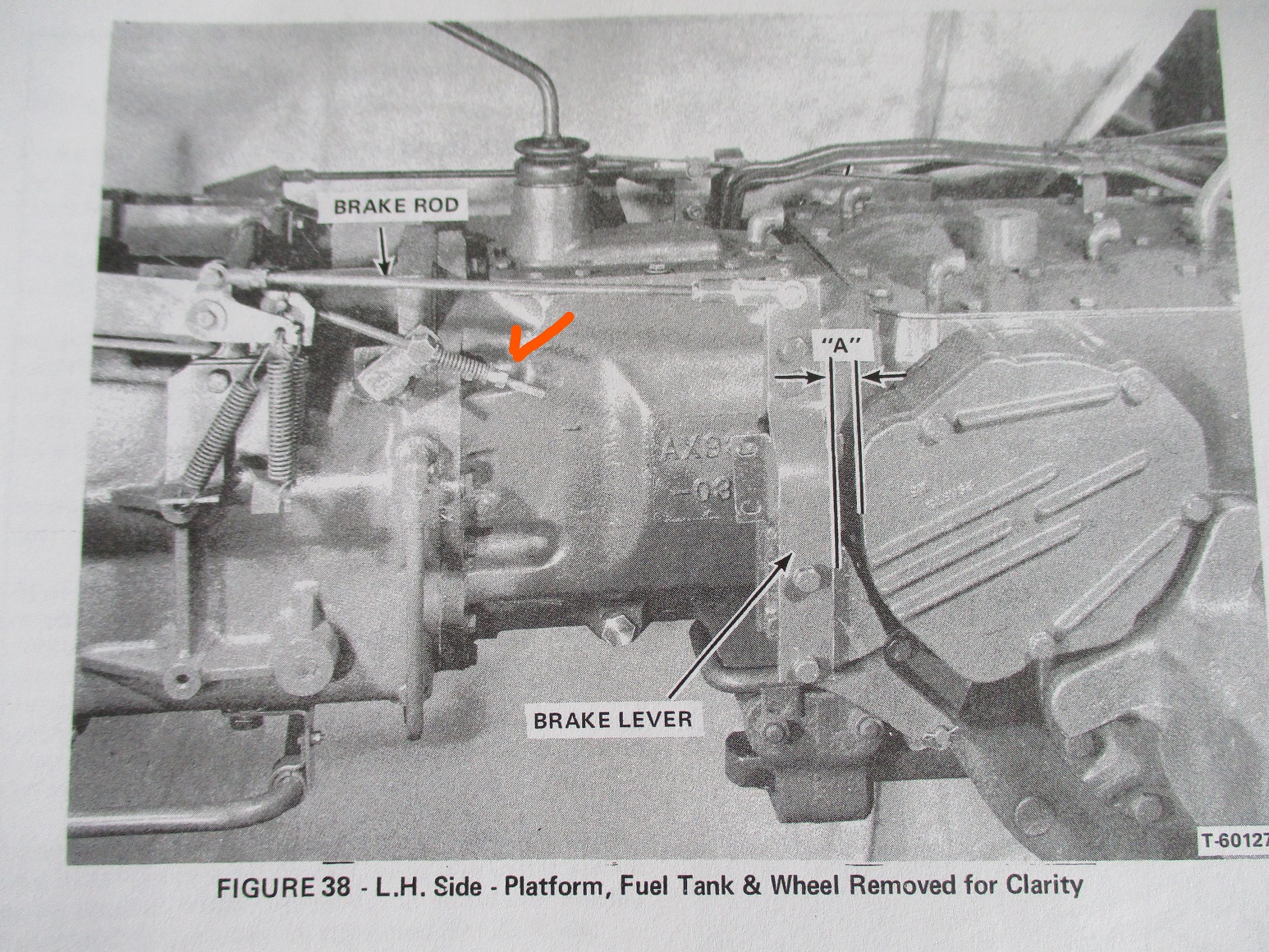

I have the hardest time going from park to say third. I may have to push clutch in 3 or more times before it will go in. In the picture, is this the lever to adjust it. I can't seem to find that adjustment in the manual.
 Tim
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
Sponsored Links


Back to Top
DIESEL View Drop Down
Silver Level
Silver Level
Avatar

Joined: 26 Aug 2013
Location: Sandhills
Points: 259 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DIESEL Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2020 at 11:40am
I'm pretty sure all maroon bellies have a dry clutch, so no trans brake. Trans brake came with black belly and t-handle shifter. That's on a 7000.
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2406 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2020 at 12:34pm
All the maroon belly 7000 tractors did use a dry clutch, but they also have a transmission brake and an adjustment rod like what is shown in that picture. I don't remember the compressed length of the spring,but that is where you adjust it. I have had to replace the brake puck on some tractors.
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1125 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2020 at 4:46pm
Lynn, I was told maybe it has been set to tight not allowing it roll to a stop, for engagement. So I will back the nuts off a little and try it.
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8360 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2020 at 5:42pm
The dry clutch has nothing to do with the trans brake - im pretty sure it works off the clutch pedal and is activated at the last inch of travel on the clutch pedal
Back to Top
Ron(AB) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2009
Location: Alberta
Points: 962 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron(AB) Quote  Post ReplyReply Direct Link To This Post Posted: 09 May 2020 at 7:07pm
Hard shifting into a gear is common with wear...1st and 3rd gear primarily.

Reverse always was touchy from new. It like to grind to find...a wee bit anyway.

My theory is worn shifter forks. I say "theory" is because I haven't check mine to verify, but mine does that too.

It all depends on how much use on the tractor and how much gear shifting has it done?
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1125 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2020 at 7:00pm
I finally had a chance today to work on the shifting issue. I did loosen the trans brake a bit, 1/8". So long story short. I have never driven a tractor w/ a clutch brake. And have found the right way to operate it now. I did adjust the trans brake back to where I found it.
  Tim


Edited by Tim NH - 28 May 2020 at 7:01pm
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8360 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2020 at 7:28pm
Glad you figured it out !
