 Topic: D17 SIV 3 POINT DRAWBAR
Posted: 17 Jun 2011 at 8:18pm |
|
I am converting my snap coupler to a 3 point set up. I am all finished except the drawbar. I have the 3 point drawbar, but I cannot find in my parts or shop manual, a picture of how it is supposed to be attached. Does anyone have an picture or drawing of how the drawbar attaches underneath the tractor and could share here? Thanks Chris.
|
 |
|
Sponsored Links
|
|
|
Claus
Orange Level
Joined: 09 Dec 2009
Location: Hebron In
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jun 2011 at 8:30pm |
I think you need a bracket where the pedals mount.
|
|
Claus
Orange Level
Joined: 09 Dec 2009
Location: Hebron In
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jun 2011 at 8:31pm |
|

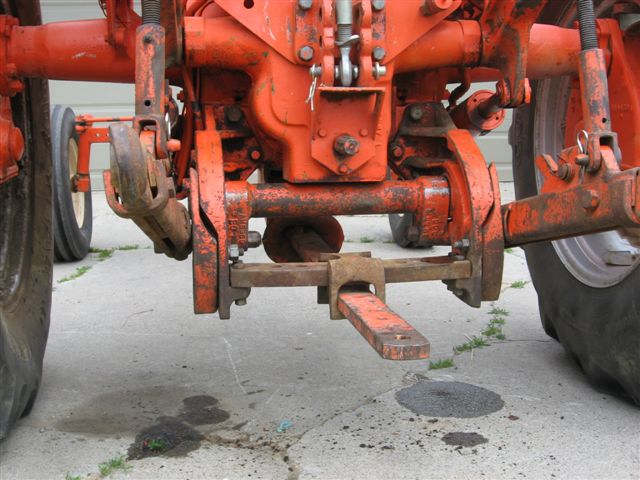

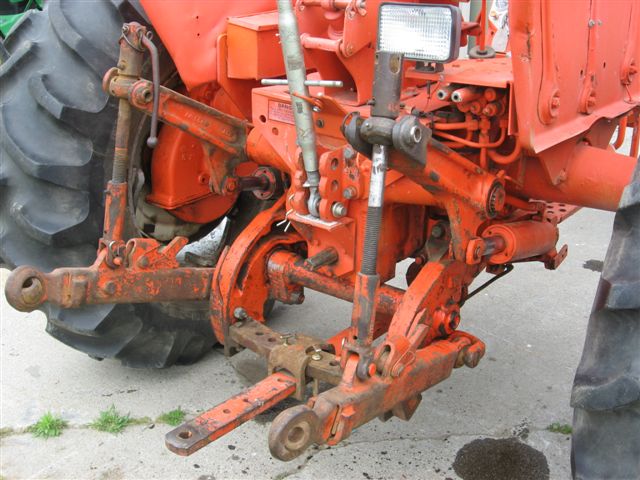

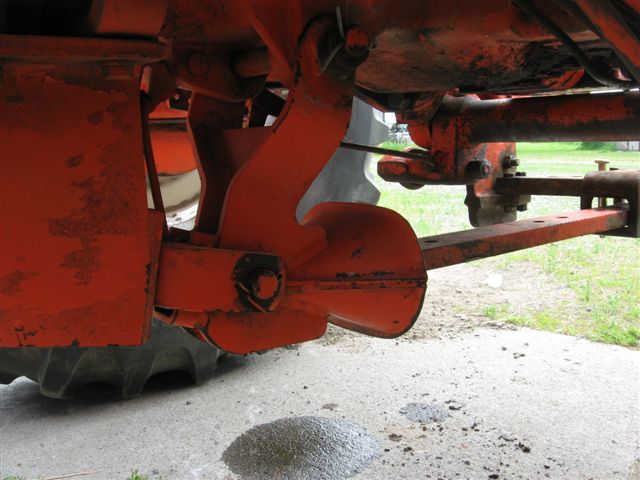

Sorry for the crappy photos, not the easiest place to take pics.
|
|
Claus
Orange Level
Joined: 09 Dec 2009
Location: Hebron In
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jun 2011 at 8:34pm |
Let me try this again.
|
|
Hardway(WA)
Bronze Level
Joined: 14 Sep 2009
Location: Spokane, WA
Points: 9
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 11:40am |
|
Thanks for the photos Claus. I do not have this bracket, anyone know if they are available, say at Cook tractor or otherwise?
|
|
Hardway(WA)
Bronze Level
Joined: 14 Sep 2009
Location: Spokane, WA
Points: 9
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 12:33pm |
|
|
|
Claus
Orange Level
Joined: 09 Dec 2009
Location: Hebron In
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 12:49pm |
|
My photos are of my 170, I would think the D17 is the same. Is there anything wrong with leaving your Snap-Coupler drawbar the way it is?
|
|
Hardway(WA)
Bronze Level
Joined: 14 Sep 2009
Location: Spokane, WA
Points: 9
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 4:35pm |
|
My only issue is the 3 point drawbar is a little longer.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21374
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 5:43pm |
|
I doubt it.....the length of that SnapCoupler drawbar is accurate for any 540 PTO powered equipment and the three point hitch drawbar would/should be the same. This way, if you use the 3pt hitch you may have to slide the snapcoupler drawbar out and off the tractor so it doesn't interfere with whatever it is you have on the 3pt hitch.
|
|
JoeO(CMO)
Orange Level
Joined: 11 Sep 2009
Location: Cent Missouri
Points: 2694
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 7:03pm |
|
Like DrAllis says, the length of the drawbar is correct, ASAE Standard, height is also correct, both in relation to the end of the PTO shaft. There is nothing wrong with running it that way. With a 3-point drawbar you can further and deeper into a mudhole. The Snap Coupler will help stop you so you won't get into too much trouble.
|
|
|
|
Ray
Orange Level
Joined: 21 Sep 2009
Points: 1979
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jun 2011 at 7:43pm |
|
Hi: I have the original bracket that bolts under the tractor that bolts on with 6 bolts. The brake rod goes thru it and the draw bar has a hole in the back. Let me know if intrested. 785-353-2392 Thanks
|
|
Nathan (SD)
Orange Level
Joined: 11 Sep 2009
Location: Day County SD
Points: 1274
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jun 2011 at 9:40am |
|
The 3 point version drawbar is longer by look of the eye. It mounts further ahead on the tractor though. So in the end the drawbar hole is in the same place no matter which style you use.
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jun 2011 at 10:27am |
|
and....you will have to find the correct drawbar, which may be hard to find. The 3pt drawbar has a big bend in it. Did you get the steering fixed??
|
|
