Model B Front Weight Bracket
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Topic: Model B Front Weight Bracket
    Posted: 15 Jan 2019 at 11:35am

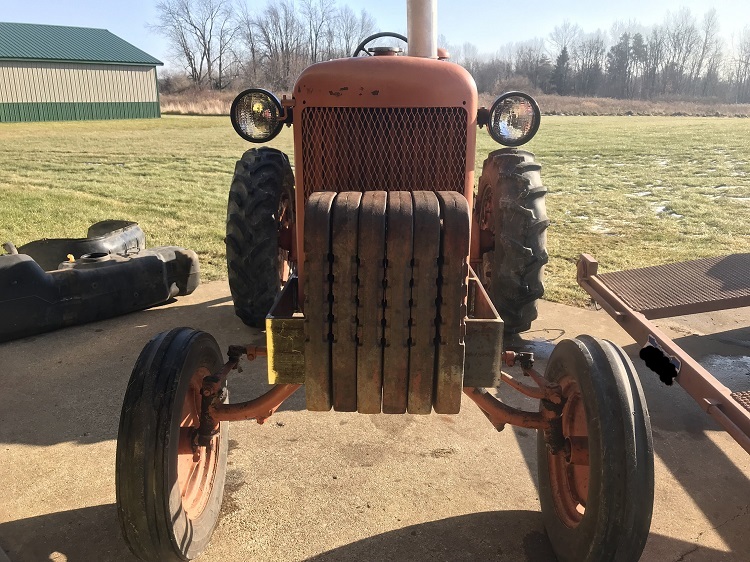

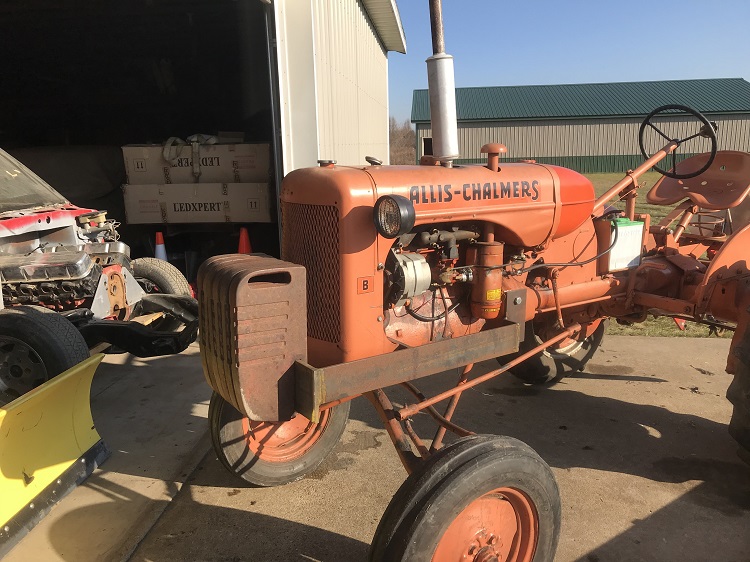

For a long time, I was looking for a good front weight bracket for my little B. I had some good suggestion and ideas given to me from some of you wonderful fellas. Welp, I finally had enough of steering with the brakes. I went to the local steel yard, and set to work. This is what we came up with. Still need to paint it, but it seems to be working quite well. I can steer the tractor in the snow with a heavy attachment on the three point, now. I am keeping a close eye on the tangs cast into the engine block for cracking. That is my only concern, so far. What do you think?
1949 Model B
Back to Top
Sponsored Links


Back to Top
wfmurray View Drop Down
Orange Level
Orange Level


Joined: 13 Sep 2009
Location: Bostic NC
Points: 1225 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wfmurray Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 1:16pm
My concern would would those four bolts that hold the hole front axle.When restoring mine a said it sure is not stronger enough for loader or a lot of weight on front.Memory tells me they are  one half inch bolts .
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 1:50pm
What's the BBC in ,
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 1:54pm
Originally posted by wfmurray wfmurray wrote:

My concern would would those four bolts that hold the hole front axle.When restoring mine a said it sure is not stronger enough for loader or a lot of weight on front.Memory tells me they are  one half inch bolts .

Ok, good to know. At the least I can replace them with new grade 8 bolts. I will keep an eye on those, too.
1949 Model B
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 1:58pm
Originally posted by Fred in Pa Fred in Pa wrote:

What's the BBC in ,

Good eye. I am building a pro street '86 S10. End goal is 600hp+, which (if you can believe what you read) shouldn't be very hard to do with a 11:1 496.
1949 Model B
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3047 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 3:02pm
Too many weights and too high for me.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24468 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 3:10pm
my concern is block 1/2 the rad area....B guys will KNOW, but it seems 'wrong' to me...
also..
is there support OTHER than them 4 bolts waay in the back ? I'd think 2nd bounce and whamm, weights all on the ground, busted bolts..worse would be the castings...
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11965 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 3:38pm
I gotta' solution to blocking the grille AND adding some weight. Slide that 496 right under the hood of that Lil' B and ya kill two birds with one stone!  As a matter of fact, that would even add something else' to that cute little B. The "WOW" factor!   See, it takes a hotrodder to think up this cool and come out with a cooool solution......  Thumbs Up
Steve@B&B
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
Back to Top
chaskaduo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chaskaduo Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:05pm
Looks like 2 bolts at the rear of engine & torque tube and 1 at radiator support bracket on each side.  How much is this total weight with engine that bears down on the one wishbone pivot bracket and bolt for the front end?

It does look easily weight adjustable.
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:08pm
Originally posted by Gary Burnett Gary Burnett wrote:

Too many weights and too high for me.


Those are 60lbs each. 360lbs total. Keeps the front end down nice when using a box scraper.
1949 Model B
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:13pm
Originally posted by jaybmiller jaybmiller wrote:

my concern is block 1/2 the rad area....B guys will KNOW, but it seems 'wrong' to me...
also..
is there support OTHER than them 4 bolts waay in the back ? I'd think 2nd bounce and whamm, weights all on the ground, busted bolts..worse would be the castings...



You know, I’ve never had to even open the radiator shutters even on the hottest days. I’ve never seen her get above 170 degrees. I tied the weight bracket in to the two tangs cast into either side the of the block, as well. It is supported in four places total. The sides are 3/8” and the front is 1/2”.
1949 Model B
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:15pm
Originally posted by Steve in NJ Steve in NJ wrote:

I gotta' solution to blocking the grille AND adding some weight. Slide that 496 right under the hood of that Lil' B and ya kill two birds with one stone!  As a matter of fact, that would even add something else' to that cute little B. The "WOW" factor!   See, it takes a hotrodder to think up this cool [IMG]uploads/1/censored.bmp"> and come out with a cooool solution......  Thumbs Up
Steve@B&B



Thanks Steve! Don’t think I haven’t though about dropping that 496 in it... :)
1949 Model B
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2259 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:15pm
At first glance, I thought that the only bolts holding the bracket were the 4 back by the
bellhousing. That would definitely not hold.
Upon closer scrutiny, I see you are also utilizing the 2 bolts at the front of the engine as well.
Those two bolts will see the most strain but I don't see any reason why they will not hold.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24468 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:17pm
OK.... man just HOW do you lift 60# that high ?? 6 times to boot !!!
I'd want (ok, need...)the handles to be a lot closer to the ground...Smile
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:19pm
Originally posted by chaskaduo chaskaduo wrote:


Looks like 2 bolts at the rear of engine & torque tube and 1 at radiator support bracket on each side.  How much is this total weight with engine that bears down on the one wishbone pivot bracket and bolt for the front end?

It does look easily weight adjustable.


I’m not sure on the total weight on the front end. I will say I add/remove weights based on the implement I am using, and it never has more than 360lbs (6 weights) total. With 360lbs on the bracket and nothing on the 3pt, I’d have to have forearms the size of an oak to steer it!
1949 Model B
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:23pm
Originally posted by Brian G. NY Brian G. NY wrote:

At first glance, I thought that the only bolts holding the bracket were the 4 back by the
bellhousing. That would definitely not hold.
Upon closer scrutiny, I see you are also utilizing the 2 bolts at the front of the engine as well.
Those two bolts will see the most strain but I don't see any reason why they will not hold.


Glad to hear it. Those tangs on the front of the block are THICK, so I was hoping it wouldn’t be an issue. I am keeping an eye on them, all the same.
1949 Model B
Back to Top
UncleRuckus717 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Apr 2016
Location: Muskegon, MI
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote UncleRuckus717 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 4:25pm
Originally posted by jaybmiller jaybmiller wrote:

OK.... man just HOW do you lift 60# that high ?? 6 times to boot !!!
I'd want (ok, need...)the handles to be a lot closer to the ground...Smile


I’m only 33? Haha! It wasn’t easy for sure!
1949 Model B
Back to Top
Ted J View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18923 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted J Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2019 at 8:49pm
Originally posted by jaybmiller jaybmiller wrote:

OK.... man just HOW do you lift 60# that high ?? 6 times to boot !!!
I'd want (ok, need...)the handles to be a lot closer to the ground...Smile
Piece of cake Jay,,,,,,one on Monday, one on Wednesday, one on Friday, one on Sunday, one of Tuesday  etc.
Getting them all off,,,,,,,,,,,that's what grandsons are for....
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3047 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 2019 at 7:52am
Originally posted by UncleRuckus717 UncleRuckus717 wrote:

Originally posted by Gary Burnett Gary Burnett wrote:

Too many weights and too high for me.


Those are 60lbs each. 360lbs total. Keeps the front end down nice when using a box scraper.


If you are happy with them that's fine.As a practical matter the higher the weight is positioned on the tractor the less effective it is holding the front end down as it comes up in the air.Would have been much better all around to add front wheel weights and the
B  slab weights that bolt to the front axle as far as counter balance to the rear.Plus when you hang something with the box blade and the front end goes up 2ft in the air and slams back down having the weight on the front wheels and axle would make it far less likely
to break something on the tractor.
Back to Top
chaskaduo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chaskaduo Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 2019 at 1:29pm
Originally posted by Ted J Ted J wrote:

Originally posted by jaybmiller jaybmiller wrote:

OK.... man just HOW do you lift 60# that high ?? 6 times to boot !!!
I'd want (ok, need...)the handles to be a lot closer to the ground...Smile
Piece of cake Jay,,,,,,one on Monday, one on Wednesday, one on Friday, one on Sunday, one of Tuesday  etc.
Getting them all off,,,,,,,,,,,that's what grandsons are for....

Or maybe the Contractor.    ( I know - I'm terrible - I couldn't resist. )
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
