Throttle vs. Govner Spring
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
bhaynes View Drop Down
Silver Level
Silver Level
Avatar

Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bhaynes Quote  Post ReplyReply Direct Link To This Post Topic: Throttle vs. Govner Spring
    Posted: 21 Jul 2019 at 8:50pm
Can somebody please tell me if a WD should have either a Throttle and/or a Govner spring? If so, can somebody please share a picture?

I have a spring on the return choke / carburetor, but honestly can't remember if I should have one on the throttle or govner spring.
Back to Top
Sponsored Links


Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 6:35am
It has a governor spring in side. There is a linkage spring under fuel tank , right side and a coil spring on throttled rod at quadrant.       MACK
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8509 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 1:14pm
No spring hooked to any of the govener rod or carb throttle shaft.
Back to Top
bhaynes View Drop Down
Silver Level
Silver Level
Avatar

Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bhaynes Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 1:29pm
Thanks everybody. I do have a big thick spring on the throttle after looking. Forgot about that one. I guess was more wondering then on the govner lever to the carb maybe?
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 2990 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 1:32pm
There isn't a spring on the governor lever to the carb. Jus the spring on the carb to hold the choke open. The governor in under the governor cover on the front right on the engine.
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2256 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 4:56pm
OK,  We've talked about the mysterious carb link spring here a time or two in the past.

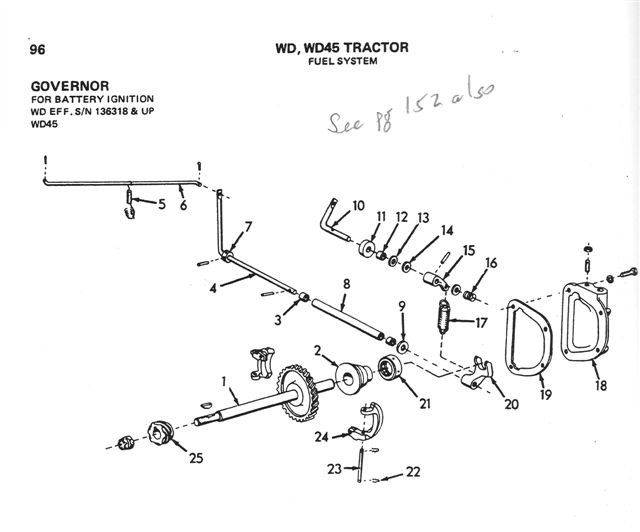

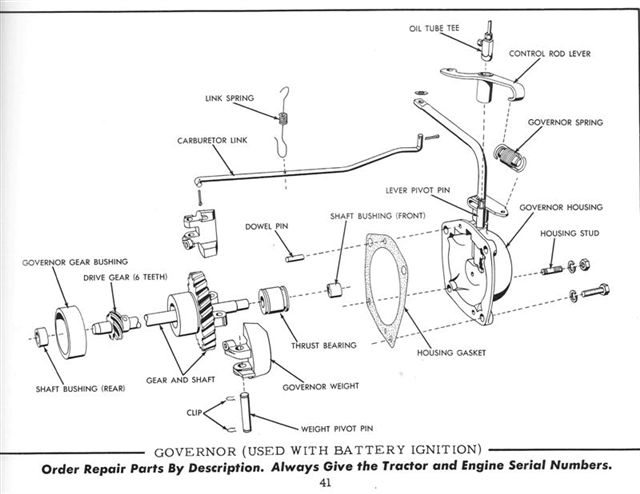

Here are a couple of pics taken from two different WD manuals.
The description: SPRING, carburetor link (prior to Engine S/N 244001).
It is sometimes (often) referred to as the "anti-surge" spring.
Believe it or not, it hooks to the draincock, hence the large hook on the one end of the spring.
My '51 WD has the spring.
A similar spring was also used on B and C tractors.
Dick L. says the spring is not necessary on he Bs and Cs if all the governor linkage is adjusted properly.
He is probably right because even Allis discontinued it on the WD at some point.
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3815 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jul 2019 at 11:30pm
my wd has spring hooked to the petcock it has been there since it was new or as long as i can remember i am 55.  my 1955 wd 45 does not ,cant tell you the serial now but it is a 1952
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 2990 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jul 2019 at 8:01am
My 45 has a spring on the petcock, but I thought it was for the choke?
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2256 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jul 2019 at 1:15pm
Originally posted by Allis dave Allis dave wrote:

My 45 has a spring on the petcock, but I thought it was for the choke?

There is a choke return spring also attached to the draincock.
