sucessful motor change out D graders |
Post Reply |
Author | |
sparky52
Bronze Level Joined: 07 Jan 2019 Location: LOUISIANA Points: 39 |
Post Options
Thanks(0)
Posted: 14 Jan 2019 at 9:46pm |
Recently spoke with friend from Texas that has successfully changed out motors in D model Graders. Maybe this information could help someone. Start with any 4 cyl industrial motor that fits within the confines of engine bay. Has 3 pulleys on front of crank obviously for alternator and hydraulic pump. Plexiglass to draw on for building adapter plate motor and bell housing . Make your measurements from center always from center he said. Use original Allis C clutch throw out bearing , pressure plate. If your not a machinist you will need a machine shop to build a flywheel to bolt on to new crank and holes to mount Allis Pressure plate. Build your flywheel as heavy as you can for the most kinetic energy you can get around 90 to 100 lb flywheel. My under standing is he milled a hole big enough for a bushing or bearing to press in center of flywheel to accommodate pilot shaft. Engineer motor mounts as needed for new motor. The D model grader, that he loaned me to grade some roads on some property I had in Coryell county texas, was one he had changed the motor out in. The motor he used in it was a 4 cyl diesel Hercules, 80 something horsepower. By the way I remember it was a military engine. If interested Google 4 cyl diesel Hercules motors several 4 cylinder motors pop up with different hp ratings. Hope this can help in some way.
|
|
Sponsored Links | |
Ross D.
Silver Level Joined: 02 Sep 2013 Location: Erin, Ont. Points: 338 |
Post Options
Thanks(0)
|
Hi. Do you have any pictures of this grader? Ross.
|
|
sparky52
Bronze Level Joined: 07 Jan 2019 Location: LOUISIANA Points: 39 |
Post Options
Thanks(0)
|
no I don't, just my recollection . I recently bought a model DD . After getting it home found that the water pump shaft had slack, other than that just needs cosmetics . It did have cab, but I removed it because of my preference. I know where there is another grader locally that has a motor in it that overheated
, I've been thinking about buying and changing motor out in it . Hard to explain here but I have some ideas to make it more simple. For example when locating a new motor other than the obvious front pulley arrangement, you need to pay attention how far out or how for in the crankshaft is from back of motor so pilot shaft from transmission will work. Be happy to talk to you if you have questions. phone number 318 359 0292 . |
|
sparky52
Bronze Level Joined: 07 Jan 2019 Location: LOUISIANA Points: 39 |
Post Options
Thanks(0)
|
In the original post I stated my friend, explained to me to build a heavy flywheel, I'm starting to question this rational, after reading about flywheel inertia. seems to me heavy, heavy flywheel among other things would be hard on starters . check out how to calculate for flywheel inertia.
|
|
DMiller
Orange Level Access Joined: 14 Sep 2009 Location: Hermann, Mo Points: 29519 |
Post Options
Thanks(0)
|
The purpose of the really heavy flywheel was torque maintenance, as the engine built energy up and had rpm the weight of inertia of that massive chunk of steel made torque for power curve.
Edited by DMiller - 16 Jan 2019 at 6:35pm |
|
wnwillis77
Bronze Level Joined: 25 Feb 2019 Location: SW MS Points: 1 |
Post Options
Thanks(0)
|

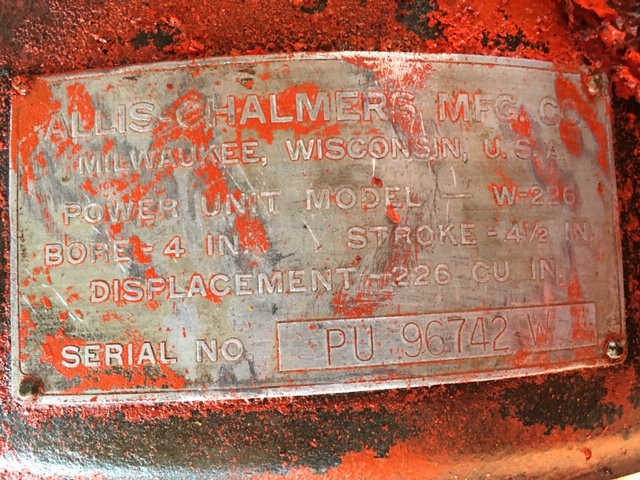

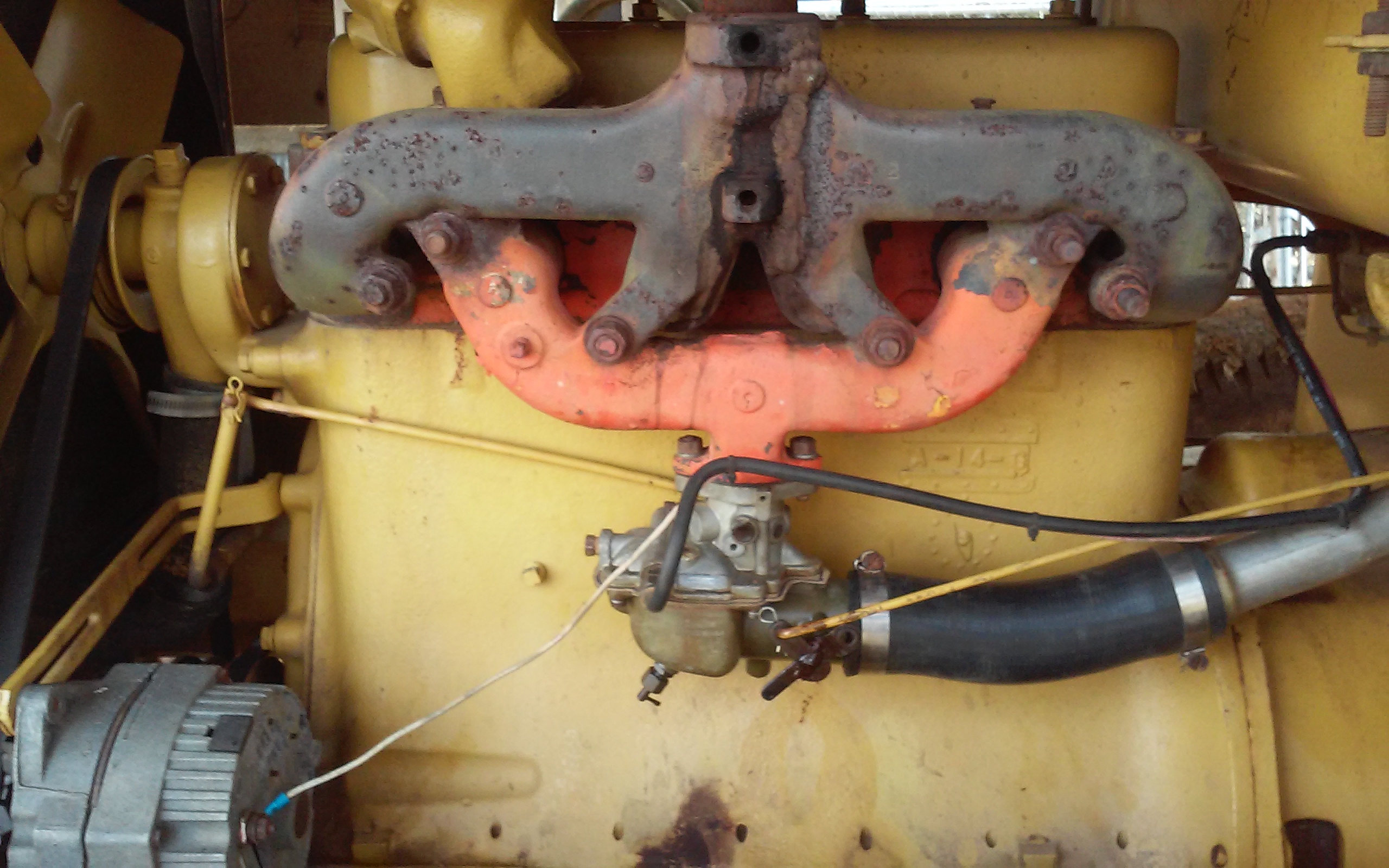

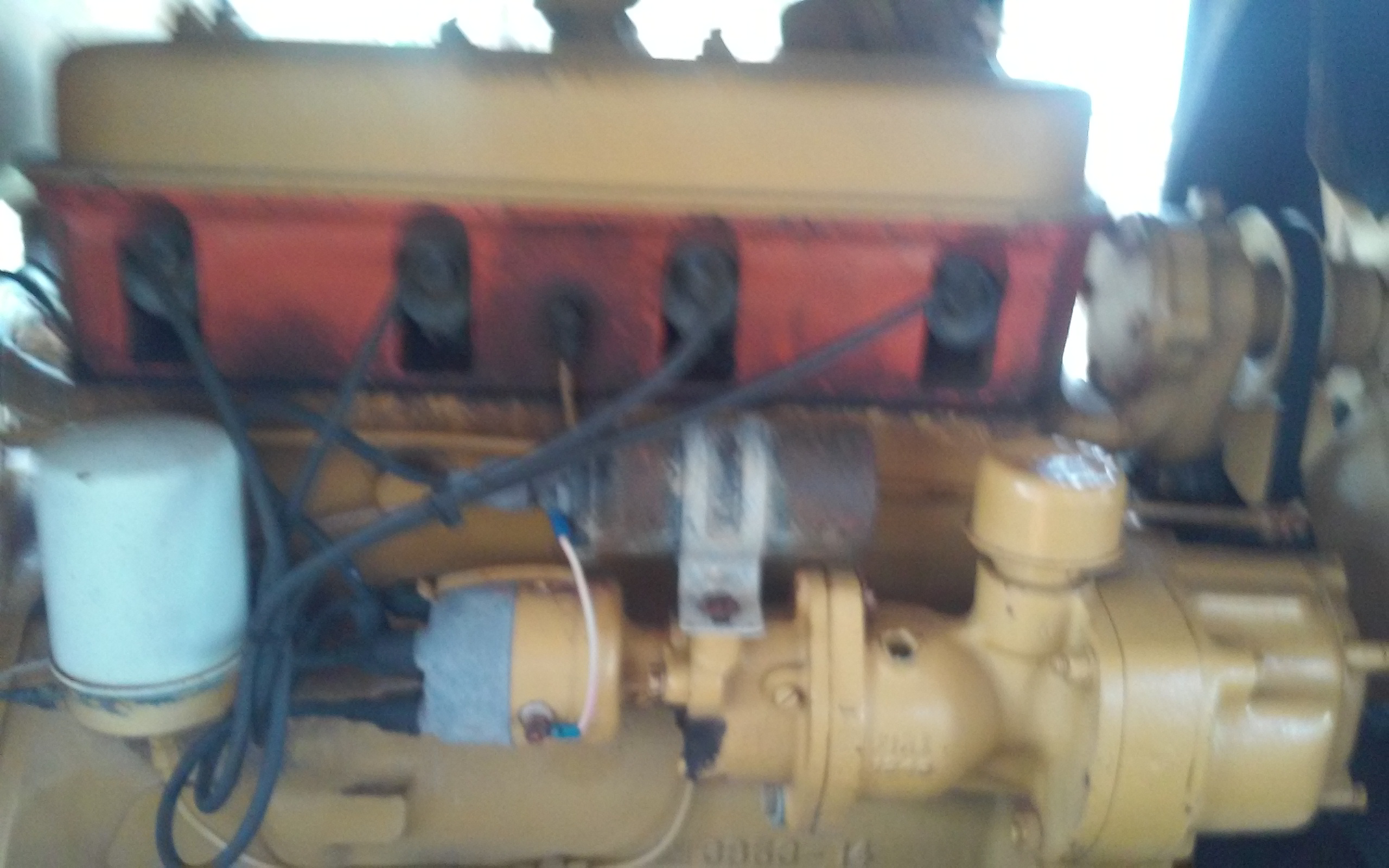

Motor graderD, ser.# D1547, 4 cyl gas engine ser.#21549. Any information on the model of this engine? Raised numbers on block behind carb A-14-G, other side of block AM 3853-14 with 4 underneath. I have searched high and low on the internet trying to determine the model and year of this engine but have had no luck. I don`t think this is the original engine for the grader. Also have another engine that the seller included. Tag on that one indicates Power Unit Model W-226, Serial # PU 96742 W. I`m wondering if this one is interchangable with engine now in grader. Any help on this is appreciated.
|
|
sparky52
Bronze Level Joined: 07 Jan 2019 Location: LOUISIANA Points: 39 |
Post Options
Thanks(0)
|
Sorry, but I would not be able to help you. Post it on the forum somebody can.
|
|
DiyDave
Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 50529 |
Post Options
Thanks(0)
|
Would need to know the grader serial number. its on a tag, on the rear frame, right side, I think, where you step up to get in the operators position, about a 4" X 4" tag... If its gone, post a picture of the grader, be sure to show the grille, and any decals...
It will be a 4 digit number, less'n its a very early unit...
|
|
Jim.ME
Orange Level Joined: 19 Nov 2016 Location: Maine Points: 934 |
Post Options
Thanks(0)
|
Good photos of the engine would likely help. The casting number you posted looks like it might be a 226, possibly like used in a WD45.
|
|
steve(ill)
Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 77747 |
Post Options
Thanks(0)
|
willis , the D model started to be built in the 1940s and used the same engine that the WC tractor used at that time... 4 cylinder 201 cubic inch. Later in the decade the tractors had been upgraded to the WD and WD45 and the motor was also enlarged to 226 inches.. You can use either motor in the tractor, the larger motor would obviously have a few more HP.. If you get a motor that was in something "special" like a power unit or generator unit, etc.. it "MIGHT" have a different governor, lube system, etc... but the basic motor would fit.
|
|
Like them all, but love the "B"s.
|
|
DonBC
Orange Level Access Joined: 12 Sep 2009 Location: Courtenay, BC, Points: 900 |
Post Options
Thanks(0)
|
That same 226 engine was also used in the D17 gas farm tractor. The transaxle of the D grader was also used by Galion graders and they used IHC engines in their graders. The engines are mounted to the transaxle by a adaptor plate so it is possible that the transaxle served a variety of purposes and a variety of engines. When I made some upgrades to my D grader I shifted the hydraulic pump to be driven off the end of the crankshaft as I could never get the belts to the hydraulic pump tight enough to stop the pump from stalling now and then even with new belts.
|
|
Jack of all trades, master of none
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
The grader serial # D 1547.
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
From from what I can determine from the grader serial number the grader was built in 1952. I could be mistaken. From what you told me, the power unit motor that I have must have been in the machine at some point, and replaced with the present one. The PU shows 226 on the I'd tag. Thanks to everyone who replied to my questions. You have been most helpful.
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
Right click on each image, then from dropdown click view image.
|
|
twostwp120
Bronze Level Joined: 04 Mar 2019 Location: MS Points: 6 |
Post Options
Thanks(0)
|
|
|
