Some Combine Videos and pics
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
DanD View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: WI
Points: 856 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DanD Quote  Post ReplyReply Direct Link To This Post Topic: Some Combine Videos and pics
    Posted: 26 Oct 2016 at 11:51pm

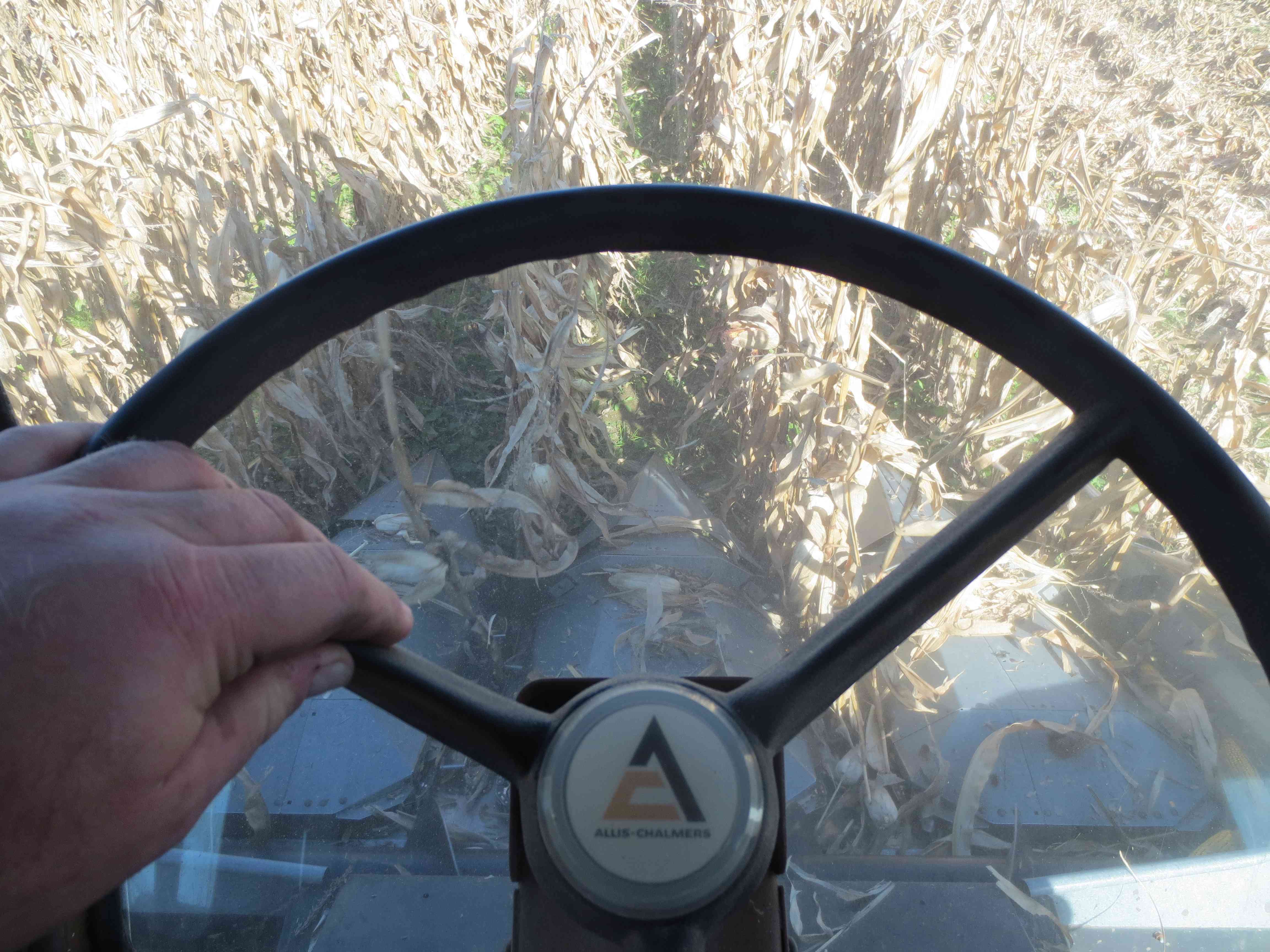

Here are some pictures of our F3 at work on Saturday.  Looks like she's doing a pretty good job.
[TUBE]http://youtu.be/AlFXh0A3dag[/TUBE]
[TUBE]http://youtu.be/FjFa71dlfpI[/TUBE]
Back to Top
Sponsored Links


Back to Top
shameless (ne) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Jul 2016
Location: nebraska
Points: 7463 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless (ne) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 1:38am
combine looks good, looks like it's doing a good job! operator looks comfywhat more could you ask for!
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8680 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 1:20pm
traveling very slow....wonder it aint throwing it out the back with so little on the shoe
Back to Top
DanD View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: WI
Points: 856 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DanD Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 1:30pm
Originally posted by SteveM C/IL SteveM C/IL wrote:

traveling very slow....wonder it aint throwing it out the back with so little on the
shoe

Sorry!
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8680 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 2:04pm
Do it however it suits you.If you have the fan choked down it would probably work.Here's my thinking...grain threshing grain is least damaging.Keeping cyl full would require more ground speed ,the shoe set accordingly and the fan wide open. My F2 w/4-30s will pick 200bu corn at just under 4mph and put it all in the bin.l do have long round tooth charger with first 7 rows on separate lever (more open) and speed up kit on clean grain elevator.Not trying to be one,just that l have to make the most of my available time.
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29817 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 2:38pm
A conventional combine is less sensitive to slow harvest speeds. Easily corrected with wind adjustment. A conventional does all of it's threshing pretty much grain on concave while a rotary needs more grain on grain to properly thresh.
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 2:55pm
I didn't know that. Going slow really increases loss? Why is that?
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8680 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 5:45pm
When the shoe has full load on it,stuff floats across and separation is accomplished with air and shaking.The amount of air required tofloat a full shoe will blow out a lightly loaded shoe.When you turn on the ends the shoe unlods and some grain always gets blown out.
Back to Top
KY poorboy View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Aug 2015
Location: West KY
Points: 933 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KY poorboy Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 7:54pm
That is one fine looking F3!!!
Thanks for posting.
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2016 at 8:13pm
Originally posted by SteveM C/IL SteveM C/IL wrote:

When the shoe has full load on it,stuff floats across and separation is accomplished with air and shaking.The amount of air required tofloat a full shoe will blow out a lightly loaded shoe.When you turn on the ends the shoe unlods and some grain always gets blown out.

Maybe that's why great-granddad always insisted on cutting corners! Grandpa told me he was always saying, "Keep 'er in the wheat!"
Back to Top
DanD View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: WI
Points: 856 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DanD Quote  Post ReplyReply Direct Link To This Post Posted: 29 Oct 2016 at 10:43am
Originally posted by shameless (ne) shameless (ne) wrote:

combine looks good, looks like it's doing a good job! operator looks comfywhat more could you ask for!

Not much!  Harvest was complete last Tuesday before the rains came Tuesday night.
Back to Top
shameless (ne) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Jul 2016
Location: nebraska
Points: 7463 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless (ne) Quote  Post ReplyReply Direct Link To This Post Posted: 29 Oct 2016 at 4:15pm
good feeling.....ain't it?
Back to Top
