 Topic: snap coupler disc?
Posted: 18 Nov 2010 at 8:59pm |
I went to look at a job with a coworker one day, and noticed the familiar snap-coupler tongue sticking out of some growed up bushes.
Him being orange-ignorant, he had no idea why I quit looking at what we were sposed to be looking at, and was climbing thru the cockleburrs. Dang IH fans.....
Lo and behold, it was the tongue on about a 6 or 7 foot disc - the fingers that the snap coupler arms tied to, were held on with twisted link chain.
I'd like to find out more about these, as we may be in need of a disc soon - have scoured the craigslists and farm sales books and Google and can't find one - anybody here got ary'n?
|
|
C w/ 3rd gear out
D15 II factory 3 point
WD (no motor!)(parts for sale!)
WD 45 wide front
|
 |
|
Sponsored Links
|
|
|
Phil (WY)
Bronze Level
Joined: 12 Sep 2009
Location: Cheyenne, WY
Points: 46
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 9:27pm |
|
It's probably an 8' disk. I have one I use on my WD and my WD 45. Phil
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 9:28pm |
The model 40 was a heavy disc and has heavy pivot castings for the gangs. The model 20 is a lighter disc with a simple angle iron frame. The 100 series is similar to the 20, but the fore/aft adjustment is up high angled back instead of the small vertical crank on the front of the frame.
|
|
ALLIS EXPRESS!
This year:
|
|
Matt MN
Orange Level
Joined: 14 Sep 2009
Location: Silver lake MN
Points: 1491
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 9:31pm |

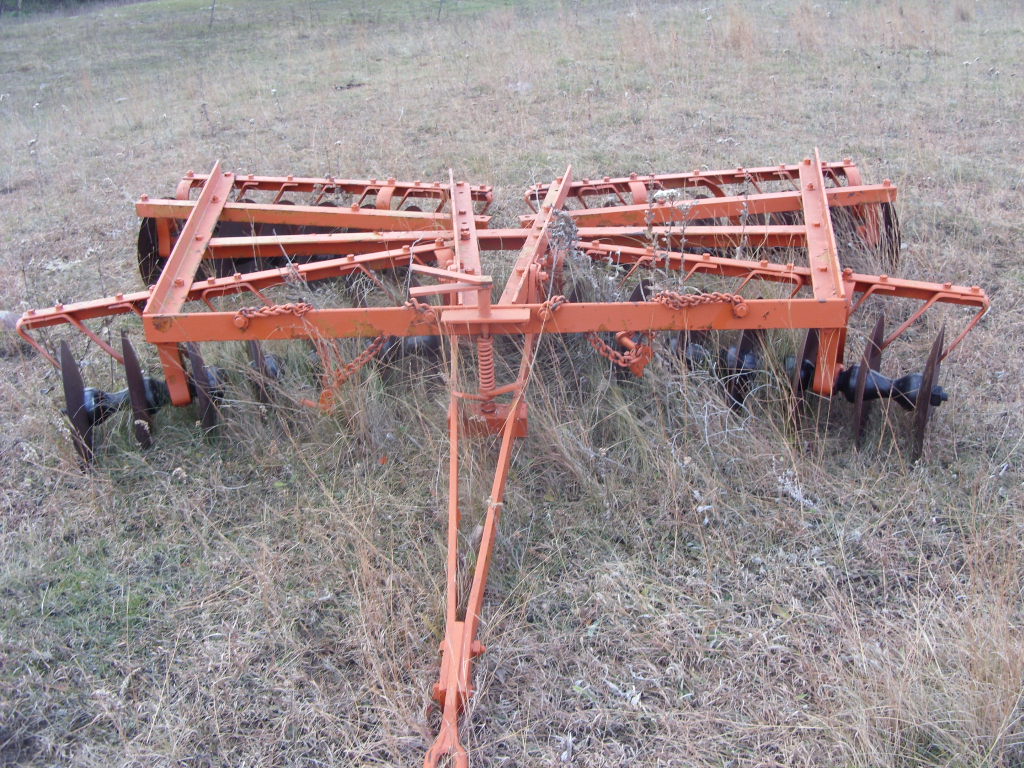

this is an 8ft disk that I have
|
|
Unless your are the lead horse the scenery never changes!!
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 9:35pm |
Matt that would be a model 20, here is a pic of my model 40...excuse the 80R mower frame sitting on top!
|
|
ALLIS EXPRESS!
This year:
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 9:40pm |
Here is a little better pic of the 40....about all the CA with front weights could lift....
|
|
ALLIS EXPRESS!
This year:
|
|
darrel in ND
Orange Level
Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8588
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2010 at 10:07pm |
|
Eldon, is there a piece of orange equipment that you don't own? LOL, someday I'll get out there to check er out. Darrel
|
|
John D
Silver Level
Joined: 12 Sep 2009
Location: Sherman, IL
Points: 360
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Nov 2010 at 8:05am |
Here is our model 20.
|
|
Wil M (NEIA)
Orange Level
Joined: 11 Sep 2009
Location: NEIA
Points: 478
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Nov 2010 at 9:02am |
Here is a picture of a 100 series disk.
|
|
"Yet there are soulless men whose hand and brain tear down what time will never give again." Anderson M Scruggs
|
|
Chad(WI)
Orange Level
Joined: 11 Sep 2009
Location: NE Wisconsin
Points: 927
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Nov 2010 at 5:15pm |
This is my 6' series 40. Let us know what you come up with.
|
|
cbuttre835
Bronze Level
Joined: 12 Nov 2010
Location: Peytonsville TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Nov 2010 at 10:45pm |
|
yup, looked like Matt MNs and John D's. Basically flat and angle iron, no riser like the Model 40 or 100.
Wonder what it's worth? Looked OK I guess, it was growed up in some buck-bushes and didn't look like it'd been used in a while - had been bushogged in front of it but it ans some other stuff was growing up in the fence row....
|
|
C w/ 3rd gear out
D15 II factory 3 point
WD (no motor!)(parts for sale!)
WD 45 wide front
|
|
Larry in OK
Orange Level
Joined: 25 Jan 2010
Location: NE Oklahoma
Points: 315
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Nov 2010 at 10:47pm |
|
My neighbor has one like Matt's picture. He just sold it for $200 to a guy that is going to modify it for a 3 point and pull it with his 9N.
|
|
Some people are like Slinkies. Not really good for much of anything but they still bring a smile to your face when you push them down a flight of stairs.
|
|
cbuttre835
Bronze Level
Joined: 12 Nov 2010
Location: Peytonsville TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2010 at 10:14pm |
Since my dad has decided to get his WD-45 running, I'm going to make a trip back to where I saw this disc and make an offer on it. He's also bought a WD sans motor, hood, radiator, etc. and 3 bottom SC plow and 3-shank SC chisel plow; since we need a disc might as well make it a snap coupler too to go with the other stuff.... just as well to start there.
Y'all are great.... thanks for the info....
